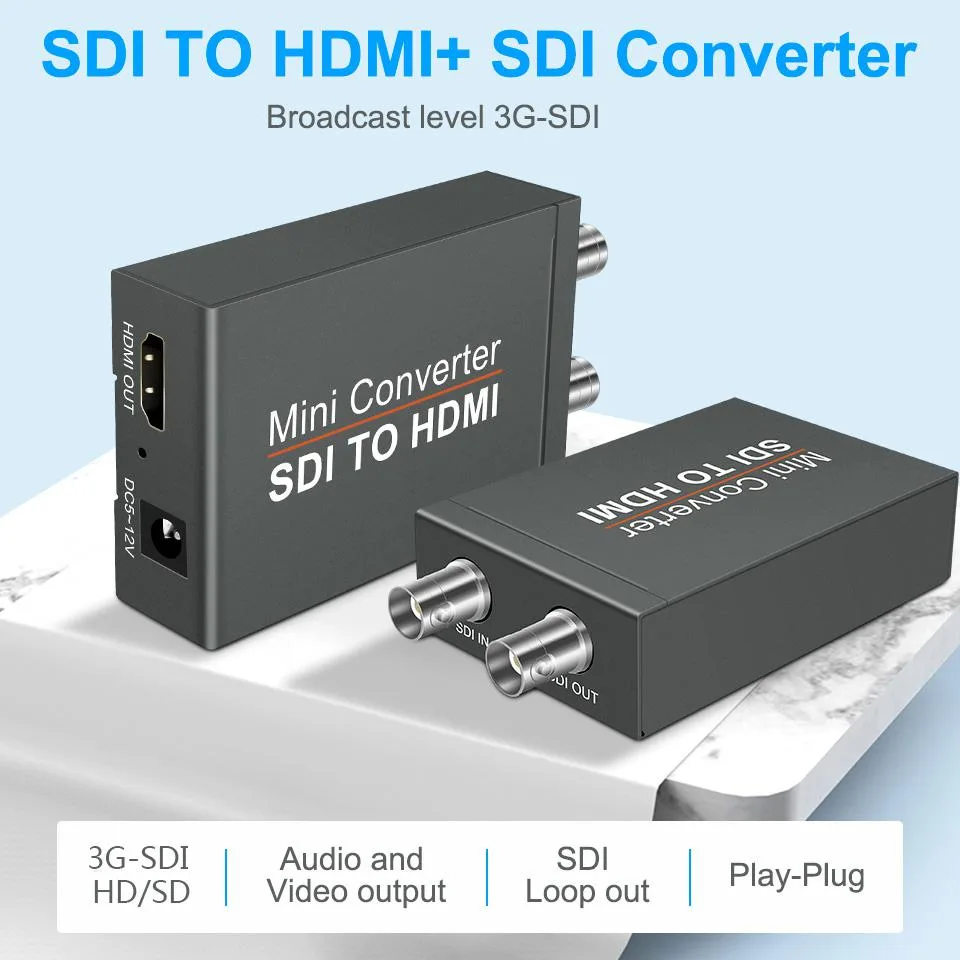

Black rectangular SDI-to-HDMI converter with BNC and HDMI ports, LED indicator, USB power input

ESTONE

ESTONE SDI2HDMI 3G-SDI to HDMI video capturing device

SKU CH-WTAR-DD10C

Converts 3G-SDI, HD-SDI and SD-SDI signals to HDMI up to 1080p with loop-through SDI output and 8-channel embedded audio

  • InterfaceSDI to HDMI
  • FormatSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • VideoSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
  • Converts SDI to HDMI for broad display compatibility
  • Auto-detects SD, HD and 3G-SDI signals up to 1080p
  • SDI loop-through lets you monitor on two screens simultaneously
  • Supports long cable runs up to 1000 ft for SD-SDI
  • USB-powered at 5V/1A for simple setup

SDI to HDMI converter for broadcast monitoring

The ESTONE SDI2HDMI converts SD, HD and 3G-SDI signals to HDMI for display on standard monitors. It accepts 480i, 576i, 720p and 1080i/p at frame rates including 24, 25, 30, 50 and 60 Hz. A loop-through BNC output passes the original SDI signal to a second screen. Power is drawn from a USB DC 5 V supply.

1080p ceiling with long-cable headroom

The unit handles SD-SDI, HD-SDI and 3G-SDI bit rates up to 2.97 Gbps and auto-detects the incoming format. SDI cable runs of 300 ft at 3G-SDI, 500 ft at HD-SDI and 1000 ft at SD-SDI are supported, while the loop output reaches 300 ft. Eight channels of 48 kHz embedded audio travel with the video. Resolution stops at 1080p; 4K signals are not processed.

Replaces rack converters for mobile crews

This converter replaces bulky rack-mounted gear when a portable SDI-to-HDMI path with simultaneous loop-out is needed. It is not for HDMI-to-SDI workflows, RF, CVBS, AHD, TVI or CVI sources, or any 4K pipeline. The jump is worth it when a lightweight, bus-powered box must bridge professional cameras to consumer displays on location.

Highlights

  • Converts SDI to HDMI for broad display compatibility
  • Auto-detects SD, HD and 3G-SDI signals up to 1080p
  • SDI loop-through lets you monitor on two screens simultaneously
  • Supports long cable runs up to 1000 ft for SD-SDI
  • USB-powered at 5V/1A for simple setup

Specifications

BrandESTONE
SeriesSDI2HDMI
ModelSDI2HDMI
InterfaceSDI to HDMI
FormatSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
VideoSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
HDMI1 In
SDI2 Out
LED IndicatorYes
DisplaySDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
Specification- Product Type: SDI to HDMI Converter

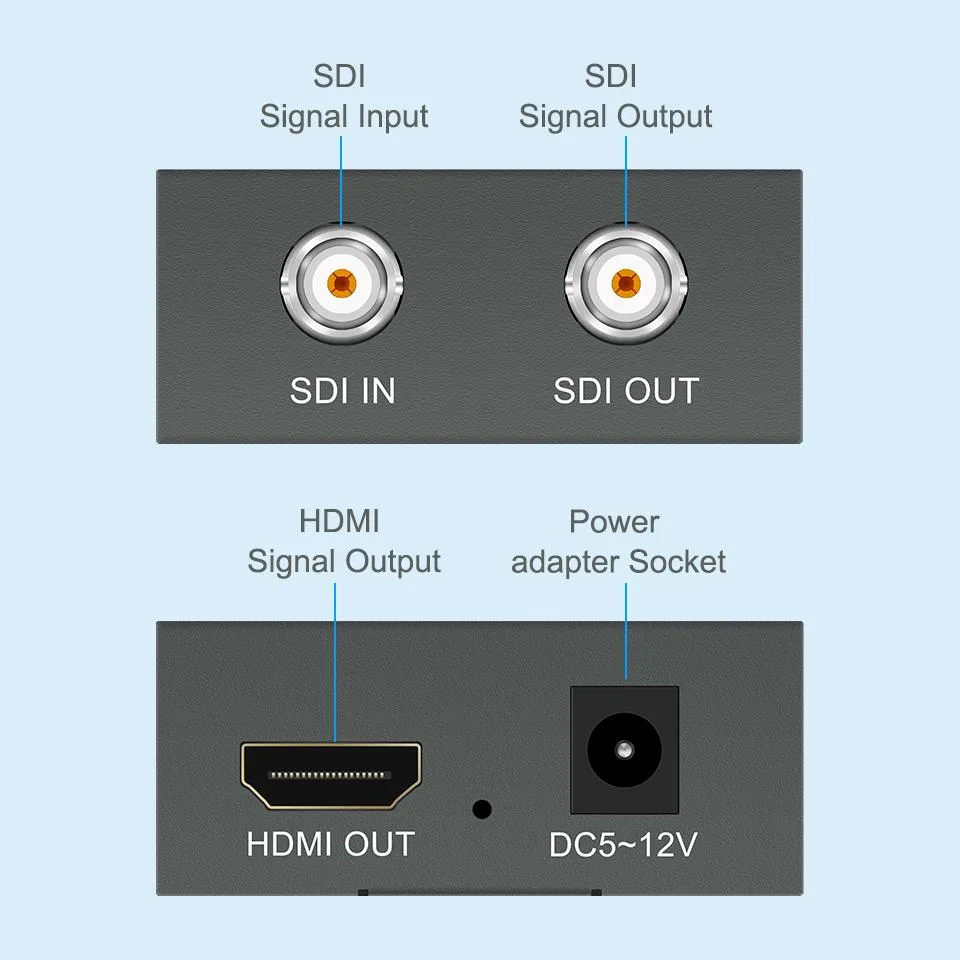

- Input Port: 1 x BNC (SDI/HD-SDI/3G-SDI)
- Output Port: 1 x HDMI Port, 1 x SDI Output (BNC)
- Power Supply: USB DC 5V/1A
Feature- SDI data rates: 270Mb/s,1.485 Gbps,2.97Gbps
- SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz
- HDMI Output resolutions: 720P/@50Hz, 720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz
- Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- One way SDI output, with the Re-clock function, can support multiple cascaded
Dimensions5.83 x 4.49 x 2.44 inches
Weight7.8 ounces
Package Content1 x SDI to HDMI Converter, 1 x Power Adapter, 1 x User Manual.
OptionHDMI - 1080p

Questions about this item

Will the SDI2HDMI converter pass a 3G-SDI 1080p 60 Hz signal from my older camera to an HDMI monitor without re-clocking issues?

The unit auto-detects 3G-SDI at 2.97 Gbps and outputs HDMI at 1080p 60 Hz, so the camera signal appears on the HDMI display with no manual setup.

How can I verify the converter is locking to the incoming SDI stream after I connect everything?

The built-in LED indicator lights when a valid SD, HD or 3G-SDI signal is detected, confirming the link is active.

Does the package include the BNC and HDMI cables I need, or only the converter and power supply?

The box contains the converter, a USB 5 V 1 A power adapter and a user manual; BNC and HDMI cables are not included.
