Small black metal box with BNC and HDMI ports, LED indicator, USB power

ESTONE

ESTONE SDI2HDMI 3G-SDI to HDMI converter loopout 1080p 60Hz

SKU CH-PK6M-T2YA9

Converts SD, HD and 3G-SDI signals to HDMI up to 1080p at 60 Hz with a loop-through SDI output for simultaneous monitoring

  • InterfaceSDI to HDMI
  • FormatSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • VideoSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
  • Converts SDI to HDMI for display on common monitors
  • Auto-detects SD, HD and 3G-SDI formats without manual setup
  • SDI loop-through lets you feed an SDI monitor simultaneously
  • Supports cable runs up to 300 ft for 3G-SDI and 1000 ft for SD-SDI
  • Embedded 8-channel 48 kHz audio passes through HDMI output

What this converter does

The ESTONE SDI2HDMI converts SD-SDI, HD-SDI and 3G-SDI signals to an HDMI output while passing the original SDI signal through a loop-out BNC port. It is built for broadcast engineers, live-stream producers and AV installers who need to view professional camera feeds on consumer displays.

The format support that decides fit

Auto-detection handles 480i, 576i, 720p and 1080i/p at 24, 25, 30, 50 and 60 Hz across SMPTE 259, 274, 292, 296, 372, 424 and 425 standards. The unit does not accept RF, CVBS, AHD, TVI, CVI or antenna sources and it cannot process UHD 4K signals.

Installation and common issues

Power comes from a USB DC 5 V 1 A adapter included in the box; connect the BNC input, HDMI display and optional SDI loop-out, then apply power. Long cable runs are supported up to 300 ft for 3G-SDI, 500 ft for HD-SDI and 1000 ft for SD-SDI. The converter is one-direction only and will not work for HDMI-to-SDI conversion.

Highlights

  • Converts SDI to HDMI for display on common monitors
  • Auto-detects SD, HD and 3G-SDI formats without manual setup
  • SDI loop-through lets you feed an SDI monitor simultaneously
  • Supports cable runs up to 300 ft for 3G-SDI and 1000 ft for SD-SDI
  • Embedded 8-channel 48 kHz audio passes through HDMI output

Specifications

BrandESTONE
SeriesSDI2HDMI
ModelSDI2HDMI
InterfaceSDI to HDMI
FormatSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
VideoSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
HDMI1 In
SDI2 Out
LED IndicatorYes
DisplaySDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
Specification- Product Type: SDI to HDMI Converter

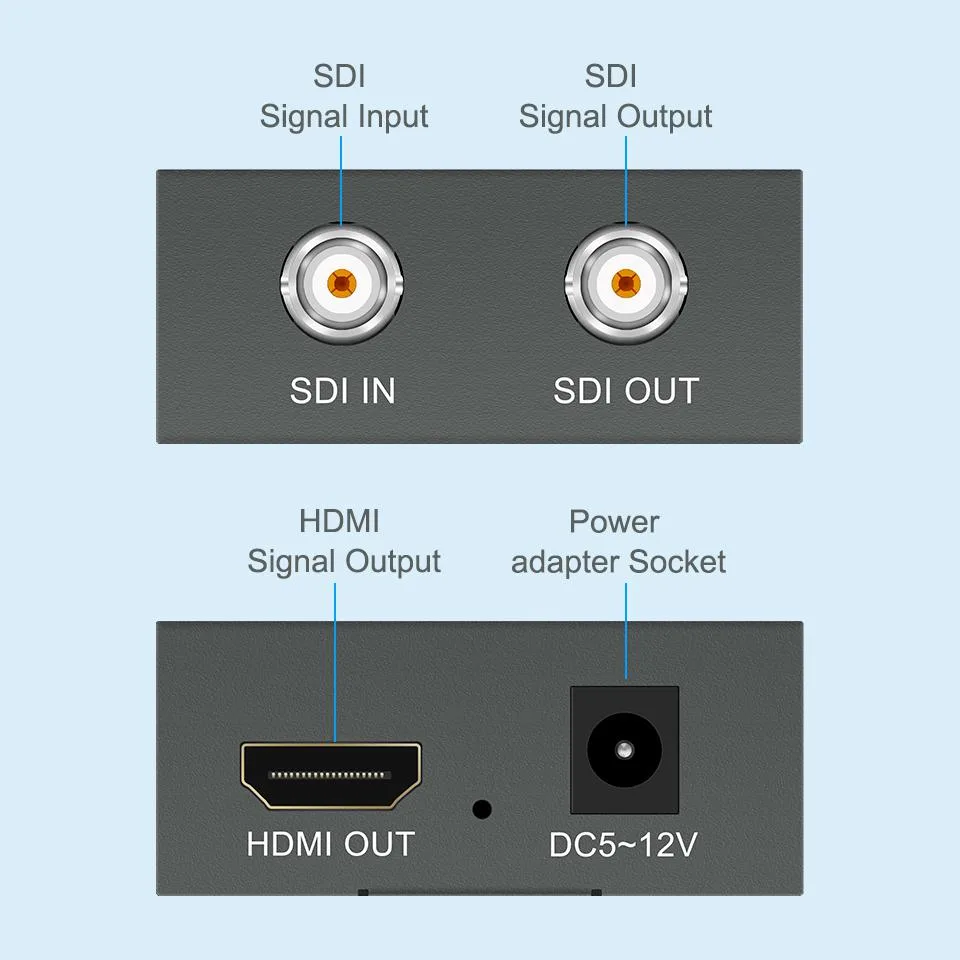

- Input Port: 1 x BNC (SDI/HD-SDI/3G-SDI)
- Output Port: 1 x HDMI Port, 1 x SDI Output (BNC)
- Power Supply: USB DC 5V/1A
Feature- SDI data rates: 270Mb/s,1.485 Gbps,2.97Gbps
- SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz
- HDMI Output resolutions: 720P/@50Hz, 720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz
- Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- One way SDI output, with the Re-clock function, can support multiple cascaded
Dimensions5.83 x 4.49 x 2.44 inches
Weight7.8 ounces
Package Content1 x SDI to HDMI Converter, 1 x Power Adapter, 1 x User Manual.
OptionHDMI - 1080p

Questions about this item

What does the 1080p 60Hz rating mean when I connect this converter to my display?

The HDMI output can deliver a 1080p progressive image at up to 60 frames per second, matching the highest 3G-SDI input mode the unit accepts.

Which SDI standards does the BNC input handle and what bit-rate ceiling applies?

The single BNC input auto-detects SD-SDI at 270 Mbps, HD-SDI at 1.485 Gbps and 3G-SDI at 2.97 Gbps, so the interface caps at the 3G-SDI rate.

What are the physical dimensions and mounting requirements for this unit?

The converter measures 5.83 x 4.49 x 2.44 inches, weighs 7.8 ounces and is powered via USB 5 V / 1 A, so it only needs a flat surface and a nearby USB power source.
