ESTONE

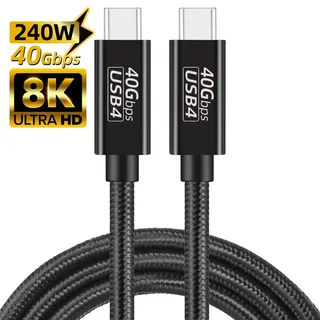

ESTONE PQ006 USB4 cable 1.5 ft 240W 40 Gbps Thunderbolt 3
A 1.5 ft USB4 cable delivering 240W charging, 40 Gbps data and 8K@60Hz video over Thunderbolt 3
- TypeUSB4
- Connector TypeUSB C to USB C
- ColorBlack
- Thunderbolt 3Yes
- Terminal GenderMale to Male
- Apple CompatibleUSB-C port
- 240W fast charging powers laptops quickly with PD 3.1 EPR
- 40 Gbps data transfer moves large files at USB4 Gen 3x2 speed
- 8K 60 Hz video output drives high-resolution displays
- Thunderbolt 3 and 4 compatibility works with existing docks and devices
- 5 ft nylon-braided cable stays flexible and resists tangles
USB4 Gen 3x2 Cable
This 1.5 ft USB4 Gen 3x2 cable connects USB C devices with up to 40 Gbps bi-directional data transfer. It supports Thunderbolt 3 and 4 compatibility along with 8K@60Hz video output. The male-to-male reversible connectors suit laptops, tablets and phones with USB C ports.
Nylon Braided Build
A nylon braided jacket protects the cord while keeping it soft and flexible for daily handling. The cable carries USB PD 3.1 Extended Power Range up to 240W at 48V and is backwards compatible with 180W, 140W, 100W and lower profiles. It also supports QC4.0/3.0, AFC, SCP and FCP fast-charging protocols.
Replaces Older USB Cables
This single cable replaces separate USB 2.0, USB 3.0, USB 3.1 and USB 3.2 cables for data, charging and display. The jump is worth it when you need 40 Gbps throughput or 240W power delivery in one lead. It is not for setups requiring longer reach than 1.5 ft or legacy USB A connectors.
Highlights
- 240W fast charging powers laptops quickly with PD 3.1 EPR
- 40 Gbps data transfer moves large files at USB4 Gen 3x2 speed
- 8K 60 Hz video output drives high-resolution displays
- Thunderbolt 3 and 4 compatibility works with existing docks and devices
- 5 ft nylon-braided cable stays flexible and resists tangles
Specifications
| Brand | ESTONE |
|---|---|
| Model | PQ006 |
| Type | USB4 |
| Connector Type | USB C to USB C |
| Color | Black |
| Thunderbolt 3 | Yes |
| Terminal Gender | Male to Male |
| Apple Compatible | USB-C port |
| Specifications | 240W USB4 Cable USB Standard: The Latest USB4 Gen 3x2 Connector Gender & Type: USB C Male to USB C Male, Bi-directional & Reversible. Power Delivery: PD 3.1/PD 3.0 PPS/PD2.0, QC4.0/3.0, and AFC, SCP, FCP, etc. Extended Power Range: Fully Supported, Backwards compatible with lower power requirements like 180W/140W/100W/60W and below. Supported Maximum Wattage: 240W, Compatible with Apple 140W USB-C EPR Charger to power MacBook Pro 16'' with a full load of 140W (Requires a 240W EPR PD 3.1 charger and device to load 240W). Supported Maximum Voltage: 48V, Voltage rating according to PD 3 |
| Refresh Rate | 8K@60Hz |
| Features | 240W, Leading Fast Charging Tech: When our USB C to USB C cable paired with a compatible charger, it reaches the maximum power supported by the device, supporting up to 240W (48V/5A) power supply. Within the next 5 to 10 years, this USBC to USBC fast charging cable can completely meet the demands of fast charging, and could charge virtually any USB-C device from phones and accessories to gaming laptops. Support 8K UHD Display: Support ultra HD video resolution, 40Gbps bandwidth allows single 8K@60Hz outputs or dual 4K@60Hz video, 40Gbps speed cables are suitable for eGPU and dual 4K |
Other versions of this model
5 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
ESTONE PQ005 USB4 C to C cable 1.6FT 240W 40Gbps 8K@60Hz 90° braided
- USB4
- USB C to USB C
ESTONE PQ005 USB4 cable right-angle 3.3FT 40Gbps 240W 8K@60Hz
- USB4
- USB C to USB C
ESTONE PQ006 USB4 cable 5 ft 240W 40 Gbps Thunderbolt 3/4 8K@60Hz black
- USB4
- USB C to USB C
ESTONE PQ005 USB4 Gen 3x2 cable 3.3ft 40Gbps 240W right-angle
- USB4
- USB C to USB C
Questions about this item
What USB4 generation does this cable use, and what data rate does it cap at in practice?
It uses USB4 Gen 3x2 and supports up to 40 Gbps bi-directional transfer with USB4 Gen 3x2 devices.
What connector type and length does this cable have for fitting between devices?
USB C male to USB C male, bi-directional and reversible, at 1.5 ft long.
How do I install this cable to get 240 W charging, and what step do people miss?
Plug into a 240 W EPR PD 3.1 charger and a device that accepts 240 W; the missed step is using a lower-power charger or device that cannot negotiate 48 V / 5 A.
