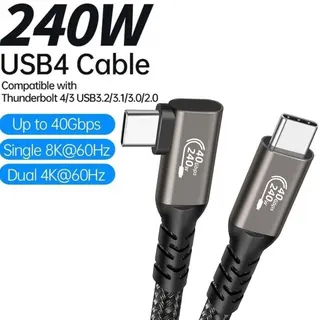

Black USB-C to USB-C right-angle cable with braided nylon finish, 1.6ft length

ESTONE

ESTONE PQ005 USB4 Gen 3x2 40Gbps 240W Right Angle USB C Cable 1.6ft

SKU CH-9AX0-RF3FY

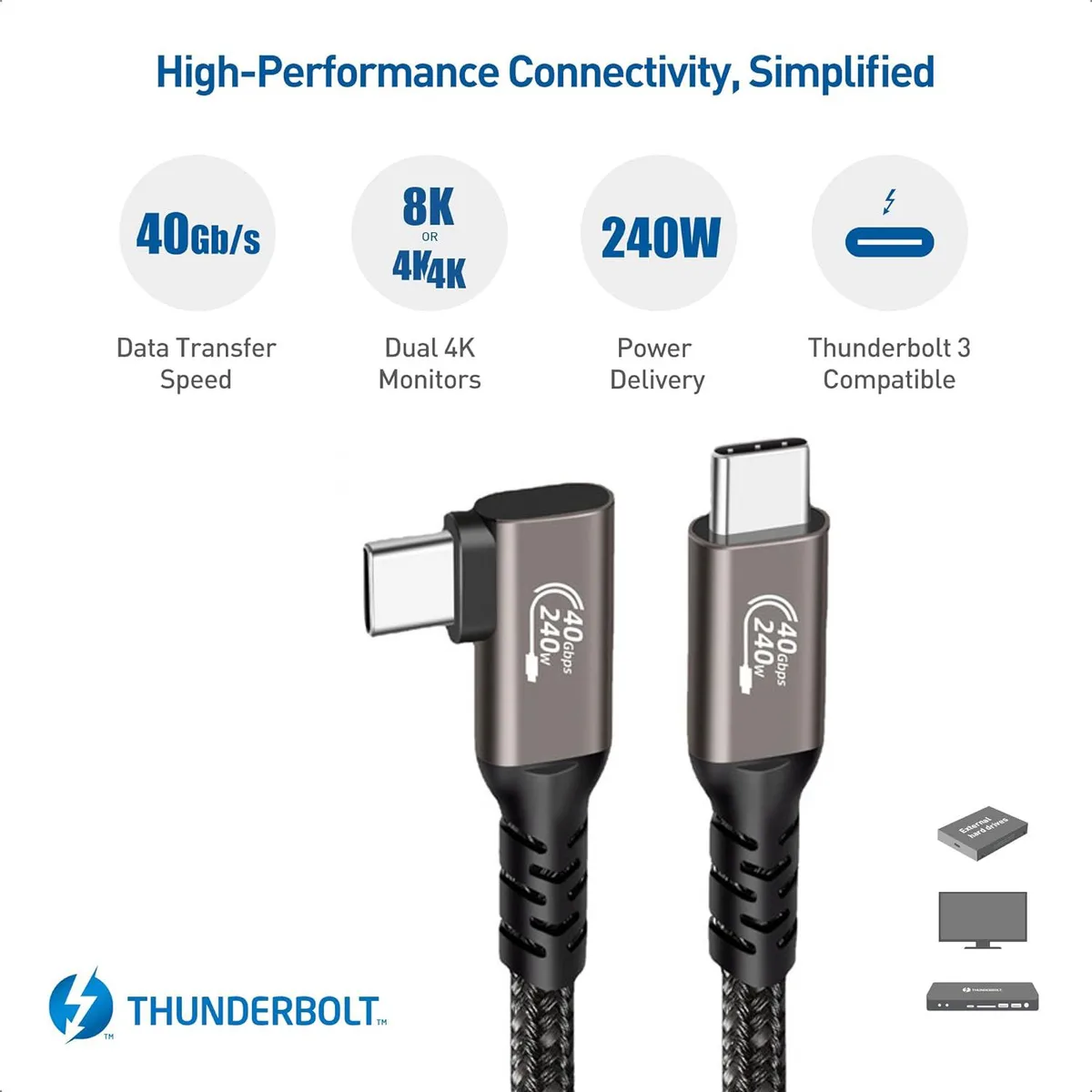

USB4 Gen 3x2 cable carries 40Gbps data, 8K@60Hz video and 240W power in a 1.6ft right-angle braided design

  • TypeUSB4
  • Connector TypeUSB C to USB C
  • ColorBlack
  • Thunderbolt 3Yes
  • Terminal GenderMale to Male
  • Apple CompatibleUSB-C port

Cable Length 1.5 Feet

  • Charges up to 240W with PD 3.1 Extended Power Range
  • Delivers 40Gbps bi-directional data via USB4 Gen 3x2
  • Drives single 8K@60Hz or dual 4K@60Hz displays
  • Right-angle USB-C connectors fit tight ports and reduce strain
  • Works with Thunderbolt 3 and 4 devices

Right-Angle USB4 Cable for Tight Ports

This 1.6 ft USB4 Gen 3x2 cable uses a right-angle USB-C male connector on each end to fit beside other cables or against a laptop edge. It carries 40 Gbps bi-directional data and up to 240 W of Power Delivery 3.1 power with 48 V maximum voltage. The nylon-braided jacket protects the conductors during frequent plugging and unplugging. It suits users who need full USB4 speed and high-watt charging in a short, space-saving cable.

Replaces Shorter Straight Cables That Block

A straight connector often forces a bend that stresses the port or covers the next socket; the right-angle design eliminates that interference. The jump is worth it when the device sits flush against a wall, dock or monitor stand and a straight plug would protrude or require an awkward loop. It also replaces cables limited to 100 W when the charger and laptop both support Extended Power Range up to 240 W. Buyers who need a longer reach for desk routing should choose a different length.

Limited by 1.6 ft Length

The short length restricts use to devices positioned very close to the host port. Video output tops out at single 8K at 60 Hz, 4K at 120 Hz or dual 4K at 60 Hz only when two separate cables are used, so a single cable cannot drive two 4K displays simultaneously. Thunderbolt 3 and 4 hosts are supported, but the cable does not exceed the 40 Gbps ceiling of USB4 Gen 3x2. Systems without USB-C video alt mode will not transmit a display signal regardless of cable capability.

Highlights

  • Charges up to 240W with PD 3.1 Extended Power Range
  • Delivers 40Gbps bi-directional data via USB4 Gen 3x2
  • Drives single 8K@60Hz or dual 4K@60Hz displays
  • Right-angle USB-C connectors fit tight ports and reduce strain
  • Works with Thunderbolt 3 and 4 devices

Specifications

BrandESTONE
ModelPQ005
TypeUSB4
Connector TypeUSB C to USB C
ColorBlack
Thunderbolt 3Yes
Terminal GenderMale to Male
Apple CompatibleUSB-C port
Specifications240W USB4 Cable
USB Standard: The Latest USB4 Gen 3x2
Connector Gender & Type: USB C Male to USB C Male, Bi-directional & Reversible.
Power Delivery: PD 3.1/PD 3.0 PPS/PD2.0, QC4.0/3.0, and AFC, SCP, FCP, etc.
Extended Power Range: Fully Supported, Backwards compatible with lower power requirements like 180W/140W/100W/60W and below.
Supported Maximum Wattage: 240W, Compatible with Apple 140W USB-C EPR Charger to power MacBook Pro 16'' with a full load of 140W (Requires a 240W EPR PD 3.1 charger and device to load 240W).
Supported Maximum Voltage: 48V, Voltage rating according to PD 3
Refresh Rate8K@60Hz
Features240W, Leading Fast Charging Tech: When our USB C to USB C cable paired with a compatible charger, it reaches the maximum power supported by the device, supporting up to 240W (48V/5A) power supply. Within the next 5 to 10 years, this USBC to USBC fast charging cable can completely meet the demands of fast charging, and could charge virtually any USB-C device from phones and accessories to gaming laptops.

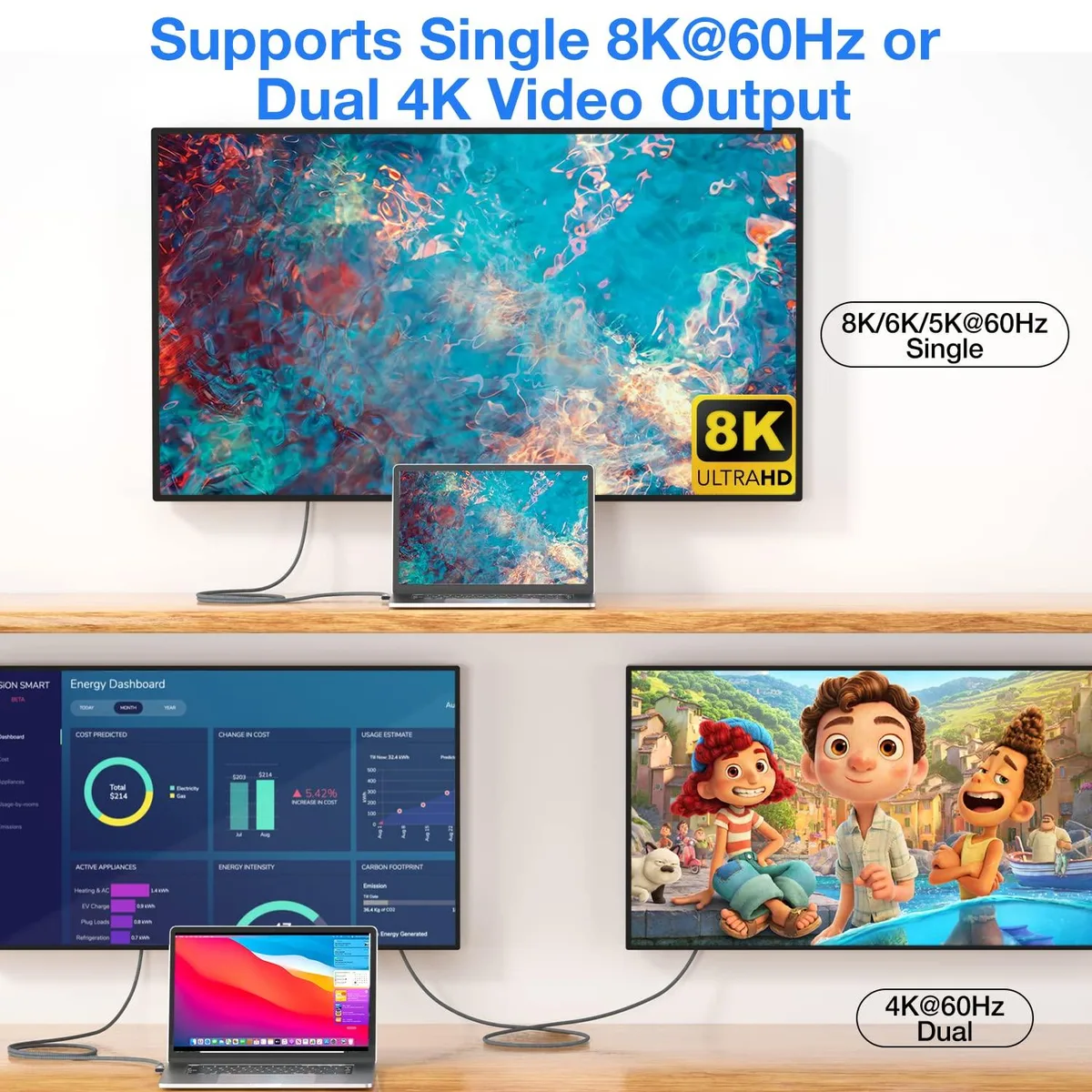

Support 8K UHD Display: Support ultra HD video resolution, 40Gbps bandwidth allows single 8K@60Hz outputs or dual 4K@60Hz video, 40Gbps speed cables are suitable for eGPU and dual 4K

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the right-angle USB-C plug fit beside the HDMI port on a MacBook Pro 16-inch?

The right-angle connector hugs the laptop edge, clearing adjacent HDMI or Thunderbolt ports while the 1.6 ft braided cable stays flexible for desk routing.

Do I need a firmware update or driver to reach 40 Gbps on Thunderbolt 4?

No driver is required; the bi-directional USB-C male ends negotiate USB4 Gen 3x2 automatically when both host and device support Thunderbolt 4.

How often should I replace the cable if I charge a 140 W MacBook Pro daily?

The nylon-braided jacket and reinforced strain relief are rated for long-term 240 W PD 3.1 use; inspect the connector tips yearly for debris or bent pins.
