Black nylon-braided USB-C to USB-C cable with right-angle connectors, five feet long

ESTONE

ESTONE PQ005 USB4 cable right-angle 5ft 40Gbps 240W black

SKU CH-AZ4M-NNX6E

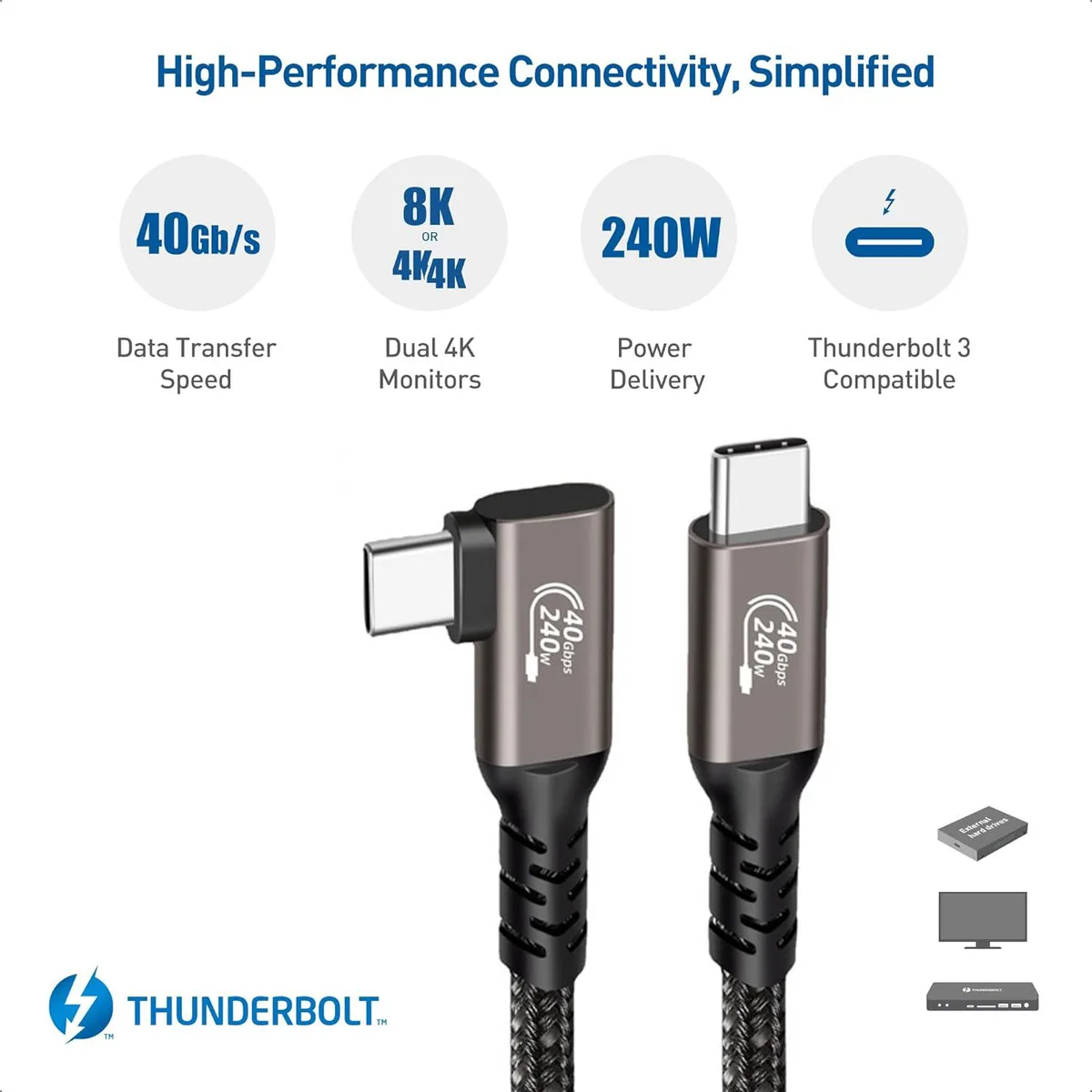

A right-angle USB-C cable delivering 40 Gbps data, 240 W charging and 8K 60 Hz video over 5 ft

  • TypeUSB4
  • Connector TypeUSB C to USB C
  • ColorBlack
  • Thunderbolt 3Yes
  • Terminal GenderMale to Male
  • Apple CompatibleUSB-C port

Cable Length 5 Feet

  • Up to 240W charging with PD 3.1 support
  • 40Gbps data transfer via USB4 Gen 3x2
  • 8K@60Hz video output over a single cable
  • Right-angle USB-C connectors reduce strain in tight spaces
  • 5ft nylon-braided cable built for daily durability

What this cable does

The ESTONE PQ005 is a USB4 Gen 3x2 cable with USB-C male connectors on both ends. It carries up to 40Gbps of data, delivers up to 240W of power at 48V, and drives an 8K display at 60Hz or two 4K displays at 60Hz when two cables are used. It is built for users who need one cable that handles charging, high-speed data and video simultaneously.

Sustained load behaviour

The cable supports Extended Power Range and remains backward compatible with 180W, 140W, 100W and 60W profiles, so it negotiates the highest wattage the host and charger allow without overheating. Data throughput stays at the negotiated USB4 Gen 3x2 rate during long transfers, and the video link holds 8K at 60Hz or 4K at 120Hz without dropped frames, provided both ends support the same specification.

Installation notes

Plug the right-angle connector into the device and the straight end into the charger, dock or host; the reversible USB-C ends insert either way up. No driver is required on Windows, macOS, Chrome OS, Linux or Android. The only common issue is expecting 40Gbps or 240W from a port that only supports USB 3.2 or a lower Power Delivery revision — check the host specification first.

Highlights

  • Up to 240W charging with PD 3.1 support
  • 40Gbps data transfer via USB4 Gen 3x2
  • 8K@60Hz video output over a single cable
  • Right-angle USB-C connectors reduce strain in tight spaces
  • 5ft nylon-braided cable built for daily durability

Specifications

BrandESTONE
ModelPQ005
TypeUSB4
Connector TypeUSB C to USB C
ColorBlack
Thunderbolt 3Yes
Terminal GenderMale to Male
Apple CompatibleUSB-C port
Specifications240W USB4 Cable
USB Standard: The Latest USB4 Gen 3x2
Connector Gender & Type: USB C Male to USB C Male, Bi-directional & Reversible.
Power Delivery: PD 3.1/PD 3.0 PPS/PD2.0, QC4.0/3.0, and AFC, SCP, FCP, etc.
Extended Power Range: Fully Supported, Backwards compatible with lower power requirements like 180W/140W/100W/60W and below.
Supported Maximum Wattage: 240W, Compatible with Apple 140W USB-C EPR Charger to power MacBook Pro 16'' with a full load of 140W (Requires a 240W EPR PD 3.1 charger and device to load 240W).
Supported Maximum Voltage: 48V, Voltage rating according to PD 3
Refresh Rate8K@60Hz
Features240W, Leading Fast Charging Tech: When our USB C to USB C cable paired with a compatible charger, it reaches the maximum power supported by the device, supporting up to 240W (48V/5A) power supply. Within the next 5 to 10 years, this USBC to USBC fast charging cable can completely meet the demands of fast charging, and could charge virtually any USB-C device from phones and accessories to gaming laptops.
Support 8K UHD Display: Support ultra HD video resolution, 40Gbps bandwidth allows single 8K@60Hz outputs or dual 4K@60Hz video, 40Gbps speed cables are suitable for eGPU and dual 4K

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the right-angle USB4 cable generate noticeable heat when delivering 240W continuously?

The cable is rated for up to 240W (48V/5A) via PD 3.1 Extended Power Range and uses a nylon-braided jacket designed to handle high current without excess heat buildup during sustained loads.

What charger and device must I already own to reach 240W charging with this cable?

You need a PD 3.1 EPR charger capable of 48V/5A output and a device that negotiates 240W, such as a MacBook Pro 16'' with Apple's 140W EPR adapter or any laptop supporting the full 240W profile.

Will this cable work at 40Gbps with my Thunderbolt 3 eGPU enclosure?

Yes, the cable is backwards compatible with Thunderbolt 3 and USB 3.2, so it will carry 40Gbps data to a Thunderbolt 3 eGPU provided the enclosure and host both support that speed.
