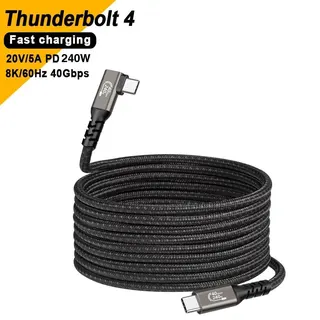

Black braided USB-C to USB-C cable with right-angle connectors, 3.3 ft long

ESTONE

ESTONE PQ005 USB4 cable 90 degree braided 3.3FT 40Gbps 240W

SKU CH-81XT-KVGZC

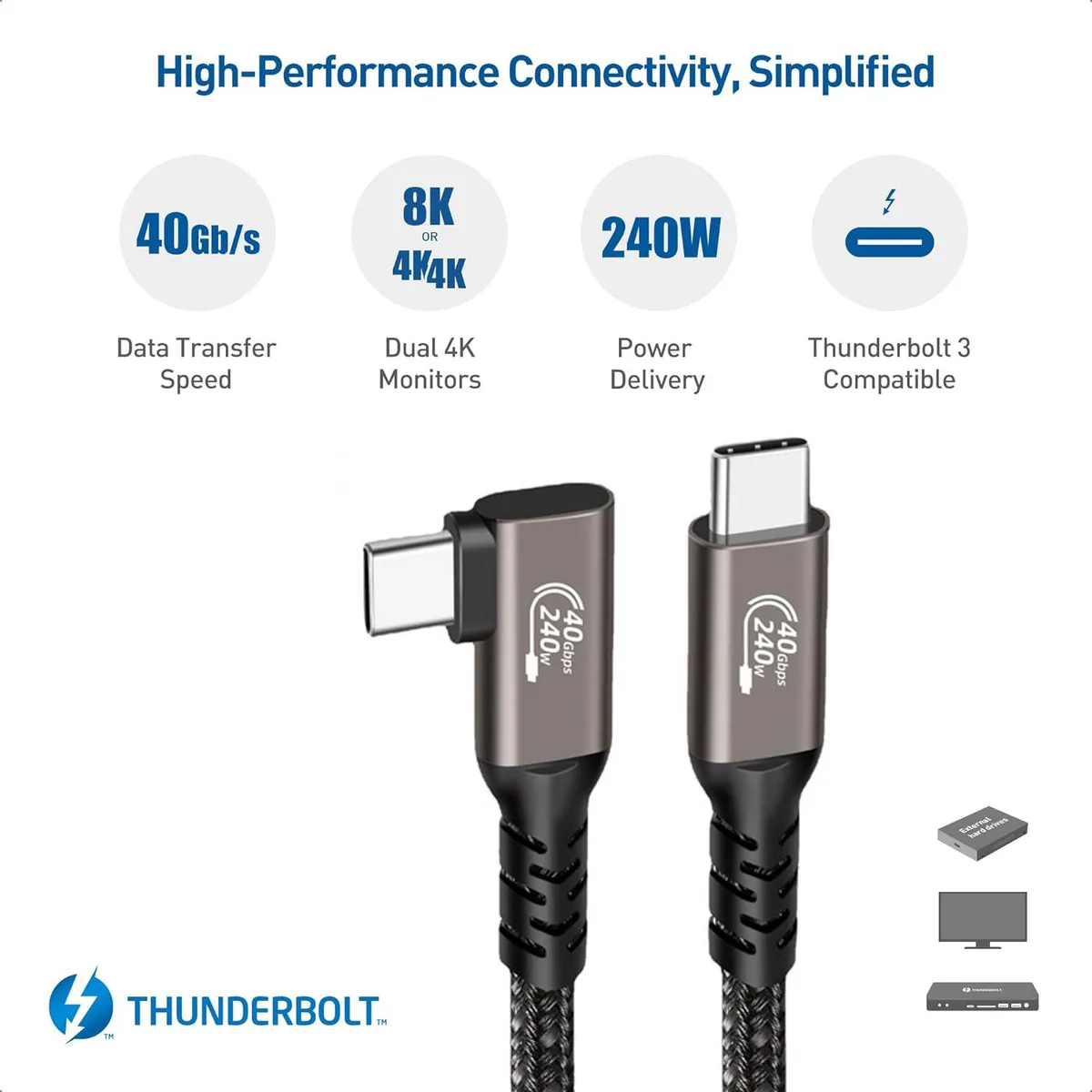

A 90-degree braided USB4 cable delivering 40Gbps data, 8K@60Hz video and up to 240W charging for USB-C devices

  • TypeUSB4
  • Connector TypeUSB C to USB C
  • ColorBlack
  • Thunderbolt 3Yes
  • Terminal GenderMale to Male
  • Apple CompatibleUSB-C port

Cable Length 3.3 Feet

  • Charges up to 240W with PD 3.1
  • Transfers data at 40Gbps over USB4 Gen 3x2
  • Drives 8K@60Hz or dual 4K@60Hz displays
  • 90-degree braided connector fits tight spaces
  • Works with Thunderbolt 3 and USB-C devices

ESTONE PQ005 USB4 90-degree cable

The ESTONE PQ005 is a USB4 Gen 3x2 Type-C to Type-C cable with a 90-degree connector and braided jacket. It suits users who need high-speed data, 8K video and up to 240W charging in a compact angled form factor.

40Gbps bandwidth with USB4 Gen 3x2

This cable delivers up to 40Gbps bi-directional data transfer when used with USB4 Gen 3x2 ports. It also supports Thunderbolt 3, single 8K@60Hz or dual 4K@60Hz video output, and extended power range up to 240W at 48V.

Broad protocol support for charging flexibility

The cable implements PD 3.1, PD 3.0 PPS, PD 2.0, QC 4.0/3.0, AFC, SCP and FCP. It is backwards compatible with 180W, 140W, 100W and 60W profiles, so one cable covers phones, tablets, laptops, eGPUs and GaN chargers.

Highlights

  • Charges up to 240W with PD 3.1
  • Transfers data at 40Gbps over USB4 Gen 3x2
  • Drives 8K@60Hz or dual 4K@60Hz displays
  • 90-degree braided connector fits tight spaces
  • Works with Thunderbolt 3 and USB-C devices

Specifications

BrandESTONE
ModelPQ005
TypeUSB4
Connector TypeUSB C to USB C
ColorBlack
Thunderbolt 3Yes
Terminal GenderMale to Male
Apple CompatibleUSB-C port
Specifications240W USB4 Cable
USB Standard: The Latest USB4 Gen 3x2
Connector Gender & Type: USB C Male to USB C Male, Bi-directional & Reversible.
Power Delivery: PD 3.1/PD 3.0 PPS/PD2.0, QC4.0/3.0, and AFC, SCP, FCP, etc.
Extended Power Range: Fully Supported, Backwards compatible with lower power requirements like 180W/140W/100W/60W and below.
Supported Maximum Wattage: 240W, Compatible with Apple 140W USB-C EPR Charger to power MacBook Pro 16'' with a full load of 140W (Requires a 240W EPR PD 3.1 charger and device to load 240W).
Supported Maximum Voltage: 48V, Voltage rating according to PD 3
Refresh Rate8K@60Hz
Features240W, Leading Fast Charging Tech: When our USB C to USB C cable paired with a compatible charger, it reaches the maximum power supported by the device, supporting up to 240W (48V/5A) power supply. Within the next 5 to 10 years, this USBC to USBC fast charging cable can completely meet the demands of fast charging, and could charge virtually any USB-C device from phones and accessories to gaming laptops.
Support 8K UHD Display: Support ultra HD video resolution, 40Gbps bandwidth allows single 8K@60Hz outputs or dual 4K@60Hz video, 40Gbps speed cables are suitable for eGPU and dual 4K

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 40 Gbps rating mean when I connect this cable to my laptop and monitor?

The cable can carry up to 40 Gbps of data, enough for a single 8K display at 60 Hz or dual 4K displays at 60 Hz, provided both host and display support USB4 Gen 3x2.

Which USB standard does the cable implement and what practical limit does it set?

It implements USB4 Gen 3x2, capping data at 40 Gbps and video at 8K 60 Hz single or dual 4K 60 Hz; with USB4 Gen 2 devices the ceiling drops to 20 Gbps.

What physical space does the 90-degree connector need to fit?

The right-angle USB-C plug protrudes about 90 degrees from the port, so allow roughly 21 mm clearance beside the socket for the bend radius and braided jacket.
