ESTONE OZP1 4-Channel Video Wall Controller 2x2 HDMI DVI USB RS232
Distributes one HDMI or DVI input to four 1080p HDMI outputs with SPDIF 5.1 and 3.5 mm 2.0 audio for video wall splicing
- TypeProfessional Video Devices
- Remote ControlRemote Included
- InterfaceHDMI
- Ports In1 HDMI
- Ports Out4 HDMI
- SpecificationsSupport 1 HDMI-Compatible/DVI input Support input HDMI-Compa
- Distributes one HDMI or DVI source to four screens
- Input accepts 4K at 30 Hz and 1080p up to 60 Hz
- Outputs 1080p at 60 Hz across all four displays
- 5 mm stereo and optical 5.1 audio breakout
- RS-232 and IR remote for installation control

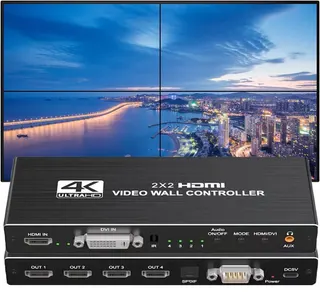

2x2 HDMI Video Wall Controller

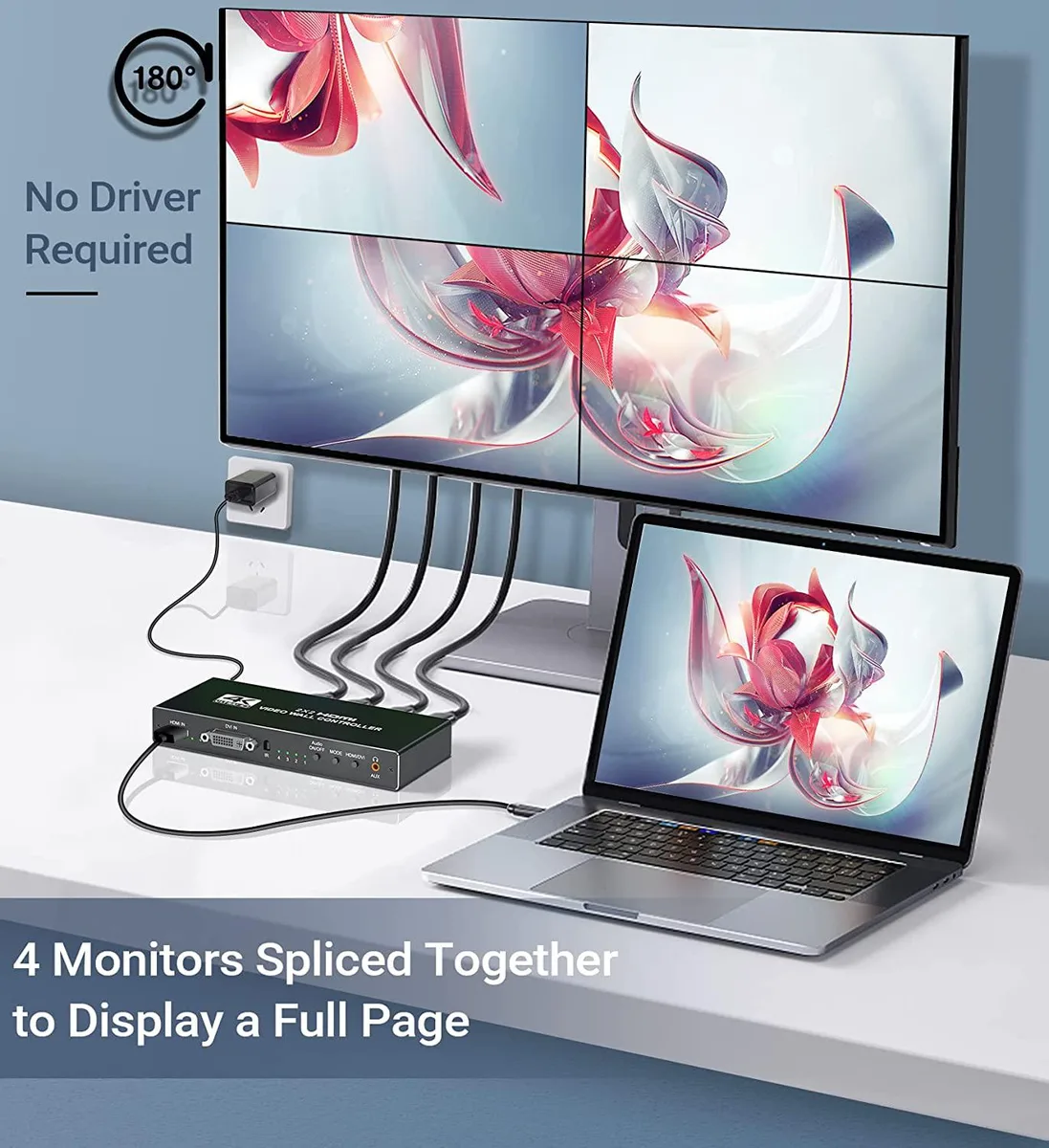

The ESTONE OZP1 accepts one HDMI or DVI source and splits it across four HDMI outputs to create a 2x2 video wall. It is aimed at installers building digital signage, security monitoring or conference-room displays using professional LCD splicing screens rather than consumer televisions.
Installation and common issues
The package includes the controller, a remote control without batteries, a 5V/2.1A power adapter and a user manual. Connect the single input source, link four displays to the HDMI outputs, attach audio via the 3.5mm jack or optical SPDIF port, then power the unit. A frequent issue is mismatched input resolution; the controller only outputs 1920x1080P, so sources sending 4K at 30Hz must be scaled down by the device.
Pre-order checklist
Verify that your source device can deliver HDMI or DVI signals at supported input rates of 3840x2160P at 24 or 30Hz, or 1920x1080P at 24, 25, 30, 50 or 60Hz. Confirm all four displays accept 1920x1080P at 60Hz over HDMI. Ensure you have professional video wall panels, as the manufacturer notes consumer TVs are not suitable. Check that RS232 control integration matches your automation system if required.
Highlights
- Distributes one HDMI or DVI source to four screens
- Input accepts 4K at 30 Hz and 1080p up to 60 Hz
- Outputs 1080p at 60 Hz across all four displays
- 5 mm stereo and optical 5.1 audio breakout
- RS-232 and IR remote for installation control
Specifications
| Brand | ESTONE |
|---|---|
| Model | OZP1 |
| Type | Professional Video Devices |
| Remote Control | Remote Included |
| Interface | HDMI |
| Ports In | 1 HDMI |
| Ports Out | 4 HDMI |
| Specifications | Support 1 HDMI-Compatible/DVI input Support input HDMI-Compatible Support 4 HDMI-Compatible outputs Support 1 x 3.5mm Jack audio with 2.0CH audio Support 1 x Optical SPDIF audio with 5.1CH audio Support input 4K 30Hz,1920x1080P,24/30/50/60HZ,and lower resolution Support output resolution 1920x1080P Support multiple splicing modes, easy to operate, plug and play Multi screen splicing seamless mixing Porous design convection heat dissipation Non slip design is stable and non slip |
| Package Contents | 2x2 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1 |
Questions about this item
How do I verify the OZP1 is outputting 1920x1080P@60Hz to each screen after setup?
Check each display's on-screen information menu; all four should report 1920x1080P at 60 Hz. The controller scales any 4K 30 Hz or 1080P 24/25/30/50/60 Hz input to that fixed output resolution.
What ships in the box and what must I supply myself?
Included: one OZP1 controller, one infrared remote (battery not included), one 5 V / 2.1 A power adapter, one user manual. You must provide four HDMI cables for the outputs, one HDMI or DVI cable for the input, and optional 3.5 mm or optical audio cables.
Which version of the OZP1 should I choose for a 2x2 wall?
The OZP1 is a single 2x2 model with one HDMI/DVI input and four HDMI outputs; there are no alternative channel counts or capacity options to select.
