ESTONE
ESTONE OZP1 2x2 Video Wall Controller 1080P professional video device
Splits one HDMI or DVI source into four 1080p HDMI displays with 2.0-channel analogue and 5.1-channel optical audio
- TypeProfessional Video Devices
- Remote ControlRemote Included
- InterfaceHDMI
- Ports In1 HDMI
- Ports Out4 HDMI
- SpecificationsSupport 1 HDMI-Compatible/DVI input Support input HDMI-Compa
- Distribute one HDMI or DVI source to four screens simultaneously
- Accepts 4K 30 Hz input and outputs full 1080p 60 Hz
- Supports 2.0-channel audio via 3.5 mm jack
- Delivers 5.1-channel surround through optical SPDIF
- Includes remote control for convenient operation

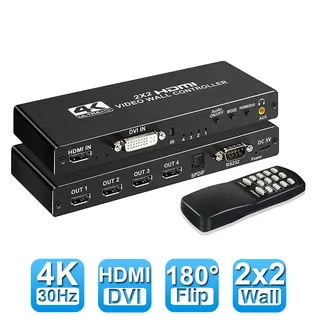

ESTONE OZP1 Video Wall Controller
The ESTONE OZP1 is a professional video device that takes one HDMI or DVI input and splits it across four HDMI outputs to drive a 2x2 video wall. It supports input resolutions up to 4K at 30 Hz and delivers a fixed 1920x1080P output at up to 60 Hz. The unit includes a remote control and provides both 3.5 mm stereo and optical SPDIF 5.1-channel audio extraction.

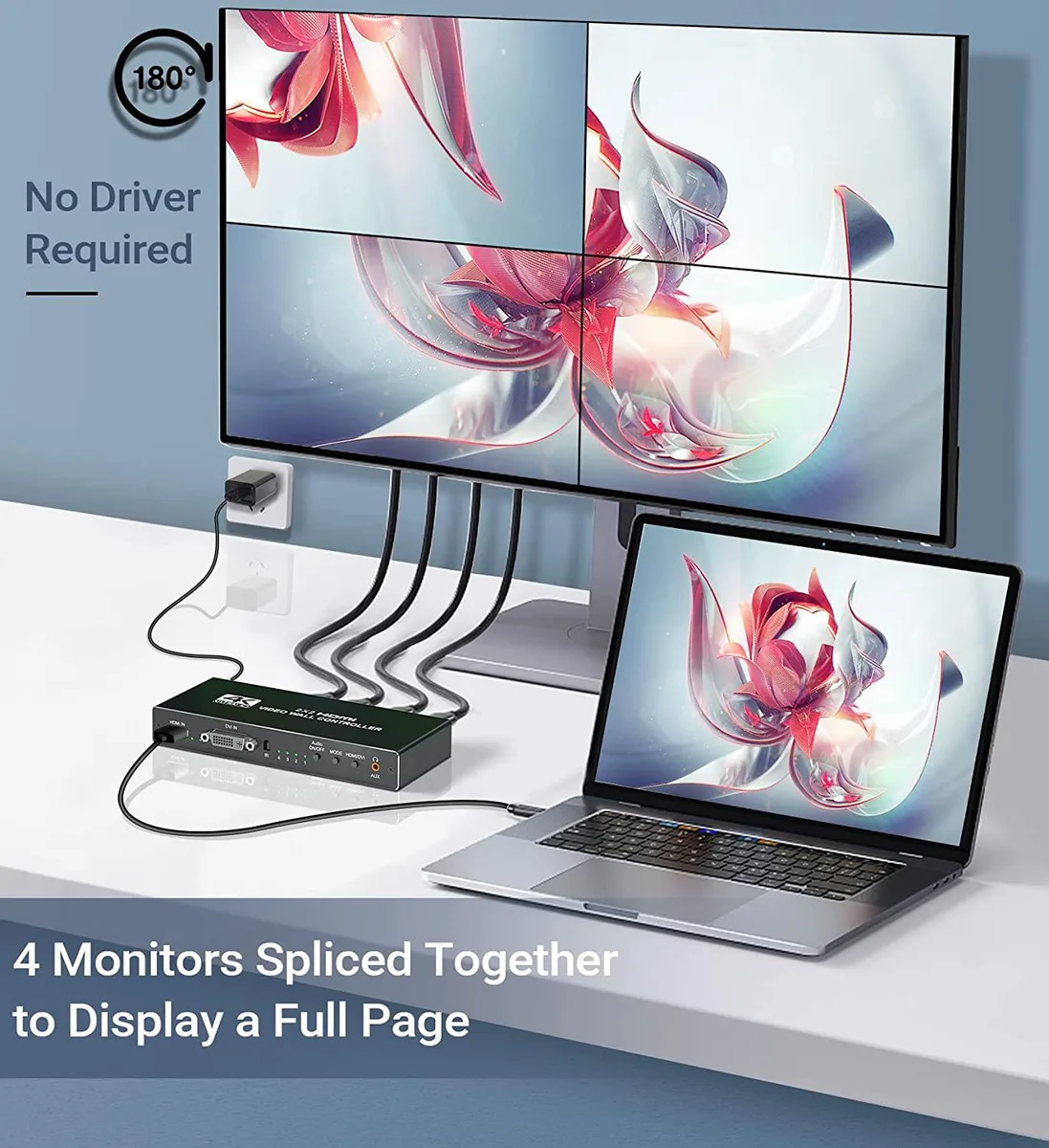

Installers needing 2x2 splicing
This controller suits integrators building a four-screen video wall from a single source such as a media player, PC or console. It is not for users who require output resolutions above 1080P, need more than four outputs, or want HDCP 2.2 or HDMI 2.0 features for protected 4K content at 60 Hz.
Fixed 1920x1080P output resolution
The single specification that decides fit is the maximum output resolution of 1920x1080P at 60 Hz. If the displays or application demand 4K output, this unit cannot meet that requirement.
Highlights
- Distribute one HDMI or DVI source to four screens simultaneously
- Accepts 4K 30 Hz input and outputs full 1080p 60 Hz
- Supports 2.0-channel audio via 3.5 mm jack
- Delivers 5.1-channel surround through optical SPDIF
- Includes remote control for convenient operation
Specifications
| Brand | ESTONE |
|---|---|
| Model | OZP1 |
| Type | Professional Video Devices |
| Remote Control | Remote Included |
| Interface | HDMI |
| Ports In | 1 HDMI |
| Ports Out | 4 HDMI |
| Specifications | Support 1 HDMI-Compatible/DVI input Support input HDMI-Compatible Support 4 HDMI-Compatible outputs Support 1 x 3.5mm Jack audio with 2.0CH audio Support 1 x Optical SPDIF audio with 5.1CH audio Support input 4K 30Hz,1920x1080P,24/30/50/60HZ,and lower resolution Support output resolution 1920x1080P Support multiple splicing modes, easy to operate, plug and play Multi screen splicing seamless mixing Porous design convection heat dissipation Non slip design is stable and non slip |
| Package Contents | 2x2 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1 |
Questions about this item
What mounting provisions does the OZP1 unit have for a 2×2 video wall setup?
The controller itself has no built-in mounting brackets; it sits on a shelf or rack tray and connects to four displays via its four HDMI outputs.
What is the correct power-up sequence to avoid losing the 1080P output signal on the four HDMI ports?
Connect all four HDMI cables first, then attach the 5 V 2.1 A power adapter, and finally power on the source device so the controller can negotiate 1920×1080P@60 Hz on every output.
Which audio connectors on the OZP1 may need replacement cables for long-term 5.1-channel surround sound?
The optical SPDIF port carries 5.1-channel audio; its Toslink cable should be replaced if the plastic tips become cloudy or the latch fails to click securely.
