ESTONE
ESTONE OZP1 2x2 Video Wall Controller 1080P 4 HDMI Out
Splits one HDMI or DVI source across four 1080p displays with 2.0-channel analogue and 5.1-channel optical audio outputs
- TypeProfessional Video Devices
- Remote ControlRemote Included
- InterfaceHDMI
- Ports In1 HDMI
- Ports Out4 HDMI
- SpecificationsSupport 1 HDMI-Compatible/DVI input Support input HDMI-Compa
- Distributes one HDMI or DVI source across four 1080P screens

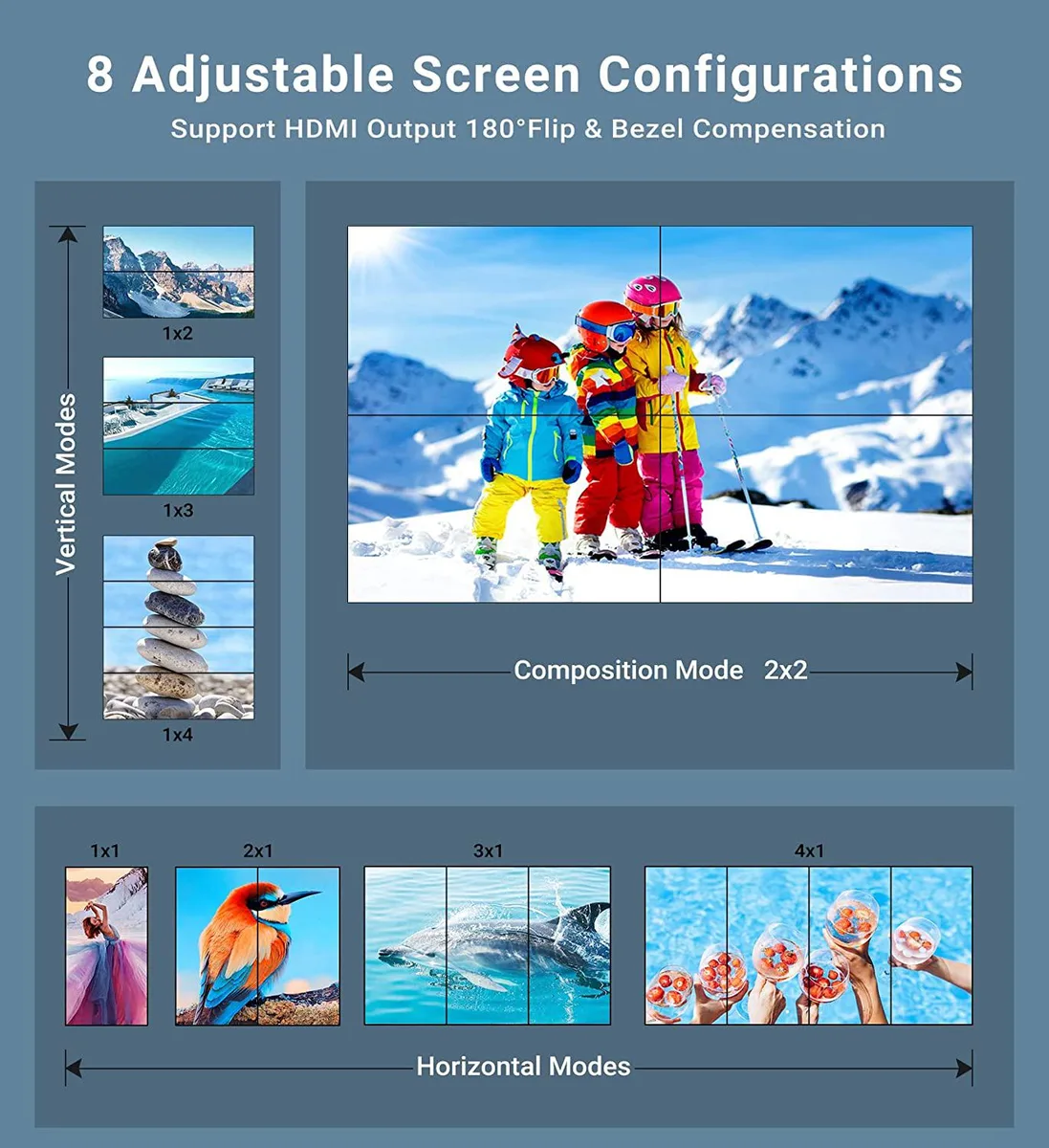

- Eight display modes including 2x2, 1x3 and 4x1 layouts
- Optical SPDIF output delivers 5.1-channel surround sound
- 5 mm jack provides stereo 2.0-channel audio
- HDMI 1.4 and HDCP 1.4 compliant for protected 4K 30 Hz input

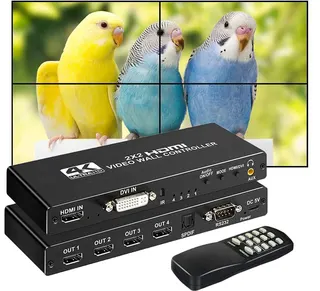

ESTONE OZP1 2x2 Video Wall Controller

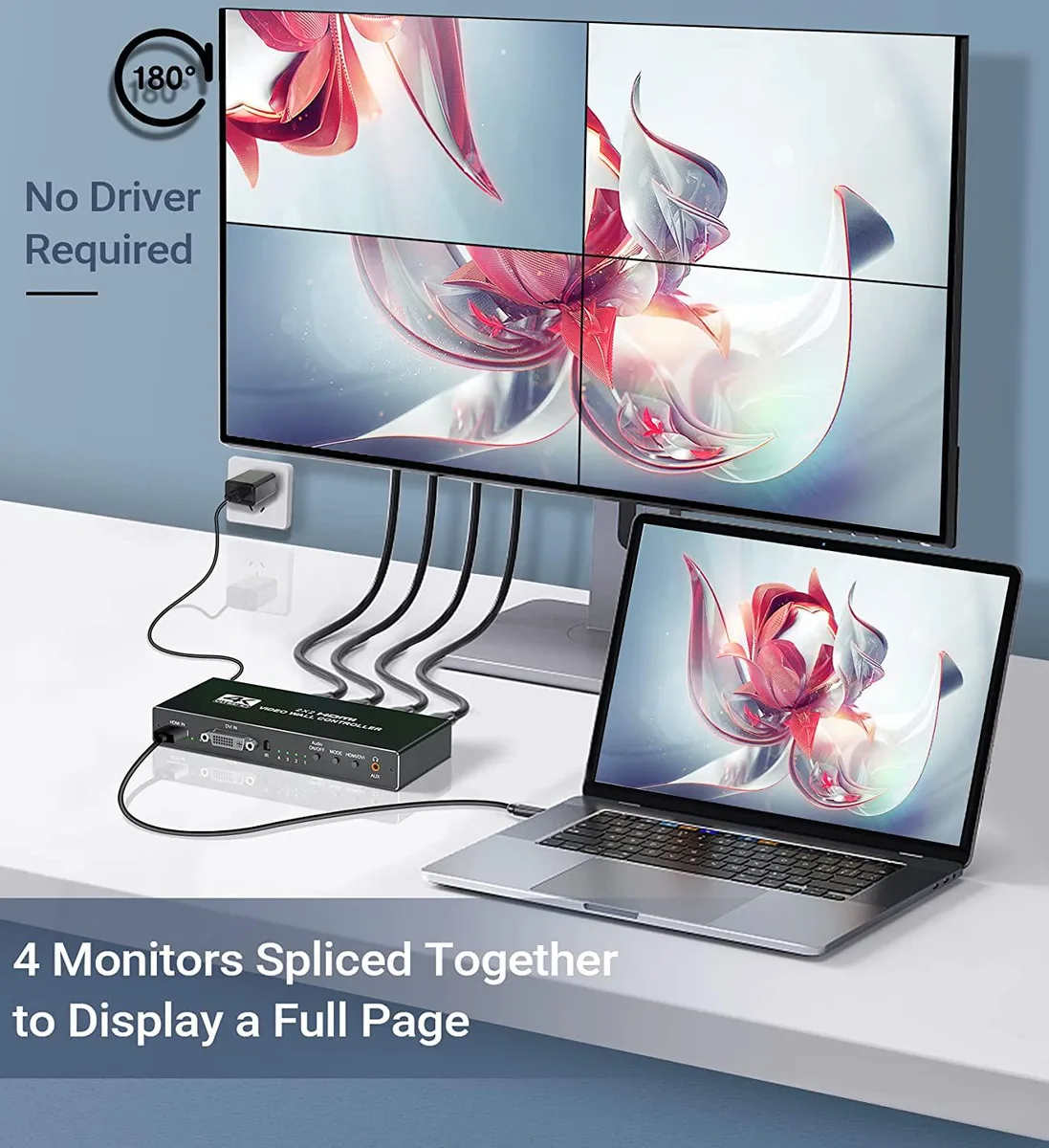

The ESTONE OZP1 splits a single HDMI or DVI source across four HDMI displays in a 2x2 layout. It accepts input up to 4K at 30 Hz and delivers 1080p at 60 Hz to each screen. A remote control and 5 V power adapter are included for immediate setup.
Installers needing 2x2 splicing
This unit suits venues that want one source shown on four professional video walls with both 3.5 mm stereo and optical 5.1 output. It does not suit buyers who need more than four outputs, higher than 1080p output resolution, or input refresh rates above 60 Hz at 1080p.
Four HDMI outputs at 1920x1080p 60 Hz
The controller provides exactly four HDMI ports, each locked to 1920x1080p at 60 Hz. That fixed output resolution is the deciding spec: if the installation requires 4K or higher per display, this model will not meet the requirement.
Highlights
- Distributes one HDMI or DVI source across four 1080P screens
- Eight display modes including 2x2, 1x3 and 4x1 layouts
- Optical SPDIF output delivers 5.1-channel surround sound
- 5 mm jack provides stereo 2.0-channel audio
- HDMI 1.4 and HDCP 1.4 compliant for protected 4K 30 Hz input
Specifications
| Brand | ESTONE |
|---|---|
| Model | OZP1 |
| Type | Professional Video Devices |
| Remote Control | Remote Included |
| Interface | HDMI |
| Ports In | 1 HDMI |
| Ports Out | 4 HDMI |
| Specifications | Support 1 HDMI-Compatible/DVI input Support input HDMI-Compatible Support 4 HDMI-Compatible outputs Support 1 x 3.5mm Jack audio with 2.0CH audio Support 1 x Optical SPDIF audio with 5.1CH audio Support input 4K 30Hz,1920x1080P,24/30/50/60HZ,and lower resolution Support output resolution 1920x1080P Support multiple splicing modes, easy to operate, plug and play Multi screen splicing seamless mixing Porous design convection heat dissipation Non slip design is stable and non slip |
| Package Contents | 2x2 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1 |
Questions about this item
What source device and displays do I need to connect to the ESTONE OZP1's single HDMI input and four HDMI outputs?
Connect one HDMI or DVI source such as a computer, media player, or game console to the input, then link four HDMI displays or professional video wall panels to the outputs for a 2x2 layout.
Will my existing 1080p60 monitors work with the controller's 1920x1080P@60Hz output specification?
Yes, the unit outputs 1920x1080P at 60Hz, matching standard 1080p60 monitors, and it also accepts 1080p signals at 24, 25, 30, 50, or 60Hz on its input.
How can I verify the video wall is displaying correctly after setup?
Use the included remote to cycle through the eight display modes — 1x2, 1x3, 1x4, 2x2, 4x1, 3x1, and 2x1 — and confirm each screen shows its assigned quadrant of the source image at 1080p60.
