ESTONE
ESTONE OZP1 2x2 HDMI Video Wall Controller 1080P@60Hz
Splits one HDMI or DVI source into four 1080P@60Hz displays with 2.0CH analogue and 5.1CH optical audio
- TypeProfessional Video Devices
- Remote ControlRemote Included
- InterfaceHDMI
- Ports In1 HDMI
- Ports Out4 HDMI
- SpecificationsSupport 1 HDMI-Compatible/DVI input Support input HDMI-Compa
- Distribute one HDMI or DVI source across four displays simultaneously
- Accepts 4K input at 30 Hz and 1080P at 60 Hz for flexible sources
- Outputs 1920x1080P at 60 Hz on every screen for consistent clarity
- Optical SPDIF delivers 5.1-channel audio alongside 3.5 mm 2.0-channel jack
- Includes IR remote and supports 180-degree image rotation for versatile mounting
2x2 HDMI Video Wall Controller

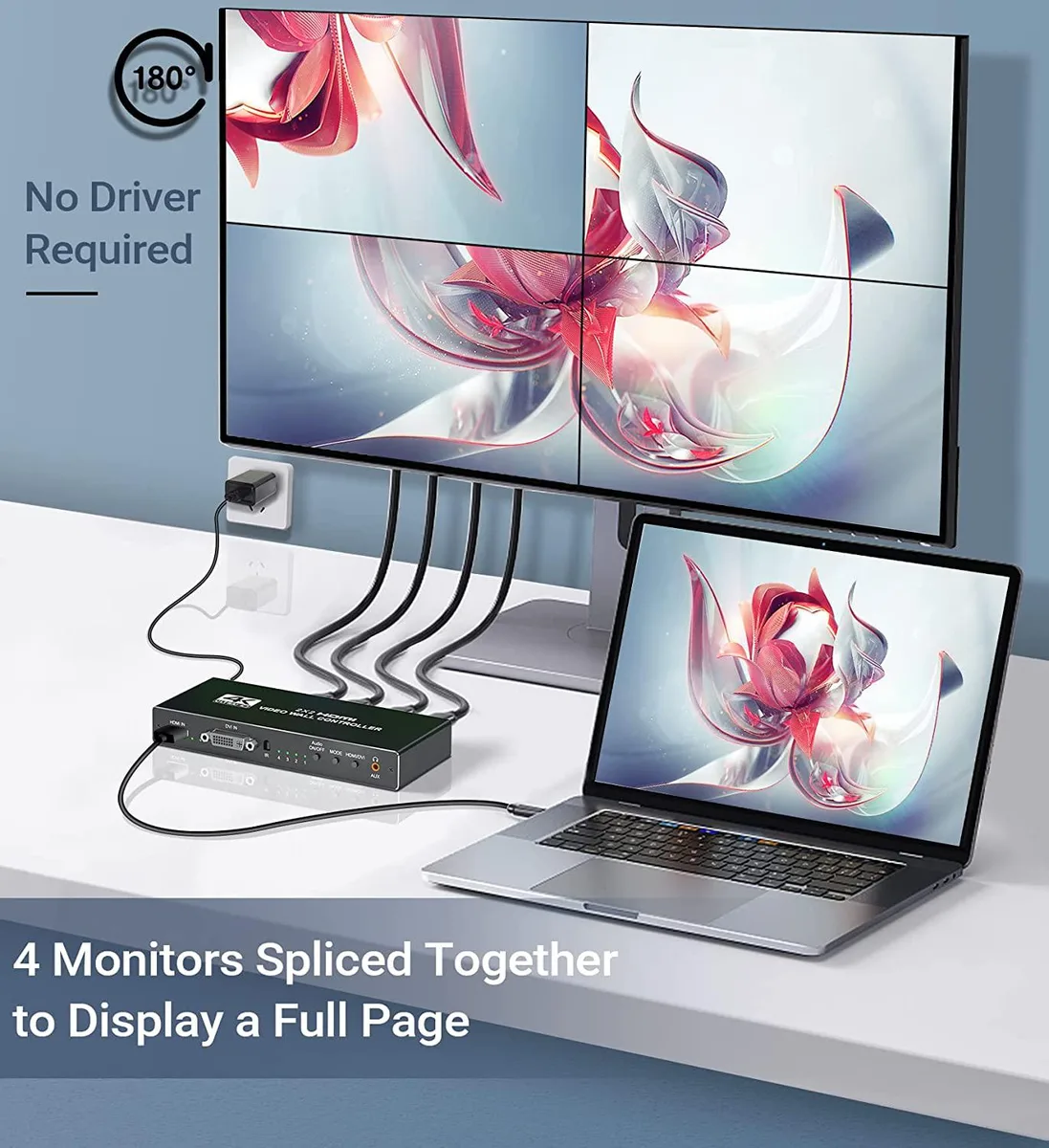

The ESTONE OZP1 splits one HDMI or DVI source across four HDMI displays to build a 2x2 video wall. It accepts input up to 4K at 30 Hz and delivers 1080P at 60 Hz on each output. Installers working on digital signage, retail walls or security monitoring will find the layout options useful.
Remote control and audio extraction

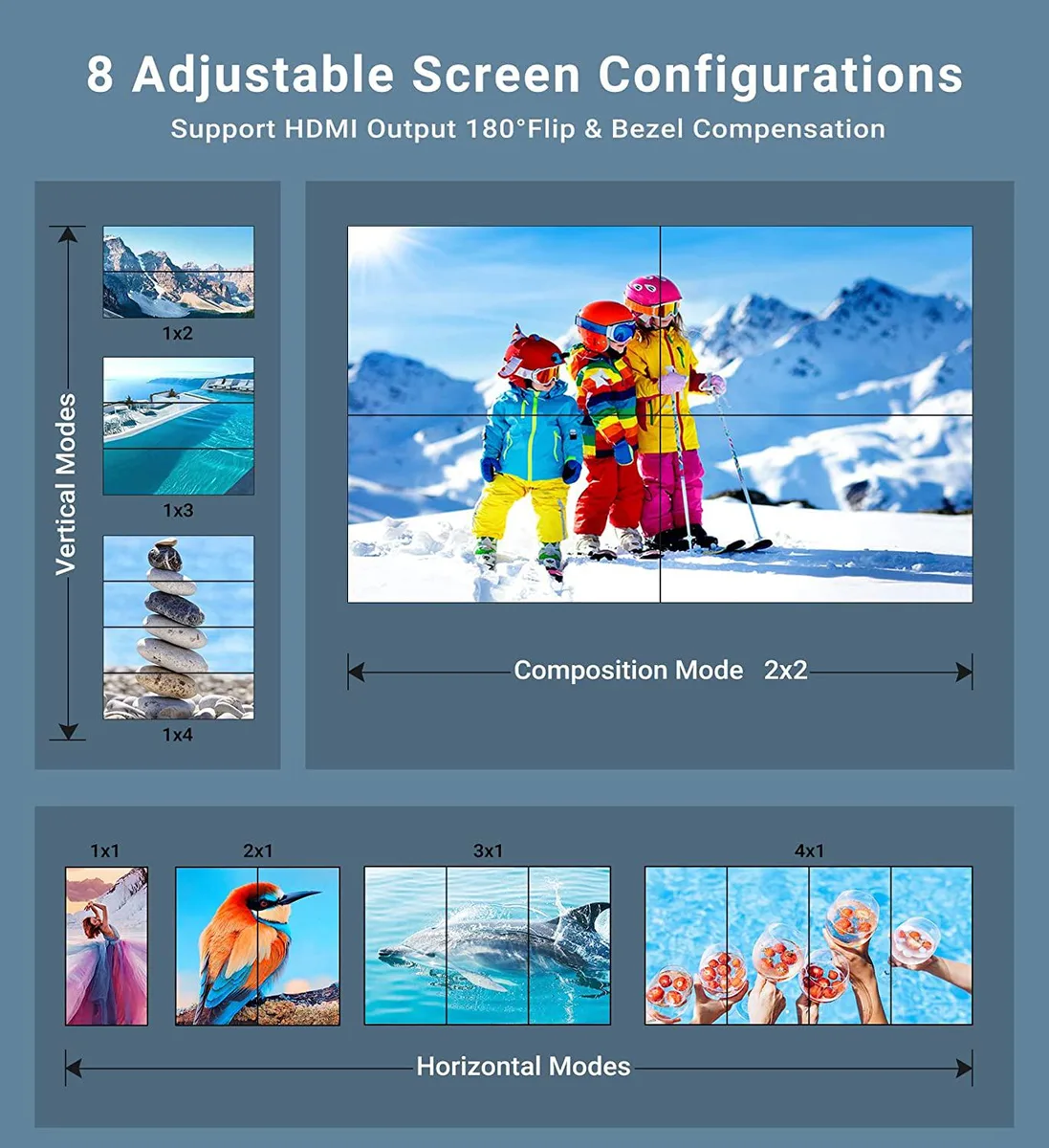

A handheld remote lets you switch between 1x2, 1x3, 1x4, 2x1, 3x1 and 4x1 splicing modes without touching the unit. The box also breaks out stereo sound through a 3.5 mm jack and 5.1-channel audio via optical SPDIF so the video wall can drive a separate sound system.
Input bandwidth and display requirements
The single HDMI input is limited to 4K at 30 Hz, so sources running 4K at higher refresh rates will not pass full motion. Outputs are fixed at 1080P 60 Hz, and the manufacturer notes that professional video wall panels are required rather than consumer TVs. Verify your source resolution and display type before ordering.
Highlights
- Distribute one HDMI or DVI source across four displays simultaneously
- Accepts 4K input at 30 Hz and 1080P at 60 Hz for flexible sources
- Outputs 1920x1080P at 60 Hz on every screen for consistent clarity
- Optical SPDIF delivers 5.1-channel audio alongside 3.5 mm 2.0-channel jack
- Includes IR remote and supports 180-degree image rotation for versatile mounting
Specifications
| Brand | ESTONE |
|---|---|
| Model | OZP1 |
| Type | Professional Video Devices |
| Remote Control | Remote Included |
| Interface | HDMI |
| Ports In | 1 HDMI |
| Ports Out | 4 HDMI |
| Specifications | Support 1 HDMI-Compatible/DVI input Support input HDMI-Compatible Support 4 HDMI-Compatible outputs Support 1 x 3.5mm Jack audio with 2.0CH audio Support 1 x Optical SPDIF audio with 5.1CH audio Support input 4K 30Hz,1920x1080P,24/30/50/60HZ,and lower resolution Support output resolution 1920x1080P Support multiple splicing modes, easy to operate, plug and play Multi screen splicing seamless mixing Porous design convection heat dissipation Non slip design is stable and non slip |
| Package Contents | 2x2 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1 |
Questions about this item
Will the 5 V 2.1 A power adapter need replacement after continuous operation?
The unit ships with a 5 V 2.1 A power adapter; no internal battery or user-replaceable power module is mentioned, so the adapter itself is the only power item that could require swapping if it fails.
What resolution ceiling appears first when driving four screens non-stop?
Each HDMI output is capped at 1920 x 1080 at 60 Hz, so the 1080p 60 Hz limit is the first constraint you hit under sustained load.
How much fan noise or heat does the controller produce during all-day use?
The specifications list no fan, thermal design power or acoustic rating, so the only confirmed thermal detail is the external 5 V 2.1 A power adapter.
