ESTONE OZK5 8K USB-C KVM Switch 2-Port 1.2m Cables
Share one 8K display and four USB 2.0 peripherals between two USB-C computers using the front push button
- TypeDisplayPort, USB
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Share two PCs on one 8K 60 Hz display via DP 1.4 or HDMI 2.1
- Switch instantly with a front button — no software or hotkeys needed
- Four USB 2.0 ports let both computers share keyboard, mouse, printer and drives
- Two 1.2 m USB-C Gen 2 cables included for a tidy dual-PC setup
- Compact 5.43 x 5.35 x 1.46 in unit powered by a single USB-A to USB-C lead
Two-Port 8K KVM Switch

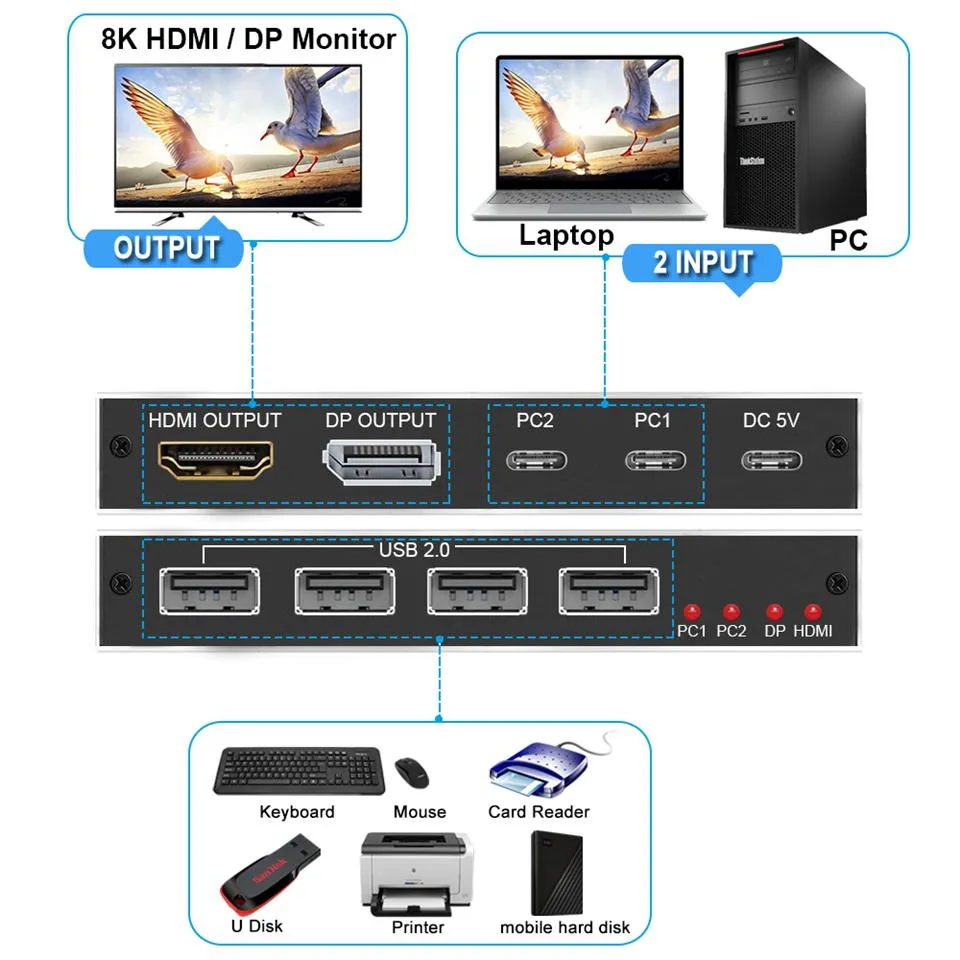

The ESTONE OZK5 is a USB-C KVM switch that lets two computers share one monitor and four USB peripherals. It supports video resolutions up to 7680 by 4320 at 60 Hz via DisplayPort 1.4 or HDMI 2.1. Switching is handled by a push button on the unit.
Ideal for Dual-System Desks
Suits users who need to control two USB-C laptops or PCs from a single display, keyboard and mouse setup. Buyers who require hotkey switching or power delivery to charge a connected laptop should look elsewhere, as neither feature is supported.
8K 60 Hz Video Over DP 1.4 or HDMI 2.1
The single specification that decides fit is the maximum video output: 7680 by 4320 at 60 Hz through either DisplayPort 1.4 or HDMI 2.1. If your monitor or source cannot drive that resolution over those interfaces, the switch will not deliver its rated image quality.
Highlights
- Share two PCs on one 8K 60 Hz display via DP 1.4 or HDMI 2.1
- Switch instantly with a front button — no software or hotkeys needed
- Four USB 2.0 ports let both computers share keyboard, mouse, printer and drives
- Two 1.2 m USB-C Gen 2 cables included for a tidy dual-PC setup
- Compact 5.43 x 5.35 x 1.46 in unit powered by a single USB-A to USB-C lead
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZK5 |
| Model | OZK5 |
| Type | DisplayPort, USB |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2xUSB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 4 x USB2.0 Output Port,two Computers share one set,you can connect 4xUSB2.0 Output to |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | • 1 x USB C Thunderbolt 4 KVM Switch • 1 x USB Power Cable(Type A to Type C) • 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) • 1 x User Manual |
Questions about this item
How do I confirm the ESTONE OZK5 is switching video correctly after connecting two PCs and a monitor?
Press the Switch button on the unit; the LED indicators show the active port, and the monitor should display 7680×4320 at 60 Hz or 4K at 120/144 Hz from the selected PC.
What cables and accessories are included with the OZK5, and what must I provide separately?
The box contains the KVM switch, a USB-A-to-C power cable, two 1.2 m USB-C Gen 2 cables, and a manual; you must supply your own DisplayPort 1.4 or HDMI 2.1 cable for the monitor connection.
The OZK5 lists DisplayPort 1.4 and HDMI 2.1 outputs — which one should I choose for my display?
Use DisplayPort 1.4 for 8K at 60 Hz or 4K at 144 Hz; use HDMI 2.1 for 8K at 60 Hz or 4K at 120 Hz — pick the interface your monitor supports at the desired refresh rate.
