ESTONE
ESTONE OZK5 2-Port 8K USB-C KVM Switch
Two-computer USB-C KVM shares one 8K@60 Hz monitor, four USB 2.0 peripherals and a manual push-button switch
- TypeHDMI, USB
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Share two computers on one 8K display at 60 Hz
- Connect four USB 2.0 peripherals that follow the active PC
- Switch instantly with the top-mounted push button
- Powered by the included USB-A-to-C cable
- Includes two 1.2 m USB-C Gen 2 cables

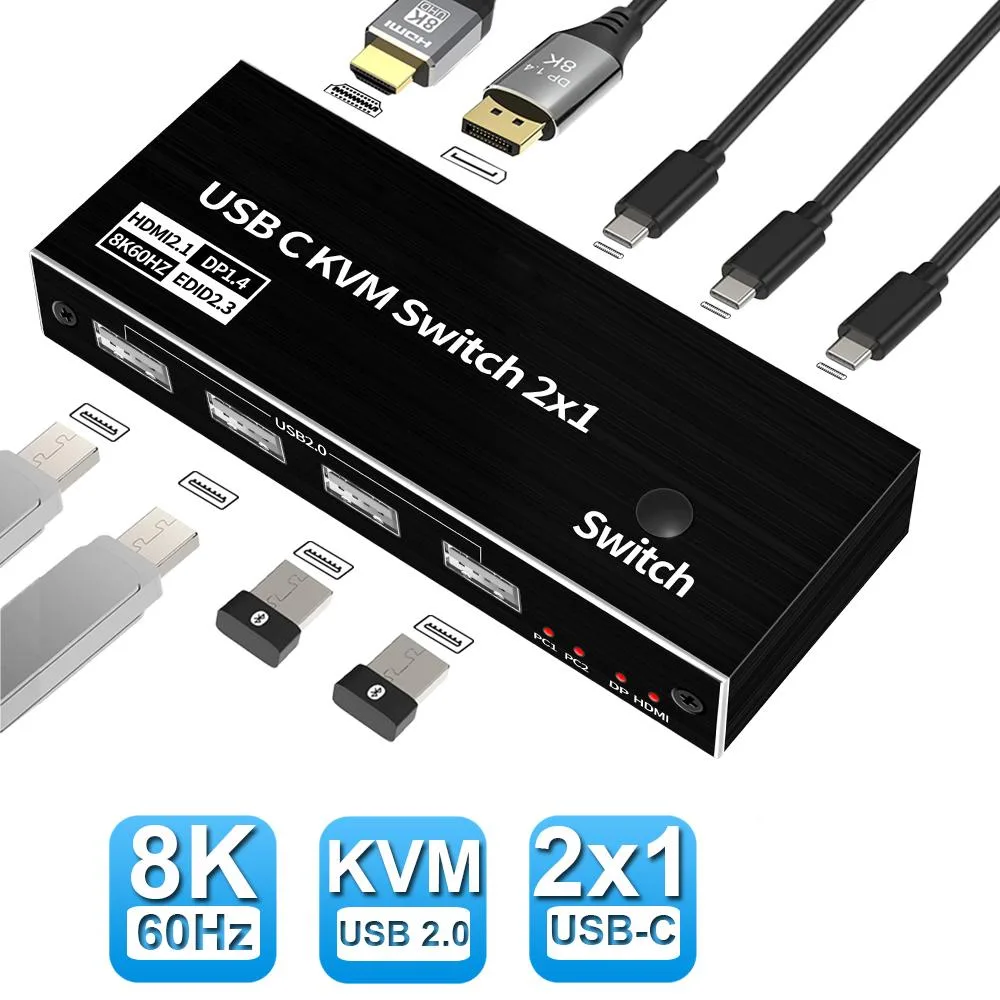

Two-computer USB-C KVM switch

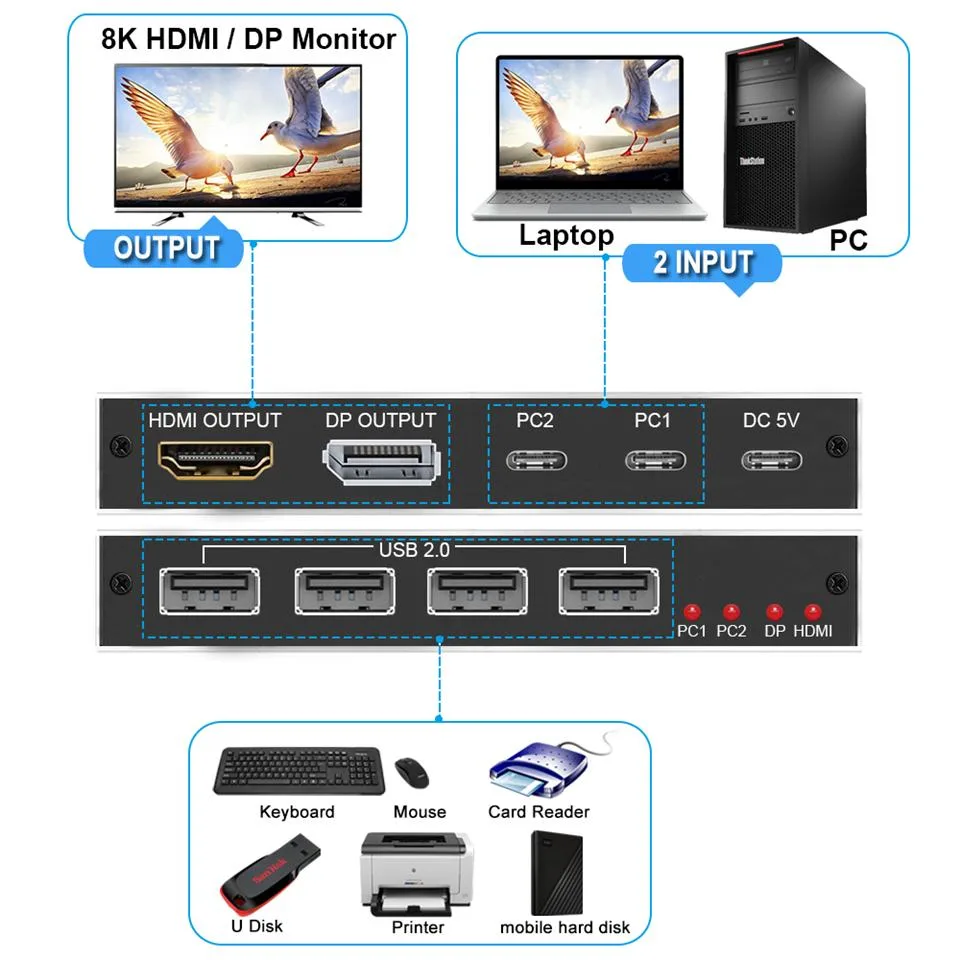

The ESTONE OZK5 lets you operate two USB-C computers from a single keyboard, mouse and monitor. It accepts two USB-C host connections and provides one DisplayPort 1.4 or HDMI 2.1 video output. Four USB 2.0 ports share peripherals across both machines. A top-mounted button switches the active system instantly.

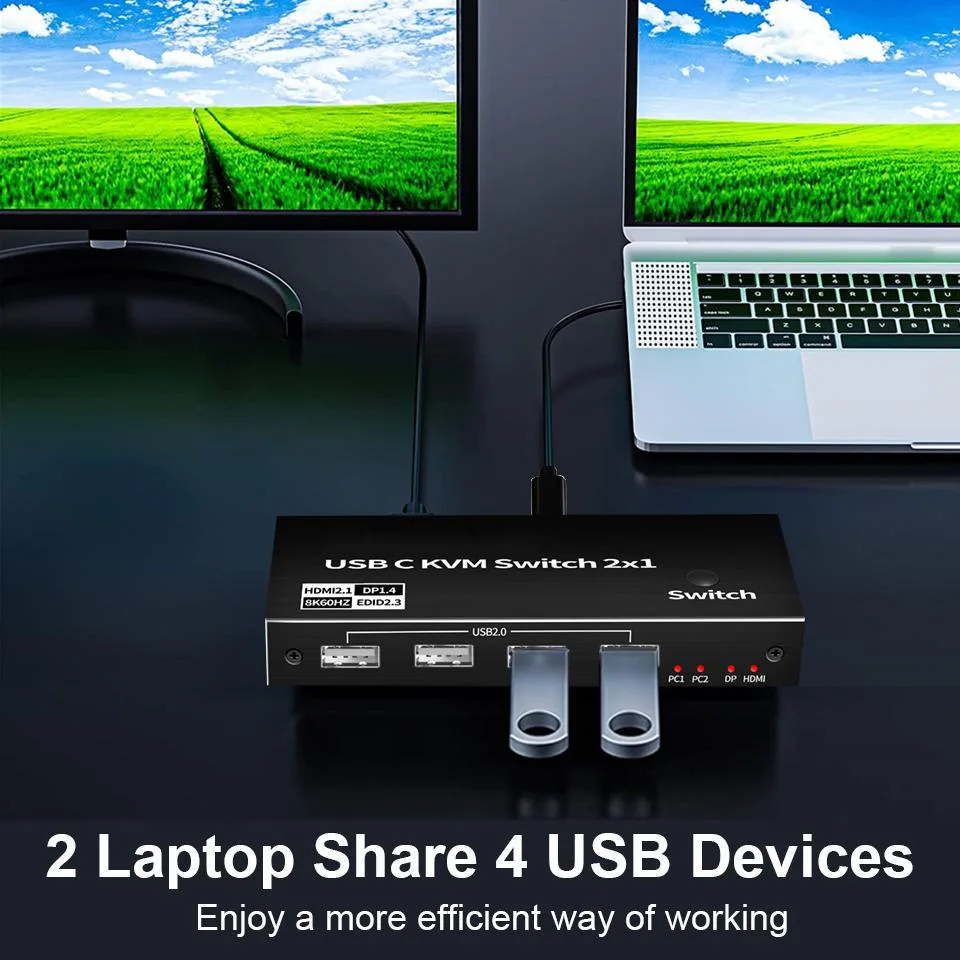

Desk setups that need one display for two laptops
Suits users who move between a work laptop and a personal MacBook or desktop without unplugging cables. Not suited for buyers who require hotkey switching, Power Delivery charging through the switch, or more than two host ports. Also not suited for anyone needing USB 3.x or Thunderbolt peripheral bandwidth.
8K 60 Hz video over DisplayPort 1.4 or HDMI 2.1
The switch passes 7680 x 4320 resolution at 60 Hz and supports 4K at 120 Hz or 144 Hz. Video output can be taken from either the DisplayPort or HDMI connector, but only one monitor is driven at a time. An external USB-A to USB-C power cable must be connected for operation.
Highlights
- Share two computers on one 8K display at 60 Hz
- Connect four USB 2.0 peripherals that follow the active PC
- Switch instantly with the top-mounted push button
- Powered by the included USB-A-to-C cable
- Includes two 1.2 m USB-C Gen 2 cables
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZK5 |
| Model | OZK5 |
| Type | HDMI, USB |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2xUSB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 4 x USB2.0 Output Port,two Computers share one set,you can connect 4xUSB2.0 Output to |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | • 1 x USB C Thunderbolt 4 KVM Switch • 1 x USB Power Cable(Type A to Type C) • 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) • 1 x User Manual |
Questions about this item
Should I use the DisplayPort 1.4 or HDMI 2.1 output for my 8K monitor?
Both support 7680×4320 at 60 Hz; choose DisplayPort 1.4 if your monitor has DP, otherwise use HDMI 2.1 — only one video output is active at a time.
What does the 8K 60 Hz rating mean when I connect two laptops?
Each connected laptop can drive the monitor at 7680×4320 60 Hz (or 4K at 120/144 Hz) when selected; switching is manual via the top button.
What does the USB-C Gen 2 interface cap for data and video?
The two 1.2 m USB-C Gen 2 cables carry video up to 8K 60 Hz and USB 2.0 data at 480 Mbps; PD 3.0 charging is not supported.
