ESTONE
ESTONE OZK5 2-Port 8K HDMI DP USB-C KVM Switch
Share one 8K monitor and four USB peripherals between two USB-C computers with push-button switching at 60 Hz
- TypeHDMI, USB
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Share two USB-C computers on one 8K monitor at 60 Hz
- Switch instantly with front push-button, no software needed
- Four USB 2.0 peripherals stay connected while you swap PCs
- Supports 4K at 120 Hz or 144 Hz for high-refresh gaming
- Includes two 1.2 m USB-C Gen 2 cables and power cable
2-Port 8K KVM Switch

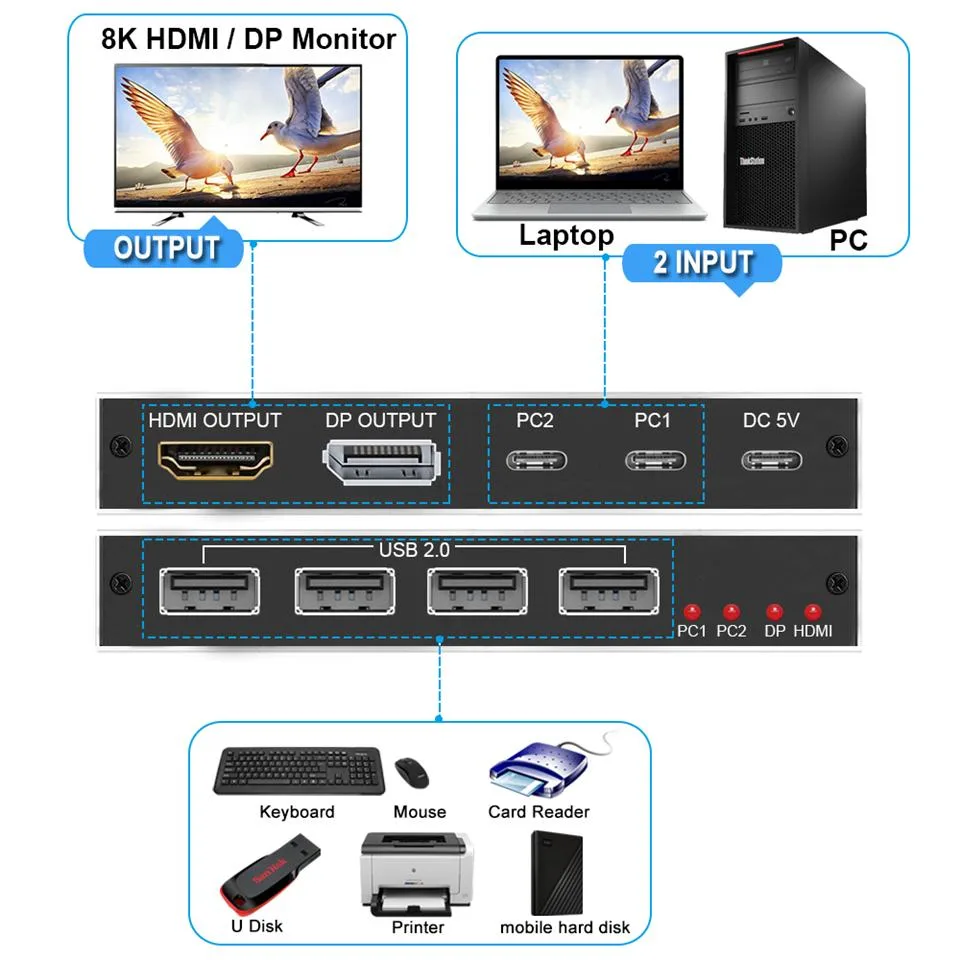

The ESTONE OZK5 connects two USB-C computers to one DisplayPort 1.4 or HDMI 2.1 monitor at 7680x4320 resolution. A front-panel button swaps the active system in seconds. Four USB 2.0 ports share keyboard, mouse, printer or storage between both machines. A supplied USB-A to USB-C cable powers the unit.
Users who need simple dual-PC control
This switch suits home offices, test benches or study setups where two laptops or desktops share a single high-resolution display and USB peripherals. It does not support hotkey switching or USB Power Delivery charging. Buyers who want automatic switching, charging capability or more than two computer ports should consider other solutions.
8K@60Hz and 4K@120/144Hz video support
The switch passes DisplayPort 1.4 or HDMI 2.1 signals with HDCP 2.3 and RGB/YUV 4:4:4 colour. Maximum output reaches 7680x4320 at 60 Hz or 4K at 120 Hz and 144 Hz. Two 1.2 m USB-C Gen 2 cables are included for the computer links. Users must provide their own DisplayPort or HDMI cable to the monitor.
Highlights
- Share two USB-C computers on one 8K monitor at 60 Hz
- Switch instantly with front push-button, no software needed
- Four USB 2.0 peripherals stay connected while you swap PCs
- Supports 4K at 120 Hz or 144 Hz for high-refresh gaming
- Includes two 1.2 m USB-C Gen 2 cables and power cable
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZK5 |
| Model | OZK5 |
| Type | HDMI, USB |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2xUSB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 4 x USB2.0 Output Port,two Computers share one set,you can connect 4xUSB2.0 Output to |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | • 1 x USB C Thunderbolt 4 KVM Switch • 1 x USB Power Cable(Type A to Type C) • 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) • 1 x User Manual |
Questions about this item
Do the four USB 2.0 ports on the ESTONE OZK5 ever need replacement?
The four USB 2.0 ports are fixed on the switch and have no user-replaceable parts; if a port fails the whole unit would need service.
What resolution limit appears first when the ESTONE OZK5 runs continuously at high refresh?
The switch tops out at 7680×4320 at 60 Hz or 4K at 120/144 Hz; pushing beyond those figures will hit the video bandwidth ceiling first.
How much heat or fan noise does the ESTONE OZK5 produce when powered all day?
The unit has no fan and draws power only through the supplied USB-A-to-C cable, so it stays cool and silent during extended use.
