ESTONE
ESTONE OZK3-1 2×2 HDMI 2.0 KVM Switch Matrix 4K 60Hz
A 2×2 HDMI 2.0 KVM matrix switches two computers across dual 4K 60 Hz monitors with one keyboard and mouse set
- TypeHDMI, USB
- PC ConnectorsHDMI and USB-C
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution3840 x 2160
- PC SelectionPush Buttons/Hot Keys
- Control two computers with one keyboard and mouse
- Switch between dual 4K 60Hz displays independently
- Front-panel buttons and hotkeys for instant PC selection
- Aluminium alloy chassis resists interference and corrosion
- Includes IR remote and all necessary cables

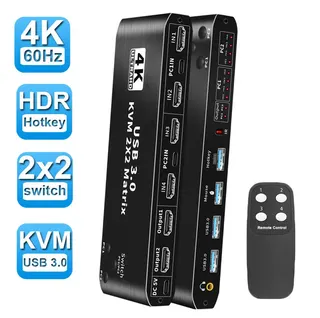

ESTONE OZK3-1 2×2 HDMI KVM Matrix

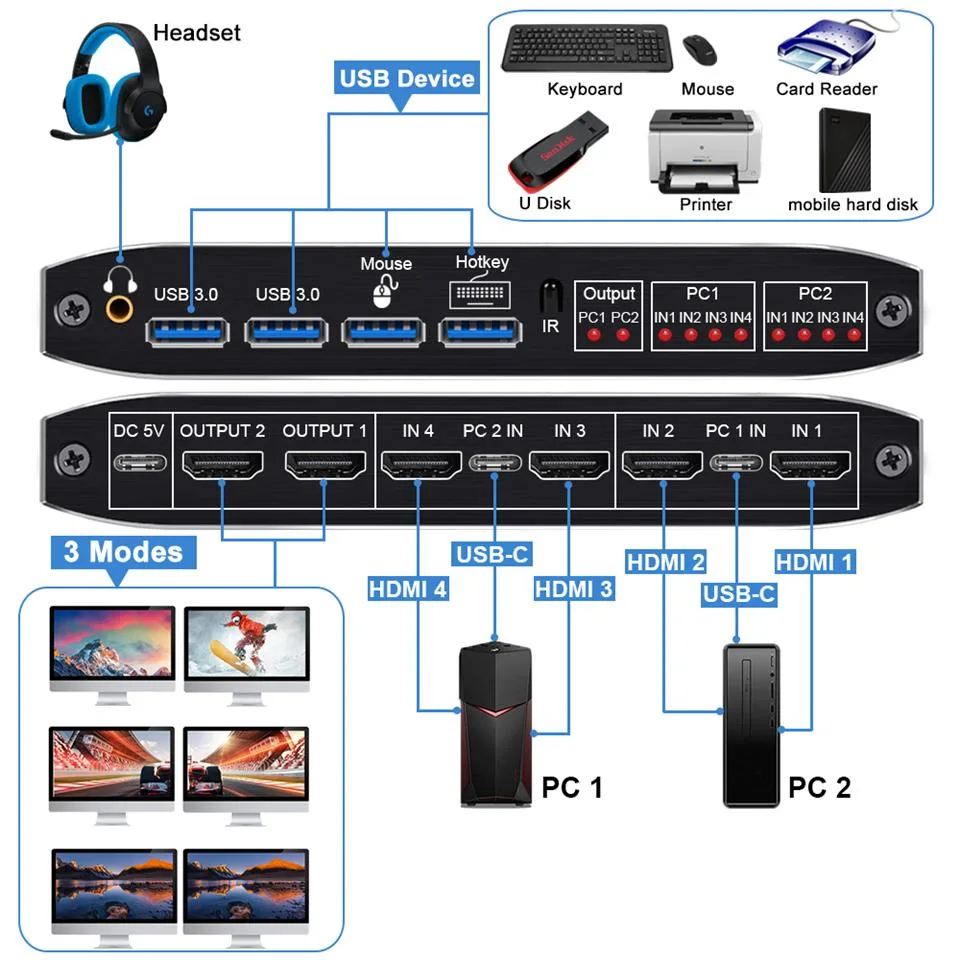

This 2-in-2-out HDMI 2.0b matrix lets two computers share one keyboard, one mouse and two monitors. It supports 4K at 60 Hz and 1080p at 144 Hz with HDCP 2.3 compliance. The aluminium-alloy chassis measures 176 × 51 × 21 mm and weighs 9.52 ounces. It is aimed at desk setups that need simultaneous dual-display access to two hosts.
Bundled cables and remote

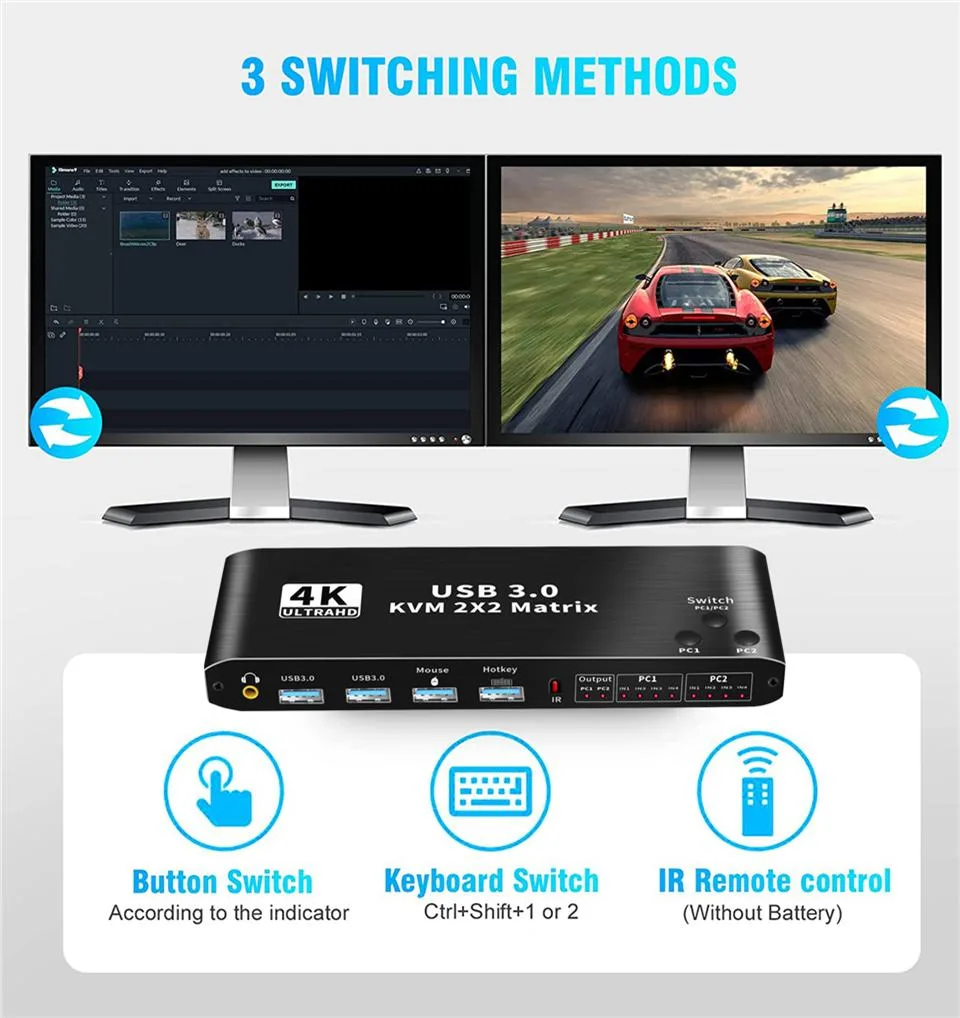

The package includes two USB data cables, one USB power cable, an IR remote control (AAA battery not supplied) and a user manual. These let you connect both computers and power the unit without extra purchases. The remote adds desk-distance switching alongside the front-panel push buttons and hot-key commands. No software installation is required on Windows XP, 7, 10, macOS, Linux or Unix.
HDMI 2.0 bandwidth limits
HDMI 2.0b caps video at 4K 60 Hz 4:4:4 or 1080p 144 Hz; higher refresh rates at 4K or HDR metadata beyond HDCP 2.3 are not supported. The matrix does not convert DisplayPort or DVI signals natively — passive adapters work only when the source outputs HDMI-compatible TMDS. USB 3.0 peripheral ports share the 5 Gbps bus, so sustained throughput drops when multiple high-speed devices are active.
Highlights
- Control two computers with one keyboard and mouse
- Switch between dual 4K 60Hz displays independently
- Front-panel buttons and hotkeys for instant PC selection
- Aluminium alloy chassis resists interference and corrosion
- Includes IR remote and all necessary cables
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZK3-1 |
| Model | OZK3-1 |
| Type | HDMI, USB |
| PC Connectors | HDMI and USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 3840 x 2160 |
| PC Selection | Push Buttons/Hot Keys |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| Audio Features | with Audio |
| USB Features | with USB support |
| Application | KVM Matrix allows control 2 computer with one set of controls (keyboard and mouse) and two display screen. Realizes 2 in and 2 out free selection synchronous switching. You can centrally control and manage hosts laptop or game console without having to move from one workstation to another. |
| Features | Support HDMI 2.0b HDCP 2.3 Compliant with DVI to HDMI,DP to HDMI Resolution: Support 1080P/1080@144Hz, 3840x2160p, 4K/60Hz resolution, adaptive screen resolution Support system: Windows XP, Windows7, Windows10, Apple MAC, Linux, Unix and other operating systems Supports high current hard disk devices Supports Extended / Mirror mode Supports Crisscross/Matrix Mode |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x HDMI KVM USB Matrix 2 x USB data cable 1 x USB power cable 1 x IR Remote Control(Without AAA battery) 1 x User Manual |
Questions about this item
Will the IR remote need new batteries after a while?
The IR remote ships without AAA batteries; you will need to supply and replace them yourself.
What is the maximum refresh rate the HDMI 2.0 outputs can sustain at 1080p?
The switch supports 1080p at 144 Hz through its HDMI 2.0 ports.
How warm does the aluminium alloy enclosure get during all-day operation?
The aluminium alloy shell acts as a passive heatsink, so the unit runs warm but stays within normal operating temperatures without a fan.
