ESTONE

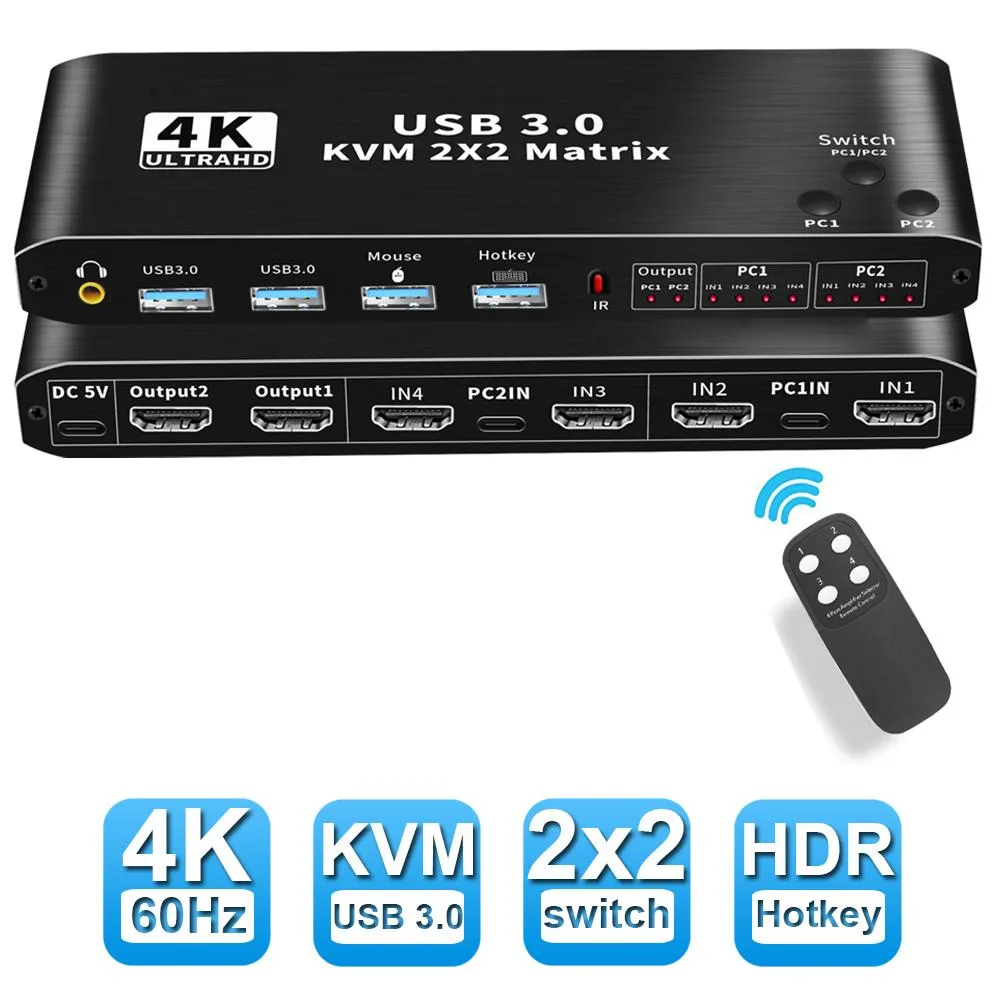

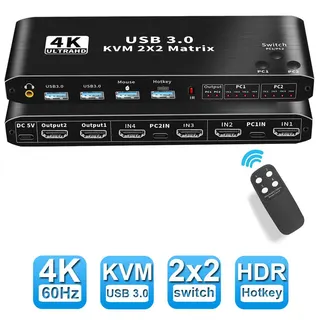

ESTONE OZK3-1 2×2 4K HDMI KVM Switch
A 2×2 HDMI KVM matrix switches two computers between dual 4K 60 Hz monitors with USB 3.0 and audio
- TypeHDMI, USB
- PC ConnectorsHDMI and USB-C
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution3840 x 2160
- PC SelectionPush Buttons/Hot Keys
- Control two computers with one keyboard, mouse and dual monitors
- 4K 60 Hz and 1080p 144 Hz video via HDMI 2.0b HDCP 2.3

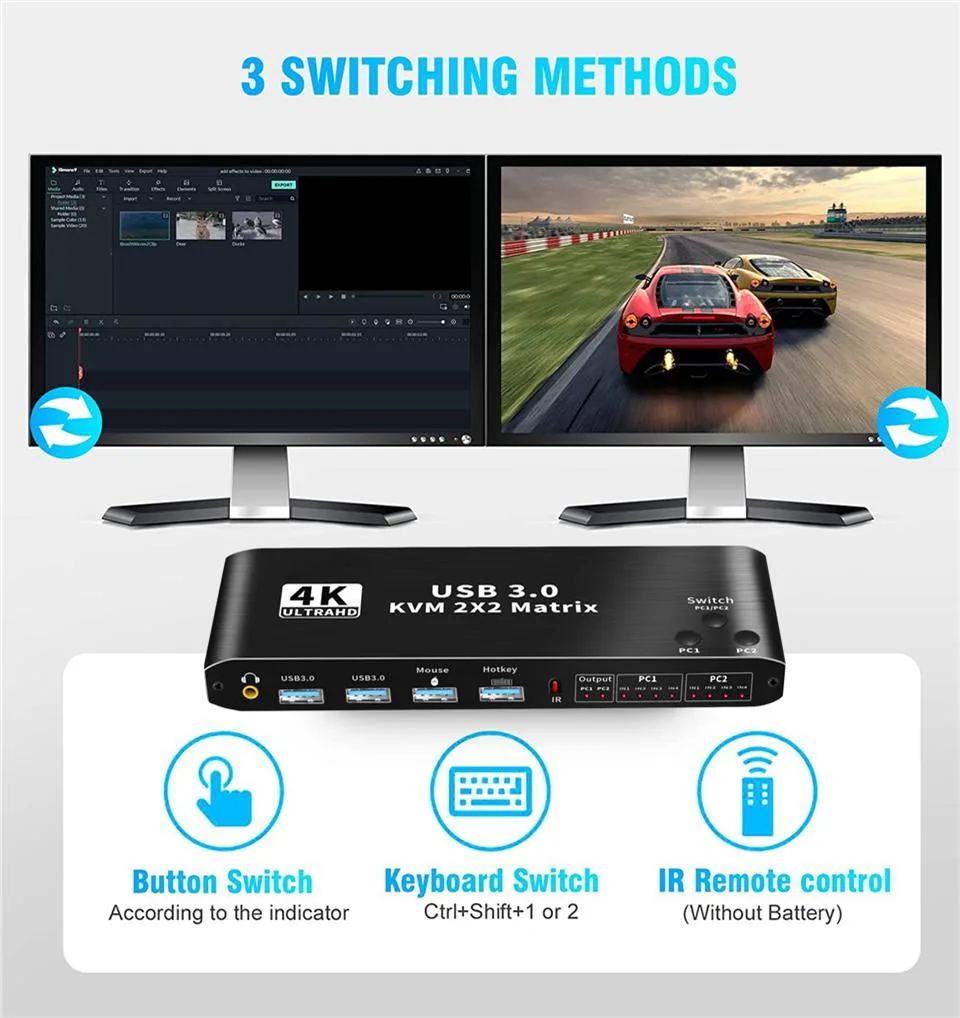

- Front-panel button and hot-key switching with 3-second auto-scan
- Two USB 3.0 ports for peripherals and a stereo audio output
- Aluminium-alloy shell, 176 × 51 × 21 mm, 9.52 oz

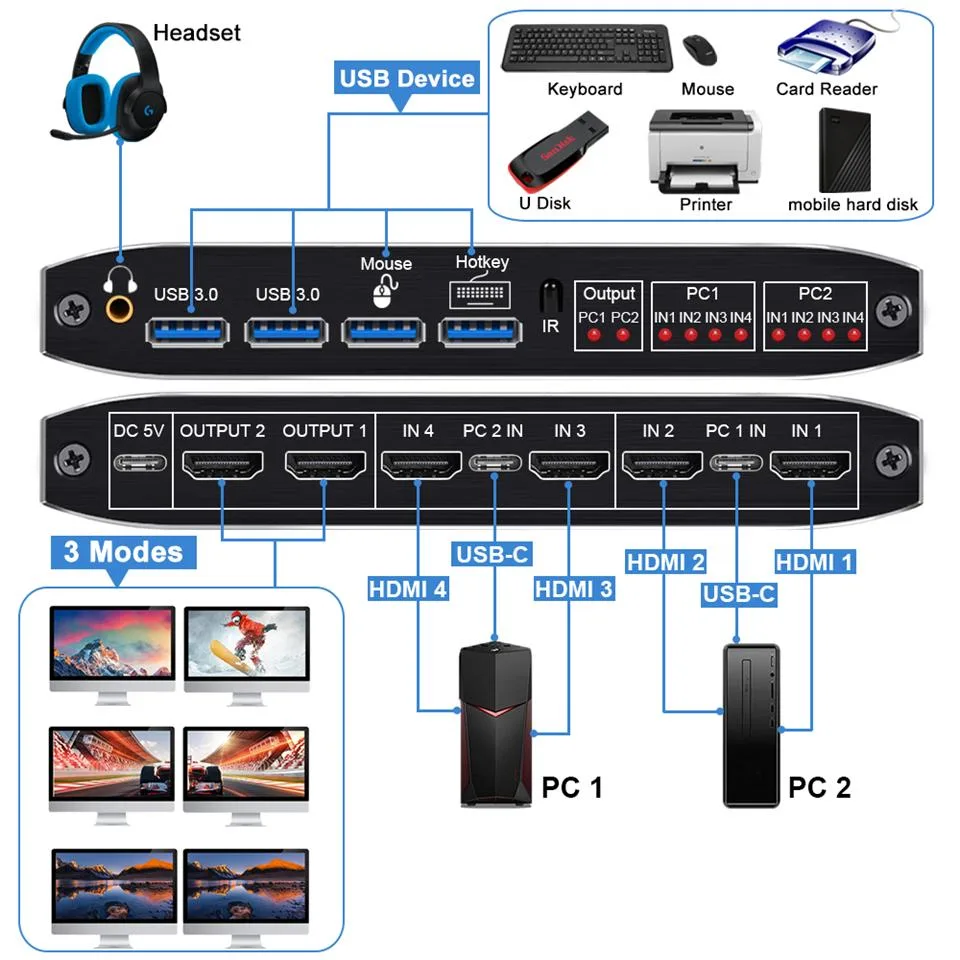

2-in-2-out HDMI KVM matrix
The ESTONE OZK3-1 lets two computers share one keyboard, one mouse and two HDMI monitors. It accepts two HDMI and two USB-C inputs from the sources and delivers two HDMI outputs plus stereo audio. The matrix topology allows any source to appear on either display independently.
Sustained 4K 60 Hz operation
HDMI 2.0b and HDCP 2.3 compliance keep the link stable during long work sessions at 3840 x 2160 and 60 Hz. The aluminium-alloy shell dissipates heat without fans, so signal quality does not degrade when the unit runs continuously. Switching between computers takes roughly three seconds in auto-scan mode.
HDMI 2.0 bandwidth ceiling
The 2.0 interface caps video at 4K 60 Hz 4:4:4 or 1080p at 144 Hz; higher refresh rates or deeper colour at 4K are not possible on this standard. USB 3.0 ports add peripheral sharing but do not carry video. Adapters can convert DVI or DisplayPort sources to the HDMI inputs.
Highlights
- Control two computers with one keyboard, mouse and dual monitors
- 4K 60 Hz and 1080p 144 Hz video via HDMI 2.0b HDCP 2.3
- Front-panel button and hot-key switching with 3-second auto-scan
- Two USB 3.0 ports for peripherals and a stereo audio output
- Aluminium-alloy shell, 176 × 51 × 21 mm, 9.52 oz
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZK3-1 |
| Model | OZK3-1 |
| Type | HDMI, USB |
| PC Connectors | HDMI and USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 3840 x 2160 |
| PC Selection | Push Buttons/Hot Keys |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| Audio Features | with Audio |
| USB Features | with USB support |
| Application | KVM Matrix allows control 2 computer with one set of controls (keyboard and mouse) and two display screen. Realizes 2 in and 2 out free selection synchronous switching. You can centrally control and manage hosts laptop or game console without having to move from one workstation to another. |
| Features | Support HDMI 2.0b HDCP 2.3 Compliant with DVI to HDMI,DP to HDMI Resolution: Support 1080P/1080@144Hz, 3840x2160p, 4K/60Hz resolution, adaptive screen resolution Support system: Windows XP, Windows7, Windows10, Apple MAC, Linux, Unix and other operating systems Supports high current hard disk devices Supports Extended / Mirror mode Supports Crisscross/Matrix Mode |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x HDMI KVM USB Matrix 2 x USB data cable 1 x USB power cable 1 x IR Remote Control(Without AAA battery) 1 x User Manual |
Questions about this item
Does the ESTONE OZK3-1 run hot or draw much power when left on 24/7?
The unit has no fan and uses a small 5 V USB power adapter, so heat and power draw stay low even with both PCs running all day.
Which cables do I need to already own so both computers connect to the two HDMI outputs?
Each computer needs one HDMI 2.0 cable and one USB-C to USB-A cable; the box includes two USB data cables and a power cable only.
Will my older 1080P 144 Hz monitor work alongside a newer 4K 60 Hz screen on this switch?
Yes — the matrix handles 1080P at 144 Hz on one port and 3840×2160 at 60 Hz on the other simultaneously.
