ESTONE
ESTONE OZK2 4K 60Hz HDMI 2.0 KVM Switch 2 Port 4 USB 3.0 Mouse Sharing Device Computer PC Laptop Desktop
Share one 4K 60 Hz monitor and four USB 3.0 devices between two computers with a single button press
- TypeHDMI, USB
- PC ConnectorsHDMI and USB
- Computer Connections2 Ports
- Monitor Connections1 Ports
- Video Resolution3840 x 2160
- PC SelectionManual Switch
- One-click switching between two computers with four USB 3.0 ports and one HDMI output
- 4K at 60 Hz video via HDMI 2.0 with HDCP 2.2 support
- Plug-and-play operation across Windows, macOS and Linux without driver installation
- Aluminium alloy chassis provides EMI shielding and passive cooling for stable signal transmission
- Compact 111.8 × 63.2 × 24.5 mm footprint keeps desk space tidy
Two-Computer KVM Switch

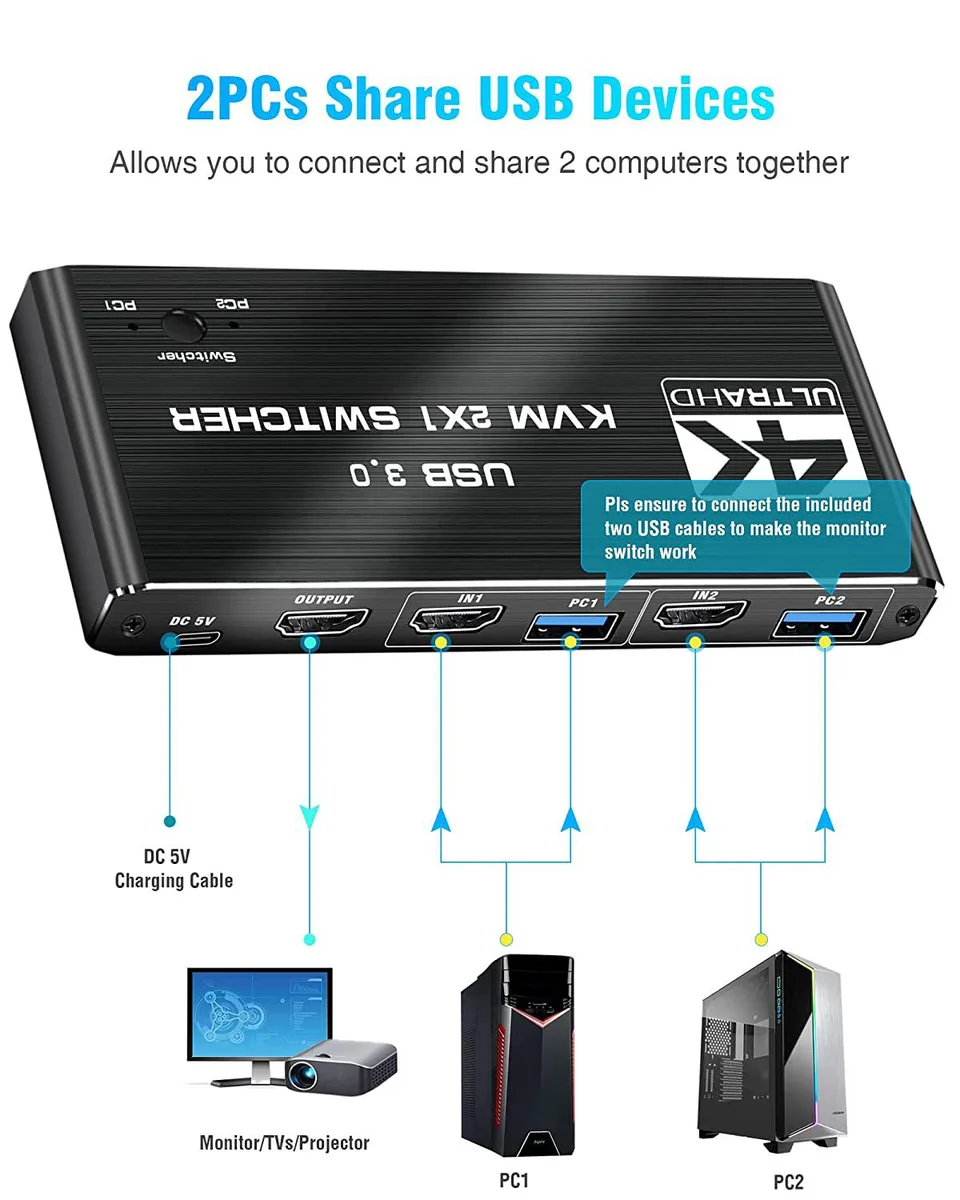

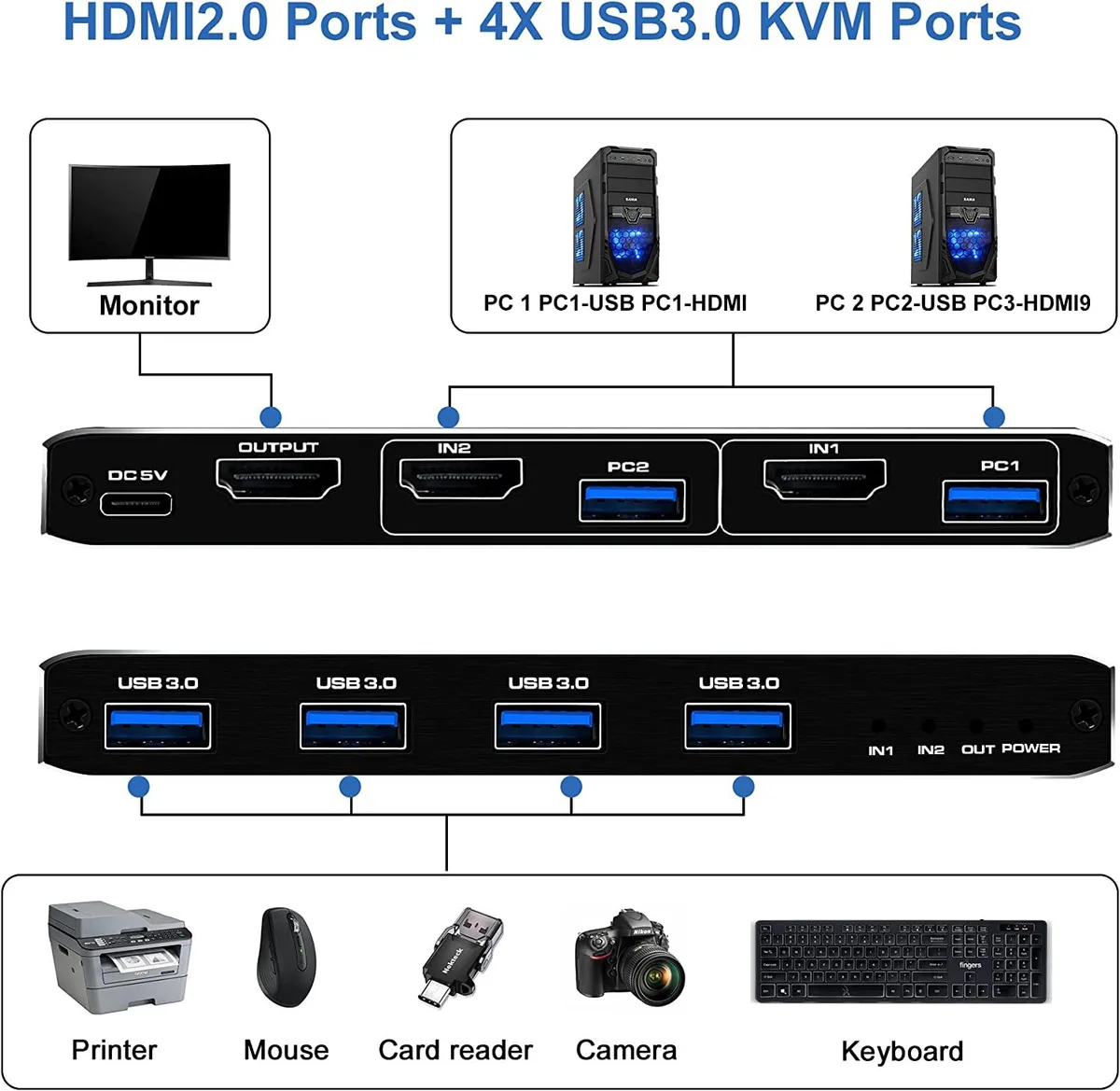

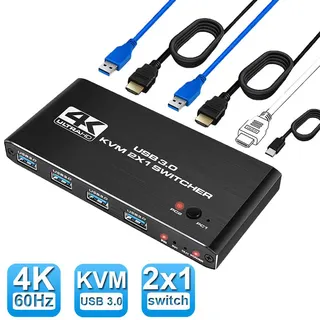

The ESTONE OZK2 is a 2-port HDMI 2.0 KVM switch that lets one 4K 60 Hz monitor, four USB 3.0 peripherals and a single keyboard-and-mouse set serve two computers. A top-mounted button toggles the active system instantly without software or driver installation. An aluminium-alloy shell provides shielding and passive cooling for stable long-term operation.
Shared-Peripheral Workstations
Suits users who alternate between two desktops or a desktop and a laptop and want to keep one monitor, printer, keyboard and mouse permanently connected. Not suited for setups that require simultaneous multi-monitor output, automatic timed switching beyond the fixed 3-second scan interval, or more than two computer inputs.
4K 60 Hz HDMI 2.0 Limit
The switch passes video up to 3840 x 2160 at 60 Hz through HDMI 2.0 with HDCP 2.2 support. If your workflow demands higher refresh rates at 4K, HDR metadata pass-through, or resolutions above 4K, this unit will not meet those requirements.
Highlights
- One-click switching between two computers with four USB 3.0 ports and one HDMI output
- 4K at 60 Hz video via HDMI 2.0 with HDCP 2.2 support
- Plug-and-play operation across Windows, macOS and Linux without driver installation
- Aluminium alloy chassis provides EMI shielding and passive cooling for stable signal transmission
- Compact 111.8 × 63.2 × 24.5 mm footprint keeps desk space tidy
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZK2 |
| Model | OZK2 |
| Type | HDMI, USB |
| PC Connectors | HDMI and USB |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Ports |
| Video Resolution | 3840 x 2160 |
| PC Selection | Manual Switch |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | USB and HDMI KVM switch allow a one-click swap between 2 computers to share 4 USB 3.0 peripherals and 1 HD monitor without constantly changing cables or setting up complex shareware. Make your work and life easier and more efficient! |
| Features | Support HDMI 2.0 HDCP 2.2 Resolution: Support 1080P, 3840x2160p, 4K/60Hz resolution, adaptive screen resolution Support system: Windows XP, Windows7, Windows10, Apple MAC, Linux, Unix and other operating systems Supports high current hard disk devices Switching method: 1.Press the "Select" button on the KVM switch panel to switch between the two source devices; Highly integrated digital chip combination, plug and play |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x HDMI 2.0 KVM USB Switch 2 x USB data cable 1 x USB power cable 1 x User Manual |
Questions about this item
What does the 4K 60Hz rating mean when I connect two computers to one monitor?
The switch passes a 3840 x 2160 signal at 60 frames per second from either computer to the single HDMI output, so the monitor shows full 4K smooth motion on the active port.
How does the HDMI 2.0 and HDCP 2.2 interface limit what I can display?
HDMI 2.0 caps the link at 4K 60Hz and HDCP 2.2 protects premium 4K streams; higher refresh rates or newer copy-protection schemes will not pass through this unit.
What physical space and cables are needed to mount the OZK2 on my desk?
The aluminium chassis measures 5.43 x 5.35 x 1.46 inches (111.8 x 63.2 x 24.5 mm) and weighs 9.52 ounces; it sits flat and connects via two HDMI cables, two USB 3.0 data cables and one USB power cable included in the box.
