ESTONE
ESTONE OZK10 2×2 8K60 DP1.4 HDMI2.1 USB3 KVM Switch
Share two computers across dual monitors at up to 8K 60 Hz with four USB 3.0 ports and push-button or remote switching
- TypeHDMI DP USB
- PC ConnectorsHDMI DP USB
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Remote Control
- Control two computers with one keyboard and mouse via front buttons or remote
- Share four USB 3.0 peripherals at up to 5 Gbps transfer speed
- Drive dual monitors at 7680×4320 60 Hz through DisplayPort 1.4 and HDMI 2.1
- Switch instantly with 3-second auto-scan and LED status indicators
- Compact 5.43×5.35×1.46-inch design weighs only 9.52 ounces

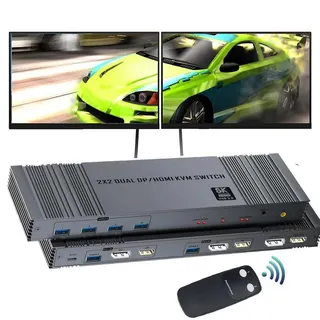

Dual-monitor KVM for two computers

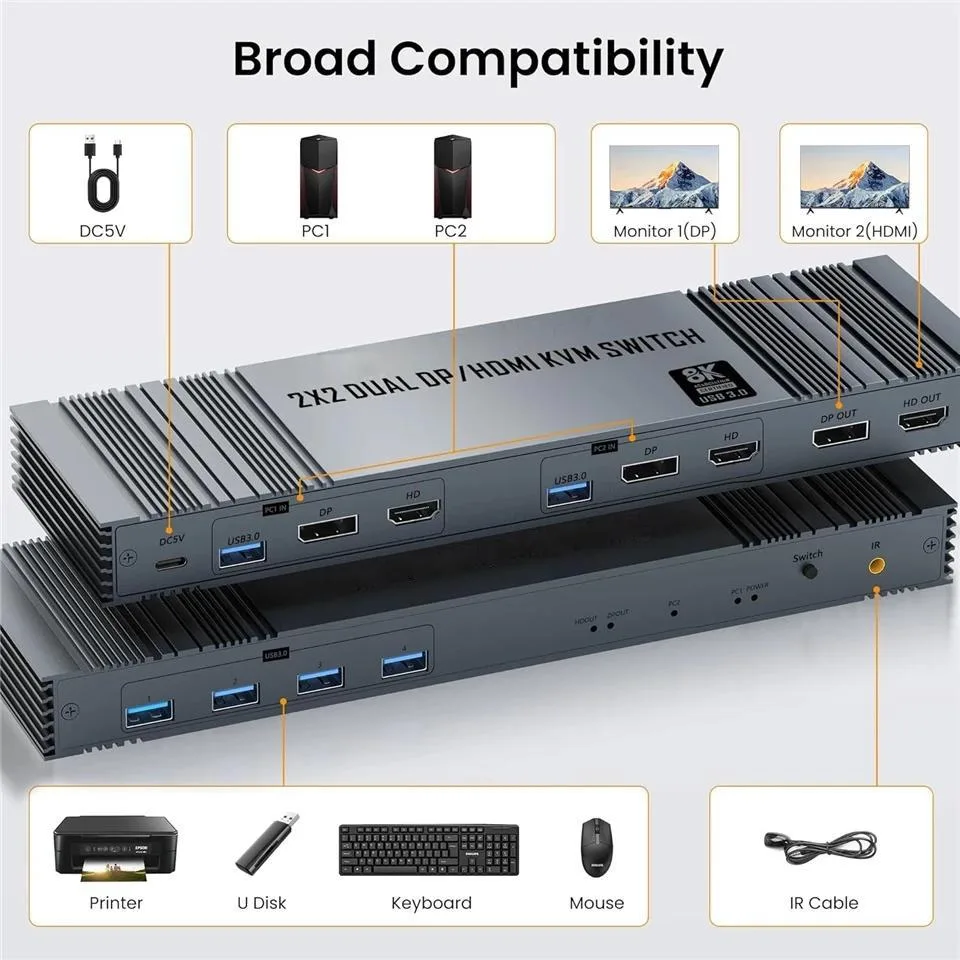

The ESTONE OZK10 lets one keyboard, one mouse and two displays control a pair of PCs or laptops. Each host must provide both an HDMI and a DisplayPort output because the switch does not convert signals between the two interfaces.
Interface limits at 8K 60 Hz
HDMI 2.1 and DisplayPort 1.4 carry 7680×4320 at 60 Hz, with backward compatibility for 4K 120 Hz and 1080p 240 Hz. HDCP 2.3 is supported on the HDMI path, but the unit will not translate an HDMI source to a DisplayPort monitor or vice versa.

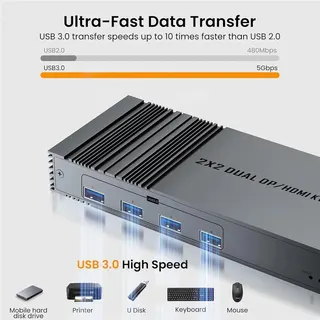

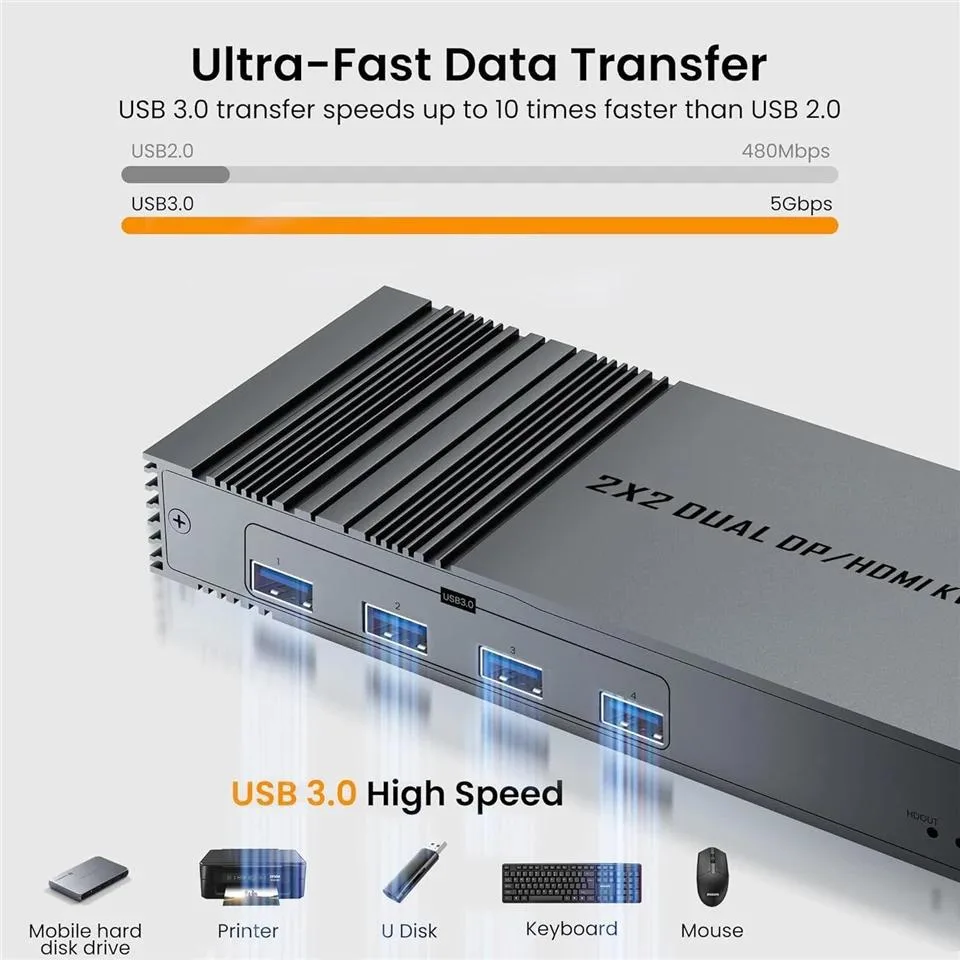

Four USB 3.0 ports at 5 Gbps
The built-in hub shares up to four peripherals such as printers, scanners or storage drives at the full 5 Gbps rate. Bandwidth is sufficient for typical office and creative workloads; very high-throughput devices may saturate the single upstream link.
Highlights
- Control two computers with one keyboard and mouse via front buttons or remote
- Share four USB 3.0 peripherals at up to 5 Gbps transfer speed
- Drive dual monitors at 7680×4320 60 Hz through DisplayPort 1.4 and HDMI 2.1
- Switch instantly with 3-second auto-scan and LED status indicators
- Compact 5.43×5.35×1.46-inch design weighs only 9.52 ounces
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZK10 |
| Model | OZK10 |
| Type | HDMI DP USB |
| PC Connectors | HDMI DP USB |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Remote Control |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Features | HDMI+Display Port Dual Monitor KVM Switch:This composite KVM switcher allows you to control two computers or laptops with just one set of wkeyboard and mouse. You can also share up to four USB 3.0 devices and connect two monitors in either extended or copy display mode. (Note: This KVM switch does not support hotkey switching) Ultra HD 8K 60Hz KVM Switch: This KVM switch Dual Monitor supports resolutions up to 7680*4320@60Hz and downward compatible supports 3D,HDR,HDCP.Picture quality is transmitted without delay, resulting in a more realistic and high-definition image display. Note: |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x HDMI DP KVM USB Switch, 2 x USB 3.0 data cable, 1x DC power adapter,1 x User Manual. |
Questions about this item
Should I pick the 8K 60 Hz or 4K 120 Hz capability for my dual-monitor setup?
The switch handles both; it outputs up to 7680×4320 at 60 Hz and is backward compatible with 4K at 120 Hz and 1080P at 240 Hz, so choose the resolution and refresh rate your monitors and cables support.
What does the 8K 60 Hz rating actually deliver when I connect two PCs and two displays?
Each computer must provide both an HDMI 2.1 and a DisplayPort 1.4 signal; the KVM passes them straight through to matching monitor inputs with no conversion, giving you 8K 60 Hz per display when all links support it.
Which video standard limits the bandwidth — HDMI 2.1 or DisplayPort 1.4?
Both interfaces are present; HDMI 2.1 with HDCP 2.3 and DisplayPort 1.4 run side by side, so the practical ceiling is set by whichever cable, GPU and monitor combination you use on each port.
