ESTONE
ESTONE OZK1-New 2-Port 4K 120Hz HDMI USB KVM Switch
A 2-port HDMI KVM switch lets you control two computers with one monitor, keyboard and mouse while sharing three USB 3.0 devices and one RJ45 network connection at up to 8K 30 Hz resolution
- TypeHDMI, USB
- PC ConnectorsHDMI and USB
- Computer Connections2 Ports
- Monitor Connections1 Ports
- Video Resolution7680 x 4320
- PC SelectionManual Switch and Remote Control
- Share 3 USB 3.0 devices between 2 computers at 5 Gbps
- Control 2 PCs with 1 keyboard, mouse and monitor via button or remote
- Supports up to 8K@30Hz and 4K@120Hz video output
- Built-in RJ45 port lets 2 systems share one wired network connection
- Front USB ports keep flash drives, webcams and peripherals within easy reach
Two-computer HDMI KVM switch

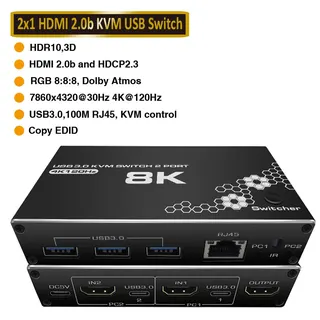

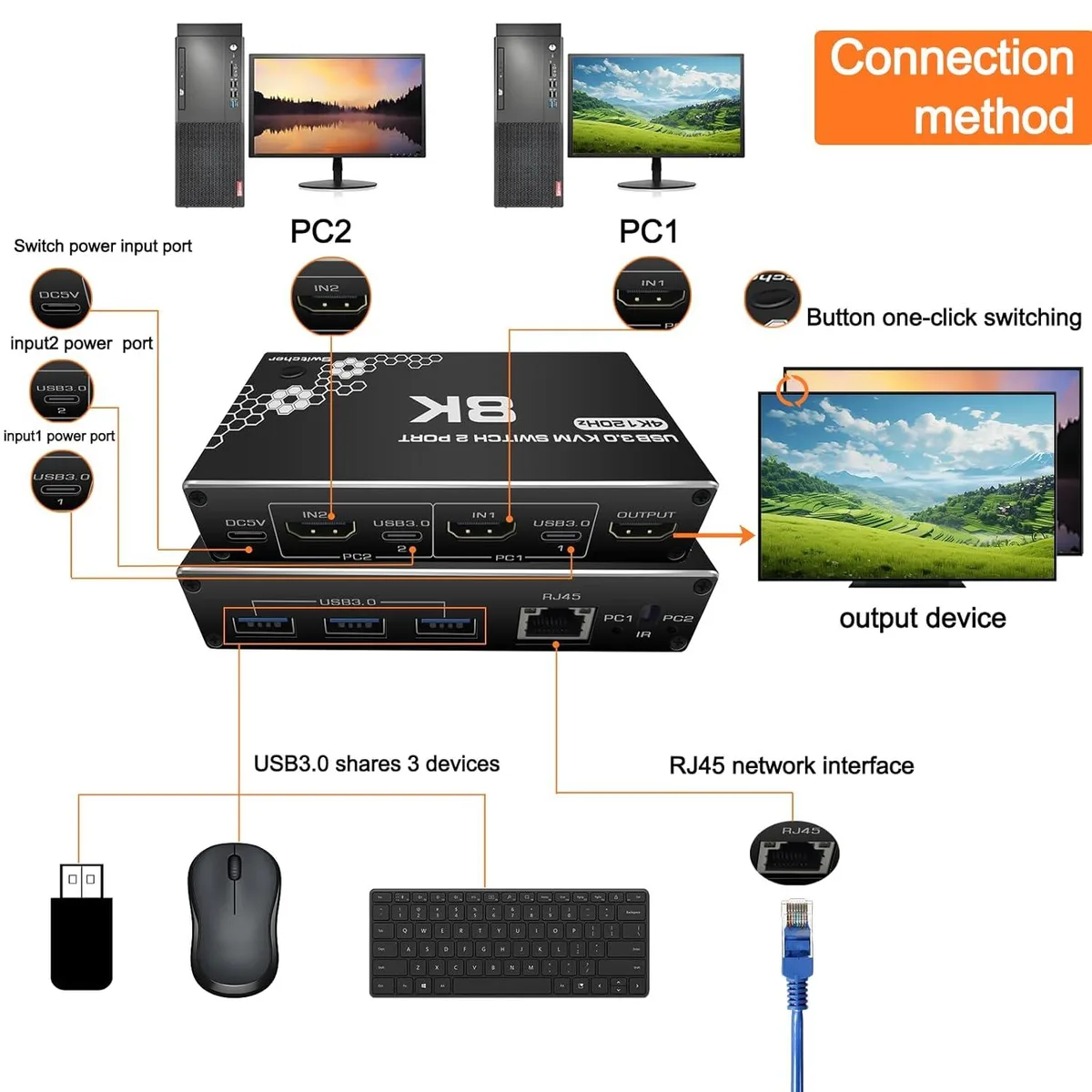

The ESTONE OZK1-New connects two PCs to a single monitor, keyboard and mouse. It accepts two HDMI 2.0b inputs and two USB 3.0 upstream links, then provides one HDMI output, three USB 3.0 downstream ports and one RJ45 network port. Switching is done by a front button or the supplied wireless remote. The unit is powered from an external DC 5 V jack.
8K30 and 4K120 video headroom
The switch passes resolutions up to 7680 x 4320 at 30 Hz when both source and display support that mode. At 4K it handles 120 Hz refresh, giving smooth motion for gaming or high-frame-rate content. USB 3.0 peripheral bandwidth reaches 5 Gb/s, ten times the throughput of USB 2.0. Auto-scan cycles every 3 seconds if enabled. It cannot drive two monitors simultaneously or exceed the stated refresh limits.
Rear-cable layout with front USB access
All fixed cables — HDMI, USB and RJ45 — route to the back, leaving four USB 3.0 ports on the front for flash drives, cameras or other hot-plug devices. LED indicators show the active computer at a glance. The package includes two USB data cables, a remote controller and a manual. Buyers who need more than two computer ports or dual-monitor output will need a different solution.
Highlights
- Share 3 USB 3.0 devices between 2 computers at 5 Gbps
- Control 2 PCs with 1 keyboard, mouse and monitor via button or remote
- Supports up to 8K@30Hz and 4K@120Hz video output
- Built-in RJ45 port lets 2 systems share one wired network connection
- Front USB ports keep flash drives, webcams and peripherals within easy reach
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZK1-New |
| Model | OZK1-New |
| Type | HDMI, USB |
| PC Connectors | HDMI and USB |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Ports |
| Video Resolution | 7680 x 4320 |
| PC Selection | Manual Switch and Remote Control |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | 4K 120Hz 2 Ports USB KVM HDMI Switch Box: 8K HDMI KVM Switcher Box allows you to control 2 computer with only one set of controls and display screen (mouse and keyboard) and one RJ45 port. Built-in high-performance chips, using high technology to decode, plug and play, no need to drive. This will be a good choice for Enterprise, Office, Multimedia Teaching, Meeting Room, Gaming Room, Home Theater, Research Test, etc. ? |
| Features | 2 PCs Share Multiple Devices:2 in 5 out USB 3.0 HDMI RI45 kvm switch, supports 2 computers sharing 3 USB devices, 1 RJ45 device and 1HDMI device like keyboards, mouses, U disk, printers, scanners, USB cameras, etc. 4K@120Hz HD display:This usb 3.0 kvm switch 2 port supports resolution up to 4K@120Hz and backward compatible. Kvm switch also support HDMI 2.0 and RJ45 Internet connection.Make your image display more delicate and lifelike, and your experience richer and more convenient. RJ45 Network Switch: The KVM switch is outfitted with 1 RJ45 port, offering a network for one of your |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | KVM switch body*1pc, USB data Cable*2PCS, USB Manual* 1PC, Remote Controller *1PC |
Questions about this item
Will the HDMI 2.0b inputs on this OZK1-New switch work with my older PCs that only output 4K?
Yes, the two HDMI 2.0b inputs accept 4K signals from older computers and the switch outputs up to 8K@30Hz when both the source graphics card and monitor support that resolution.
How can I confirm the OZK1-New is switching correctly after I connect two PCs and one monitor?
The front-panel LED indicators show which of the two ports is active, and pressing the button or using the wireless remote changes the selected computer immediately.
What cables and accessories come in the box with the OZK1-New and what must I provide separately?
The package includes the KVM unit, two USB data cables, a user manual and a wireless remote controller; you must supply two HDMI cables for the PC inputs, one HDMI cable for the monitor output and any USB peripherals you wish to share.
