ESTONE
ESTONE OZK1 2-Port HDMI 2.0 KVM Switch 4K 60Hz 3 USB 2.0
Lets two computers share one 4K 60 Hz display and three USB 2.0 peripherals with push-button switching
- TypeHDMI, USB
- PC ConnectorsHDMI and USB
- Computer Connections2 Ports
- Monitor Connections1 Ports
- Video Resolution3840 x 2160
- PC SelectionManual Switch

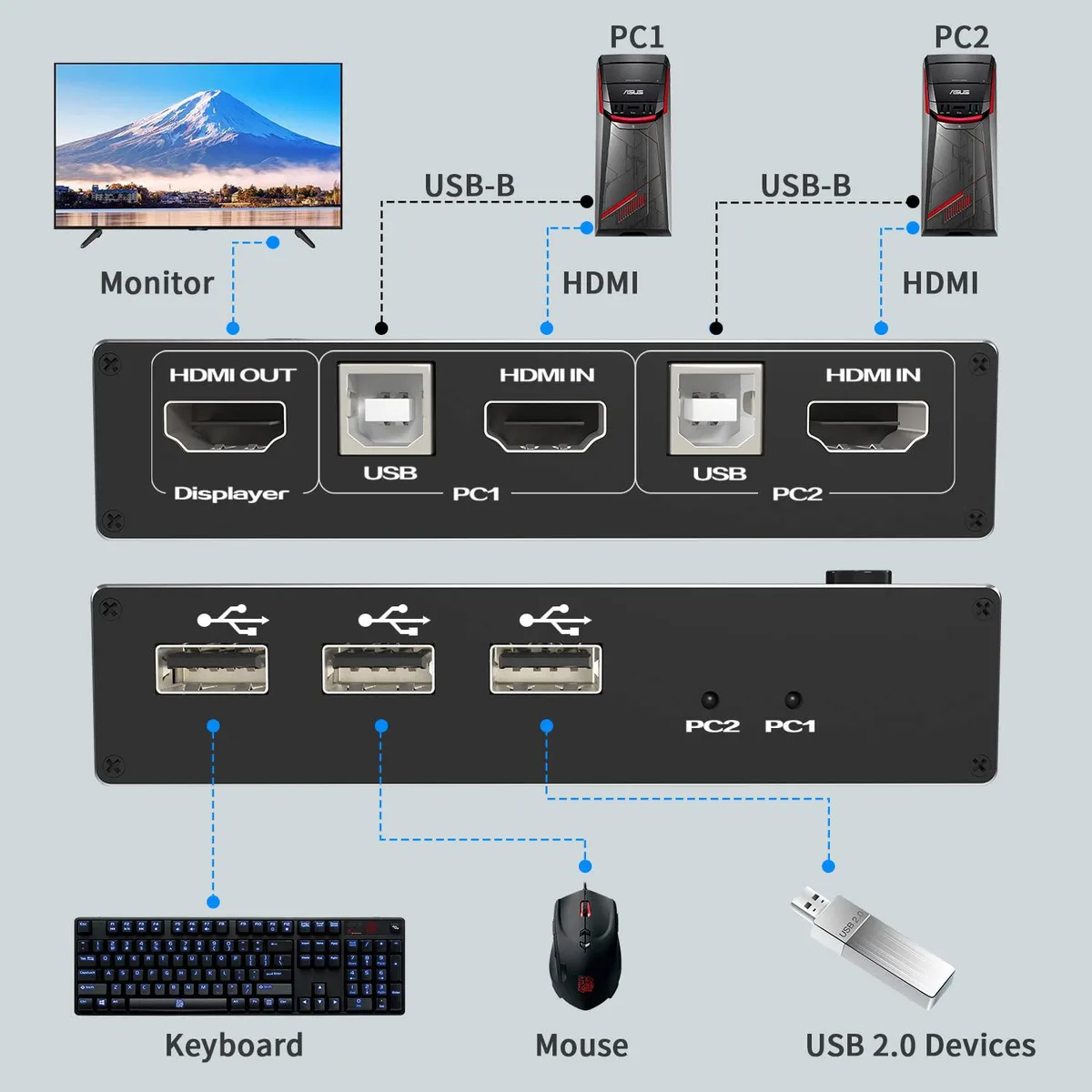

- Control two computers with one keyboard, mouse and monitor using a single button press
- View 4K content at 60 Hz with 18 Gbps bandwidth and HDCP 2.2 compliance
- Connect three USB 2.0 peripherals such as keyboard, mouse and printer through the built-in hub
- Operate without an external power adapter — the switch draws power from the HDMI cables
- Switch instantly between systems with a 3-second auto-scan interval and LED status indicators
ESTONE OZK1 2-Port HDMI 2.0 KVM Switch
The ESTONE OZK1 is a 2-port HDMI 2.0 KVM switch that lets you control two computers with a single monitor, keyboard and mouse. It supports video resolutions up to 3840 x 2160 at 60 Hz and includes three USB 2.0 ports for sharing peripherals such as printers or storage devices. The unit is powered through the HDMI cables, so no external power adapter is required, and switching is performed by a push button on the front panel.
Who this suits and who should look elsewhere
This switch suits users who need to share one 4K 60 Hz display and a set of USB 2.0 peripherals between two PCs, Macs or other HDMI sources in offices, classrooms or home setups. It does not suit buyers who need more than two computer ports, who require USB 3.0 or higher peripheral speeds, or who want automatic timed switching beyond the fixed 3-second AutoScan interval.
The specification that decides fit
The single specification that decides fit is the maximum supported video resolution of 3840 x 2160 at 60 Hz over HDMI 2.0; if your workflow demands higher refresh rates at 4K or resolutions beyond 4K, this switch will not meet that requirement.
Highlights
- Control two computers with one keyboard, mouse and monitor using a single button press
- View 4K content at 60 Hz with 18 Gbps bandwidth and HDCP 2.2 compliance
- Connect three USB 2.0 peripherals such as keyboard, mouse and printer through the built-in hub
- Operate without an external power adapter — the switch draws power from the HDMI cables
- Switch instantly between systems with a 3-second auto-scan interval and LED status indicators
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZK1 |
| Model | OZK1 |
| Type | HDMI, USB |
| PC Connectors | HDMI and USB |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Ports |
| Video Resolution | 3840 x 2160 |
| PC Selection | Manual Switch |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | 4K@60Hz 2 Ports USB KVM HDMI Switch Box: 4K HDMI KVM Switcher Box allows you to control 2 computer with only one set of controls and display screen (mouse and keyboard). Built-in high-performance chips, using high technology to decode, plug and play, no need to drive. This will be a good choice for Enterprise, Office, Multimedia Teaching, Meeting Room, Gaming Room, Home Theater, Research Test, etc. |
| Features | 4K@60Hz 2 Ports USB KVM HDMI Switch Box: 4K HDMI KVM Switcher Box allows you to control 2 computer with only one set of controls and display screen (mouse and keyboard). Built-in high-performance chips, using high technology to decode, plug and play, no need to drive. This will be a good choice for Enterprise, Office, Multimedia Teaching, Meeting Room, Gaming Room, Home Theater, Research Test, etc. Specifications Product Type: HDMI USBx3 KVM Switch (2 in 1 out) Input Port: HDMI x 2, USB 2.0 x 3 Output Port: 1 x HDMI Dimensions: 111.8x63.2x24.5mm Features 4K@60Hz 2 Ports USB KVM HDMI |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x 2 in 1 out HDMI KVM SWITCH 2 x USB Cable 1 x User manual |
Questions about this item
How much heat or noise does the OZK1 generate when left running all day?
The OZK1 is powered through the HDMI cables and has no fan, so it produces no audible noise and negligible heat during continuous operation.
Which cables must I already own to connect two computers and one monitor to the OZK1?
You need two HDMI cables for the video links and two USB-A-to-USB-B cables for the keyboard-and-mouse connections; the switch includes two USB cables in the box.
Will the OZK1 work with a legacy PC that only outputs 1080p over HDMI?
Yes, the switch is downward-compatible with 1080p and lower resolutions, so an older 1080p source will display correctly on the shared monitor.
