ESTONE

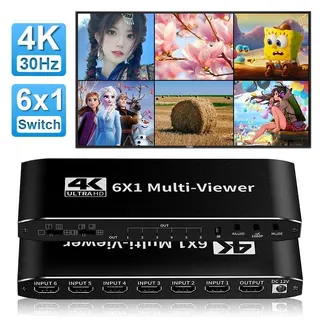

ESTONE OZJQF2 HDMI 6x1 Multiviewer Switch 4K 1080p
Displays six HDMI sources on one screen with nine split modes and seamless 4K30Hz switching via remote or front panel buttons
- TypeProfessional Video Devices
- Remote ControlRemote Included
- InterfaceHDMI
- Ports In1 HDMI
- Ports Out6 HDMI
- SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/
- Display six sources simultaneously on one screen with nine split modes
- Switch instantly between any of the six inputs with zero-lag seamless transitions
- View content up to 4K at 30 Hz and 1080p at 60 Hz with HDCP 1.4 and 1.3 support
- Control the unit from the front panel or the included IR remote without leaving your seat
- Connect cameras, consoles, PCs, streamers and Blu-ray players via standard HDMI
6×1 HDMI Multiviewer Switch
The ESTONE OZJQF2 is a professional video device that accepts six HDMI sources and combines them onto a single display. It is built for security operators, installers and streamers who need simultaneous visibility of multiple cameras, consoles or PCs on one screen.
HDMI Interface Limits
The unit supports HDMI resolutions up to 4K at 30 Hz and 1080p at 60 Hz with colour depths of 24, 30 or 36 bit. Audio passes through in DTS-HD, Dolby TrueHD, Dolby AC3 or DSD formats. HDCP 1.3 and 1.4 compliance protects premium content, while the 5 V 2.1 A adapter powers the switching engine.
Capacity and Headroom
Nine split-screen layouts — from full-screen through dual, triple, quad, penta and hexa views — let operators monitor up to six live feeds at once. Seamless switching eliminates blackout when changing the full-screen source. The device does not scale individual inputs to 4K 60 Hz, so 4K 60 sources will be downsampled or require a lower output mode.
Highlights
- Display six sources simultaneously on one screen with nine split modes
- Switch instantly between any of the six inputs with zero-lag seamless transitions
- View content up to 4K at 30 Hz and 1080p at 60 Hz with HDCP 1.4 and 1.3 support
- Control the unit from the front panel or the included IR remote without leaving your seat
- Connect cameras, consoles, PCs, streamers and Blu-ray players via standard HDMI
Specifications
| Brand | ESTONE |
|---|---|
| Model | OZJQF2 |
| Type | Professional Video Devices |
| Remote Control | Remote Included |
| Interface | HDMI |
| Ports In | 1 HDMI |
| Ports Out | 6 HDMI |
| Specifications | Support HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/ 720p/ 576p/ 576i/ 480p/ 480i. Support video color format:24bit/ 30bit/ 36bit. Support audio input format:DTS-HD/ Dolby-realHD/ Dolby-AC3/ DSD. Support audio output format: LPCM,PCM2. Max bandwidth:330Mhz. Max bandrate: 10.2Gbps. Input/Output TMDS signal:0.5~1.5V p-p(TTL). Input/Output DDc signal: 5Volts p-p(TTL). Input cable distance: =15mAWG24 HDM standard cable. Output cable distance: =24mAWG24 HDMl standard cable. Max working current: 12V/0.6A. |
| Package Contents | 6x1 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1 |
Questions about this item
Which 6x1 multiviewer configuration matches my six-source setup?
This unit accepts six HDMI inputs and combines them onto a single HDMI output with nine selectable split-screen modes from full-screen through hexa-view.
What does 4K30Hz support mean when I connect a 4K display?
The switch passes 4K resolution at up to 30 Hz, while 1080p signals run at 60 Hz; both include synchronous audio with no added latency.
How does the HDMI 1.4 / HDCP 1.4 interface limit what I can show?
The HDMI 1.4 link caps video at 4K30Hz and 1080p60Hz, enforces HDCP 1.4 content protection, and carries 24-36 bit colour plus DTS-HD, Dolby TrueHD, Dolby-AC3 or DSD audio.
