ESTONE
ESTONE OZJQF2 6x1 HDMI Multiviewer Switch 4K30Hz 15M
Displays six HDMI sources on one screen with nine split modes and seamless 4K30Hz switching up to 15 metres
- TypeProfessional Video Devices
- Remote ControlRemote Included
- InterfaceHDMI
- Ports In1 HDMI
- Ports Out6 HDMI
- SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/
- Display six sources on one screen with nine split modes
- Seamless switching between six HDMI inputs without delay
- Supports 4K30Hz and 1080p60Hz with HDCP1.4
- IR remote and front button control for flexible operation
- HDMI cables up to 15m supported for extended reach

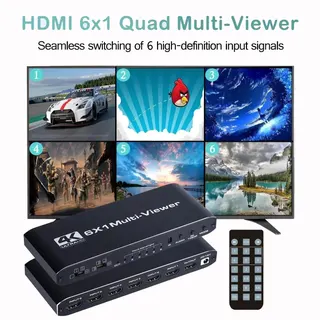

6x1 HDMI Multiviewer for Multi-Source Display

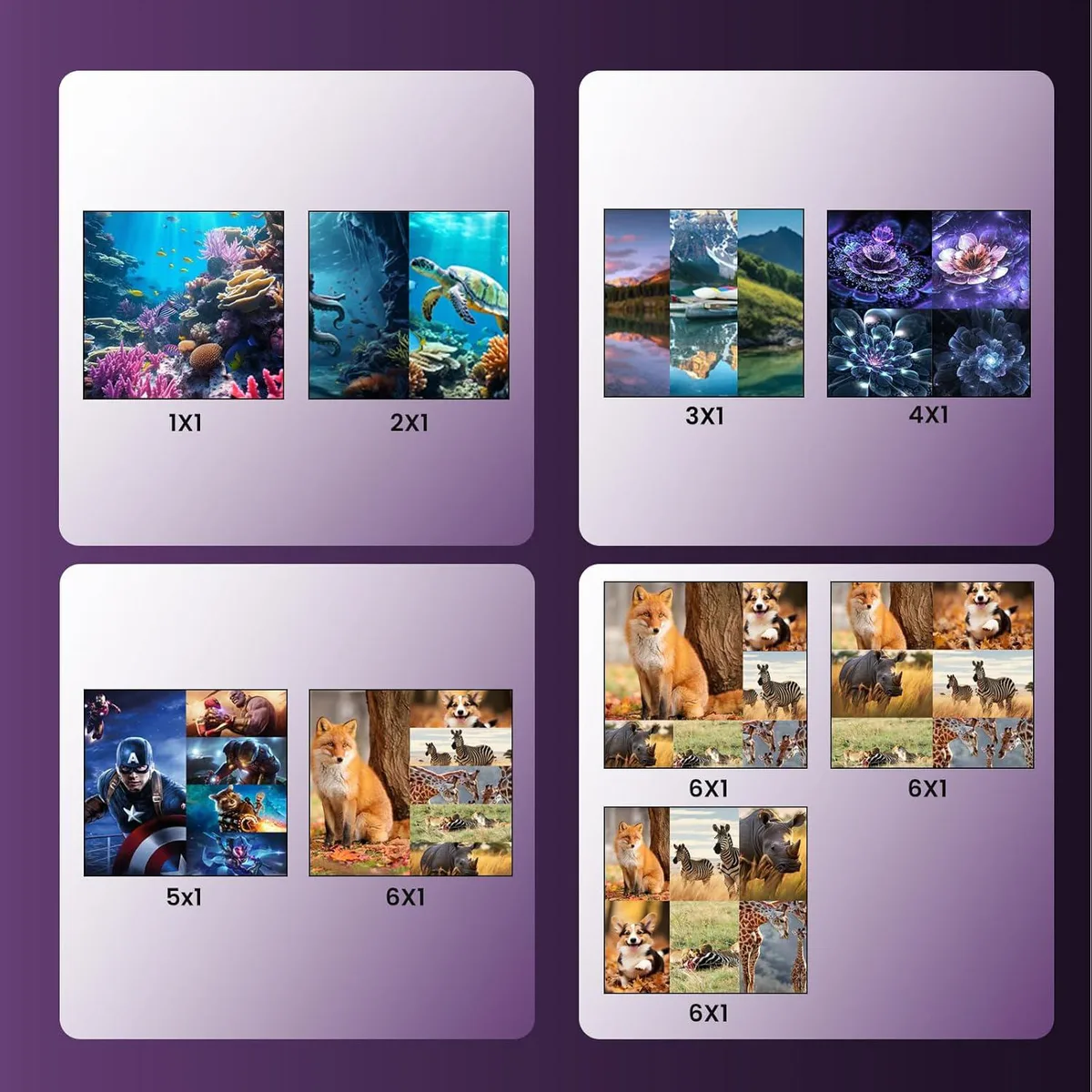

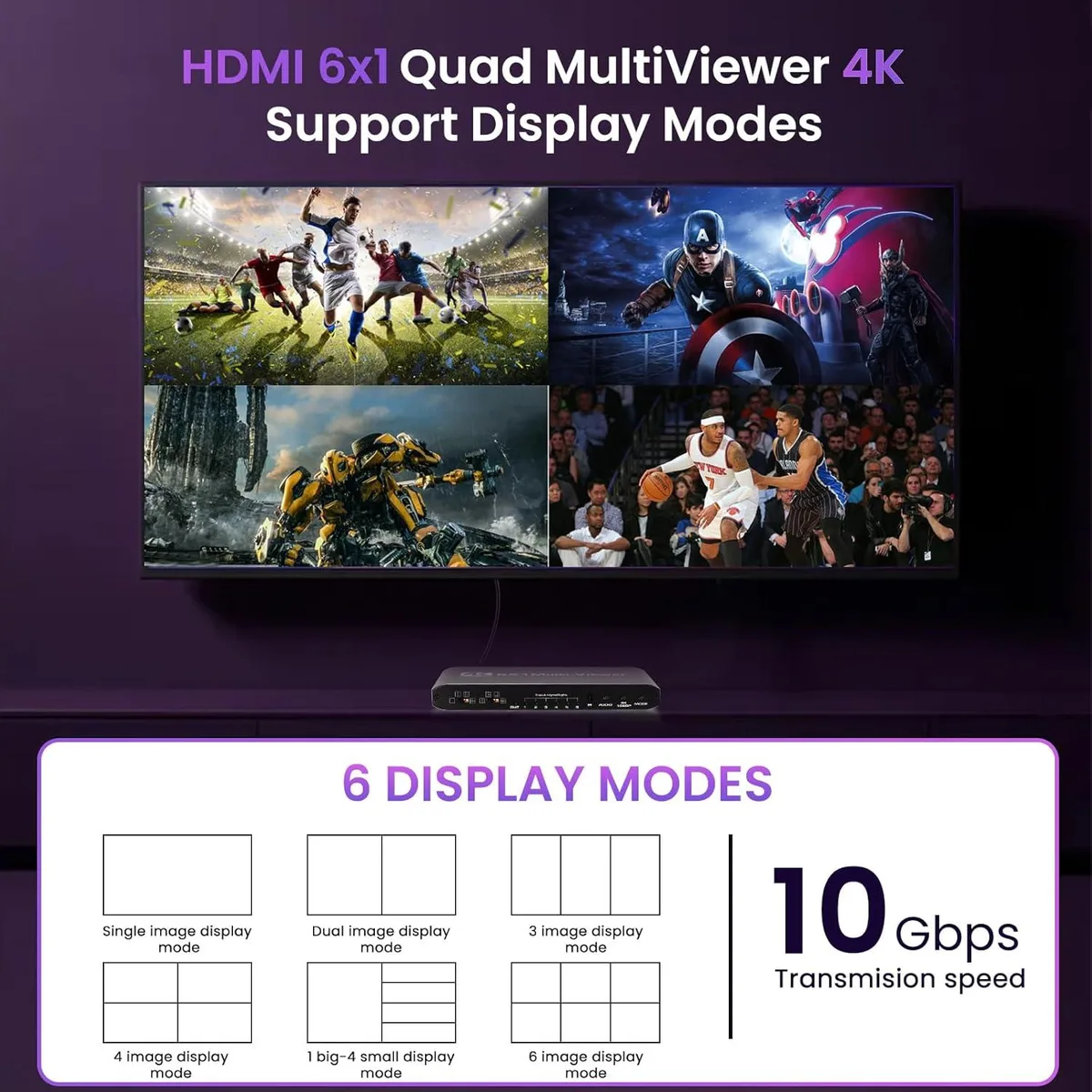

The ESTONE OZJQF2 accepts six HDMI sources and combines them onto a single output screen. It offers nine split-screen layouts ranging from full-screen through dual, triple, quad, penta and hexa views. Control is handled by front-panel buttons or the supplied infrared remote, making it suited for control rooms, presentation spaces and multi-camera monitoring setups.
Seamless Switching Across All Layouts
The unit switches between any of the six inputs without visible interruption or re-sync delay, whether in full-screen mode or a multi-view layout. It supports resolutions up to 4K at 30 Hz and 1080p at 60 Hz, with colour depths of 24, 30 and 36 bit. HDMI 1.4 and HDCP 1.4 compliance ensures compatibility with protected content from cameras, media players and PCs.
Passive Cooling With External Power
A 5 V 2.1 A adapter powers the device, which runs without internal fans for silent operation in quiet environments. High-speed HDMI cables up to 15 m are supported on both inputs and output using 19+1 pin, 28 AWG wiring. Audio formats including DTS-HD, Dolby TrueHD, Dolby Digital Plus and DSD pass through transparently alongside the video signal.
Highlights
- Display six sources on one screen with nine split modes
- Seamless switching between six HDMI inputs without delay
- Supports 4K30Hz and 1080p60Hz with HDCP1.4
- IR remote and front button control for flexible operation
- HDMI cables up to 15m supported for extended reach
Specifications
| Brand | ESTONE |
|---|---|
| Model | OZJQF2 |
| Type | Professional Video Devices |
| Remote Control | Remote Included |
| Interface | HDMI |
| Ports In | 1 HDMI |
| Ports Out | 6 HDMI |
| Specifications | Support HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/ 720p/ 576p/ 576i/ 480p/ 480i. Support video color format:24bit/ 30bit/ 36bit. Support audio input format:DTS-HD/ Dolby-realHD/ Dolby-AC3/ DSD. Support audio output format: LPCM,PCM2. Max bandwidth:330Mhz. Max bandrate: 10.2Gbps. Input/Output TMDS signal:0.5~1.5V p-p(TTL). Input/Output DDc signal: 5Volts p-p(TTL). Input cable distance: =15mAWG24 HDM standard cable. Output cable distance: =24mAWG24 HDMl standard cable. Max working current: 12V/0.6A. |
| Package Contents | 6x1 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1 |
Questions about this item
Does the 5 V 2.1 A power adapter mean the multiviewer runs silently without a fan?
The unit is powered by an external 5 V 2.1 A adapter and has no internal fan, so it operates silently during all-day use.
Which cables and sources must I already have to use the six HDMI inputs and single HDMI output?
You need six HDMI source devices and up to seven high-speed HDMI cables (19+1, 28 AWG) to connect all inputs and the output, plus a display with an HDMI port.
Will the switcher pass 4K 30 Hz from a newer source while still showing 1080p 60 Hz from older gear on the same screen?
Yes, it supports 4K at 30 Hz and 1080p at 60 Hz simultaneously across its multi-view modes, with HDCP 1.4 and HDMI 1.4 backward compatibility.
