Black rectangular box with six HDMI inputs one output and IR remote

ESTONE

ESTONE OZJQF2 6x1 HDMI Multi-Viewer 4K 8 Modes

SKU CH-GDYV-092JA

Displays up to six HDMI sources on one screen with eight multi-view modes and seamless full-screen switching

  • TypeProfessional Video Devices
  • Remote ControlRemote Included
  • InterfaceHDMI
  • Ports In1 HDMI
  • Ports Out6 HDMI
  • SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/
  • View up to six sources simultaneously with 8 multi-view modes
  • Switch instantly between six inputs in full-screen mode with seamless transition
  • Supports 4K at 30 Hz and 1080p with 24, 30, 36-bit colour depth
  • Works with cameras, streamers, Blu-ray players, consoles and more via standard HDMI
  • Control everything from the sofa using the included IR remote

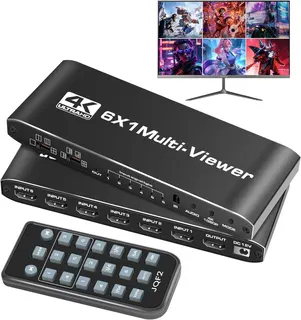

ESTONE OZJQF2 6x1 HDMI Multi-Viewer

This professional video device combines a six-input HDMI switch with a multi-viewer that can show up to six sources on one display. It is designed for operators who need to monitor several cameras, players or computers simultaneously without adding extra screens. The unit includes an infrared remote for mode changes and a 5V 2.1A power adapter for immediate operation.

8 viewing modes with 4K30Hz headroom

The processor accepts resolutions up to 4K at 30Hz and 1080p at 60Hz, plus 1080i, 720p, 576p, 576i, 480p and 480i. Colour depth reaches 24, 30 or 36 bits per pixel. Audio passthrough covers DTS-HD, Dolby TrueHD, Dolby AC3 and DSD formats. Bandwidth limits appear when all six inputs run at the highest supported resolution and colour depth together.

Passive cooling with external power supply

The compact metal chassis relies on natural convection and stays silent during continuous use. Power draw is satisfied by the included 5V 2.1A adapter, so no internal fan noise is generated. Heat output remains low enough for desktop or rack placement without forced airflow.

Highlights

  • View up to six sources simultaneously with 8 multi-view modes
  • Switch instantly between six inputs in full-screen mode with seamless transition
  • Supports 4K at 30 Hz and 1080p with 24, 30, 36-bit colour depth
  • Works with cameras, streamers, Blu-ray players, consoles and more via standard HDMI
  • Control everything from the sofa using the included IR remote

Specifications

BrandESTONE
ModelOZJQF2
TypeProfessional Video Devices
Remote ControlRemote Included
InterfaceHDMI
Ports In1 HDMI
Ports Out6 HDMI
SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/ 720p/ 576p/ 576i/ 480p/ 480i.
Support video color format:24bit/ 30bit/ 36bit.
Support audio input format:DTS-HD/ Dolby-realHD/ Dolby-AC3/ DSD.
Support audio output format: LPCM,PCM2.
Max bandwidth:330Mhz.
Max bandrate: 10.2Gbps.
Input/Output TMDS signal:0.5~1.5V p-p(TTL).
Input/Output DDc signal: 5Volts p-p(TTL).
Input cable distance: =15mAWG24 HDM standard cable.
Output cable distance: =24mAWG24 HDMl standard cable.
Max working current: 12V/0.6A.
Package Contents6x1 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1

Questions about this item

Will this multiviewer pass 4K 30 Hz and 1080p 60 Hz from my older consoles and cameras to a single display?

Yes — the unit accepts 4K at 30 Hz and 1080p at 60 Hz, plus 1080i, 720p, 576p, 576i, 480p and 480i, so legacy sources up to 1080p 60 Hz work alongside newer 4K 30 Hz gear.

How can I confirm seamless switching and the eight split-screen modes are active after I connect everything?

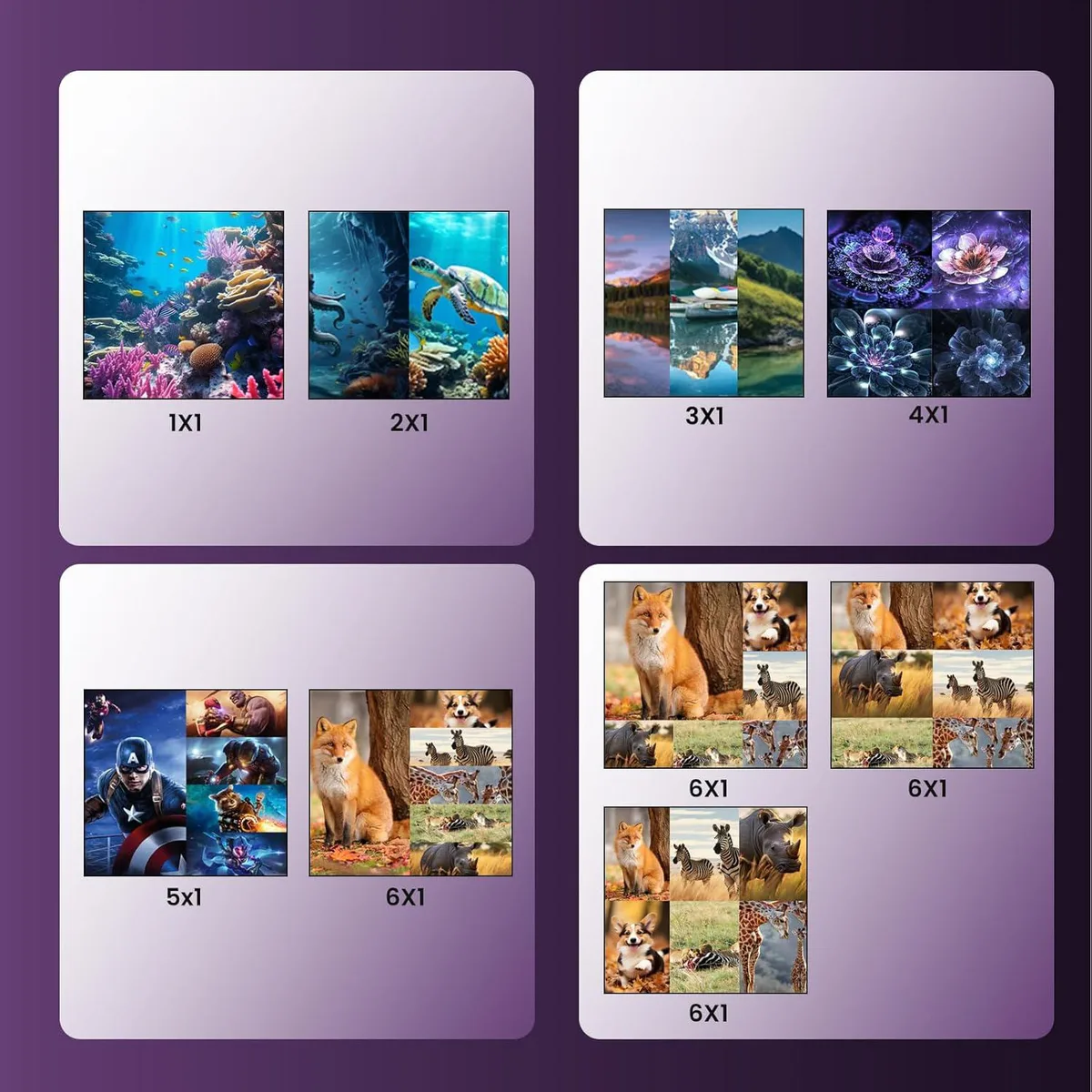

Use the IR remote to cycle through full-screen, 2×1, 3×1, 4×1, 5×1 and 6×1 layouts; the output changes instantly with no black frames when in full-screen mode, confirming seamless operation.

Does the box include the power supply and remote, or do I need to buy a 5 V 2.1 A adapter and batteries separately?

The package ships with the multiviewer, a 5 V 2.1 A power adapter, the IR remote (batteries not included) and a user manual.
