Compact black box with six HDMI inputs, one output, front buttons and IR remote

ESTONE

ESTONE OZJQF2 6×1 HDMI Multiviewer Switch 1080p 60Hz

SKU CH-E9Q5-B2873

Displays six HDMI sources on one screen with seamless switching across nine split modes up to 1080p 60 Hz

  • TypeProfessional Video Devices
  • Remote ControlRemote Included
  • InterfaceHDMI
  • Ports In1 HDMI
  • Ports Out6 HDMI
  • SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/
  • Display six sources simultaneously with 9 split-screen modes
  • Switch between inputs instantly with zero-latency seamless switching
  • Connect consoles, PCs and cameras via six HDMI inputs
  • Supports 4K 30 Hz, 1080p 60 Hz and legacy 480i/576i resolutions
  • Includes IR remote and front-panel buttons for flexible control

6×1 HDMI Multiviewer for Multi-Source Monitoring

The ESTONE OZJQF2 accepts six HDMI sources and combines them on a single output for simultaneous viewing. It is aimed at installers, streamers and security operators who need to watch several cameras, consoles or PCs at once. Nine split-screen layouts range from full-screen to a six-way mosaic. Front-panel buttons and the bundled IR remote give instant layout changes.

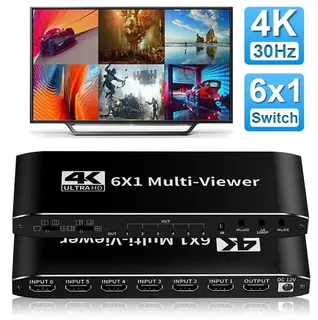

Metal Chassis with Front Buttons and IR Sensor

A compact metal enclosure protects the internal scaler and provides six HDMI inputs plus one HDMI output on the rear. The front panel adds tactile switching buttons and an IR window so the remote works without line-of-sight to the back. A 5 V 2.1 A power adapter is included; the unit draws power from that adapter rather than the HDMI ports. No rack ears or mounting brackets are mentioned.

Silent Passive Cooling and Low Power Draw

With no moving parts the switch runs silently, making it suitable for quiet studios or meeting rooms. The external 5 V supply limits total consumption to roughly 10 W, so heat output stays minimal during continuous 1080p 60 Hz operation. Downscaling from 4K 30 Hz inputs to 1080p output is handled without added latency.

Highlights

  • Display six sources simultaneously with 9 split-screen modes
  • Switch between inputs instantly with zero-latency seamless switching
  • Connect consoles, PCs and cameras via six HDMI inputs
  • Supports 4K 30 Hz, 1080p 60 Hz and legacy 480i/576i resolutions
  • Includes IR remote and front-panel buttons for flexible control

Specifications

BrandESTONE
ModelOZJQF2
TypeProfessional Video Devices
Remote ControlRemote Included
InterfaceHDMI
Ports In1 HDMI
Ports Out6 HDMI
SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/ 720p/ 576p/ 576i/ 480p/ 480i.
Support video color format:24bit/ 30bit/ 36bit.
Support audio input format:DTS-HD/ Dolby-realHD/ Dolby-AC3/ DSD.
Support audio output format: LPCM,PCM2.
Max bandwidth:330Mhz.
Max bandrate: 10.2Gbps.
Input/Output TMDS signal:0.5~1.5V p-p(TTL).
Input/Output DDc signal: 5Volts p-p(TTL).
Input cable distance: =15mAWG24 HDM standard cable.
Output cable distance: =24mAWG24 HDMl standard cable.
Max working current: 12V/0.6A.
Package Contents6x1 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1

Questions about this item

Does the HDMI interface support 4K at 60 Hz?

The HDMI interface handles 4K at 30 Hz and 1080p at 60 Hz, so 4K 60 Hz is not supported.

What physical space and connections are required to install the unit?

The device needs a flat surface or shelf, six HDMI source cables, one HDMI display cable and the included 5 V 2.1 A power adapter.

How is the multiviewer set up and which step is often missed?

Connect all six sources, the display and power, then use the front button or IR remote to choose one of the nine split modes; the step often missed is selecting the desired layout after power-up.
