ESTONE
ESTONE OZJP3 6-Channel 2x3 HDMI Video Wall Controller with RS232 & Remote
Distributes one HDMI source to six screens with 14 splicing modes, RS232 and IR remote control, plus SPDIF and 3.5 mm audio outputs
- TypeProfessional Video Devices
- Remote ControlRemote Included
- InterfaceHDMI
- Ports In1 HDMI
- Ports Out6 HDMI
- Specifications4K HDMI Video Wall Controller with SPDIF & 3.5mm Audio Port
- Distributes one HDMI source to six displays simultaneously

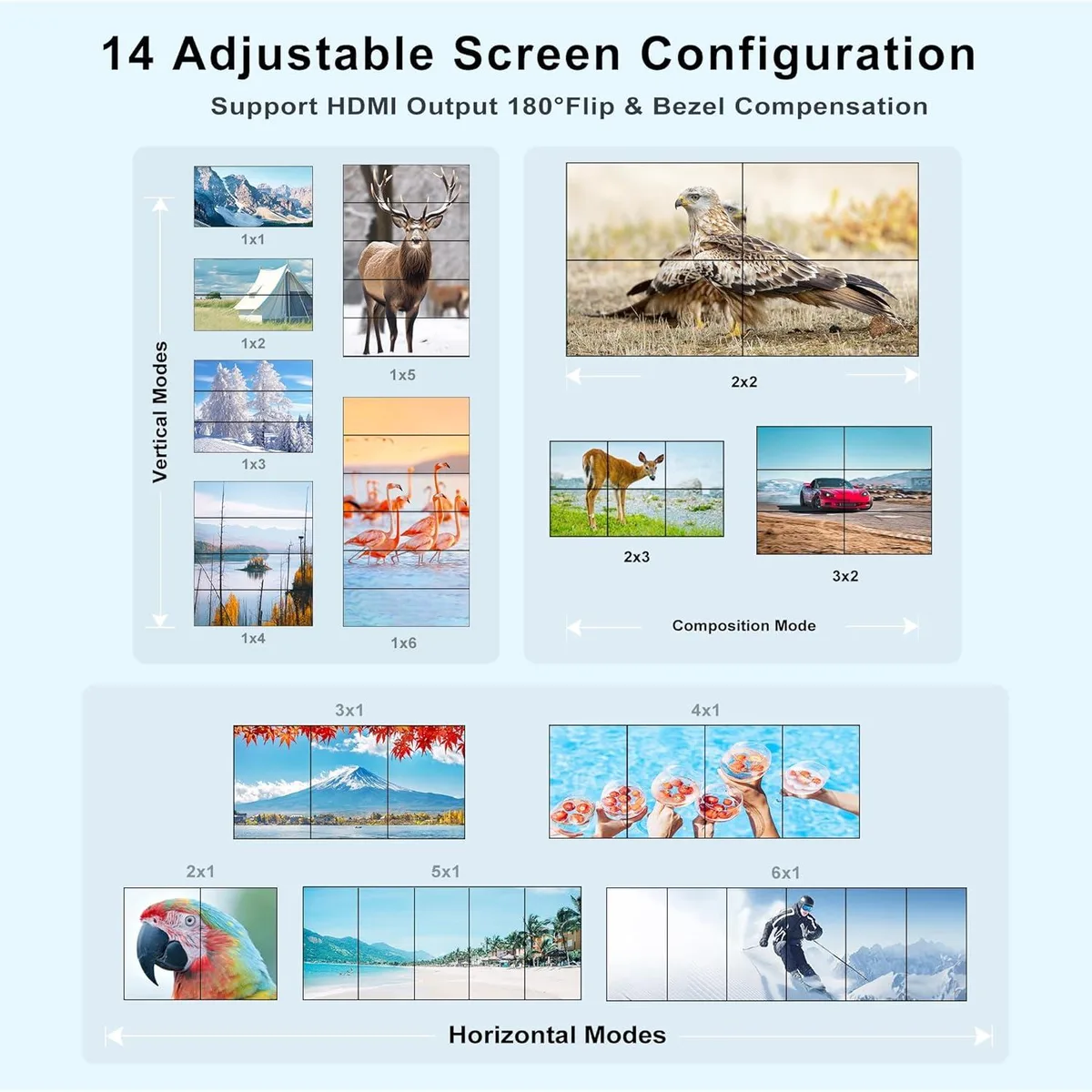

- 14 configurable layouts including 2x3 and 1x6 arrangements
- 4K input at 30 Hz scales to 1080p 60 Hz per screen
- RS232 and infrared remote provide flexible control options
- SPDIF and 3.5 mm audio outputs extract sound separately
What this unit does

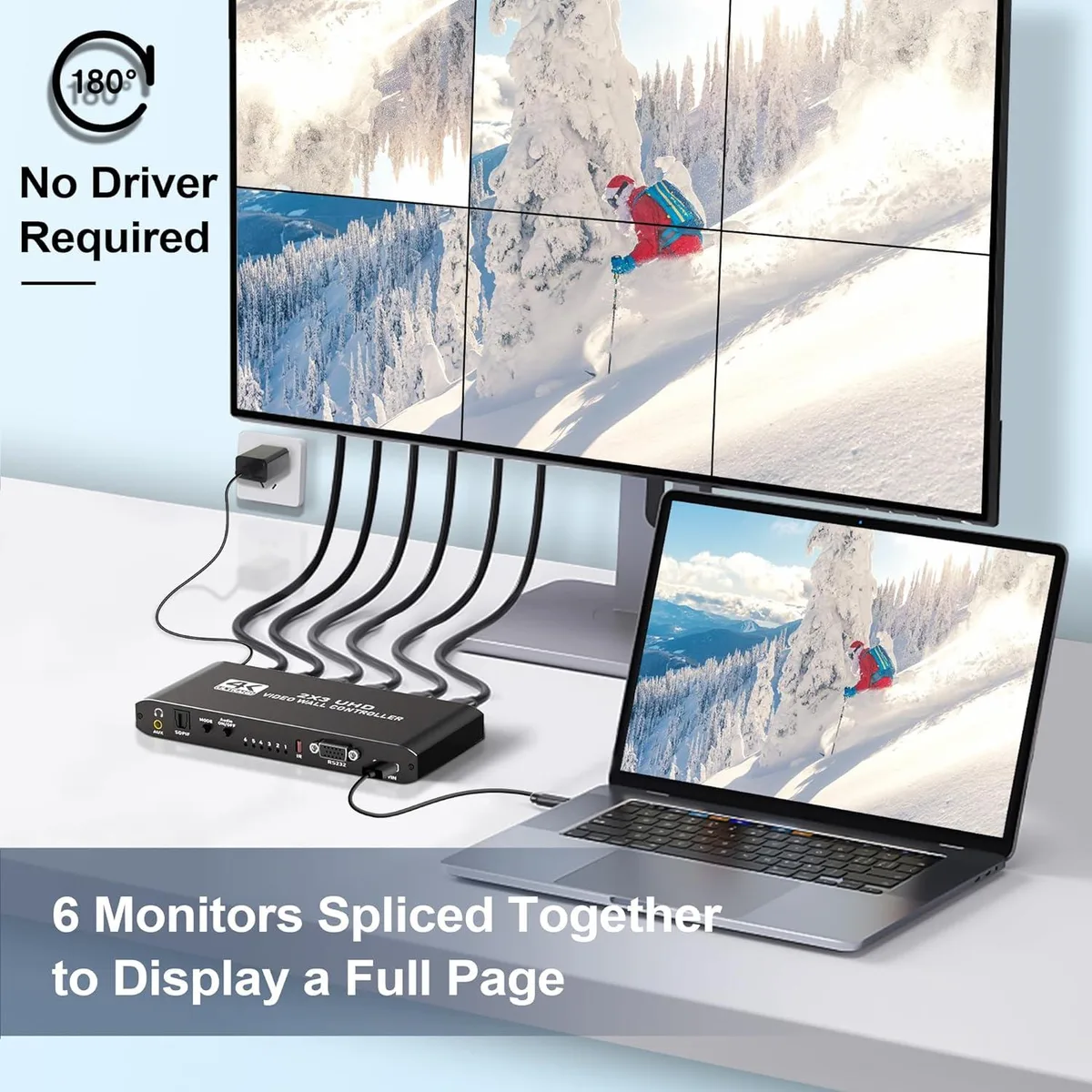

The ESTONE OZJP3 is a 6-channel HDMI video wall controller that takes one HDMI source and drives up to six displays in a spliced layout. It supports 4K input at 30 Hz and 1080p output at 60 Hz, with 14 selectable display modes including 2x3, 3x2 and 1x6 configurations. RS232 and an infrared remote give two ways to switch modes without touching the unit.
Who it suits and who it does not
Installers building digital-signage walls, surveillance monitors or retail video walls will find the 1-to-6 distribution and mode variety fit the job. Buyers who need more than six outputs, independent content on each screen, or input resolutions above 4K@30 Hz should look at a different class of processor.
The spec that decides fit
One HDMI input feeds six HDMI outputs at 1920x1080@60 Hz, so the wall resolution is fixed by that output limit. If the project demands higher per-screen resolution or a different input/output count, this controller will not meet the requirement.
Highlights
- Distributes one HDMI source to six displays simultaneously
- 14 configurable layouts including 2x3 and 1x6 arrangements
- 4K input at 30 Hz scales to 1080p 60 Hz per screen
- RS232 and infrared remote provide flexible control options
- SPDIF and 3.5 mm audio outputs extract sound separately
Specifications
| Brand | ESTONE |
|---|---|
| Model | OZJP3 |
| Type | Professional Video Devices |
| Remote Control | Remote Included |
| Interface | HDMI |
| Ports In | 1 HDMI |
| Ports Out | 6 HDMI |
| Specifications | 4K HDMI Video Wall Controller with SPDIF & 3.5mm Audio Port This HDMI video wall controller can distribute one HDMI input signal device to 6 HDMI outputs display simultaneously, via LCD splicing screens can form a complete dynamic large video wall screen and digital signage displays, bring you an amazing visual experience. It is the ideal choice for shopping mall video exhibition, security monitor and other large screen splicing display. |
| Package Contents | 3x2 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1. |
Questions about this item
What source device and how many displays must I already own to use the ESTONE OZJP3?
You need one HDMI source such as a computer, media player or games console and up to six HDMI displays to create the video wall.
Will the controller downscale a 4K@30Hz input to the 1080P@60Hz output my existing screens accept?
Yes, the HDMI input accepts 4K@30Hz and the six HDMI outputs each deliver 1920x1080P@60Hz, so older 1080P panels work without extra scaling boxes.
How can I confirm the 2x3 splicing mode is active after I connect everything?
Press the Switch key on the unit or use the IR remote to cycle modes; the on-screen layout will show six displays arranged in two rows of three when the 2x3 mode is selected.
