ESTONE
ESTONE OZJP3 4K 2x3 Video Wall Controller 14 Modes RS232
Distributes one 4K HDMI source to six displays with 14 splicing modes and RS232 control
- TypeProfessional Video Devices
- Remote ControlRemote Included
- InterfaceHDMI
- Ports In1 HDMI
- Ports Out6 HDMI
- Specifications4K HDMI Video Wall Controller with SPDIF & 3.5mm Audio Port
- Distribute one HDMI source across six displays simultaneously

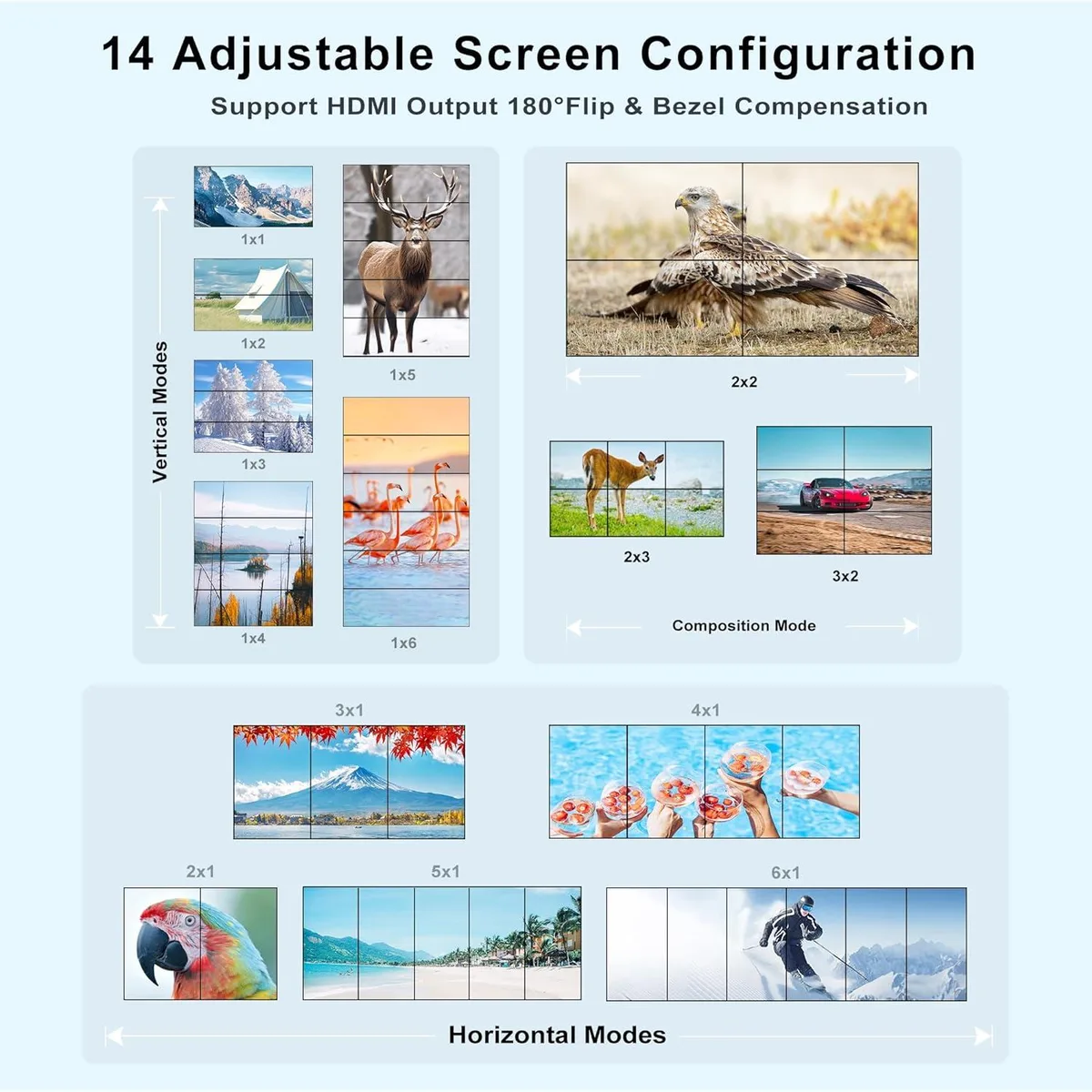

- Choose from 14 preset display layouts including 2x3 and 6x1
- Control the wall via IR remote, front panel or RS232
- Extract digital audio through SPDIF or 3.5 mm analogue output
- Build video walls for signage, conferencing or monitoring

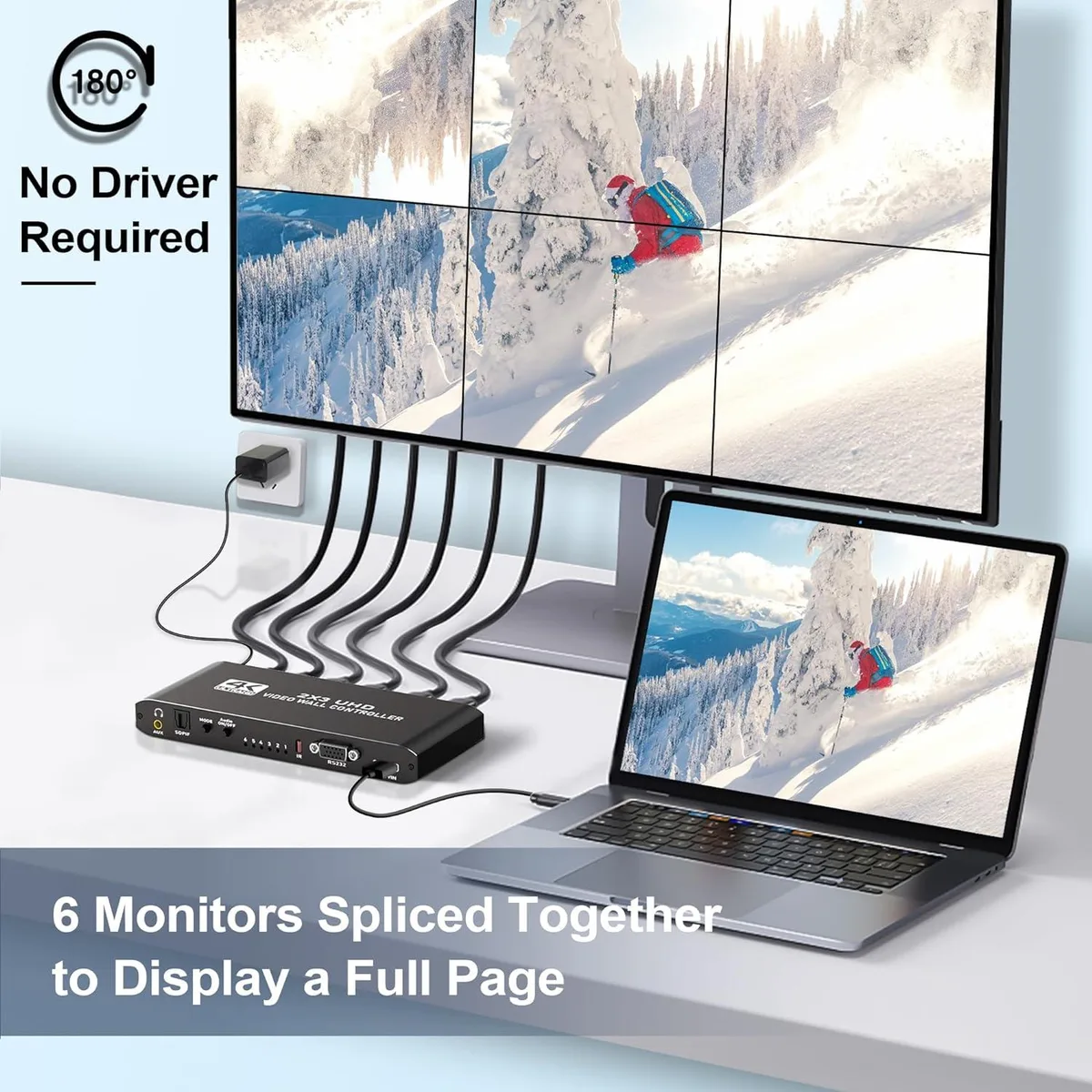

Video wall controller for multi-screen setups

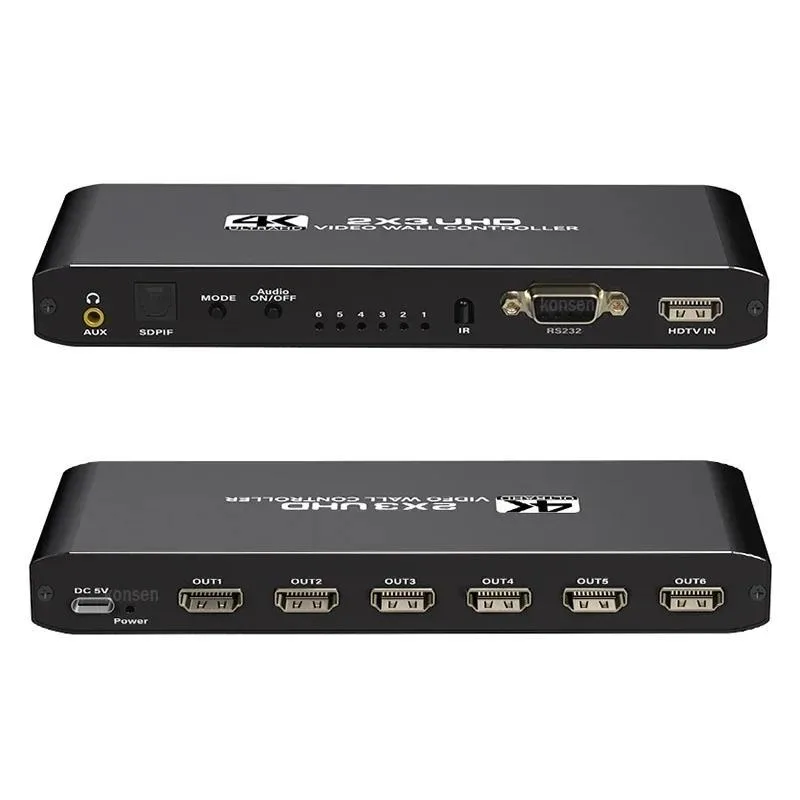

The ESTONE OZJP3 splits a single HDMI source across six HDMI displays, enabling 2x3 video walls for signage, monitoring or conference rooms. It includes an IR remote, a 5 V 2.1 A power adapter and a user manual. Buyers needing more than six outputs or non-HDMI inputs will require a different processor.
Integrates with HDMI sources and LCD panels
One HDMI input accepts media players, computers or consoles, while six HDMI outputs drive the wall. SPDIF and 3.5 mm audio ports extract sound for external speakers. RS232 allows automated control from a central system, and the remote or front button switches between the 14 preset layouts instantly.
Runs from a compact 5 V 2.1 A supply
The external adapter keeps the unit cool and silent in normal operation, with no internal fan noise. Power draw stays modest, so the controller fits in equipment racks or behind displays without extra ventilation. RS232 monitoring can confirm status without on-site checks.
Highlights
- Distribute one HDMI source across six displays simultaneously
- Choose from 14 preset display layouts including 2x3 and 6x1
- Control the wall via IR remote, front panel or RS232
- Extract digital audio through SPDIF or 3.5 mm analogue output
- Build video walls for signage, conferencing or monitoring
Specifications
| Brand | ESTONE |
|---|---|
| Model | OZJP3 |
| Type | Professional Video Devices |
| Remote Control | Remote Included |
| Interface | HDMI |
| Ports In | 1 HDMI |
| Ports Out | 6 HDMI |
| Specifications | 4K HDMI Video Wall Controller with SPDIF & 3.5mm Audio Port This HDMI video wall controller can distribute one HDMI input signal device to 6 HDMI outputs display simultaneously, via LCD splicing screens can form a complete dynamic large video wall screen and digital signage displays, bring you an amazing visual experience. It is the ideal choice for shopping mall video exhibition, security monitor and other large screen splicing display. |
| Package Contents | 3x2 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1. |
Questions about this item
Does the OZJP3 overheat or throttle after hours of driving six 4K displays?
The unit draws only 2.1 A at 5 V, so heat stays low even with all six HDMI outputs active; no fan is fitted and the metal case acts as a passive heatsink.
How loud is the controller when it runs 24/7 in a quiet control room?
There are no moving parts inside the OZJP3, so operation is completely silent — only the displays themselves make any noise.
What extra cables or gear must I already have to build a 2×3 video wall with this processor?
You need one HDMI source cable, six HDMI display cables, and six compatible screens; the box includes the controller, IR remote (no battery), 5 V 2.1 A power adapter, and manual.
