ESTONE
ESTONE OZJP3 2x3 HDMI Video Wall Controller 6 Out 14 Modes 1080P60 4K RS232
Distributes one HDMI source to six displays with 14 layout modes, 4K input, 1080p60 output, RS-232 control and audio extraction
- TypeProfessional Video Devices
- Remote ControlRemote Included
- InterfaceHDMI
- Ports In1 HDMI
- Ports Out6 HDMI
- Specifications4K HDMI Video Wall Controller with SPDIF & 3.5mm Audio Port
- Distribute one source across six screens simultaneously via single HDMI input and six HDMI outputs
- Configure 14 display layouts including 2x3 video walls for flexible signage arrangements
- Rotate any output image 180 degrees to correct orientation on mounted displays
- Extract audio through SPDIF and 3.5 mm ports for external sound systems
- Control all settings remotely with included infrared handset

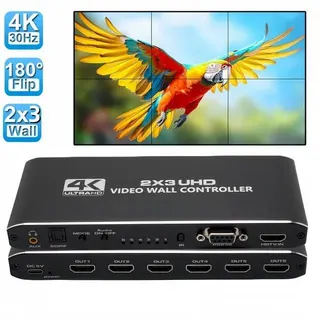

2x3 HDMI Video Wall Controller

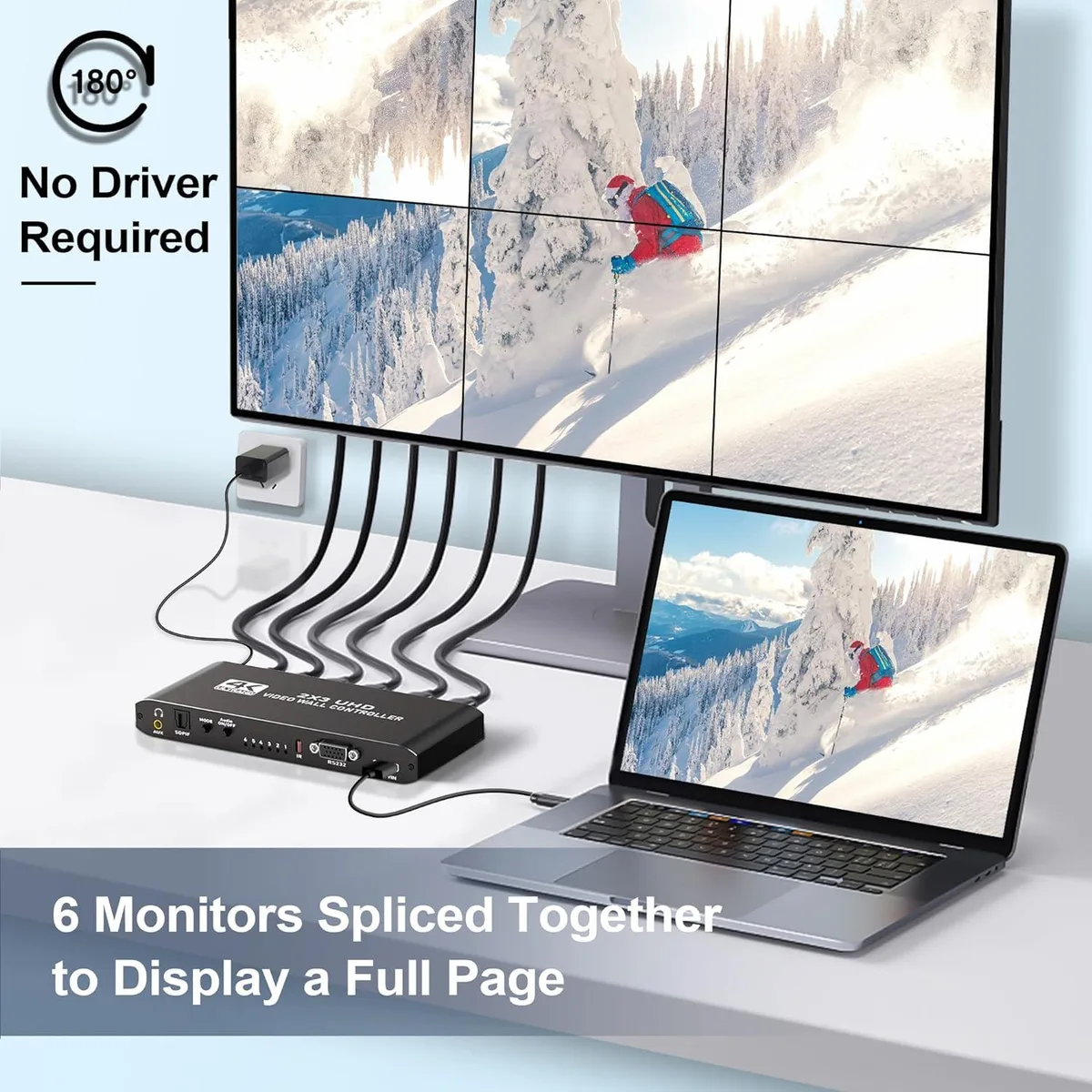

The ESTONE OZJP3 distributes a single HDMI source across six displays in a 2x3 grid. It targets installers building digital-signage walls, security monitoring arrays or retail video exhibitions. The unit accepts one HDMI input and drives six HDMI outputs simultaneously.
Passive cooling with 5 V 2.1 A supply
The controller runs from an external 5 V 2.1 A power adapter and uses no internal fan, so it adds no audible noise to quiet control rooms. Power draw stays low enough for standard desk or rack mounting without extra ventilation planning.
IR remote and audio breakout included

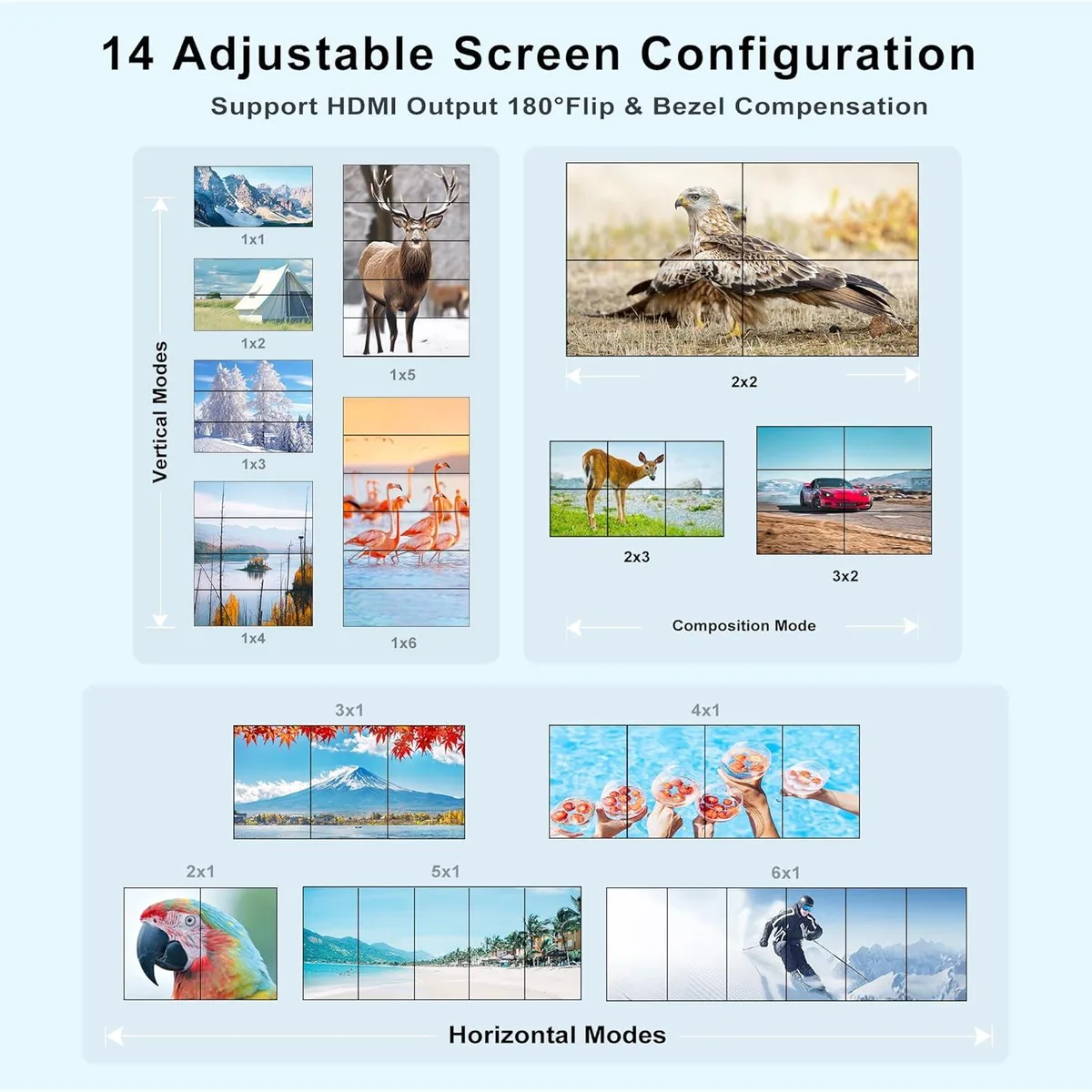

A handheld IR remote (battery not supplied) lets operators switch between the 14 preset layouts such as 1x6, 2x3 or 6x1 without reaching the unit. SPDIF and 3.5 mm ports extract audio from the HDMI stream for separate amplification or recording.
Highlights
- Distribute one source across six screens simultaneously via single HDMI input and six HDMI outputs
- Configure 14 display layouts including 2x3 video walls for flexible signage arrangements
- Rotate any output image 180 degrees to correct orientation on mounted displays
- Extract audio through SPDIF and 3.5 mm ports for external sound systems
- Control all settings remotely with included infrared handset
Specifications
| Brand | ESTONE |
|---|---|
| Model | OZJP3 |
| Type | Professional Video Devices |
| Remote Control | Remote Included |
| Interface | HDMI |
| Ports In | 1 HDMI |
| Ports Out | 6 HDMI |
| Specifications | 4K HDMI Video Wall Controller with SPDIF & 3.5mm Audio Port This HDMI video wall controller can distribute one HDMI input signal device to 6 HDMI outputs display simultaneously, via LCD splicing screens can form a complete dynamic large video wall screen and digital signage displays, bring you an amazing visual experience. It is the ideal choice for shopping mall video exhibition, security monitor and other large screen splicing display. |
| Package Contents | 3x2 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1. |
Questions about this item
How do I mount the OZJP3 controller and which step is often missed?
Connect one HDMI source to the single input, link six displays to the HDMI outputs, power the unit with the included 5V/2.1A adapter, then use the remote to select one of the 14 splicing modes. The step most installers skip is enabling the 180-degree flip on each output that needs it.
What ongoing maintenance does the OZJP3 require?
No scheduled maintenance is needed for the controller itself; keep ventilation clear and dust the HDMI ports occasionally. The remote uses a standard coin cell that will need replacement when range drops.
What limit appears first when running the OZJP3 continuously at 1080P60?
The HDMI outputs are rated for 1080P@60Hz, so sustained use at that resolution and refresh rate is within spec; thermal throttling or signal degradation would be the first practical limits if airflow is restricted.
