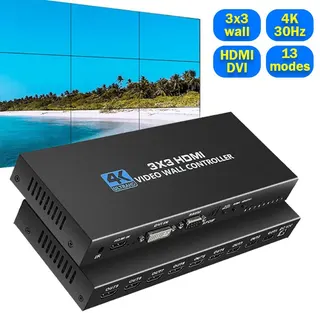

Black rectangular box with HDMI ports on both sides and RS232 port

ESTONE

ESTONE OZJP2 9-Channel 3x3 Video Wall Controller 1 HDMI In 9 HDMI Out 4K30 1080P60 RS232

SKU CH-09RP-1A9ZB

Splits one 4K30 HDMI signal across nine 1080P60 displays in thirteen layout modes with RS232 and remote control

  • TypeProfessional Video Devices
  • Remote ControlRemote Included
  • InterfaceHDMI
  • Ports In1 HDMI
  • Ports Out9 HDMI
  • Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Pro
  • Create large video walls with 13 configurable display modes
  • Accepts one 4K 30 Hz input and delivers nine 1080P 60 Hz outputs
  • Control the wall via included remote, front buttons or RS232 commands
  • Rotate individual screens 180° for flexible mounting orientations
  • Plug-and-play HDMI 1.4 HDCP 1.4 operation with 19-pin cable support

3x3 Video Wall Controller

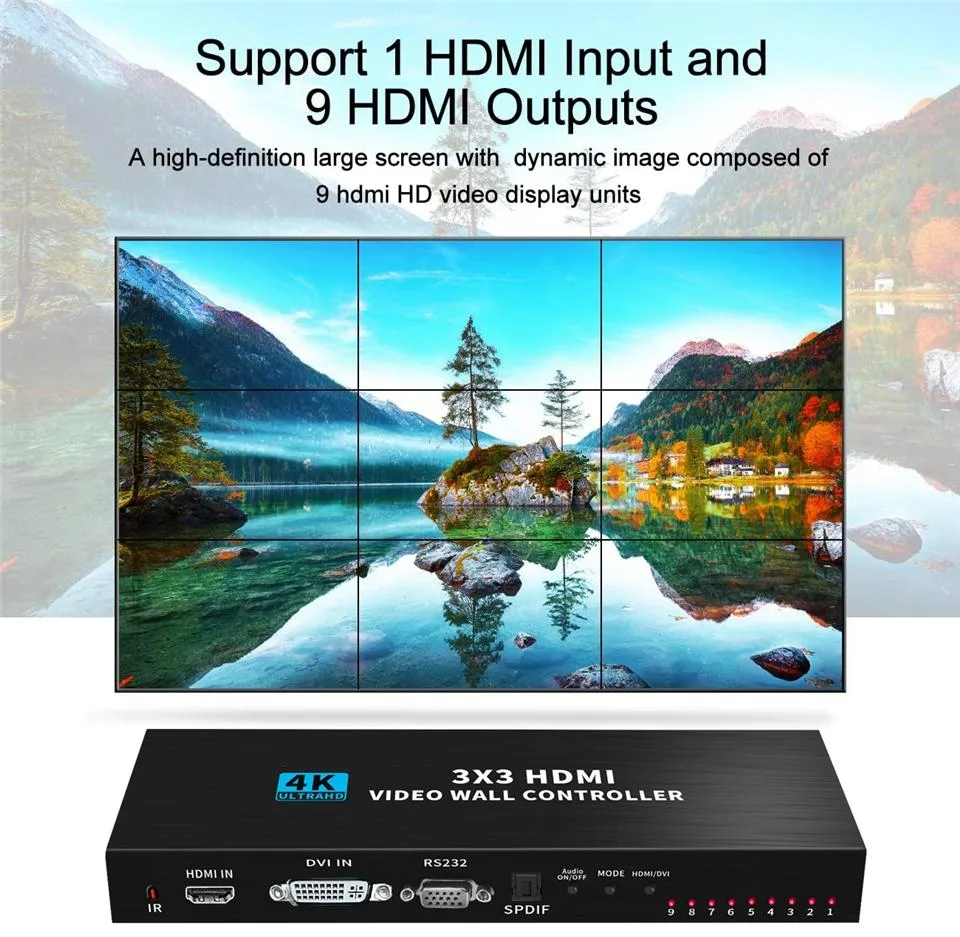

The ESTONE OZJP2 splits a single HDMI or DVI source across nine HDMI displays in a 3x3 grid. It accepts 4K input at 30 Hz and delivers 1080p output at 60 Hz to each screen. The unit is aimed at installers building digital signage, broadcast walls or monitoring arrays. Thirteen preset layouts from 1x1 up to 4x2 give flexible zone arrangements.

Cables and source checks

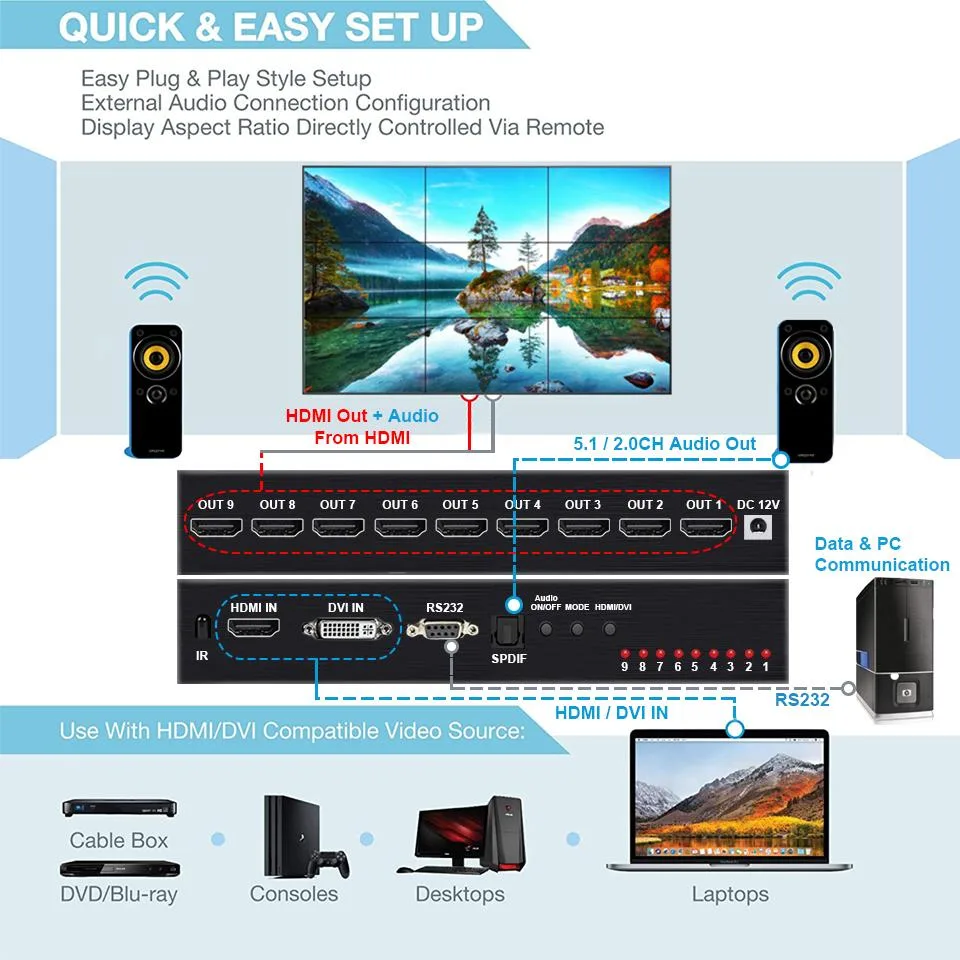

Verify that your source can output 4K at 30 Hz or 1080p at 60 Hz over HDMI 1.4 with HDCP 1.4. Use fully wired 19-pin shielded HDMI cables for every link to avoid sync loss. The controller only passes PCM 2-channel stereo audio; surround formats are not supported. At 4K input resolution audio may be absent, so plan for 1080p input if sound is required.

Thermals noise and power

The box ships with a 5 V 2.1 A external adapter, so power draw stays low and no internal fan is needed. Silent operation suits quiet control rooms and retail spaces. Keep ventilation space around the metal casing during continuous 24/7 runs. No additional cooling or high-wattage supply is required for normal use.

Highlights

  • Create large video walls with 13 configurable display modes
  • Accepts one 4K 30 Hz input and delivers nine 1080P 60 Hz outputs
  • Control the wall via included remote, front buttons or RS232 commands
  • Rotate individual screens 180° for flexible mounting orientations
  • Plug-and-play HDMI 1.4 HDCP 1.4 operation with 19-pin cable support

Specifications

BrandESTONE
ModelOZJP2
TypeProfessional Video Devices
Remote ControlRemote Included
InterfaceHDMI
Ports In1 HDMI
Ports Out9 HDMI
Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Processor 3x3 2x3 2x4 4x2 LCD 9 Screen Splicing Splicer Box with RS232
HDMI 1.4 and HDCP 1.4,4K HDMI DVI Video wall controller with 9 HDMI out, 3x3,2x2,1x1,1x2,1x3,1x4,2x1,2x3,2x4,3x1,3x2,4x1,4x2 display mode,180° Screen rotation & Edge mask, support optical toslink audio extractor,support panel switch,IR remote control and RS232 control .
Support 1 HDMI-Compatible input
Support input HDMI-Compatible / DVI
Support 9 HDMI-Compatible outputs
Support 1 x Optical SPDIF audio with 5.1CH audio
Support input 4K 30Hz,1920x1080P,24/30/5
Package Contents3x3 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1

Questions about this item

What cables and accessories are included with the OZJP2, and what must I supply?

The box contains the controller, a remote without battery, a 5V 2.1A power adapter and a user manual. You must provide all HDMI cables; the supplier recommends qualified 19-pin shielded cables for reliable 4K30 input and 1080P60 output.

Which display layouts can the OZJP2 produce?

The unit offers 13 preset modes: 1x1, 1x2, 1x3, 1x4, 2x1, 2x2, 2x3, 2x4, 3x1, 3x2, 3x3, 4x1 and 4x2. Select any mode via the remote or front-panel buttons.

What does the 4K30 input spec mean for the picture on each of the nine screens?

The controller accepts one 4K 30Hz source and splits it across nine 1080P 60Hz outputs, giving a combined 4K canvas. Each individual display shows a 1920x1080 portion of the original image.
