Black metal box with one HDMI input and nine HDMI outputs, front panel buttons, rear vents and fan, remote control included

ESTONE

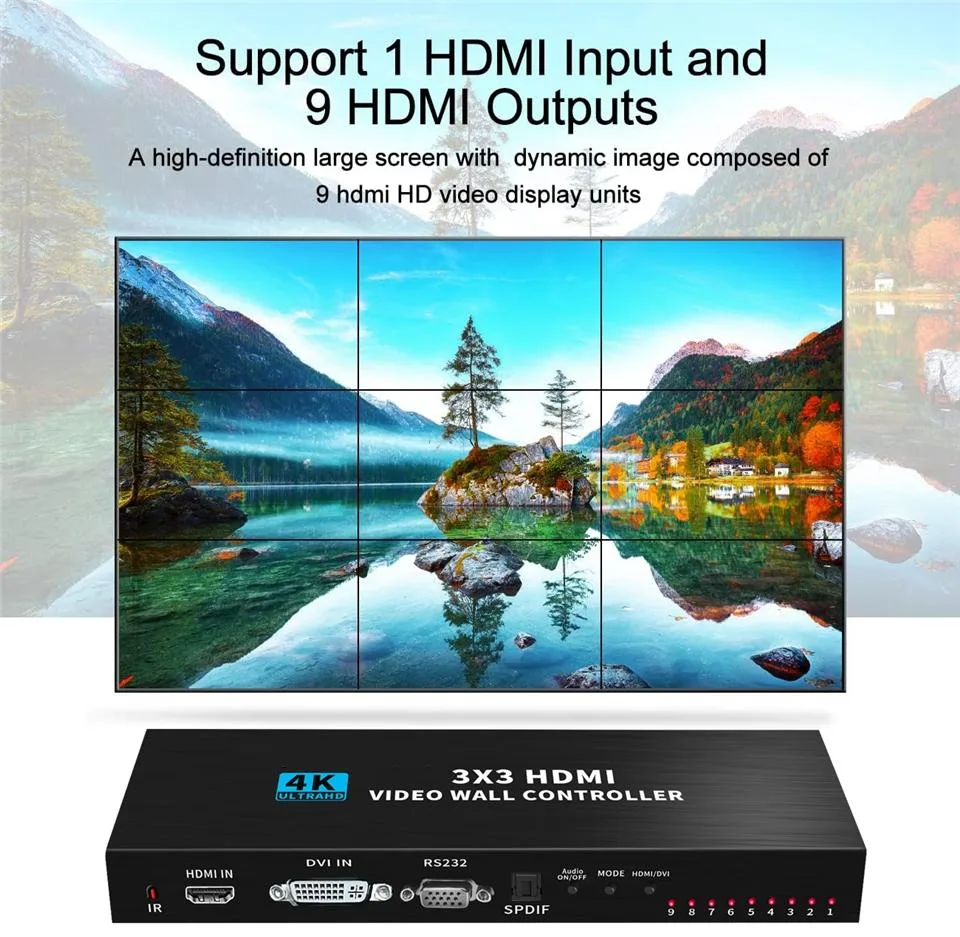

ESTONE OZJP2 3x3 Video Wall Controller 9 HDMI Out 1080P@60Hz

SKU CH-CYBD-B0EDT

Splits one HDMI or DVI source across nine 1080p60 displays in thirteen layout modes

  • TypeProfessional Video Devices
  • Remote ControlRemote Included
  • InterfaceHDMI
  • Ports In1 HDMI
  • Ports Out9 HDMI
  • Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Pro
  • Drives nine displays from a single source with 9 HDMI outputs
  • Choose from 13 layout modes including 3×3 and 4×2 configurations
  • Accepts 4K 30 Hz input and delivers 1080p 60 Hz on every screen
  • Transmits signals up to 100 feet without quality loss using shielded 19-pin cables
  • Plug-and-play operation with included remote and RS-232 control for easy setup

Purpose and audience

The ESTONE OZJP2 is a 3x3 video wall controller that splits one HDMI or DVI source across nine 1080p displays. Installers building digital-signage arrays, control-room monitors or retail feature walls use it to create a single large canvas from standard screens.

Thermals noise and power

A built-in vent-and-fan cooling system keeps the unit stable during continuous operation. The included 5V 2.1A power adapter supplies all processing and output circuitry without an external supply brick.

Accessories and software impact

The infrared remote lets operators switch among 13 preset layouts such as 2x2, 2x4 or 3x3 without reaching the rack. RS-232 on a DB-9 port adds scripted control for automation systems. Audio does not reach the HDMI outputs, so a separate sound bar or speaker system must be connected to the auxiliary or Toslink jack when sound is required.

Highlights

  • Drives nine displays from a single source with 9 HDMI outputs
  • Choose from 13 layout modes including 3×3 and 4×2 configurations
  • Accepts 4K 30 Hz input and delivers 1080p 60 Hz on every screen
  • Transmits signals up to 100 feet without quality loss using shielded 19-pin cables
  • Plug-and-play operation with included remote and RS-232 control for easy setup

Specifications

BrandESTONE
ModelOZJP2
TypeProfessional Video Devices
Remote ControlRemote Included
InterfaceHDMI
Ports In1 HDMI
Ports Out9 HDMI
Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Processor 3x3 2x3 2x4 4x2 LCD 9 Screen Splicing Splicer Box with RS232
HDMI 1.4 and HDCP 1.4,4K HDMI DVI Video wall controller with 9 HDMI out, 3x3,2x2,1x1,1x2,1x3,1x4,2x1,2x3,2x4,3x1,3x2,4x1,4x2 display mode,180° Screen rotation & Edge mask, support optical toslink audio extractor,support panel switch,IR remote control and RS232 control .
Support 1 HDMI-Compatible input
Support input HDMI-Compatible / DVI
Support 9 HDMI-Compatible outputs
Support 1 x Optical SPDIF audio with 5.1CH audio
Support input 4K 30Hz,1920x1080P,24/30/5
Package Contents3x3 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1

Questions about this item

How do I install the ESTONE OZJP2 and which step is commonly missed?

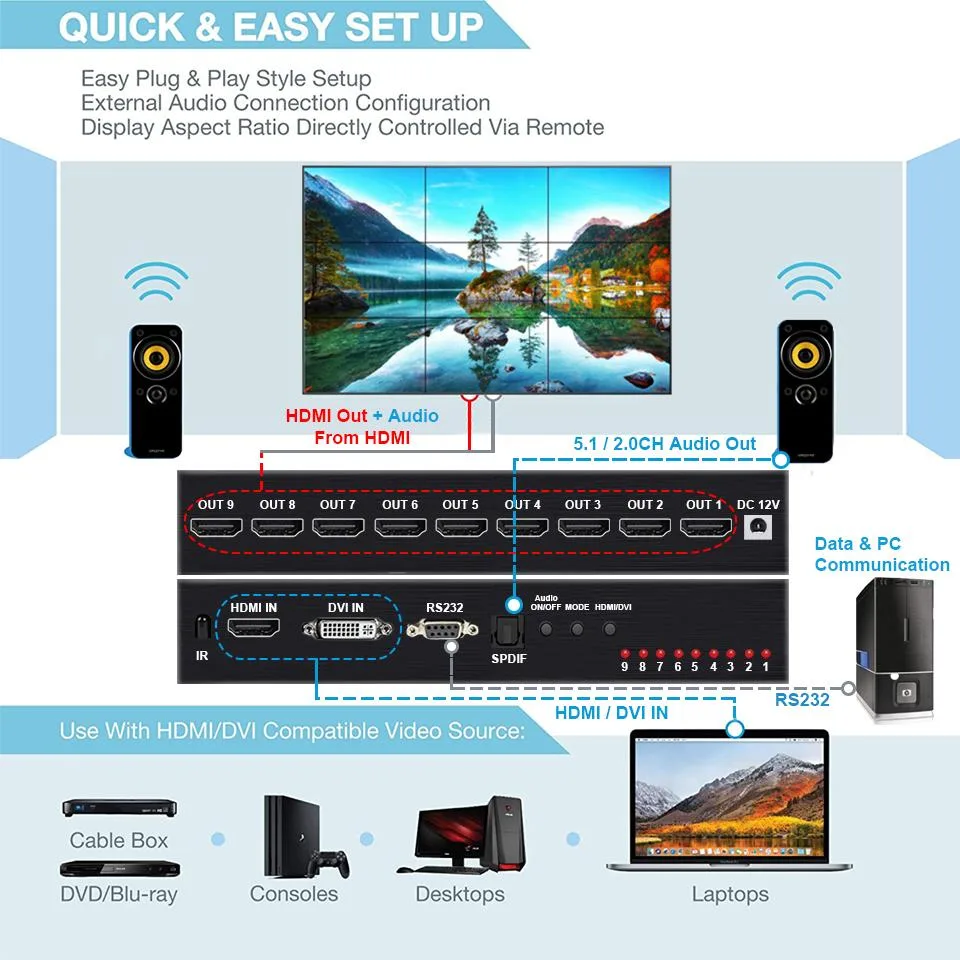

Connect the single HDMI source to the input, link all nine HDMI outputs to the displays, attach the 5V 2.1A power adapter, then select one of the 13 splicing modes via the remote; the step often missed is using fully wired 19-pin HDMI cables to avoid sync problems.

What maintenance will the ESTONE OZJP2 require over time?

Keep the ventilation openings clear so the internal fans can cool the unit; dust the vents periodically and verify the power adapter remains firmly seated, as no user-serviceable parts are inside.

What limit appears first during continuous operation of the ESTONE OZJP2?

The output resolution is fixed at 1920x1080P 60Hz across all nine ports, so sustained 4K 30Hz input is downscaled and audio may drop out when the source runs at 3840x2160P 30Hz.
