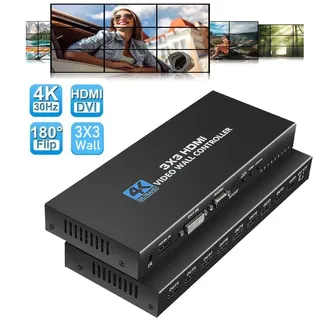

Black metal box with one HDMI input nine HDMI outputs RS232 port and remote control

ESTONE

ESTONE OZJP2 3x3 HDMI Video Wall Controller 1080P@60Hz 9 Outputs RS232

SKU CH-7VSV-EJ051

Splits one 4K@30Hz HDMI or DVI source across nine 1080P@60Hz displays in 13 layouts with RS-232 control, 180° rotation and 5.1-channel optical audio

  • TypeProfessional Video Devices
  • Remote ControlRemote Included
  • InterfaceHDMI
  • Ports In1 HDMI
  • Ports Out9 HDMI
  • Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Pro
  • Creates large video walls from one source using nine HDMI outputs
  • Accepts 4K input at 30 Hz and delivers 1080P at 60 Hz across all screens
  • Plug-and-play setup with 180-degree rotation for flexible mounting
  • Includes 5.1-channel optical audio output for external sound systems
  • Remote control and RS232 port enable convenient operation and integration

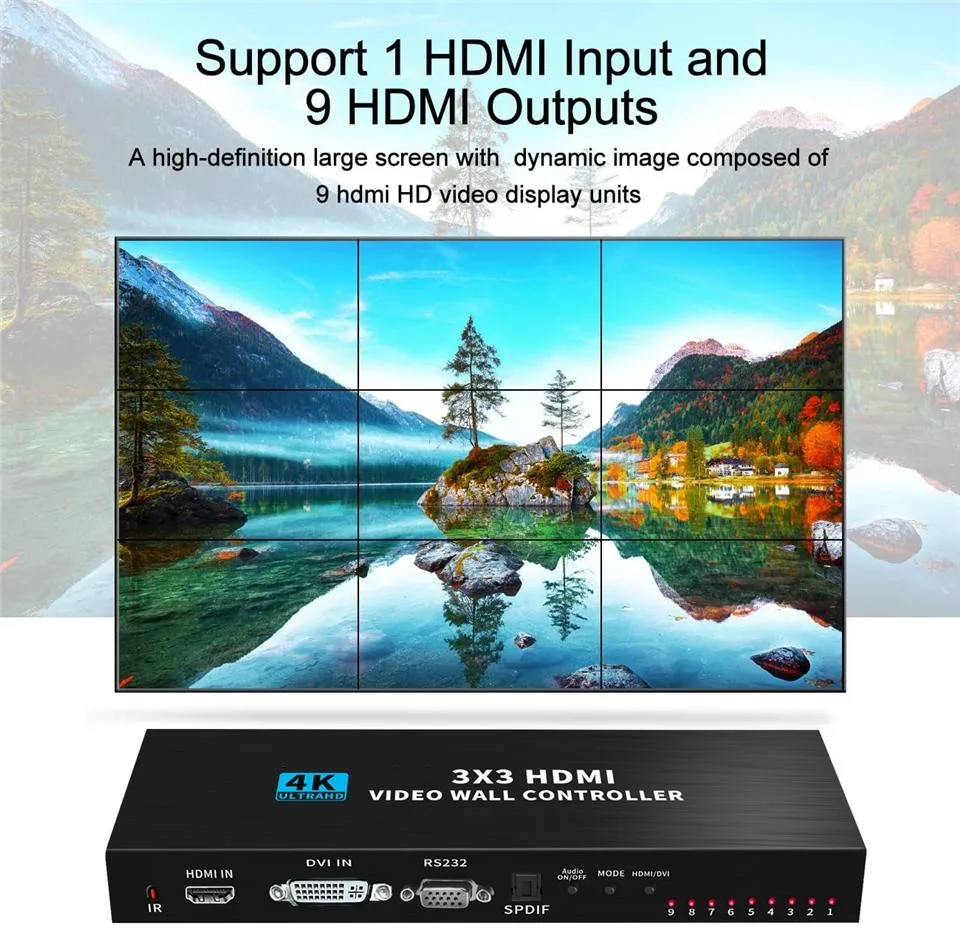

Nine-screen Video Wall Controller

The ESTONE OZJP2 splits a single HDMI or DVI source into nine 1080P@60Hz outputs, creating a 3×3 video wall from LCD panels or projectors. It accepts 4K@30Hz input via HDMI 1.4 with HDCP 1.4 compliance and provides 5.1-channel optical audio extraction. Plug-and-play operation requires no software installation.

Build Integration

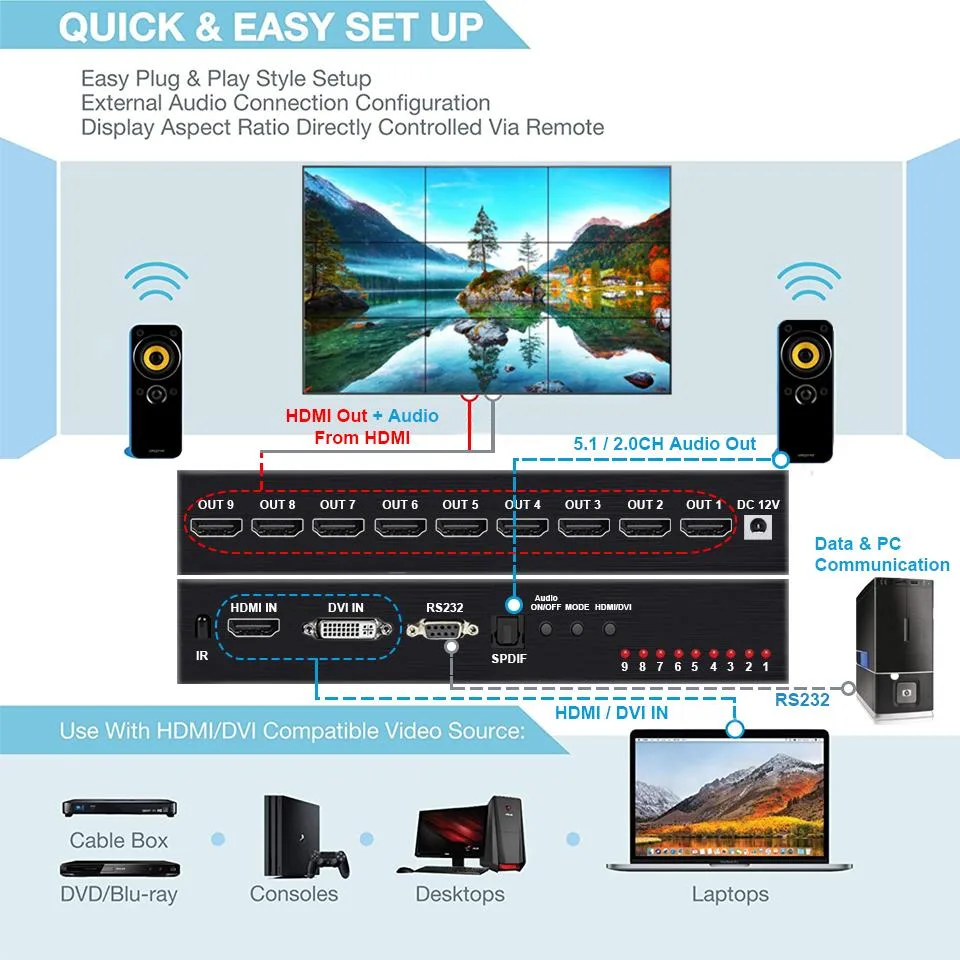

One HDMI input connects laptops, PCs, set-top boxes or media players while nine HDMI outputs feed the display array. RS-232 control enables integration with automation systems or central management. The controller frees the source device from driving multiple outputs and handles the splicing internally. A 5 V / 2.1 A power adapter is included.

Thermals and Power

The unit draws power from the supplied 5 V / 2.1 A adapter, keeping consumption low in normal operation. Passive cooling maintains silent performance without fan noise. RS-232 and remote control allow adjustments without physical access to the hot-swappable chassis.

Highlights

  • Creates large video walls from one source using nine HDMI outputs
  • Accepts 4K input at 30 Hz and delivers 1080P at 60 Hz across all screens
  • Plug-and-play setup with 180-degree rotation for flexible mounting
  • Includes 5.1-channel optical audio output for external sound systems
  • Remote control and RS232 port enable convenient operation and integration

Specifications

BrandESTONE
ModelOZJP2
TypeProfessional Video Devices
Remote ControlRemote Included
InterfaceHDMI
Ports In1 HDMI
Ports Out9 HDMI
Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Processor 3x3 2x3 2x4 4x2 LCD 9 Screen Splicing Splicer Box with RS232
HDMI 1.4 and HDCP 1.4,4K HDMI DVI Video wall controller with 9 HDMI out, 3x3,2x2,1x1,1x2,1x3,1x4,2x1,2x3,2x4,3x1,3x2,4x1,4x2 display mode,180° Screen rotation & Edge mask, support optical toslink audio extractor,support panel switch,IR remote control and RS232 control .
Support 1 HDMI-Compatible input
Support input HDMI-Compatible / DVI
Support 9 HDMI-Compatible outputs
Support 1 x Optical SPDIF audio with 5.1CH audio
Support input 4K 30Hz,1920x1080P,24/30/5
Package Contents3x3 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1

Questions about this item

What output resolution limit appears first when the ESTONE OZJP2 runs a 3x3 wall continuously?

Each of the nine HDMI outputs is capped at 1920x1080P@60Hz, so the wall cannot exceed that per screen no matter how long it runs.

How much heat or fan noise does the controller produce during all-day operation?

The unit is passively cooled with no fan, so it runs silently; the 5V 2.1A adapter supplies power without adding audible noise.

Which cables and displays must I already own to use the nine outputs?

You need nine HDMI cables with all 19 pins wired and nine 1080P@60Hz-capable screens; the controller itself includes the power adapter and remote.
