ESTONE

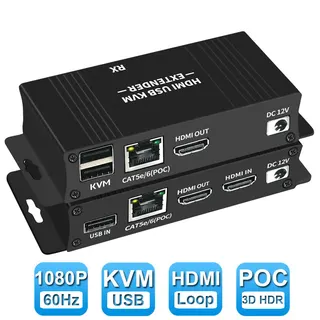

ESTONE OZD5D6 HDMI KVM Extender 60m Cat6
Extends HDMI video and USB keyboard and mouse control up to 60 metres over a single Cat6 cable with Power over Cable and local HDMI loop-out
- TypeHDMI, USB
- Video Resolution1920x1080
- LED IndicatorsYes
- FeaturesLong range transmission:up to 60m/196ft over a single AWG23
- Dimensions5.43 x 5.35 x 1.46 inches
- Weight9.52 Ounces
- Extend HDMI up to 60 metres over one Cat6 cable
- View 1080p at 60 Hz with 3D and HDR support
- Power both units through the Cat cable with POC
- Keep a local display active via HDMI loop-out
- Control keyboard and mouse remotely over the same link
60 m HDMI KVM extender

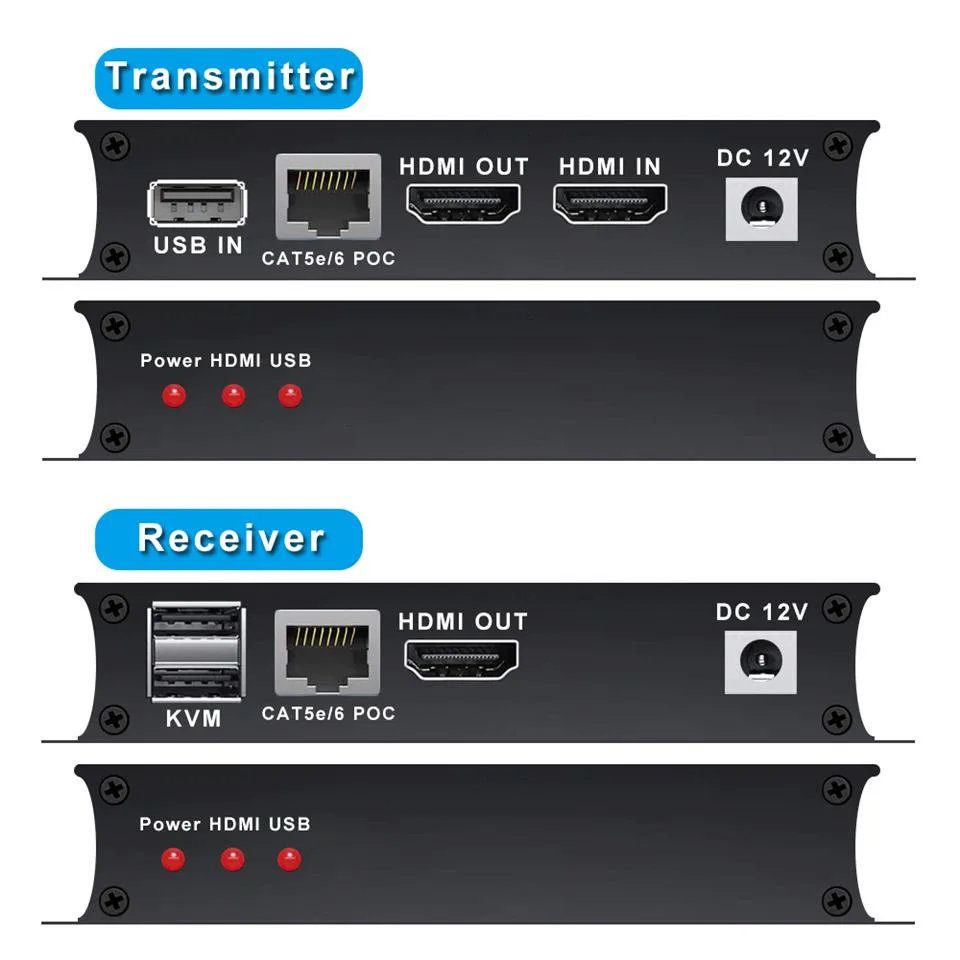

The ESTONE OZD5D6 extends HDMI, USB keyboard and mouse, and audio signals up to 60 metres over a single AWG23 CAT6 cable. It supports resolutions up to 1920x1080 at 60 Hz with HDR and 3D, plus LPCM 7.1, Dolby Digital and DTS 5.1 audio formats. A local HDMI loop-out on the transmitter allows a nearby display to mirror the source.
Passive cooling and PoC power
The extender units are compact, fanless devices that run silently and draw power through the CAT cable via Power over Cable, so only one power adapter is required for the pair. HDMI 1.4b and HDCP 1.4 compliance ensures stable handshakes with no added latency. Typical operation stays cool without active airflow.
Sustained 1080p transmission
Over CAT6 the link maintains full 1920x1080 at 60 Hz for the full 60 metre distance, while CAT5e reaches 50 metres and CAT5 reaches 40 metres without signal degradation. The 10.2 Gbps bandwidth and 300 MHz pixel clock handle continuous video, USB HID and multi-channel audio streams simultaneously. Performance remains consistent during extended sessions.
Highlights
- Extend HDMI up to 60 metres over one Cat6 cable
- View 1080p at 60 Hz with 3D and HDR support
- Power both units through the Cat cable with POC
- Keep a local display active via HDMI loop-out
- Control keyboard and mouse remotely over the same link
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZD5D6 |
| Model | OZD5D6 |
| Type | HDMI, USB |
| Video Resolution | 1920x1080 |
| LED Indicators | Yes |
| Features | Long range transmission:up to 60m/196ft over a single AWG23 CAT6 cable; Video resolution:Up to 576P,720P,1920x1080P@60Hz,3D,HDR; Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ; POC function:Power over CAT cable,only need one power adapter; HDMI loop out function:The transmitter with one HDMI local loop out; Uncompressed mode:ZERO Delay,No loss; KVM Rmote Control:keyboard and mouse remote control transmitter from long distance; Male to male:one TX to one RX applicataion; Video standard:compliance with HDMI 1.4b and HDCP 1.4 ,and compliant DVI standard; Built-in autom |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | HDMI KVM extender transmitter x1 HDMI KVM extender receiver x1 Power adapter x1 User manual x1 |
Questions about this item

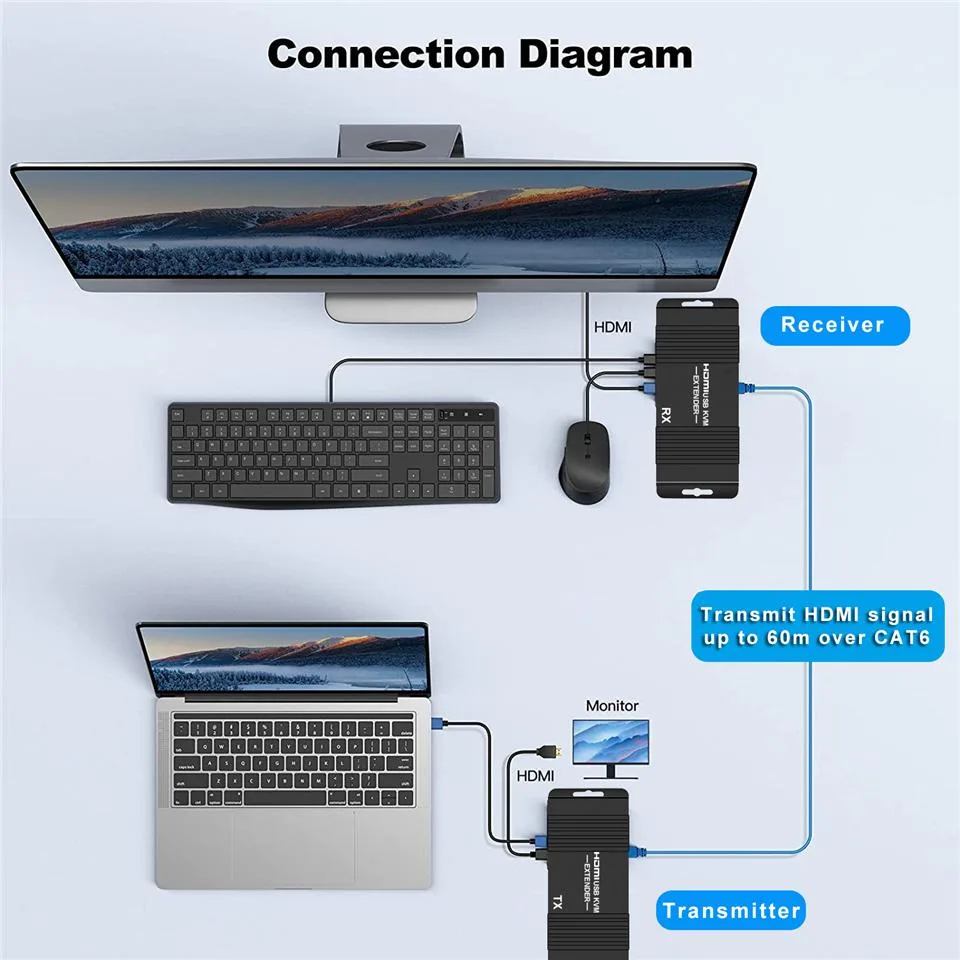

How do I connect the transmitter and receiver with a single Cat6 cable, and which step is often missed?
Connect one AWG23 Cat6 cable to the RJ45 ports on both units, link the source HDMI to the transmitter and the display to the receiver, then plug the single power adapter into the transmitter — the receiver draws power over the same cable via POC, so forgetting that only one adapter is needed is the common error.
What part will need replacement first if the Cat6 cable is run near its 60m limit?
The AWG23 Cat6 cable itself; signal integrity degrades at the 60m maximum, so a higher-grade or shorter cable is the first item to swap when dropouts appear.
At what distance does 1080p60 video start to become unstable on Cat5e versus Cat6?
Cat5e reaches 50m, Cat6 reaches 60m; beyond those lengths the 10.2Gbps stream exceeds the cable bandwidth and the picture drops out.
