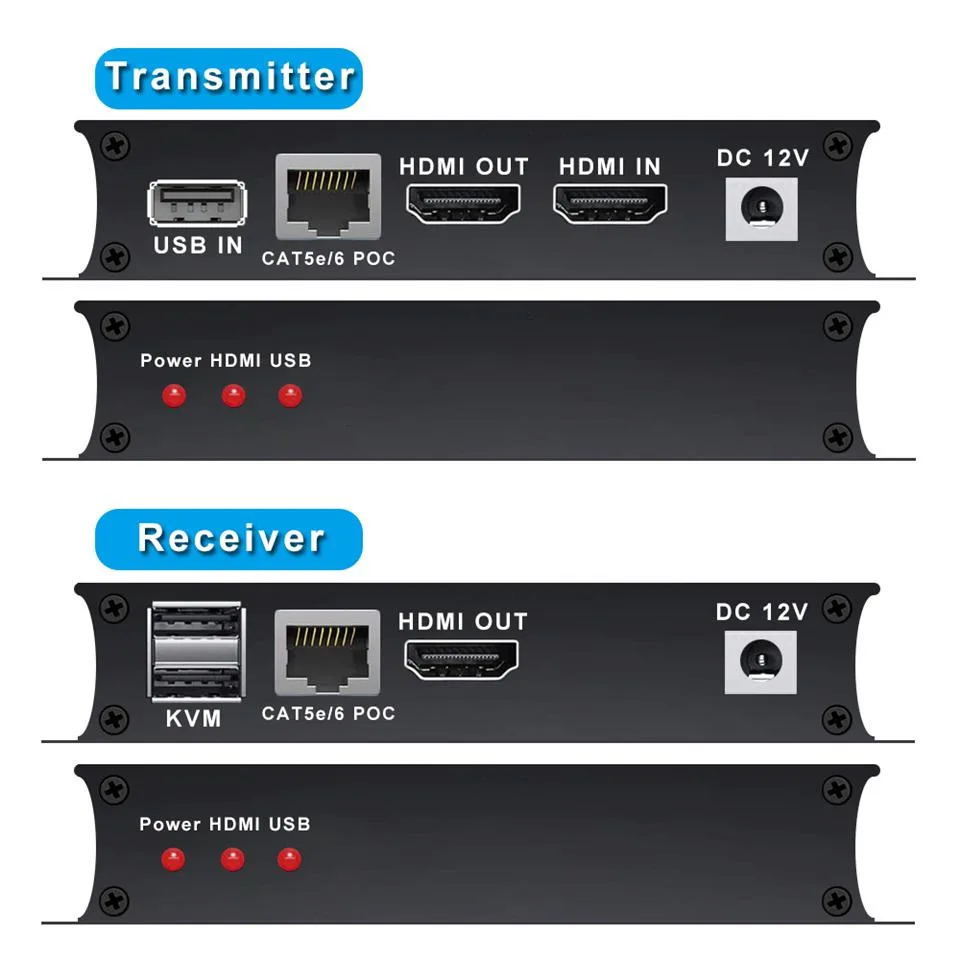

Two compact black boxes with HDMI and RJ45 ports, one labelled transmitter, the other receiver

ESTONE

ESTONE OZD5D6 HDMI KVM Extender 1920x1080 60Hz 60m POC Loop Out

SKU CH-QD6S-MDSMF

Extends HDMI and USB keyboard-mouse signals up to 60 metres over a single Cat6 cable with 1080p 60 Hz video, power over cable and a local HDMI loop-out

  • TypeHDMI, USB
  • Video Resolution1920x1080
  • LED IndicatorsYes
  • FeaturesLong range transmission:up to 60m/196ft over a single AWG23
  • Dimensions5.43 x 5.35 x 1.46 inches
  • Weight9.52 Ounces
  • Extends HDMI up to 196 feet over one CAT6 cable
  • Powers receiver through the same CAT cable with POC
  • Local HDMI loop-out keeps a display at the source
  • Controls remote keyboard and mouse from the transmitter
  • Supports 1080p at 60 Hz with 3D and HDR

ESTONE OZD5D6 KVM Extender 60m

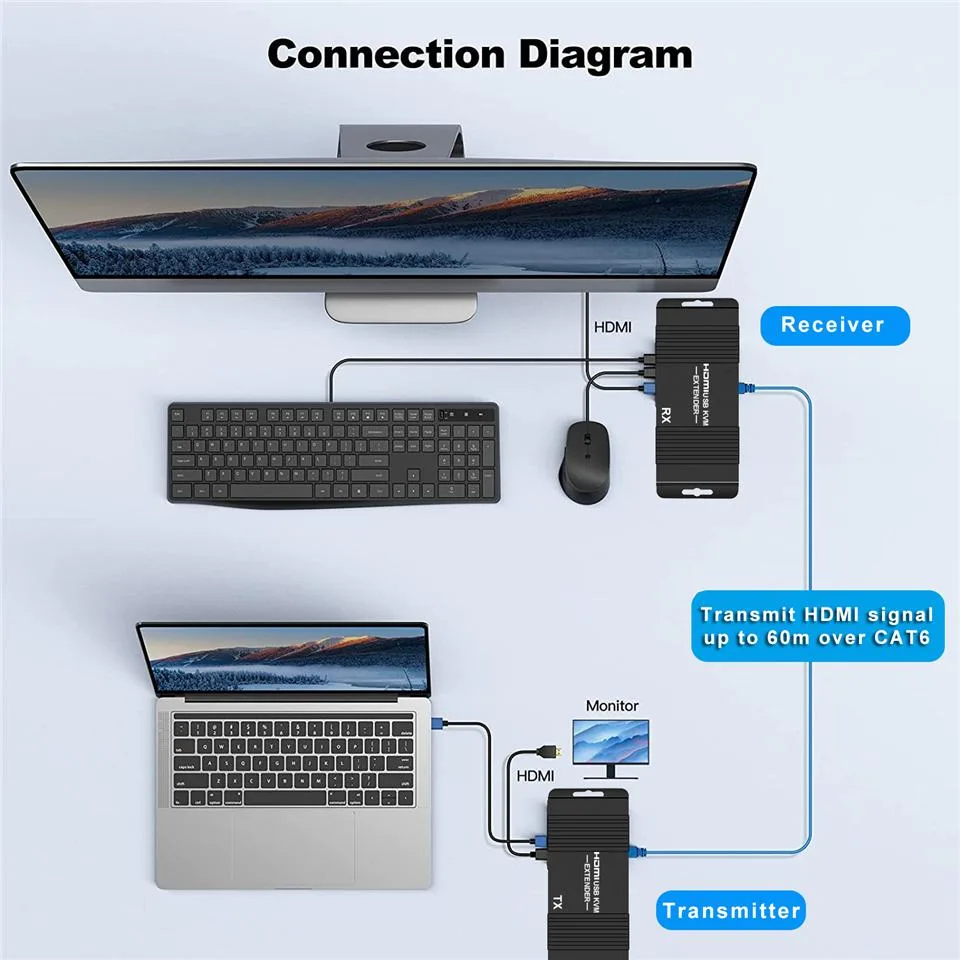

The ESTONE OZD5D6 extends HDMI and USB signals up to 60 metres over a single CAT6 cable. It delivers 1920x1080 resolution at 60Hz with HDMI 1.4b and HDCP 1.4 compliance. Power-over-cable lets a single adapter power both transmitter and receiver units.

For remote keyboard mouse control

Installers needing a local HDMI loop-out for a near-end monitor and remote USB keyboard and mouse operation will fit this extender. Users requiring 4K resolution, HDR metadata pass-through, or fibre-optic reach beyond 60 metres should choose a different solution.

60 metre CAT6 transmission limit

The extender reaches 60 metres on CAT6, 50 metres on CAT5e, and 40 metres on CAT5. This distance ceiling is the single specification that decides whether the OZD5D6 suits your cable run.

Highlights

  • Extends HDMI up to 196 feet over one CAT6 cable
  • Powers receiver through the same CAT cable with POC
  • Local HDMI loop-out keeps a display at the source
  • Controls remote keyboard and mouse from the transmitter
  • Supports 1080p at 60 Hz with 3D and HDR

Specifications

BrandESTONE
SeriesOZD5D6
ModelOZD5D6
TypeHDMI, USB
Video Resolution1920x1080
LED IndicatorsYes
FeaturesLong range transmission:up to 60m/196ft over a single AWG23 CAT6 cable;
Video resolution:Up to 576P,720P,1920x1080P@60Hz,3D,HDR;
Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;
POC function:Power over CAT cable,only need one power adapter;
HDMI loop out function:The transmitter with one HDMI local loop out;
Uncompressed mode:ZERO Delay,No loss;
KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;
Male to male:one TX to one RX applicataion;
Video standard:compliance with HDMI 1.4b and HDCP 1.4 ,and compliant DVI standard;
Built-in autom
Dimensions5.43 x 5.35 x 1.46 inches
Weight9.52 Ounces
Package ContentsHDMI KVM extender transmitter x1
HDMI KVM extender receiver x1
Power adapter x1
User manual x1

Questions about this item

Should I choose this single OZD5D6 kit or look for a multi-receiver version?

The OZD5D6 is sold as one transmitter paired with one receiver; no other capacity or multi-receiver variant is listed for this model.

What does the 1920x1080@60Hz rating mean when the extender is connected?

It delivers full 1080p at 60 Hz over Cat6 up to 60 m, with support for 3D and HDR at that resolution.

How does the HDMI 1.4b and HDCP 1.4 interface limit what I can send?

The link caps at 10.2 Gbps and 300 MHz pixel clock, so 1080p 60 Hz is the maximum; higher resolutions or refresh rates will not pass.
