ESTONE OZD5D6 HDMI KVM Extender 1080P 60m Cat6
Extends 1080p HDMI, USB keyboard and mouse up to 60 metres over a single Cat6 cable with power-over-cable and local loop-out
- TypeHDMI, USB
- Video Resolution1920x1080
- LED IndicatorsYes
- FeaturesLong range transmission:up to 60m/196ft over a single AWG23
- Dimensions5.43 x 5.35 x 1.46 inches
- Weight9.52 Ounces
- Extends HDMI up to 60 metres over one Cat6 cable
- Delivers 1080p at 60 Hz with 3D and HDR support
- Carries LPCM, Dolby Digital and DTS surround audio
- Powers the receiver through the Cat cable with POC
- Includes HDMI loop-out for a local display

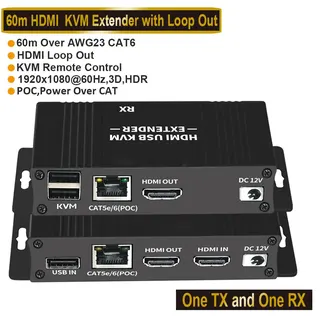

ESTONE OZD5D6 HDMI KVM Extender

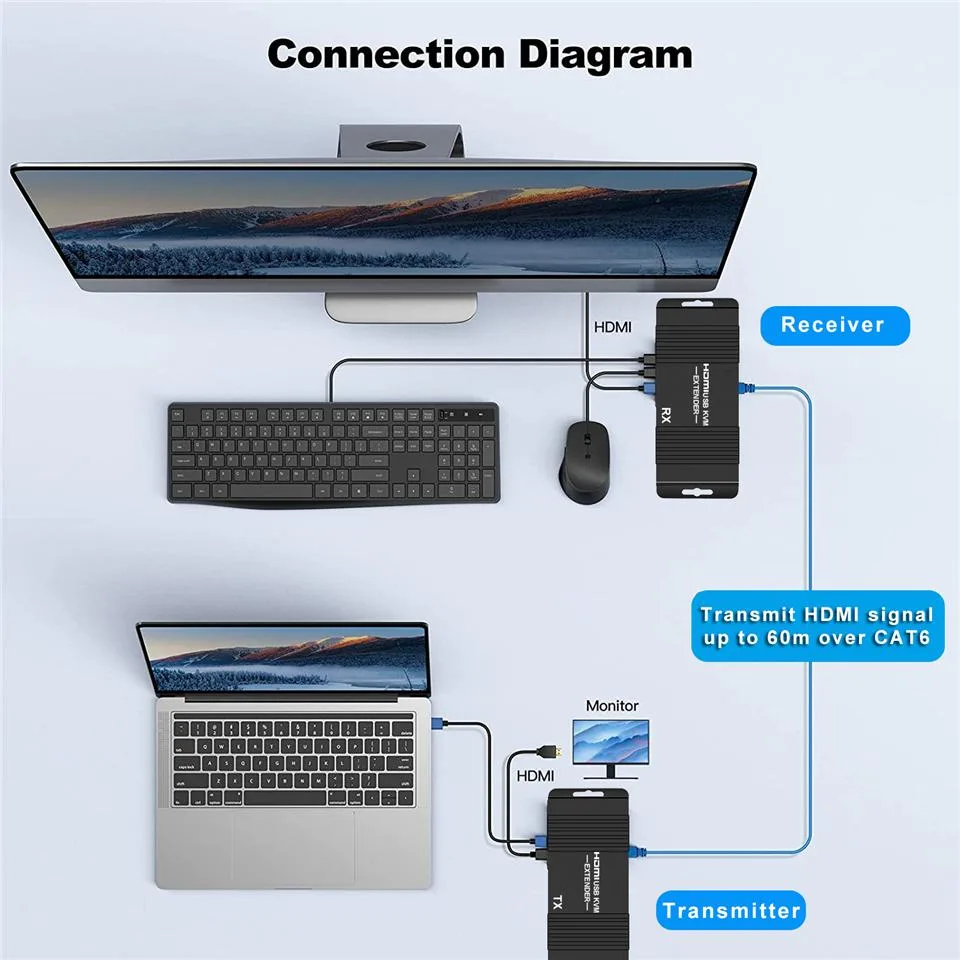

The ESTONE OZD5D6 extends HDMI video, USB keyboard and mouse signals up to 60 metres over a single AWG23 CAT6 cable. It is built for installers and IT teams who need to place a display and input devices far from the source computer without running long HDMI leads. The kit includes transmitter, receiver, power adapter and manual, and requires no driver installation on any supported operating system.
1080p 60 Hz capacity and headroom
The extender handles 576p, 720p and 1920x1080p at 60 Hz with 3D and HDR content, plus LPCM 2.0, 5.1, 7.1, Dolby Digital, DTS 5.1 and Dolby Digital+ audio. A local HDMI loop-out on the transmitter lets you keep a monitor at the source end. Transmission distance drops to 50 metres on CAT5e and 40 metres on CAT5, so cable category directly limits reach.
HDMI 1.4b and HDCP 1.4 interface limits

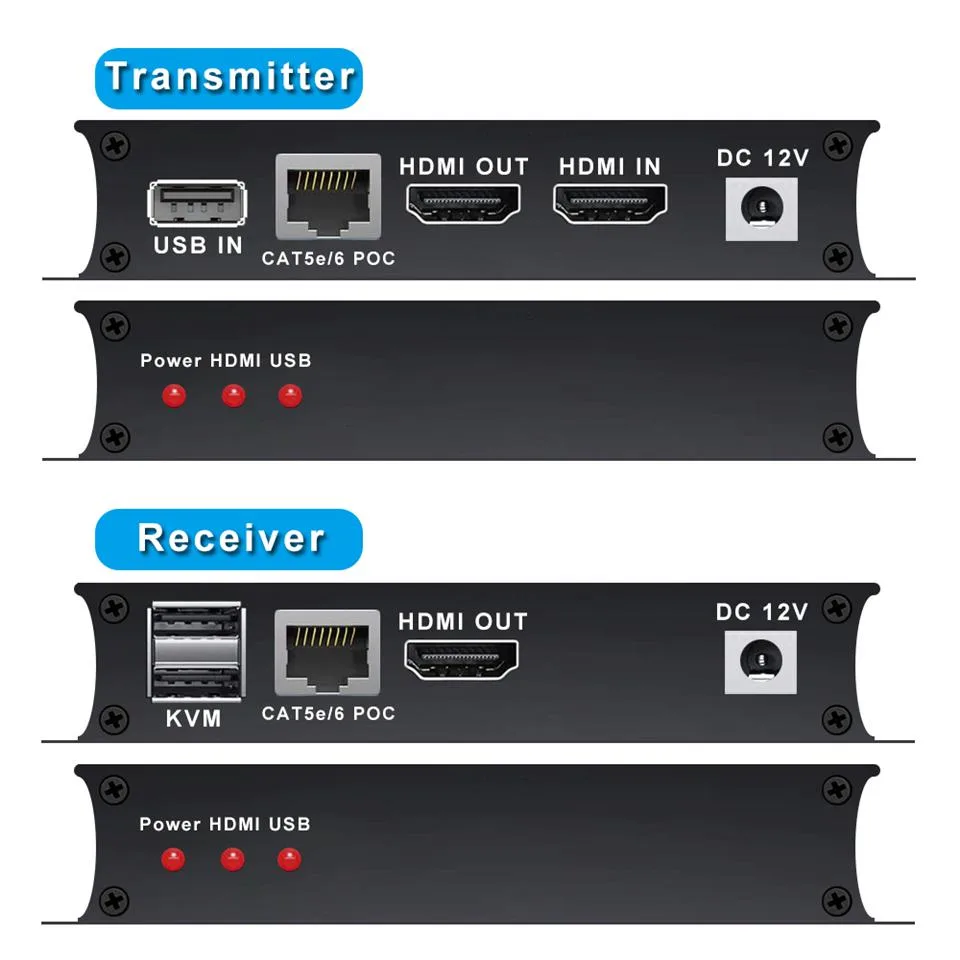

The link complies with HDMI 1.4b and HDCP 1.4, capping the maximum pixel clock at 300 MHz and the data rate at 10.2 Gbps. USB transport is restricted to HID-class keyboard and mouse signals over the RJ45 connection, so other USB peripherals are not supported. Power-over-cable delivers power to the receiver through the same CAT6 run, requiring only the single supplied adapter.
Highlights
- Extends HDMI up to 60 metres over one Cat6 cable
- Delivers 1080p at 60 Hz with 3D and HDR support
- Carries LPCM, Dolby Digital and DTS surround audio
- Powers the receiver through the Cat cable with POC
- Includes HDMI loop-out for a local display
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZD5D6 |
| Model | OZD5D6 |
| Type | HDMI, USB |
| Video Resolution | 1920x1080 |
| LED Indicators | Yes |
| Features | Long range transmission:up to 60m/196ft over a single AWG23 CAT6 cable; Video resolution:Up to 576P,720P,1920x1080P@60Hz,3D,HDR; Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ; POC function:Power over CAT cable,only need one power adapter; HDMI loop out function:The transmitter with one HDMI local loop out; Uncompressed mode:ZERO Delay,No loss; KVM Rmote Control:keyboard and mouse remote control transmitter from long distance; Male to male:one TX to one RX applicataion; Video standard:compliance with HDMI 1.4b and HDCP 1.4 ,and compliant DVI standard; Built-in autom |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | HDMI KVM extender transmitter x1 HDMI KVM extender receiver x1 Power adapter x1 User manual x1 |
Questions about this item
Will the transmitter's HDMI loop-out let me keep my local monitor active while extending to a Cat6 run?
Yes, the transmitter includes one HDMI local loop-out so your on-site display stays live while the signal travels up to 60m over AWG23 CAT6.
How can I confirm the link is running at 1080p 60 Hz after I connect everything?
The units have LED indicators; a solid link light plus a 1920x1080@60Hz read-out on the attached display shows the extender is passing the full HDMI 1.4b signal.
Do I need to buy a second power adapter for the receiver, or does the single included unit power both ends?
Only one power adapter is in the box; POC function sends power over the CAT cable so the receiver draws its supply from the transmitter side.
