Small black transmitter and receiver boxes with HDMI and USB ports side by side

ESTONE

ESTONE OZD5-1D6-1 HDMI USB KVM Extender 4K60Hz 60m

SKU CH-XQQ8-XKJT4

Extends HDMI and USB control up to 60 metres over Cat6 with 4K 60 Hz video and zero latency

  • TypeHDMI, USB
  • Video Resolution3840 x 2160
  • LED IndicatorsYes
  • FeaturesLong range transmission:up to 60m/196ft over a single AWG23
  • Dimensions5.43 x 5.35 x 1.46 inches
  • Weight9.52 Ounces
  • Extends 4K video up to 60m over Cat6 cable
  • Dual USB 2.0 ports enable remote keyboard and mouse control
  • Supports HDR10+ and Dolby Vision for enhanced colour depth
  • Single power adapter powers both transmitter and receiver units
  • Plug-and-play setup requires no software installation

Remote HDMI KVM Extension

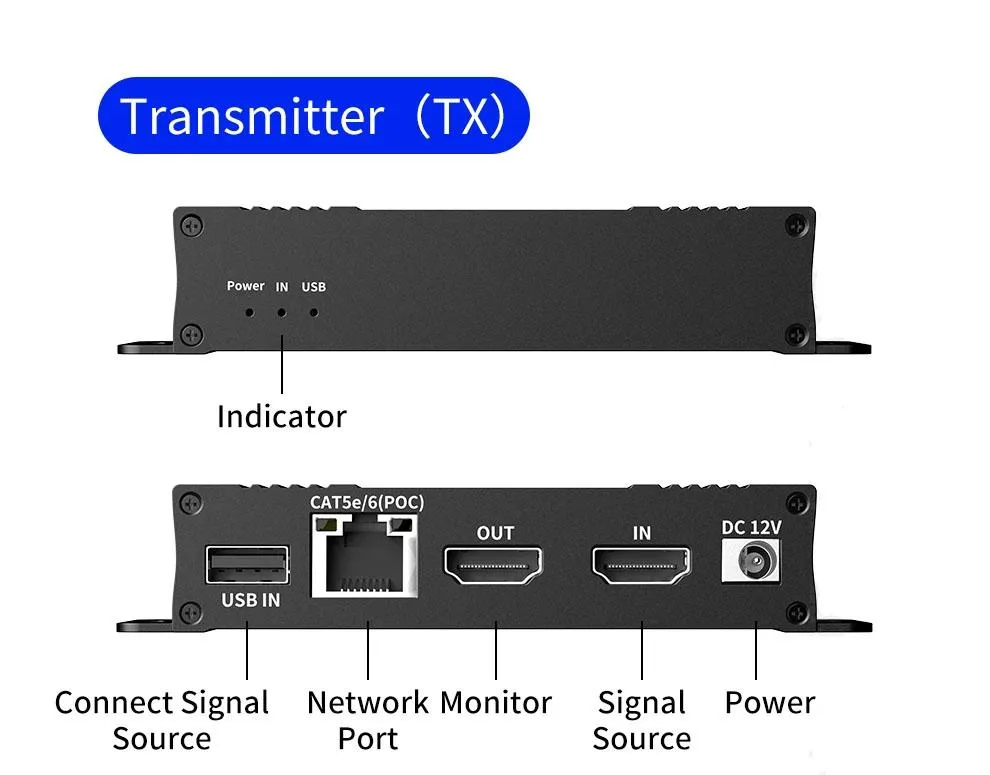

The ESTONE OZD5-1D6-1 extends HDMI video and USB control up to 60m over a single Cat5e or Cat6 cable. It supports resolutions up to 3840 x 2160 at 60Hz with HDR 10+ and Dolby Vision. Dual USB 2.0 ports allow keyboard and mouse operation at the remote display. The transmitter includes an HDMI loop-out for a local monitor.

Passive Cooling and Single Power Supply

The compact transmitter and receiver units operate without fans, so they add no audible noise to the installation. Only the transmitter requires the included power adapter, which powers the entire link. Typical power draw is low enough for standard outlet use. LED indicators on both units confirm link status and signal presence.

Included Accessories Enable Immediate Setup

The box provides a transmitter, a receiver, one power adapter and a user manual. A USB-to-USB cable is also supplied for connecting the host computer. No software or drivers are required; the link is established automatically on connection. Buyers needing longer runs beyond 60m or fibre-based transmission will need a different solution.

Highlights

  • Extends 4K video up to 60m over Cat6 cable
  • Dual USB 2.0 ports enable remote keyboard and mouse control
  • Supports HDR10+ and Dolby Vision for enhanced colour depth
  • Single power adapter powers both transmitter and receiver units
  • Plug-and-play setup requires no software installation

Specifications

BrandESTONE
SeriesOZD5-1D6-1
ModelOZD5-1D6-1
TypeHDMI, USB
Video Resolution3840 x 2160
LED IndicatorsYes
FeaturesLong range transmission:up to 60m/196ft over a single AWG23 CAT6 cable;
Video resolution:Up to 576P,720P,1920x1080P@60Hz,3840x2160@60Hz;
HDR 10+,3D,Dolby Vision,Dolby ATMOS,Deep Color:8/10/12/24 Bit;
Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;
POC function:Power over CAT cable,only need one power adapter;
HDMI loop out function:The transmitter with one HDMI local loop out;
Uncompressed mode:ZERO Delay,No loss;
KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;
Male to male:one TX to one RX applicataion;
Video standard:compliance
Dimensions5.43 x 5.35 x 1.46 inches
Weight9.52 Ounces
Package ContentsHDMI KVM extender transmitter x1
HDMI KVM extender receiver x1
Power adapter x1
User manual x1

Questions about this item

How do I set up the OZD5-1D6-1 extender with a single Cat6 cable and where do installers most often go wrong?

Connect the transmitter to the source via HDMI and USB, link transmitter and receiver with one AWG23 Cat6 cable up to 60 m, attach the receiver to the display and peripherals, then power the transmitter only; the common mistake is powering both ends or using a cable longer than 60 m.

What maintenance or replacement will the OZD5-1D6-1 need over time?

The unit has no user-serviceable parts; only the external power adapter or the Cat6 cable may need replacement if damaged, and the USB 2.0 ports should be kept free of dust.

What is the first limit I will hit when running 4K 60 Hz video continuously over the 60 m link?

The hard limit is the 60 m / 196 ft maximum transmission distance over AWG23 Cat6; beyond that the 3840 x 2160 @ 60 Hz signal with HDR 10+ and Dolby Vision will degrade or drop.
