Two compact black boxes with HDMI and USB ports, linked by a single Ethernet cable

ESTONE

ESTONE OZD5-1D6-1 HDMI KVM USB Extender 4K 60Hz 196ft

SKU CH-K6QJ-FT349

Extends 4K 60 Hz HDMI and USB keyboard and mouse control up to 196 ft over a single Cat6 cable with zero latency

  • TypeHDMI, USB
  • Video Resolution3840 x 2160
  • LED IndicatorsYes
  • FeaturesLong range transmission:up to 60m/196ft over a single AWG23
  • Dimensions5.43 x 5.35 x 1.46 inches
  • Weight9.52 Ounces
  • Transmit 4K 60 Hz video up to 196 ft over a single CAT6 cable
  • Control a computer remotely with USB keyboard and mouse at the receiver end
  • Supports HDR 10+, Dolby Vision and Dolby Atmos for high dynamic range and immersive audio
  • Zero-latency lossless transmission for lag-free video and responsive input
  • Plug-and-play setup powered by one adapter with no software installation required

4K HDMI KVM Extender

The ESTONE OZD5-1D6-1 extends HDMI video and USB keyboard or mouse control up to 196 feet over a single Cat5e or Cat6 cable. It supports resolutions up to 3840 x 2160 at 60 Hz with zero latency. The transmitter and receiver set is powered by one included adapter for simple plug and play deployment. LED indicators confirm link status on both units.

Suited for remote PC access up to 196 feet

Installers needing HDMI and USB control across rooms or floors at 4K 60 Hz will find the distance and resolution match. Users requiring USB 2.0 or 3.0 peripheral support beyond keyboard and mouse should look elsewhere. Builds needing fiber transmission for longer runs or higher bandwidth peripherals are not supported by this extender.

196 foot Cat6 transmission limit

The maximum 196 foot range over Cat6 cable is the single specification that decides if this extender fits the installation. Runs exceeding this distance require a different transmission medium. Cat5e cable may reduce the achievable 4K 60 Hz distance compared to Cat6.

Highlights

  • Transmit 4K 60 Hz video up to 196 ft over a single CAT6 cable
  • Control a computer remotely with USB keyboard and mouse at the receiver end
  • Supports HDR 10+, Dolby Vision and Dolby Atmos for high dynamic range and immersive audio
  • Zero-latency lossless transmission for lag-free video and responsive input
  • Plug-and-play setup powered by one adapter with no software installation required

Specifications

BrandESTONE
SeriesOZD5-1D6-1
ModelOZD5-1D6-1
TypeHDMI, USB
Video Resolution3840 x 2160
LED IndicatorsYes
FeaturesLong range transmission:up to 60m/196ft over a single AWG23 CAT6 cable;
Video resolution:Up to 576P,720P,1920x1080P@60Hz,3840x2160@60Hz;
HDR 10+,3D,Dolby Vision,Dolby ATMOS,Deep Color:8/10/12/24 Bit;
Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;
POC function:Power over CAT cable,only need one power adapter;

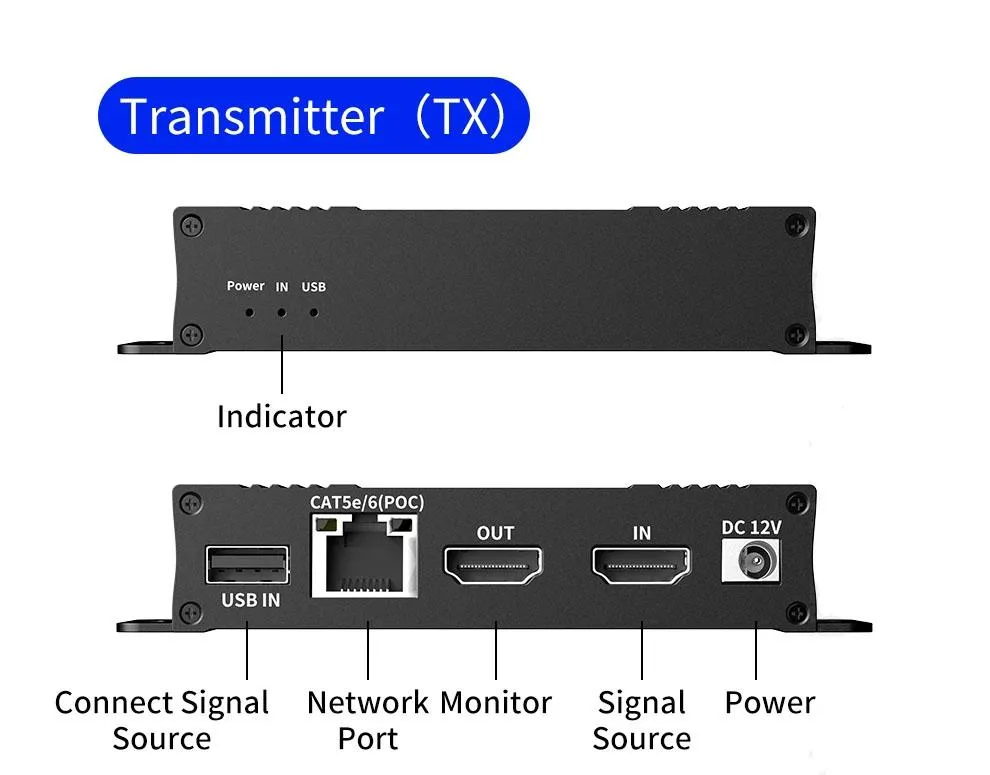

HDMI loop out function:The transmitter with one HDMI local loop out;
Uncompressed mode:ZERO Delay,No loss;

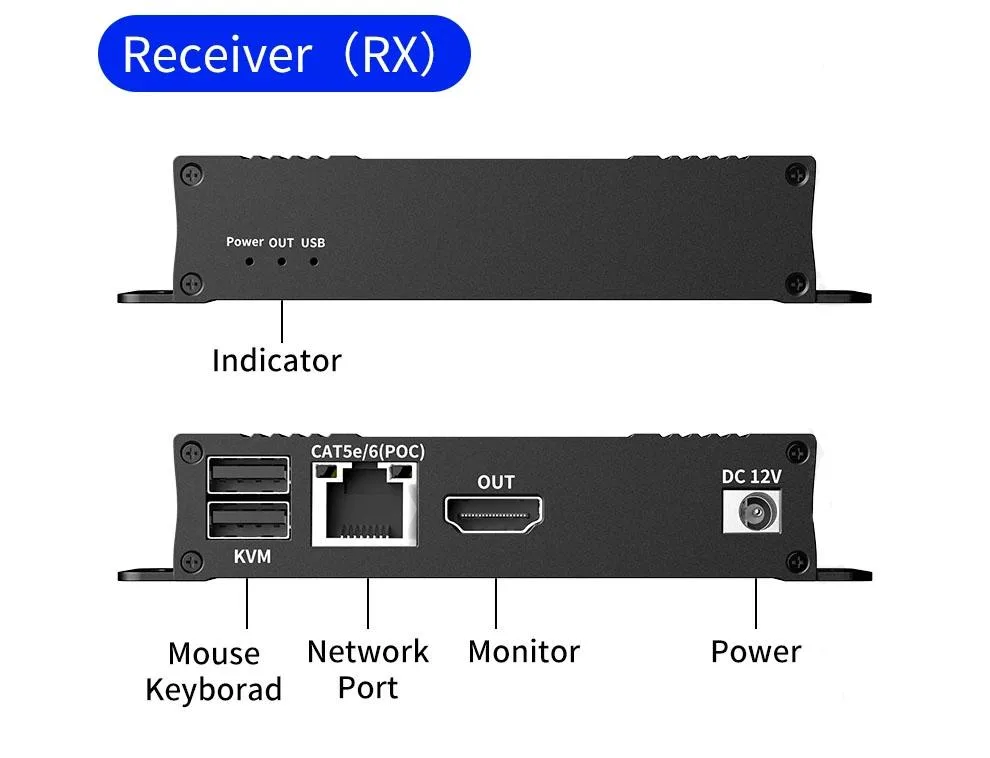

KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;
Male to male:one TX to one RX applicataion;
Video standard:compliance
Dimensions5.43 x 5.35 x 1.46 inches
Weight9.52 Ounces
Package ContentsHDMI KVM extender transmitter x1
HDMI KVM extender receiver x1
Power adapter x1
User manual x1

Questions about this item

Which distance limit applies to my 4K 60 Hz setup, the 196 ft or the 230 ft figure?

At 4K 60 Hz the extender reaches 196 ft over a single CAT6 cable; the 230 ft figure is quoted for the same resolution but with a different cable grade.

Will I see any lag when controlling a PC at 3840x2160@60 Hz over the full 196 ft?

The manufacturer states zero latency for lossless video and USB 1.1 keyboard and mouse control across the full 196 ft distance.

Does the HDMI 2.0 and HDCP 2.2 support mean I can pass protected 4K streams without downgrading?

Yes, the extender is fully HDCP 2.2 compliant and supports HDMI 2.0 bandwidth, so protected 4K 60 Hz content passes through unchanged.
