ESTONE
ESTONE OZD5-1D6-1 4K HDMI KVM Extender 60m
Extends 4K HDMI and USB control up to 60 m over a single Cat6 cable with zero latency
- TypeHDMI, USB
- Video Resolution3840 x 2160
- LED IndicatorsYes
- FeaturesLong range transmission:up to 60m/196ft over a single AWG23
- Dimensions5.43 x 5.35 x 1.46 inches
- Weight9.52 Ounces
- 4K 60 Hz video clarity up to 60 m over one CAT6 cable
- Remote keyboard and mouse control with zero latency via dual USB 2.0 ports
- HDMI loop-out on transmitter keeps a local display active
- Supports HDR 10+, Dolby Vision, Dolby Atmos and 8/10/12/24-bit Deep Color
- Plug-and-play operation with a single power adapter powering both units
4K HDMI KVM Extender over Ethernet

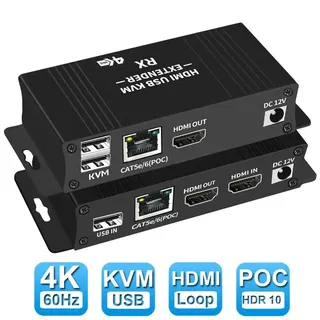

The ESTONE OZD5-1D6-1 transmits 4K HDMI and USB signals up to 60 metres over a single CAT6 cable. It is built for operators who need to control a computer or media player from a remote display and keyboard with zero perceived latency.
Build and Connectivity

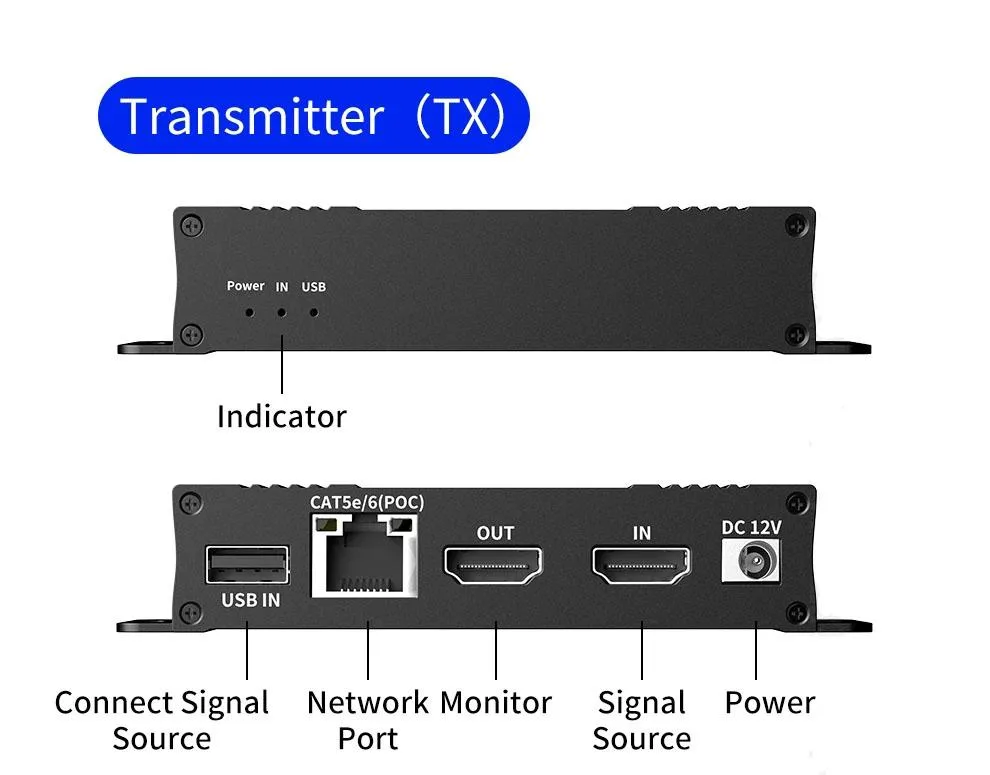

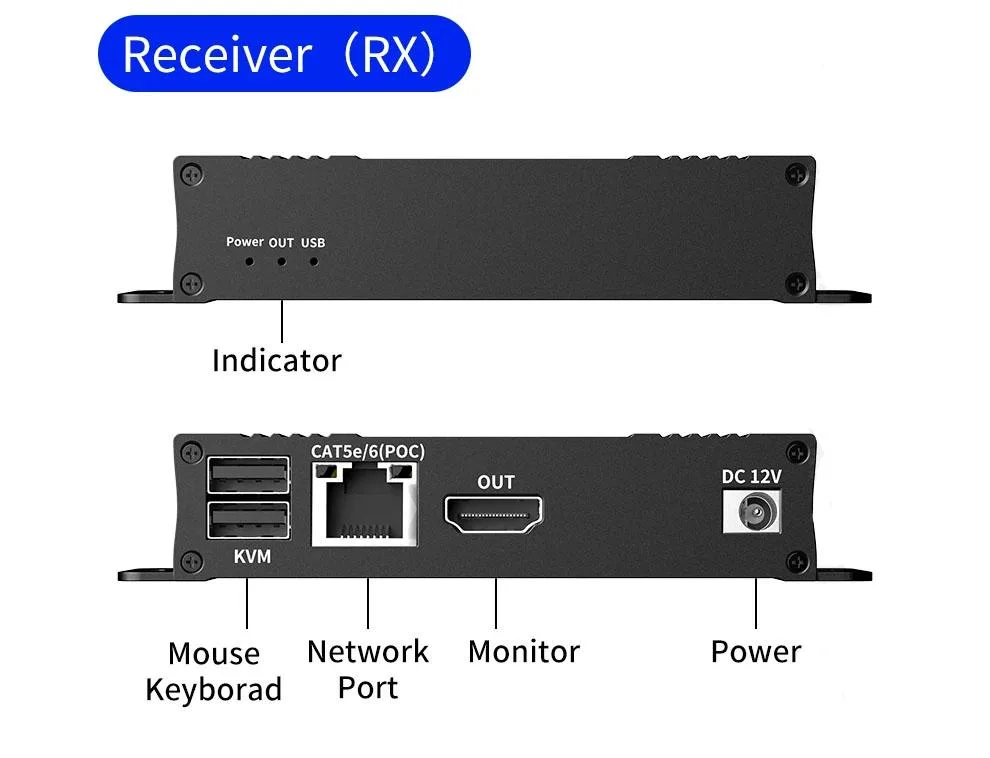

The transmitter and receiver each measure 5.43 by 5.35 by 1.46 inches and weigh 9.52 ounces. A single AWG23 CAT6 link carries video, audio and USB 2.0 data, while the transmitter includes an HDMI loop output for a local monitor and requires only one power adapter for the pair.
Thermals and Power
Passive aluminium enclosures dissipate heat without fans, so the units run silently in normal operation. The single supplied adapter powers both ends, keeping cabling simple and power draw low for continuous 24/7 use.
Highlights
- 4K 60 Hz video clarity up to 60 m over one CAT6 cable
- Remote keyboard and mouse control with zero latency via dual USB 2.0 ports
- HDMI loop-out on transmitter keeps a local display active
- Supports HDR 10+, Dolby Vision, Dolby Atmos and 8/10/12/24-bit Deep Color
- Plug-and-play operation with a single power adapter powering both units
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZD5-1D6-1 |
| Model | OZD5-1D6-1 |
| Type | HDMI, USB |
| Video Resolution | 3840 x 2160 |
| LED Indicators | Yes |
| Features | Long range transmission:up to 60m/196ft over a single AWG23 CAT6 cable; Video resolution:Up to 576P,720P,1920x1080P@60Hz,3840x2160@60Hz; HDR 10+,3D,Dolby Vision,Dolby ATMOS,Deep Color:8/10/12/24 Bit; Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ; POC function:Power over CAT cable,only need one power adapter; HDMI loop out function:The transmitter with one HDMI local loop out; Uncompressed mode:ZERO Delay,No loss; KVM Rmote Control:keyboard and mouse remote control transmitter from long distance; Male to male:one TX to one RX applicataion; Video standard:compliance |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | HDMI KVM extender transmitter x1 HDMI KVM extender receiver x1 Power adapter x1 User manual x1 |
Questions about this item
What resolution and refresh rate does the HDMI 2.0 interface actually deliver over the Cat6 link?
The extender transmits up to 3840 x 2160 at 60 Hz over a single AWG23 Cat6 cable, with HDCP 2.2 compliance and support for HDR10+, Dolby Vision and 8/10/12/24-bit deep colour.
How much rack or desk space do the transmitter and receiver units need?
Each unit measures 5.43 x 5.35 x 1.46 inches and weighs 9.52 ounces, so a pair fits on a standard shelf or can be mounted with optional brackets in a compact footprint.
Does the kit need power at both ends, or can a single adapter run the whole link?
Only the transmitter requires the included power adapter; it powers the receiver through the Cat6 cable via PoC, so plug the adapter into the TX side and the link is live.
