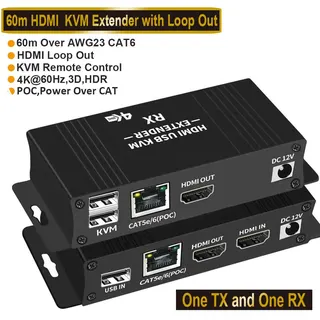

Two small black metal boxes with HDMI and USB ports, linked by a network cable

ESTONE

ESTONE OZD5-1D6-1 4K 60Hz HDMI KVM USB Extender Cat5e/6 196ft 2 USB 2.0 Ports

SKU CH-VPB8-R62YF

Extends HDMI and USB keyboard and mouse signals up to 196 feet over a single Cat5e or Cat6 cable with zero latency and 4K 60Hz support

  • TypeHDMI, USB
  • Video Resolution3840 x 2160
  • LED IndicatorsYes
  • FeaturesLong range transmission:up to 60m/196ft over a single AWG23
  • Dimensions5.43 x 5.35 x 1.46 inches
  • Weight9.52 Ounces
  • Transmit 4K video up to 196ft over a single CAT6 cable
  • Control keyboard and mouse remotely with zero latency via dual USB 2.0 ports
  • Enjoy HDR 10+, Dolby Vision and 3D at 3840x2160@60Hz
  • Power the entire extender set with only one adapter using POC function
  • Connect instantly with plug-and-play setup requiring no driver installation

4K 60Hz HDMI KVM Extender

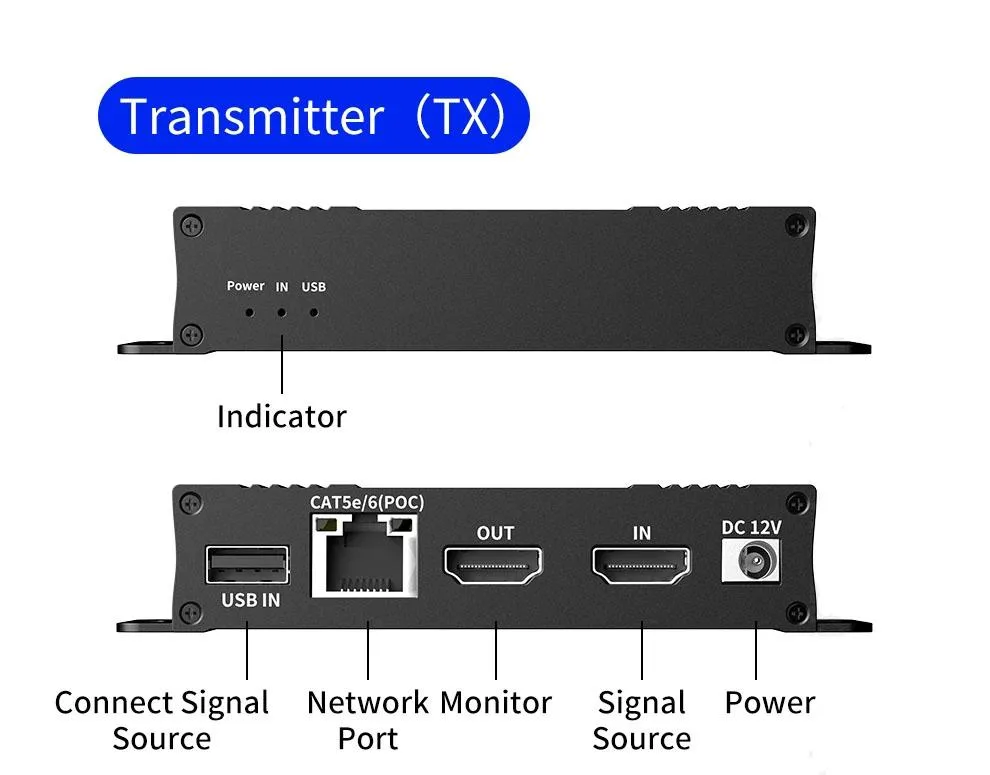

The ESTONE OZD5-1D6-1 extends HDMI video and USB control up to 196ft over a single Cat5e or Cat6 cable. It supports resolutions up to 3840 x 2160 at 60Hz with zero-latency uncompressed transmission. The transmitter includes a local HDMI loop-out for a nearby display. Plug-and-play operation requires no drivers and works across all major operating systems.

Capacity and headroom

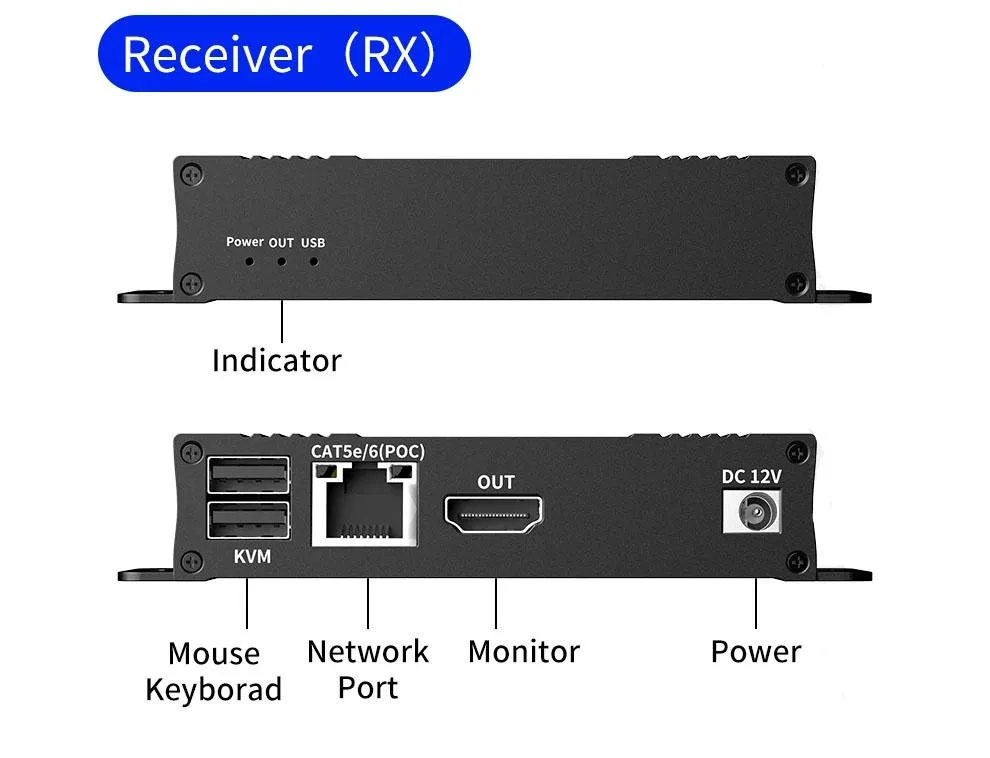

Video formats handled include 576P, 720P, 1920x1080P and 3840x2160 all at 60Hz with HDR 10+, Dolby Vision, 3D and Deep Color up to 24 Bit. Audio passes through as LPCM 2.0, 5.1 or 7.1 plus Dolby Digital, DTS 5.1 and Dolby Digital+. Two USB 2.0 ports at the receiver provide keyboard and mouse control. The single Cat6 link reaches its limit at 196ft; longer runs are not supported.

Thermals noise and power

The extender set draws power from one adapter connected to the transmitter using Power over Cable to supply the receiver. No fans are present so operation is completely silent. The compact transmitter and receiver units measure 5.43 x 5.35 x 1.46 inches each and weigh 9.52 ounces total, producing negligible heat during normal use.

Highlights

  • Transmit 4K video up to 196ft over a single CAT6 cable
  • Control keyboard and mouse remotely with zero latency via dual USB 2.0 ports
  • Enjoy HDR 10+, Dolby Vision and 3D at 3840x2160@60Hz
  • Power the entire extender set with only one adapter using POC function
  • Connect instantly with plug-and-play setup requiring no driver installation

Specifications

BrandESTONE
SeriesOZD5-1D6-1
ModelOZD5-1D6-1
TypeHDMI, USB
Video Resolution3840 x 2160
LED IndicatorsYes
FeaturesLong range transmission:up to 60m/196ft over a single AWG23 CAT6 cable;
Video resolution:Up to 576P,720P,1920x1080P@60Hz,3840x2160@60Hz;
HDR 10+,3D,Dolby Vision,Dolby ATMOS,Deep Color:8/10/12/24 Bit;
Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;
POC function:Power over CAT cable,only need one power adapter;
HDMI loop out function:The transmitter with one HDMI local loop out;
Uncompressed mode:ZERO Delay,No loss;
KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;
Male to male:one TX to one RX applicataion;
Video standard:compliance
Dimensions5.43 x 5.35 x 1.46 inches
Weight9.52 Ounces
Package ContentsHDMI KVM extender transmitter x1
HDMI KVM extender receiver x1
Power adapter x1
User manual x1

Questions about this item

Will the ESTONE OZD5-1D6-1 work with my existing Cat5e cabling or do I need Cat6?

The extender transmits up to 196ft over a single AWG23 Cat6 cable; Cat5e is also supported but maximum distance may be shorter.

How do I confirm zero-latency 4K 60Hz video is passing through after connecting transmitter and receiver?

Check the LED indicators on both units; they show link and signal status, and the HDMI loop-out on the transmitter lets you verify the local display simultaneously.

Does the package include the Cat6 cable and any extra USB cables for keyboard and mouse?

The box contains transmitter, receiver, one power adapter and user manual only; Cat6 cable and USB peripherals must be purchased separately.
