ESTONE OZD15D16 HDMI KVM Extender 4K@60Hz 20km LC Fiber
Extends 4K@60Hz HDMI and USB KVM control up to 20 km over single-mode LC fiber with uncompressed, zero-latency transmission
- TypeHDMI, USB
- Video Resolution3840 x 2160
- LED IndicatorsYes
- FeaturesLong range transmission:up to 20 km over a single-mode/Multi
- Dimensions5.43 x 5.35 x 1.46 inches
- Weight9.52 Ounces
- Transmit 4K60 video up to 20 km over single-mode LC fiber
- Uncompressed HDMI 2.0b signal with HDCP 2.2 for lossless quality
- Remote USB keyboard and mouse control from the receiver
- Bi-directional IR pass-through 20 to 60 KHz for source control

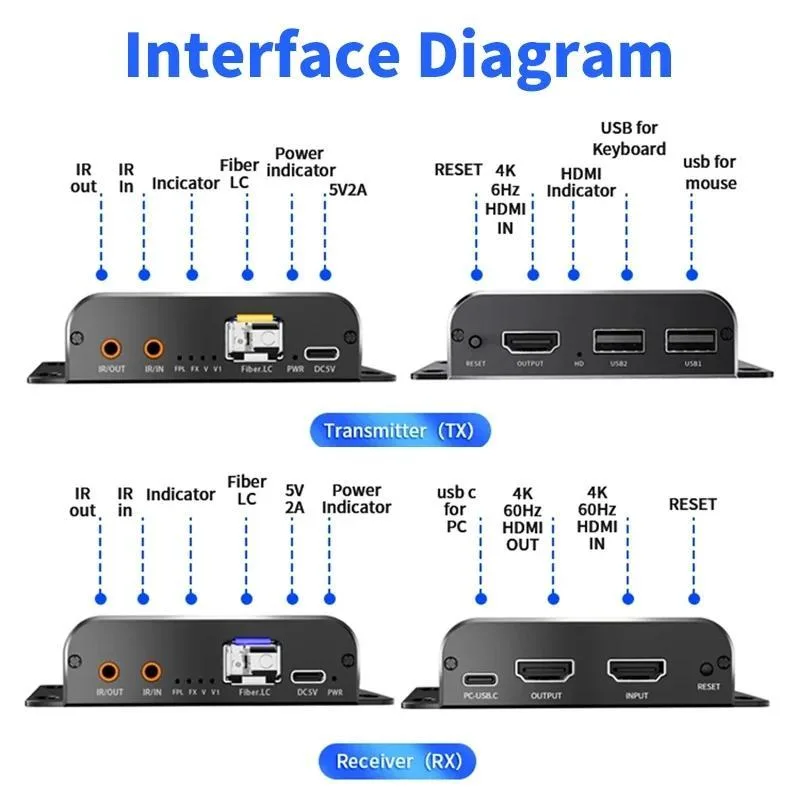

- Transmitter includes HDMI loop output for local monitoring
4K KVM Extender for Remote Workstations

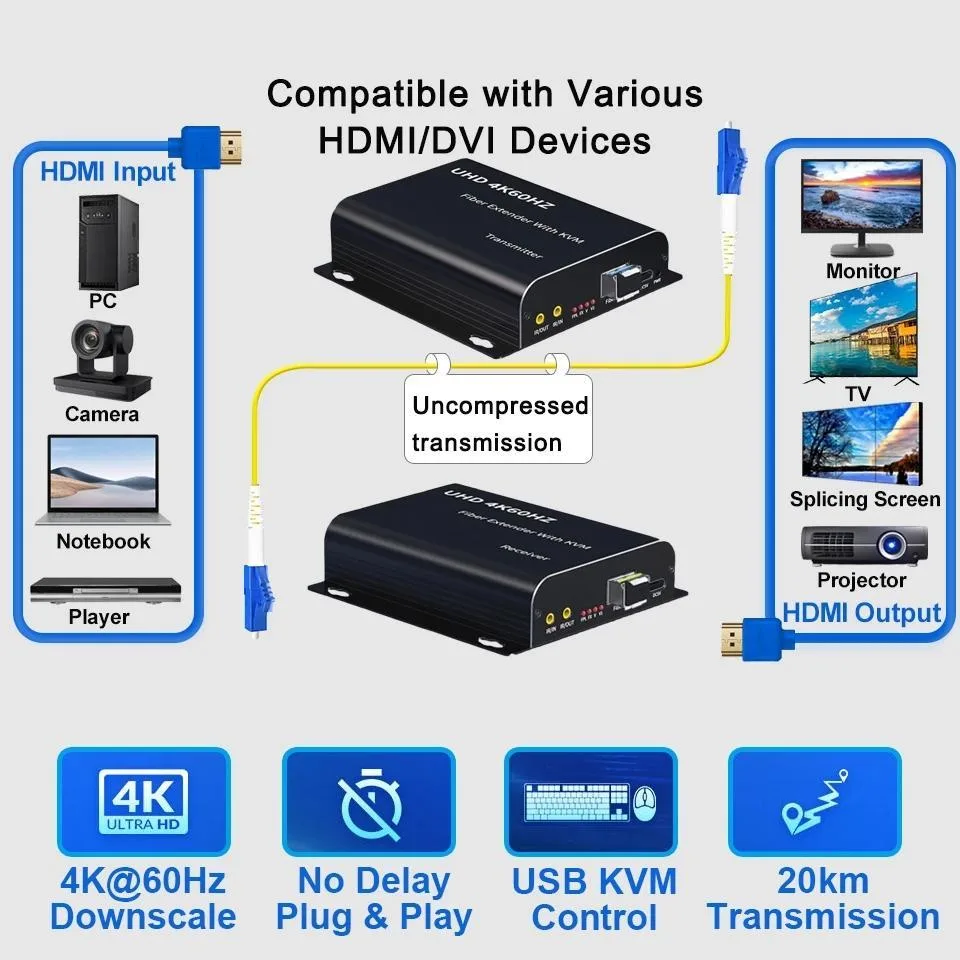

The ESTONE OZD15D16 extends HDMI video, audio, USB keyboard and mouse control, and infrared signals over a single LC fiber link up to 20 km. It serves integrators and operators who need to locate a PC or media player far from the display and control point in large homes, factories or construction sites.
HDMI 2.0b Interface Limits 4K to 60 Hz
The extender complies with HDMI 2.0b and HDCP 2.2, so the highest supported format is 3840 x 2160 at 60 Hz. Higher refresh rates such as 120 Hz are only available at 1920 x 1080, and no 4K 120 Hz or 8K signals can pass through this link.
20 km Reach with Uncompressed 4K 60
Single-mode or multi-mode LC fiber carries uncompressed 4K 60 Hz video, 7.1-channel high-bitrate audio and USB HID data without added latency. The 20 km maximum assumes standard single-mode cable; multi-mode runs will fall short of that distance, and the link provides no Ethernet or additional USB peripheral bandwidth beyond keyboard and mouse.
Highlights
- Transmit 4K60 video up to 20 km over single-mode LC fiber
- Uncompressed HDMI 2.0b signal with HDCP 2.2 for lossless quality
- Remote USB keyboard and mouse control from the receiver
- Bi-directional IR pass-through 20 to 60 KHz for source control
- Transmitter includes HDMI loop output for local monitoring
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZD15D16 |
| Model | OZD15D16 |
| Type | HDMI, USB |
| Video Resolution | 3840 x 2160 |
| LED Indicators | Yes |
| Features | Long range transmission:up to 20 km over a single-mode/Multi-mode LC fiber optic cable; Video resolution: 480P,720P,720i,1080i,1920*1080P@60/120Hz,4K@30/60Hz; Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ; Uncompressed,No loss,No delay; Infrared control:Bi-directional 20~60 KHz IR romote control; KVM Control:supports remote USB KVM control by keyboard & mouse; HDMI Loop Out:The transmitter with one HDMI loop output; Video standard:compliance with HDMI 2.0b and HDCP 2.2 standard; Built-in automatic adjustment system: make the image smooth, clear and stable; Built-in ESD protecti |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | HDMI extender Fiber transmitter ……………………1 pcs HDMI extender Fiber receiver ……………………… 1 pcs LC SFP Module………………………………........... 2 pcs USB data cable .......……………………………….... 1 pcs Power adapter ……………………………….... 2 pcs User manual …………………………………..1 pcs |
Questions about this item
Should I pick single-mode or multi-mode fiber for the OZD15D16 extender?
Both single-mode and multi-mode LC fiber work with the OZD15D16. Single-mode reaches the full 20 km distance; multi-mode covers shorter runs. Choose based on the cable you already have or the length you need.
What does 4K@60Hz mean when the extender is installed?
You get uncompressed 3840 x 2160 video at 60 frames per second with zero added latency, plus support for 1080p at 120 Hz and 4K at 30 Hz, all transmitted over one LC fiber link.
Which HDMI and HDCP versions does the OZD15D16 comply with?
The extender meets HDMI 2.0b and HDCP 2.2, so it passes 4K60 protected content and the loop-out on the transmitter mirrors the source without downgrading the signal.
