ESTONE
ESTONE OZD15D16 4K60Hz HDMI KVM Fiber Extender 20km
Extends 4K60Hz HDMI and USB KVM control up to 20 km over single-mode LC fibre with uncompressed, zero-latency transmission and HDMI loop-out
- TypeHDMI, USB
- Video Resolution3840 x 2160
- LED IndicatorsYes
- FeaturesLong range transmission:up to 20 km over a single-mode/Multi
- Dimensions5.43 x 5.35 x 1.46 inches
- Weight9.52 Ounces
- Transmits 4K at 60Hz up to 20km over single-mode fiber
- Zero-latency uncompressed video preserves full 3840 x 2160 detail
- Remote USB keyboard and mouse control from the receiver unit
- HDMI loop output on transmitter enables local monitoring
- Bi-directional IR and HDCP 2.2 support for secure installations
What the Extender Does

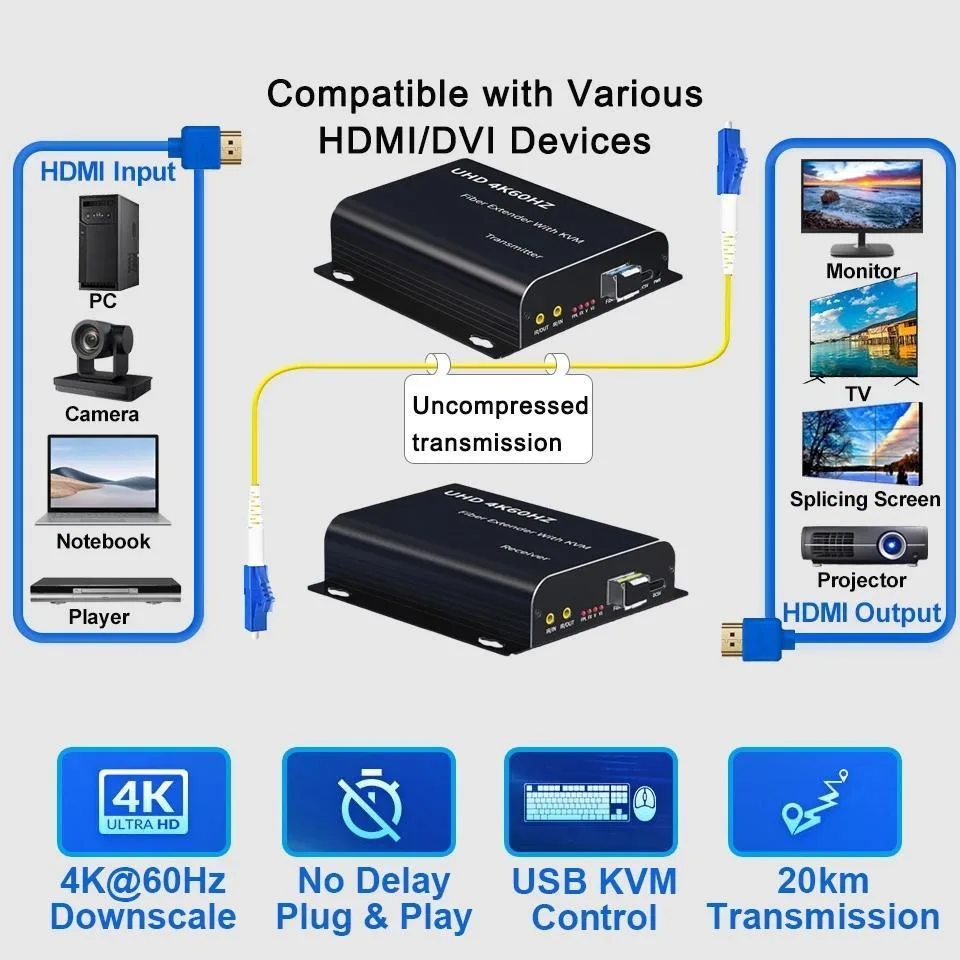

The ESTONE OZD15D16 extends HDMI, USB and IR signals up to 20 km over a single LC fibre link. It delivers 3840 x 2160 at 60 Hz or 1920 x 1080 at 120 Hz with uncompressed, zero-latency transmission. The kit suits control rooms, classrooms, medical imaging and digital-signage installations that need remote keyboard and mouse operation.
Sustained-Load Behaviour
Uncompressed video and USB data travel continuously without frame drops or added latency across the full 20 km distance. The built-in automatic adjustment system keeps the image stable during prolonged sessions. HDCP 2.2 compliance maintains protected-content playback over extended periods.
Thermals Noise and Power
Each unit measures 5.43 x 5.35 x 1.46 inches and weighs 9.52 ounces, drawing power from the two included adapters. No fans are present, so operation is silent. Built-in ESD protection safeguards the link during continuous use.
Highlights
- Transmits 4K at 60Hz up to 20km over single-mode fiber
- Zero-latency uncompressed video preserves full 3840 x 2160 detail
- Remote USB keyboard and mouse control from the receiver unit
- HDMI loop output on transmitter enables local monitoring
- Bi-directional IR and HDCP 2.2 support for secure installations
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZD15D16 |
| Model | OZD15D16 |
| Type | HDMI, USB |
| Video Resolution | 3840 x 2160 |
| LED Indicators | Yes |
| Features | Long range transmission:up to 20 km over a single-mode/Multi-mode LC fiber optic cable; Video resolution: 480P,720P,720i,1080i,1920*1080P@60/120Hz,4K@30/60Hz; Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ; Uncompressed,No loss,No delay; Infrared control:Bi-directional 20~60 KHz IR romote control; KVM Control:supports remote USB KVM control by keyboard & mouse; HDMI Loop Out:The transmitter with one HDMI loop output; Video standard:compliance with HDMI 2.0b and HDCP 2.2 standard; Built-in automatic adjustment system: make the image smooth, clear and stable; Built-in ESD protecti |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | HDMI extender Fiber transmitter ……………………1 pcs HDMI extender Fiber receiver ……………………… 1 pcs LC SFP Module………………………………........... 2 pcs USB data cable .......……………………………….... 1 pcs Power adapter ……………………………….... 2 pcs User manual …………………………………..1 pcs |
Questions about this item
How much power does the OZD15D16 transmitter draw when running continuously over 20 km?
Each unit ships with its own power adapter; the transmitter and receiver both need mains power to operate the optical link and USB KVM path.
Which cables and modules must I already have to connect the transmitter and receiver?
You need a single-mode or multi-mode LC fiber patch cable up to 20 km; two LC SFP modules are included in the box.
Will the extender pass 1080p 120 Hz from an older GPU while keeping HDCP 2.2 handshake intact?
Yes, the link supports 1920×1080 at 120 Hz and complies with HDMI 2.0b and HDCP 2.2, so legacy sources work without signal loss.
