ESTONE
ESTONE OZD15D16 4K HDMI KVM Fiber Extender 20km
Extends 4K HDMI video, audio and USB KVM control up to 20 km over single-mode or multi-mode LC fibre with uncompressed, zero-latency transmission
- TypeHDMI, USB
- Video Resolution3840 x 2160
- LED IndicatorsYes
- FeaturesLong range transmission:up to 20 km over a single-mode/Multi
- Dimensions5.43 x 5.35 x 1.46 inches
- Weight9.52 Ounces
- Transmit 4K video up to 20 km over single LC fiber
- Control remote systems with USB keyboard and mouse
- Route IR commands both ways between transmitter and receiver
- Mirror source display locally via HDMI loop output
- Deliver uncompressed 1080p at 120 Hz for smooth motion
20 km 4K HDMI KVM Extender

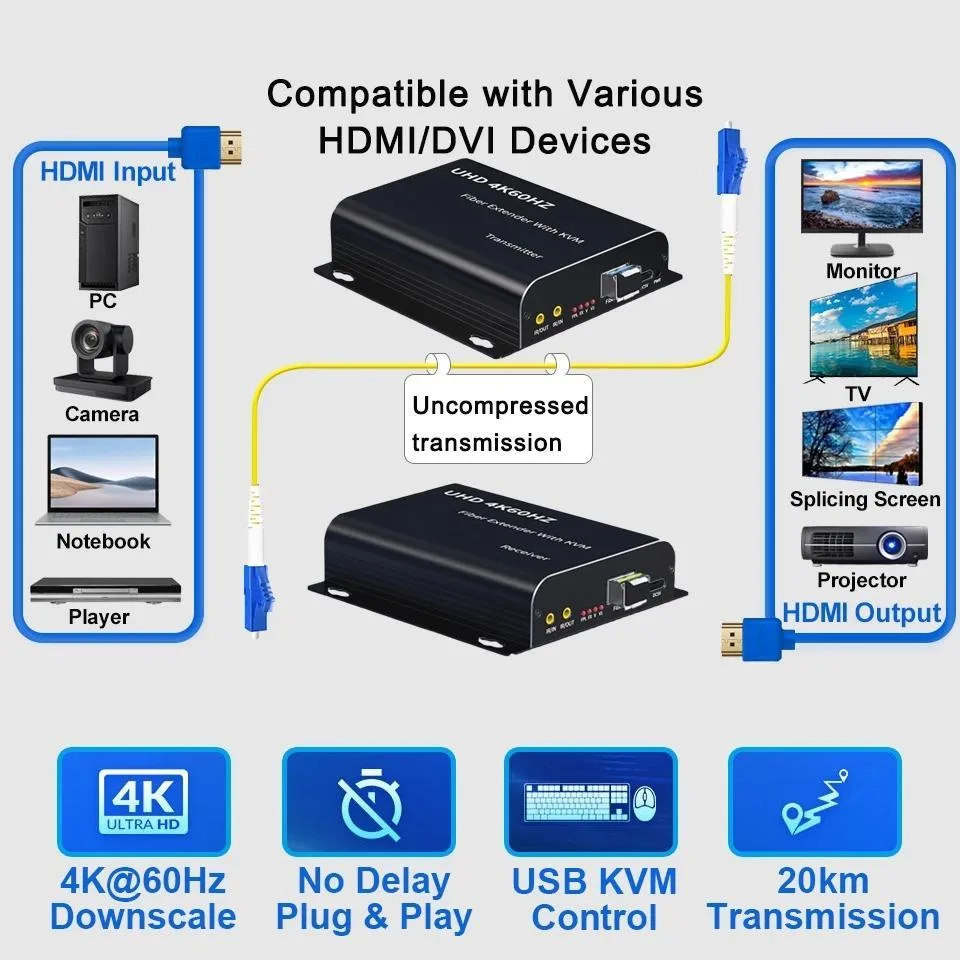

The ESTONE OZD15D16 extends HDMI video, audio, USB KVM and IR control up to 20 km over a single LC fiber optic cable. It supports resolutions up to 3840 x 2160 at 60 Hz and 1920 x 1080 at 120 Hz. The set includes transmitter, receiver, two SFP modules, USB cable and two power adapters. It suits installers needing long-distance, uncompressed signal distribution.
Bundled SFP Modules and Loop Output

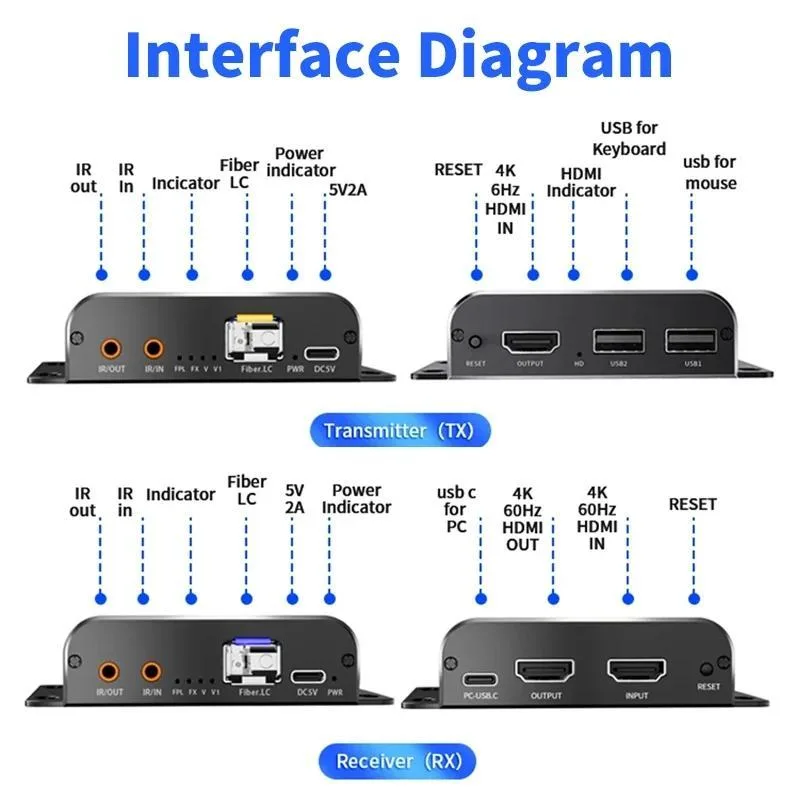

Two 10G LC SFP transceivers are supplied, removing the need to source compatible optics separately. The transmitter provides an HDMI loop output for a local display while the remote receiver drives the distant screen. Bi-directional IR control (20–60 kHz) and USB keyboard/mouse pass-through let operators manage the source from either end. HDCP 2.2 compliance ensures protected content passes through.
Capacity and Distance Limits
Uncompressed 4K60 4:4:4 video travels the full 20 km on single-mode fiber without latency or artefacts. The link also carries 1080p at 120 Hz and multi-channel audio formats including LPCM 7.1. Multi-mode fiber shortens the reach, so very long runs require single-mode cable. Buyers needing distances beyond 20 km or additional video inputs will need a different solution.
Highlights
- Transmit 4K video up to 20 km over single LC fiber
- Control remote systems with USB keyboard and mouse
- Route IR commands both ways between transmitter and receiver
- Mirror source display locally via HDMI loop output
- Deliver uncompressed 1080p at 120 Hz for smooth motion
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZD15D16 |
| Model | OZD15D16 |
| Type | HDMI, USB |
| Video Resolution | 3840 x 2160 |
| LED Indicators | Yes |
| Features | Long range transmission:up to 20 km over a single-mode/Multi-mode LC fiber optic cable; Video resolution: 480P,720P,720i,1080i,1920*1080P@60/120Hz,4K@30/60Hz; Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ; Uncompressed,No loss,No delay; Infrared control:Bi-directional 20~60 KHz IR romote control; KVM Control:supports remote USB KVM control by keyboard & mouse; HDMI Loop Out:The transmitter with one HDMI loop output; Video standard:compliance with HDMI 2.0b and HDCP 2.2 standard; Built-in automatic adjustment system: make the image smooth, clear and stable; Built-in ESD protecti |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | HDMI extender Fiber transmitter ……………………1 pcs HDMI extender Fiber receiver ……………………… 1 pcs LC SFP Module………………………………........... 2 pcs USB data cable .......……………………………….... 1 pcs Power adapter ……………………………….... 2 pcs User manual …………………………………..1 pcs |
