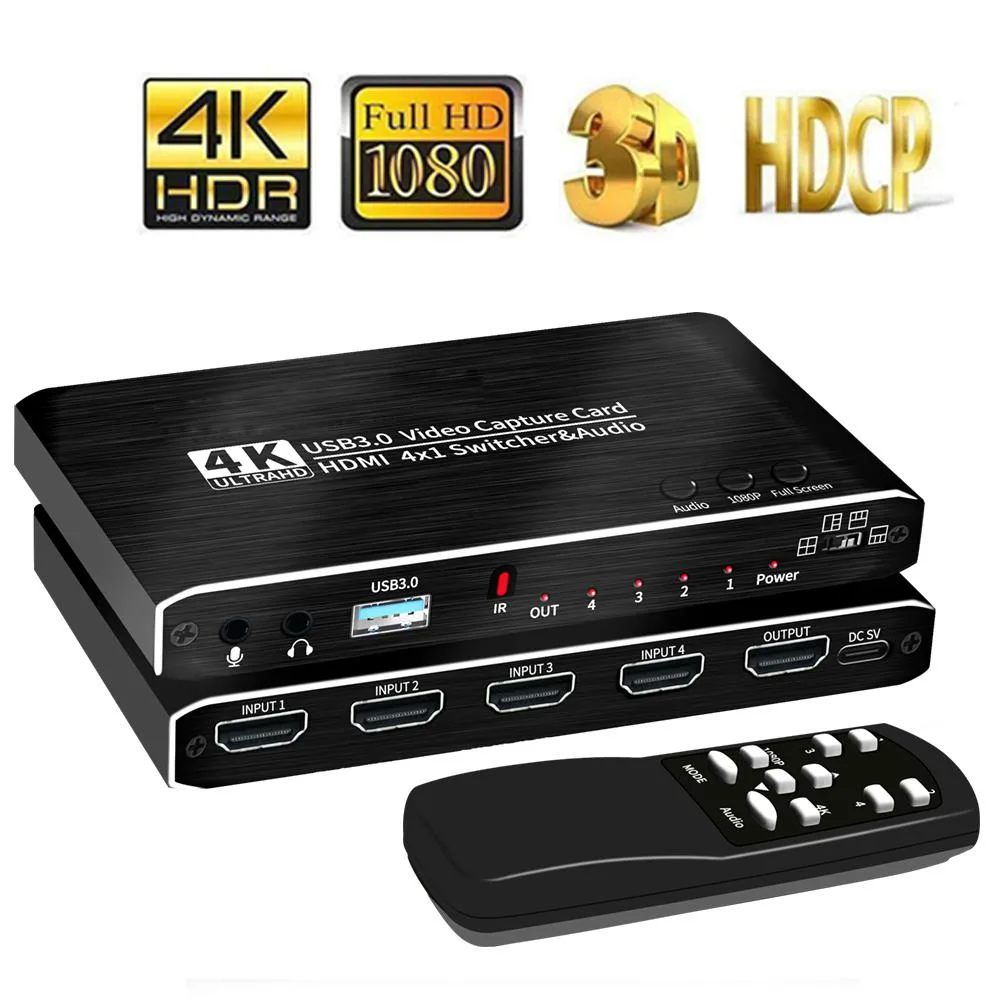

Black rectangular capture box with four HDMI inputs, one HDMI output, USB 3.0 port, mic and audio jacks, LED indicator

ESTONE

ESTONE OZC7 4K 4x1 HDMI Video Capturing Device

SKU CH-5PAN-215GQ

Four HDMI sources switch seamlessly to one USB 3.0 capture at 1080p60 and one HDMI pass-through at 4K30

  • InterfaceUSB 3.0
  • Resolution Support4K
  • Camera ResolutionUp to 4K Video
  • ColorBlack
  • AudioYes
  • HDMI1 Input/3 Output
  • Four HDMI inputs let you connect multiple sources simultaneously
  • 4K at 30 Hz pass-through keeps full resolution on your display
  • USB 3.0 capture up to 1080p at 60 fps for smooth recordings
  • Driver-free operation works with any third-party streaming software
  • IR remote enables instant seamless switching between all four inputs

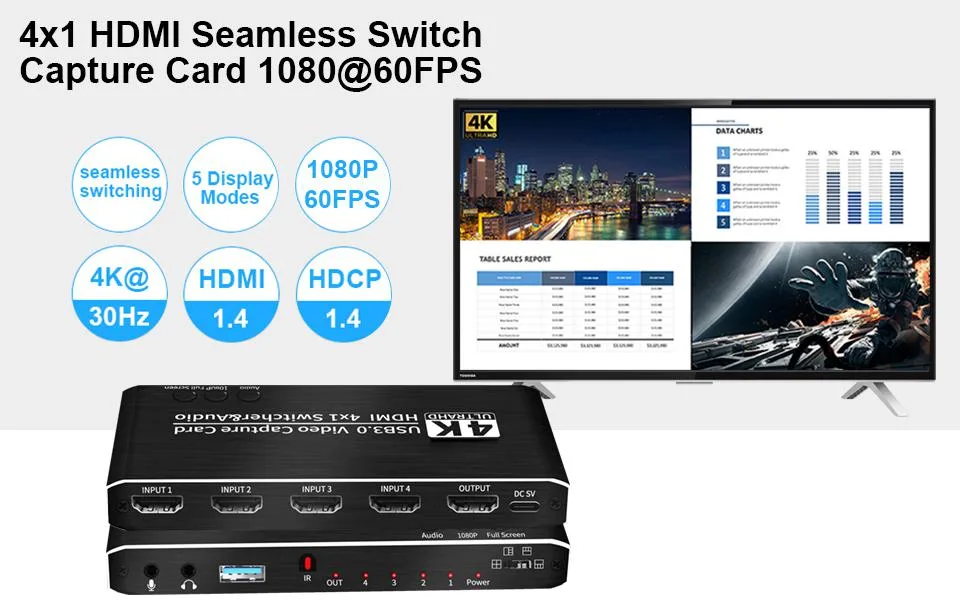

Four-input 4K capture and switch

The ESTONE OZC7 accepts four HDMI sources at up to 4K@30Hz and routes a single HDMI pass-through output at the same resolution. A USB 3.0 connection delivers up to 1080p@60fps to a PC or phone for recording or streaming. An integrated 3.5 mm microphone input mixes live commentary into the captured stream. Driver-free operation works with standard capture software on Windows or macOS.

Replaces separate switcher and capture box

A single unit handles both seamless source switching and USB capture, removing the need for an external HDMI matrix and a dedicated capture card. The jump is worthwhile when you regularly alternate between multiple consoles, cameras or computers and want one-button switching via the included IR remote. It is not suited for workflows that require 4K@60Hz capture or multi-channel audio routing beyond stereo LPCM.

Fits desktop streaming and lecture setups

The compact 4.45 x 2.2 x .71 inch enclosure draws power from the USB 3.0 host, so no external adapter is required. Both USB-A and USB-C cables are supplied for broad laptop compatibility. The HDMI loop-out feeds a local monitor or projector while the USB feed goes to recording software, freeing a second capture device for other tasks. Buyers needing more than four simultaneous inputs or 4K60 USB throughput should look elsewhere.

Highlights

  • Four HDMI inputs let you connect multiple sources simultaneously
  • 4K at 30 Hz pass-through keeps full resolution on your display
  • USB 3.0 capture up to 1080p at 60 fps for smooth recordings
  • Driver-free operation works with any third-party streaming software
  • IR remote enables instant seamless switching between all four inputs

Specifications

BrandESTONE
SeriesOZC7
ModelOZC7
InterfaceUSB 3.0
Resolution Support4K
Camera ResolutionUp to 4K Video
ColorBlack
AudioYes
HDMI1 Input/3 Output
USB Port1
LED IndicatorYes

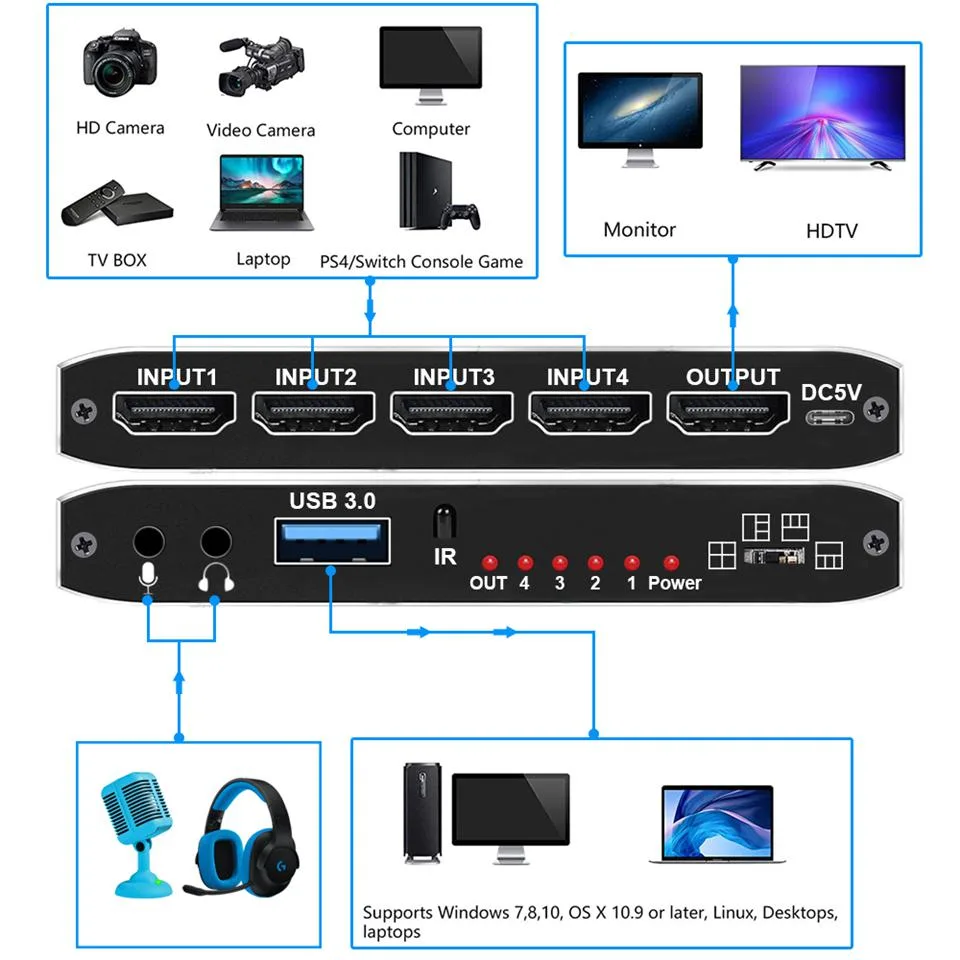

SpecificationInput: HDMI Port x 4, Mic Port x 1
Output: USB3.0 Port x 1, HDMI x 1, Audio x 1
HDMI Video Input: 4K@30Hz HDMI HD interface
HDMI Audio Input: LPCM
Audio Signal Output Color Space: YUY2, RGB24,MJPEG
With ultra HD(4K) game capture, you can record the game more easily.
No need to install any driver, you can use any 3rd party software to capture or stream your HD game , or other HD video source.
The video capture card switcher can be used for video conference, game collection, multimedia teaching scenario etc, it has superior performance and compatibility than the previous versions.
Supp
Feature4K Ultra Game Capture Card: The 4x1 video capture card supports 4K@30fps pass through for HDMI 1.4 input and output. The USB 3.0 output is maximum to 1080@60fps, the max HDMI input and output is up 4K@30Hz. four HDMI input interfaces,which can be inserted in to HDMI video sources individually or at the same time,without mutual influence,video capture is very smooth and no delay.
4 IN 1 Seamless HDMI Switch: 4 Port Video Capture Card/ HDMI Switch allows up to 4input devices to be connected, and it is equipped with a wireless remote control to seamlessly switch, avoiding continuous unp
Dimensions4.45 x 2.2 x 0.71 inches
Weight0.352 ounces
Package Content1 x 4 port HDMI Switch Video Capture Card
1 x USB 3.0 to USB 3.0 Cable
1 x USB 3.0 to Type-C Cable
1 x User Manual
1 x IR Remote
OptionHDMI - 4K

Questions about this item

How much desk space does the 4.45 x 2.2 x .71 inch capture box need?

The unit measures 4.45 by 2.2 by .71 inches and weighs .352 ounces, so it fits on any flat surface without brackets or rack ears.

What is the driver-free setup step that users often skip?

Connect the USB 3.0 cable to the computer, then select the correct input with the IR remote before opening your capture software; skipping the input selection shows a black screen.

Which cables or adapters will need replacement after heavy daily use?

The included USB 3.0-to-USB 3.0 and USB 3.0-to-Type-C cables are the only consumable links; the HDMI ports and 3.5 mm audio jack are fixed on the chassis.
