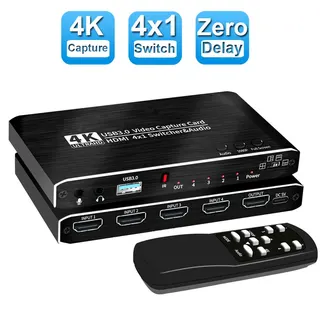

Black rectangular capture box with four HDMI inputs, one USB 3.0 port and IR remote

ESTONE

ESTONE OZC7 4×1 4K@30Hz Video Capturing Device

SKU CH-GA9G-D7RNM

A four-input HDMI switch and capture device records 1080p60 over USB 3.0 while passing 4K30 video to a display

  • InterfaceUSB 3.0
  • Resolution Support4K
  • Camera ResolutionUp to 4K Video
  • ColorBlack
  • AudioYes
  • HDMI1 Input/3 Output
  • Capture four HDMI sources simultaneously with 4K@30Hz pass-through
  • Record or stream at 1080p60 via USB 3.0 to PC or Mac
  • Switch inputs seamlessly using IR remote or five view modes
  • Mix microphone audio with HDMI sources through dedicated 3.5 mm jack
  • Compact 4.45 × 2.2 × .71 in design weighs only .352 oz

Four-Input HDMI Capture and Switch

The ESTONE OZC7 accepts four HDMI sources and a microphone, then routes video and audio to a single USB 3.0 connection for recording or streaming on a computer or smartphone. It also provides one HDMI loop-out and a 3.5 mm audio output for local monitoring. An IR remote lets you change sources without touching the unit.

Sustained Capture Behaviour

During extended sessions the USB 3.0 link delivers up to 1080p at 60 fps or 1080p at 30 fps, while the HDMI pass-through maintains 4K at 30 Hz without frame drops. Five view modes allow picture-in-picture or quad layouts so all four inputs stay visible continuously. The aluminium chassis dissipates heat without active cooling.

Deciding Specification

The maximum USB capture resolution is 1080p at 60 fps, so buyers who need 4K recording over USB should choose a different device. The HDMI output does pass 4K at 30 Hz for local display or downstream switching. This constraint defines whether the OZC7 fits a given workflow.

Highlights

  • Capture four HDMI sources simultaneously with 4K@30Hz pass-through
  • Record or stream at 1080p60 via USB 3.0 to PC or Mac
  • Switch inputs seamlessly using IR remote or five view modes
  • Mix microphone audio with HDMI sources through dedicated 3.5 mm jack
  • Compact 4.45 × 2.2 × .71 in design weighs only .352 oz

Specifications

BrandESTONE
SeriesOZC7
ModelOZC7
InterfaceUSB 3.0
Resolution Support4K
Camera ResolutionUp to 4K Video
ColorBlack
AudioYes
HDMI1 Input/3 Output
USB Port1
LED IndicatorYes
SpecificationInput: HDMI Port x 4, Mic Port x 1
Output: USB3.0 Port x 1, HDMI x 1, Audio x 1
HDMI Video Input: 4K@30Hz HDMI HD interface
HDMI Audio Input: LPCM
Audio Signal Output Color Space: YUY2, RGB24,MJPEG
With ultra HD(4K) game capture, you can record the game more easily.
No need to install any driver, you can use any 3rd party software to capture or stream your HD game , or other HD video source.
The video capture card switcher can be used for video conference, game collection, multimedia teaching scenario etc, it has superior performance and compatibility than the previous versions.
Supp

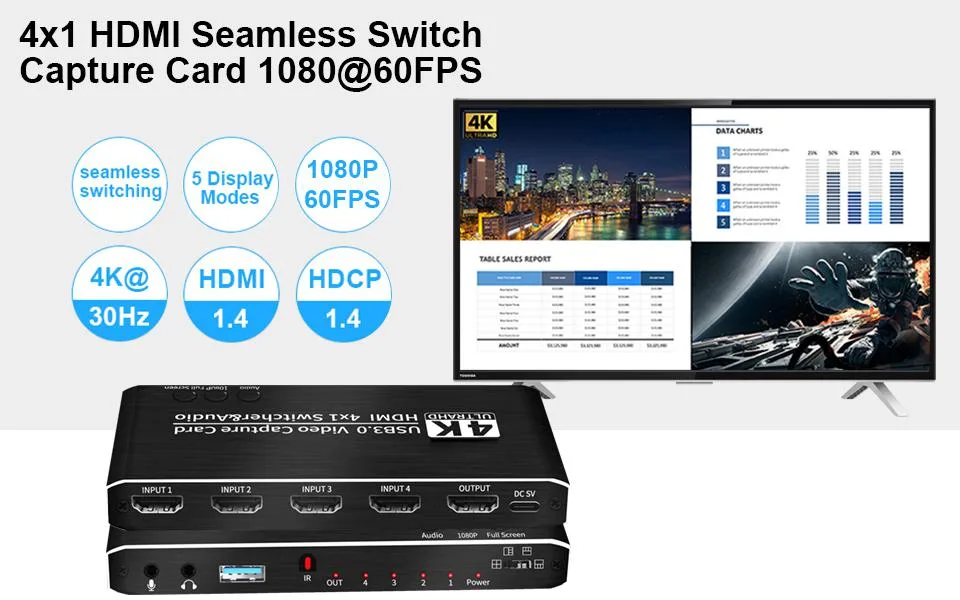

Feature4K Ultra Game Capture Card: The 4x1 video capture card supports 4K@30fps pass through for HDMI 1.4 input and output. The USB 3.0 output is maximum to 1080@60fps, the max HDMI input and output is up 4K@30Hz. four HDMI input interfaces,which can be inserted in to HDMI video sources individually or at the same time,without mutual influence,video capture is very smooth and no delay.
4 IN 1 Seamless HDMI Switch: 4 Port Video Capture Card/ HDMI Switch allows up to 4input devices to be connected, and it is equipped with a wireless remote control to seamlessly switch, avoiding continuous unp
Dimensions4.45 x 2.2 x 0.71 inches
Weight0.352 ounces
Package Content1 x 4 port HDMI Switch Video Capture Card
1 x USB 3.0 to USB 3.0 Cable
1 x USB 3.0 to Type-C Cable
1 x User Manual
1 x IR Remote
OptionHDMI - 4K

Questions about this item

Does the ESTONE OZC7 run hot or draw much power when capturing four 4K@30Hz sources all day?

The unit is passively cooled with no fan; it draws power from the USB 3.0 bus and stays cool during extended capture sessions.

What cables or host ports must I already have to use the OZC7 out of the box?

You need a free USB 3.0 Type-A or Type-C port on the computer; both matching cables are included in the package.

Will my older 1080p cameras work alongside a new 4K source through the four HDMI inputs?

Yes — each of the four HDMI inputs accepts up to 4K@30Hz and down-scales automatically, so 1080p devices mix freely with 4K sources.
