Black rectangular capture card with three HDMI inputs, one USB 3.0 output, mic and audio ports, LED indicator

ESTONE

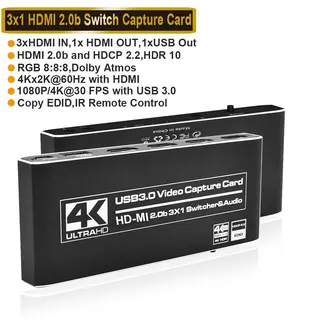

ESTONE OZC6 3X1 HDMI Capture Card 4K 60fps

SKU CH-BEY2-4JGKG

A 3-input HDMI switch and capture card passes 4K 60 Hz through HDMI while recording up to 4K 30 fps via USB 3.0, adds a microphone input and audio output, and includes a remote control

  • InterfaceUSB 3.0
  • Resolution Support4K
  • Camera ResolutionUp to 4K Video
  • ColorBlack
  • AudioYes
  • HDMI1 Input/3 Output
  • Capture 4K gameplay at 60 frames per second
  • Pass-through keeps 4K 60 Hz on your display
  • Three HDMI inputs plus mic for flexible sources
  • USB 3.0 and USB-C cables included for broad device support
  • Driver-free operation works with any third-party streaming software

What this capture card does

The ESTONE OZC6 captures one HDMI source at up to 4K 60 Hz and passes it through an HDMI loop-out at the same rate. It also accepts a microphone input and sends video to a PC over USB 3.0. The device is aimed at streamers, educators and anyone recording gameplay or presentations without installing drivers.

USB 3.0 bandwidth limits the recorded stream

Over the USB 3.0 link the card delivers a maximum of 4K at 30 fps, while the HDMI loop-out maintains 4K at 60 fps. Colour space options are YUY2 and RGB24, and audio arrives as LPCM. Your computer and capture software must support the chosen resolution and frame rate for the pipeline to work.

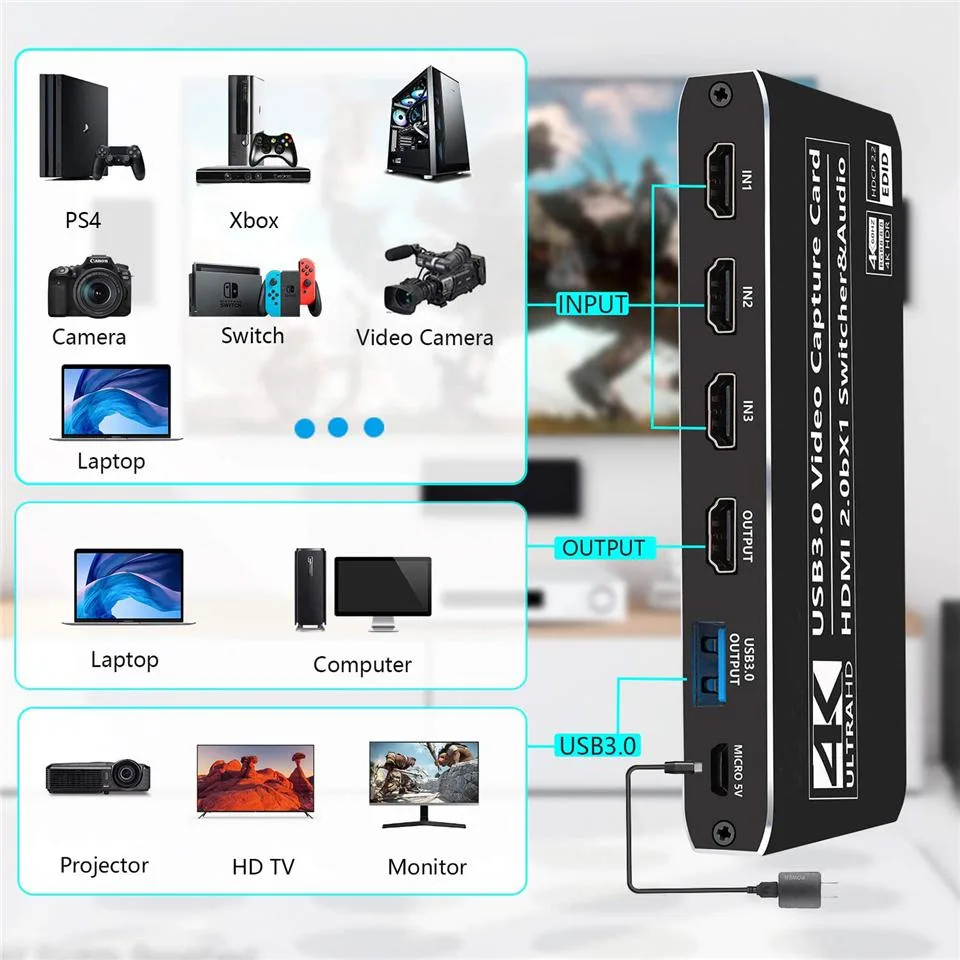

Three HDMI inputs selectable by remote

The unit provides three HDMI inputs that you switch with the included IR remote, so only one source is active at a time. If you need simultaneous multi-source capture or internal PCIe bandwidth, this external switcher will not meet that requirement.

Highlights

  • Capture 4K gameplay at 60 frames per second
  • Pass-through keeps 4K 60 Hz on your display
  • Three HDMI inputs plus mic for flexible sources
  • USB 3.0 and USB-C cables included for broad device support
  • Driver-free operation works with any third-party streaming software

Specifications

BrandESTONE
SeriesOZC6
ModelOZC6
InterfaceUSB 3.0
Resolution Support4K
Camera ResolutionUp to 4K Video
ColorBlack
AudioYes
HDMI1 Input/3 Output
USB Port1
LED IndicatorYes

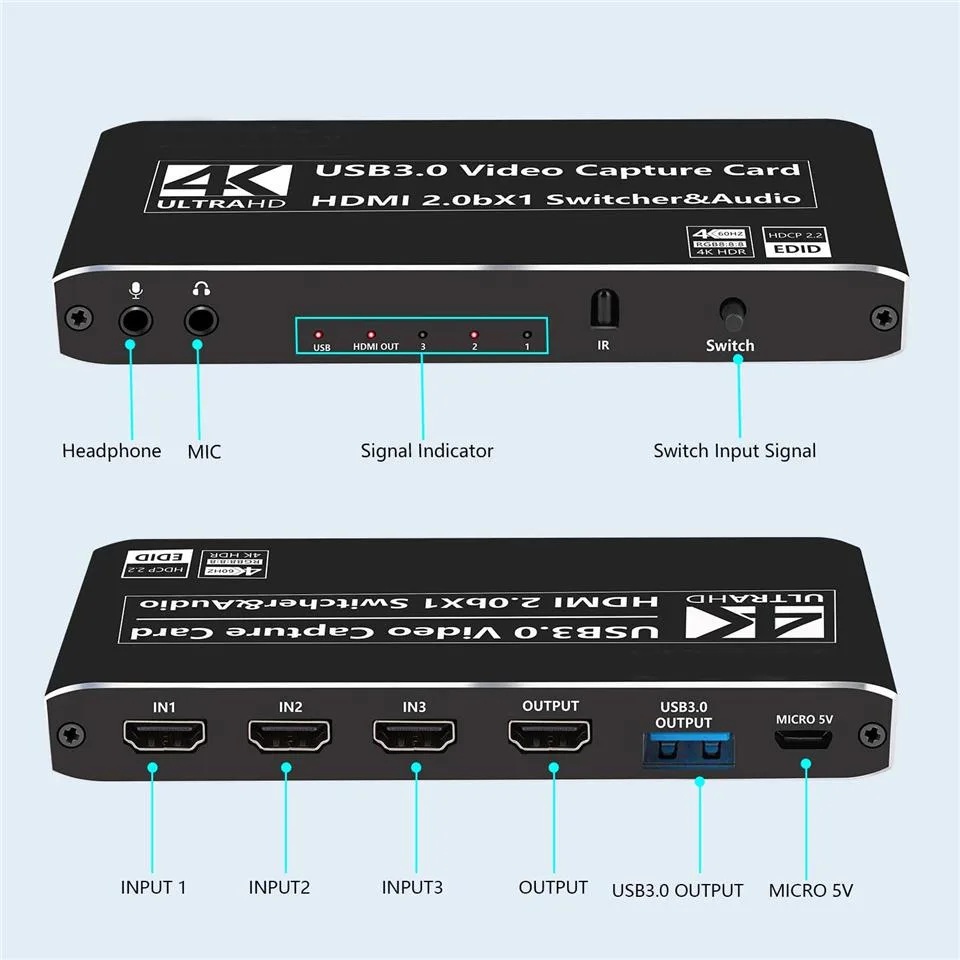

SpecificationInput: HDMI Port x 3, Mic Port x 1
Output: USB3.0 Port x 1, HDMI x 1, Audio x 1
HDMI Video Input: 4K@60Hz HDMI HD interface
HDMI Audio Input: LPCM
Audio Signal Output Color Space: YUY2, RGB24
With ultra HD(4K) game capture, you can record the game more easily.
No need to install any driver, you can use any 3rd party software to capture or stream your HD game , or other HD video source.
The video capture card switcher can be used for video conference, game collection, multimedia teaching scenario etc, it has superior performance and compatibility than the previous versions.
Support 4K
FeatureEasy to carry and good compatibility: 4K@60Hz HD-MI to USB3.0 video capture card, easy to carry, superior performance, good compatibility, simple installation, powerful features, etc., can collect 1 HD-MI input signal
4Kx2K With 30FPS,Support HDCP: The HD video capture card can support HDCP 4Kx2K with 30FPS and 1080P with 60FPS, it is very suitable to use it for game live streaming.
Faster Data Transmition: USB3.0 high speed transmission port,let your live streaming to Twitch, Youtube, OBS, Potplayer and VLC more easily.
ZERO Latency HD-MI Loopout: There is no latency when you use th
Dimensions4.45 x 2.2 x 0.71 inches
Weight0.352 ounces
Package Content1 x 4K@60Hz HDMI Audio Video Capture Card
1 x USB 3.0 to USB 3.0 Cable
1 x USB 3.0 to Type-C Cable
1 x HDMI to HDMI Cable
1 x User Manual
1 x IR Remote
OptionHDMI - 4K

Questions about this item

Should I pick the 4K or 1080P option for my setup?

The card is a single 4K model that accepts three HDMI inputs at up to 4K 60 Hz and passes through 4K 60 Hz on its HDMI output while the USB 3.0 capture path tops out at 4K 30 fps or 1080p 60 fps.

What does the 4K 60 fps headline mean once the card is in my PC?

You can preview and pass through 4K 60 Hz on the HDMI loop-out, but the recorded or streamed signal over USB 3.0 is limited to 4K 30 fps or 1080p 60 fps depending on the software you choose.

How does the USB 3.0 interface cap what I can actually capture?

USB 3.0 bandwidth restricts capture to 4K at 30 fps or 1080p at 60 fps in YUY2 or RGB24 colour space, while the HDMI loop-out still delivers 4K 60 Hz to your display.
