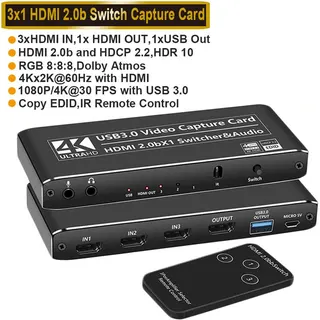

Small black rectangular capture box with three HDMI inputs, one HDMI output, USB 3.0 port, microphone jack and IR remote

ESTONE

ESTONE OZC6 3×1 4K@60 Hz HDMI Switch Video Capturing Device

SKU CH-TMDW-YQCQ7

A 3×1 HDMI switch with 4K 60 Hz pass-through and USB 3.0 capture up to 4K 30 fps, plus microphone input and IR remote control

  • InterfaceUSB 3.0
  • Resolution Support4K
  • Camera ResolutionUp to 4K Video
  • ColorBlack
  • AudioYes
  • HDMI1 Input/3 Output
  • Capture and stream gameplay at 4K 60 fps pass-through
  • Record or broadcast to PC and Mac via USB 3.0 at up to 4K 30 fps
  • Switch between three HDMI sources with included IR remote
  • Add live commentary using the dedicated microphone input
  • Compact aluminium chassis measures 4.45 × 2.2 × .71 inches and weighs .352 ounces

ESTONE OZC6 3×1 HDMI switch capture

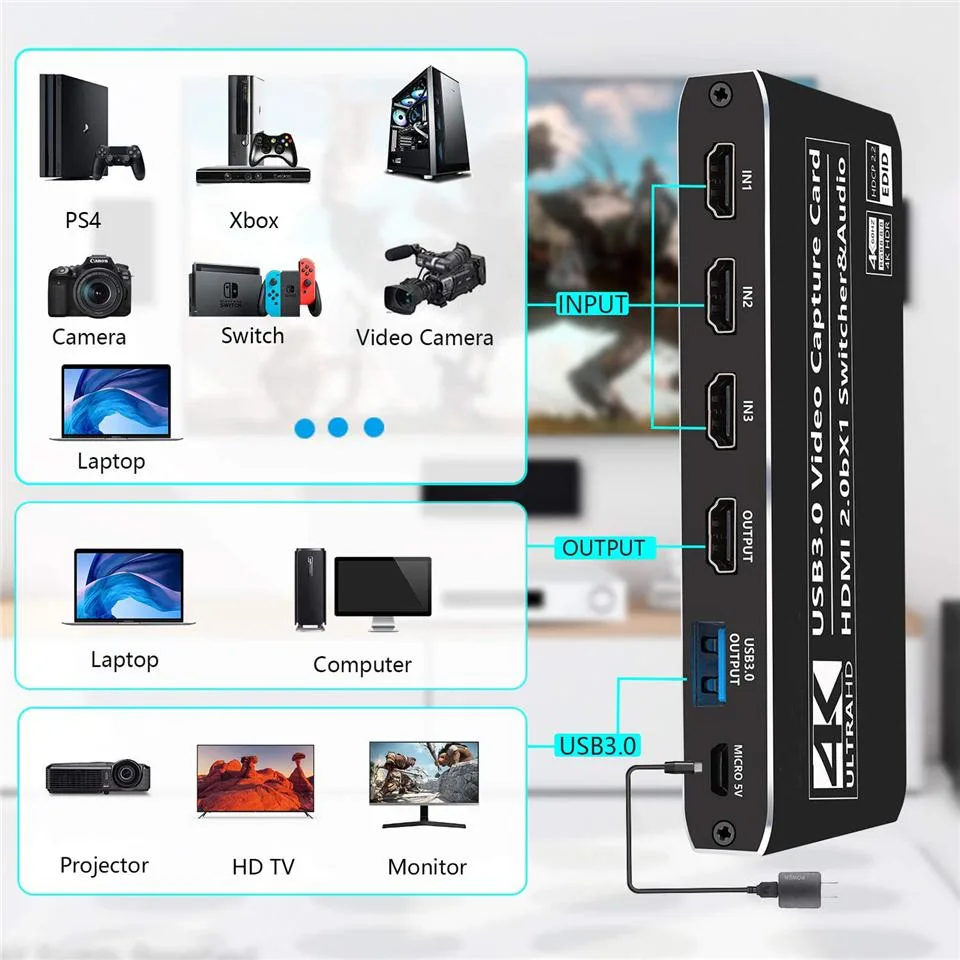

The ESTONE OZC6 is a compact video capturing device that combines a three-input HDMI switch with a USB 3.0 capture engine. It accepts three HDMI sources and a microphone input, then streams or records the selected signal to a PC or Mac. Content creators, educators and gamers can switch between consoles, cameras or PCs without unplugging cables.

Passive operation with USB bus power

The unit draws power from the USB 3.0 connection and adds no fan or active cooling, so it runs silently during normal use. An LED indicator shows the active input and signal status. The aluminium enclosure dissipates the modest heat generated by the capture bridge without audible noise.

USB 3.0 capture limited to 4K 30 fps

HDMI pass-through delivers 4K at 60 fps to a display, but the USB 3.0 output tops out at 4K 30 fps or 1080p 60 fps. Buyers who need 4K 60 fps recording over USB must choose a different capture solution.

Highlights

  • Capture and stream gameplay at 4K 60 fps pass-through
  • Record or broadcast to PC and Mac via USB 3.0 at up to 4K 30 fps
  • Switch between three HDMI sources with included IR remote
  • Add live commentary using the dedicated microphone input
  • Compact aluminium chassis measures 4.45 × 2.2 × .71 inches and weighs .352 ounces

Specifications

BrandESTONE
SeriesOZC6
ModelOZC6
InterfaceUSB 3.0
Resolution Support4K
Camera ResolutionUp to 4K Video
ColorBlack
AudioYes
HDMI1 Input/3 Output
USB Port1
LED IndicatorYes

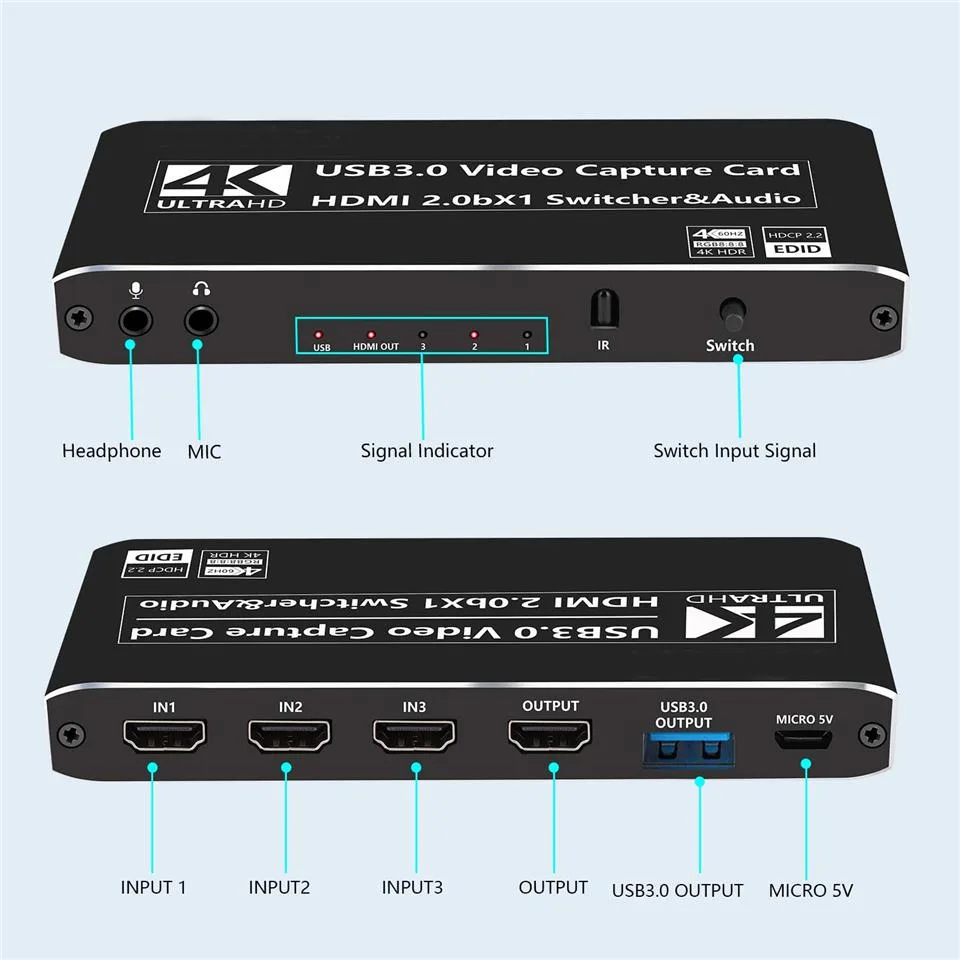

SpecificationInput: HDMI Port x 3, Mic Port x 1
Output: USB3.0 Port x 1, HDMI x 1, Audio x 1
HDMI Video Input: 4K@60Hz HDMI HD interface
HDMI Audio Input: LPCM
Audio Signal Output Color Space: YUY2, RGB24
With ultra HD(4K) game capture, you can record the game more easily.
No need to install any driver, you can use any 3rd party software to capture or stream your HD game , or other HD video source.
The video capture card switcher can be used for video conference, game collection, multimedia teaching scenario etc, it has superior performance and compatibility than the previous versions.
Support 4K
FeatureEasy to carry and good compatibility: 4K@60Hz HD-MI to USB3.0 video capture card, easy to carry, superior performance, good compatibility, simple installation, powerful features, etc., can collect 1 HD-MI input signal
4Kx2K With 30FPS,Support HDCP: The HD video capture card can support HDCP 4Kx2K with 30FPS and 1080P with 60FPS, it is very suitable to use it for game live streaming.
Faster Data Transmition: USB3.0 high speed transmission port,let your live streaming to Twitch, Youtube, OBS, Potplayer and VLC more easily.
ZERO Latency HD-MI Loopout: There is no latency when you use th
Dimensions4.45 x 2.2 x 0.71 inches
Weight0.352 ounces
Package Content1 x 4K@60Hz HDMI Audio Video Capture Card
1 x USB 3.0 to USB 3.0 Cable
1 x USB 3.0 to Type-C Cable
1 x HDMI to HDMI Cable
1 x User Manual
1 x IR Remote
OptionHDMI - 4K

Questions about this item

How do I connect the three HDMI sources and the microphone to the OZC6 capture device?

Connect each source to one of the three HDMI inputs, plug the microphone into the mic port, link the USB 3.0 output to the computer with the supplied USB 3.0 cable, and attach the HDMI loop-through to a display.

What cable or component will need replacement first with daily streaming use?

The included USB 3.0 to USB 3.0 cable and the USB 3.0 to Type-C cable are the only consumable parts; replace either if the connectors loosen or the sheath frays.

At what frame rate does the USB capture output cap out during long 4K sessions?

The USB 3.0 output is limited to 4K at 30 fps, while the HDMI loop-through maintains 4K at 60 fps.
