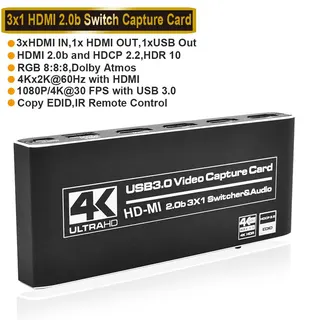

Small black rectangular capture card with three HDMI inputs, one HDMI output, USB 3.0 port, microphone jack and LED indicator

ESTONE

ESTONE OZC6 3×1 4K 60 Hz HDMI Capture Card

SKU CH-XY4G-KTVGG

Three HDMI inputs and a microphone feed into one USB 3.0 capture device with 4K 60 Hz pass-through and 4K 30 Hz recording

  • InterfaceUSB 3.0
  • Resolution Support4K
  • Camera ResolutionUp to 4K Video
  • ColorBlack
  • AudioYes
  • HDMI1 Input/3 Output
  • Capture 4K 60 Hz gameplay with 4K 30 fps USB output
  • Switch between three HDMI sources using the IR remote
  • Connect a microphone directly for live commentary
  • Loop out HDMI at 4K 60 Hz for zero-lag monitoring
  • Works driver-free with any third-party streaming software

What it is and who it’s for

The ESTONE OZC6 is a compact USB 3.0 capture device that accepts three HDMI sources and a microphone, then streams the selected feed to a PC or Mac at up to 4K 30 fps while passing the same signal to an HDMI display at 4K 60 fps. It targets streamers, educators and professionals who need to switch between multiple cameras or consoles without installing drivers.

Who it suits and who should look elsewhere

The card suits creators who want a portable three-input switcher with loop-out for local monitoring and direct microphone mixing. It does not suit users who require 4K 60 fps recording over USB, internal PCIe capture, or more than three HDMI sources, because the USB output is limited to 30 fps at 4K and the hardware provides only three inputs.

The spec that decides fit

The USB 3.0 output tops out at 4K 30 fps while the HDMI loop-out delivers 4K 60 fps, so the capture path determines the maximum recording frame rate. If your workflow demands 60 fps capture at 4K over USB, this device will not meet that requirement.

Highlights

  • Capture 4K 60 Hz gameplay with 4K 30 fps USB output
  • Switch between three HDMI sources using the IR remote
  • Connect a microphone directly for live commentary
  • Loop out HDMI at 4K 60 Hz for zero-lag monitoring
  • Works driver-free with any third-party streaming software

Specifications

BrandESTONE
SeriesOZC6
ModelOZC6
InterfaceUSB 3.0
Resolution Support4K
Camera ResolutionUp to 4K Video
ColorBlack
AudioYes
HDMI1 Input/3 Output
USB Port1
LED IndicatorYes

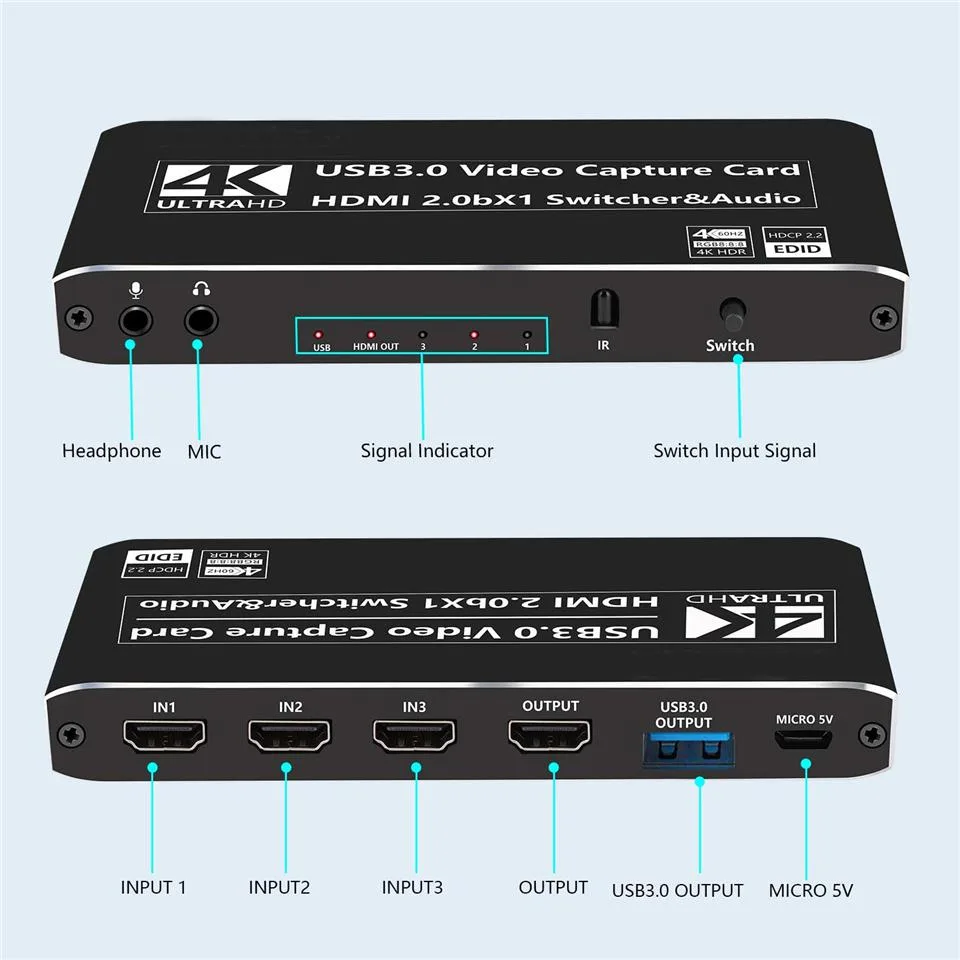

SpecificationInput: HDMI Port x 3, Mic Port x 1
Output: USB3.0 Port x 1, HDMI x 1, Audio x 1
HDMI Video Input: 4K@60Hz HDMI HD interface
HDMI Audio Input: LPCM
Audio Signal Output Color Space: YUY2, RGB24
With ultra HD(4K) game capture, you can record the game more easily.
No need to install any driver, you can use any 3rd party software to capture or stream your HD game , or other HD video source.

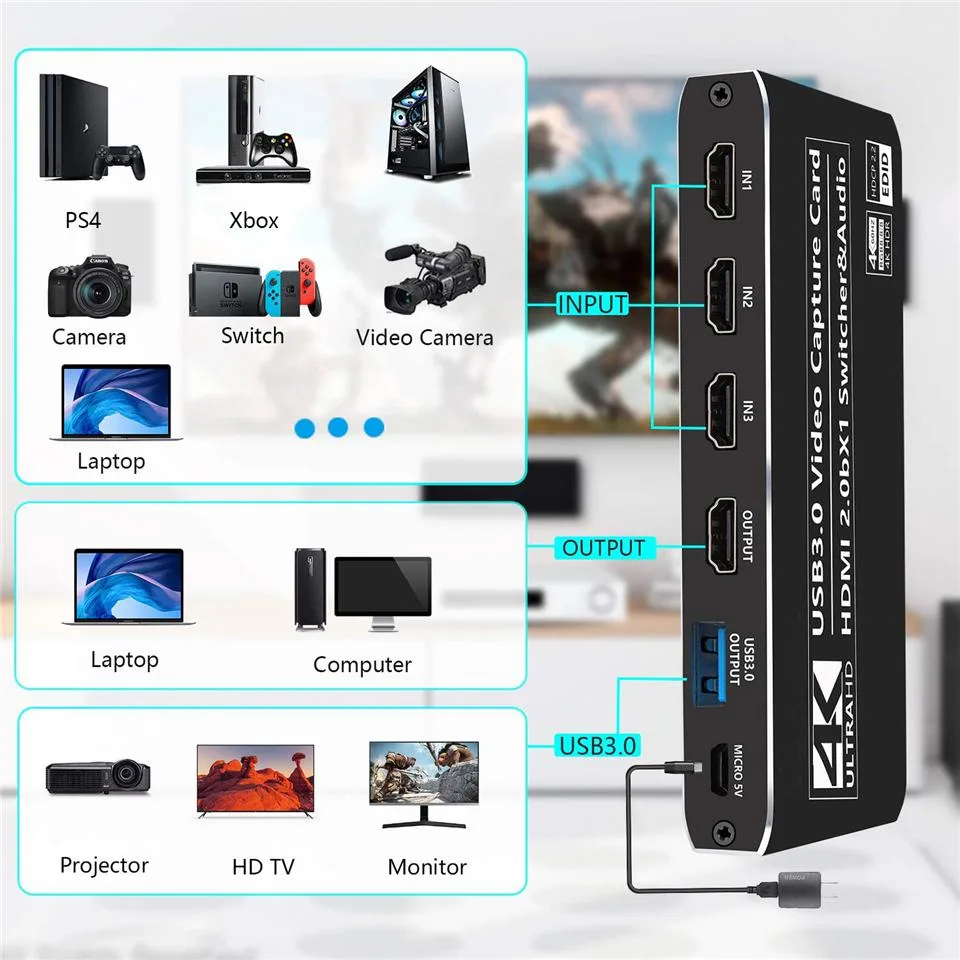

The video capture card switcher can be used for video conference, game collection, multimedia teaching scenario etc, it has superior performance and compatibility than the previous versions.
Support 4K
FeatureEasy to carry and good compatibility: 4K@60Hz HD-MI to USB3.0 video capture card, easy to carry, superior performance, good compatibility, simple installation, powerful features, etc., can collect 1 HD-MI input signal
4Kx2K With 30FPS,Support HDCP: The HD video capture card can support HDCP 4Kx2K with 30FPS and 1080P with 60FPS, it is very suitable to use it for game live streaming.
Faster Data Transmition: USB3.0 high speed transmission port,let your live streaming to Twitch, Youtube, OBS, Potplayer and VLC more easily.
ZERO Latency HD-MI Loopout: There is no latency when you use th
Dimensions4.45 x 2.2 x 0.71 inches
Weight0.352 ounces
Package Content1 x 4K@60Hz HDMI Audio Video Capture Card
1 x USB 3.0 to USB 3.0 Cable
1 x USB 3.0 to Type-C Cable
1 x HDMI to HDMI Cable
1 x User Manual
1 x IR Remote
OptionHDMI - 4K

Questions about this item

Will the 4K 60 Hz HDMI loop-out pass through to my existing 1080p monitor without downscaling the capture feed?

The HDMI output supports 4K at 60 fps pass-through, so a 1080p display will receive a signal it can handle while the USB 3.0 path captures at up to 4K 30 fps.

How do I confirm the OZC6 is capturing 4K 30 fps over USB 3.0 after I plug it in?

Open your capture software, set the input to 2160p at 30 fps, and verify the preview shows YUY2 or RGB24 colour space with no dropped frames.

Does the box include the three HDMI cables needed for the three inputs, or only the single HDMI-to-HDMI cable listed?

The package contains one HDMI-to-HDMI cable, one USB 3.0 to USB 3.0 cable, one USB 3.0 to Type-C cable, the IR remote and the user manual; extra HDMI cables for the other two inputs are not included.
