Black rectangular capture dongle with HDMI input, HDMI loop-out, USB 3.0 connector, microphone jack and LED indicator

ESTONE

ESTONE OZC5 4K@60Hz HDMI USB 3.0 Video Capturing Device

SKU CH-4KS5-7WX1H

Captures 4K 60 Hz HDMI input and records at 4K 30 fps or 1080p 60 fps via USB 3.0 with zero-latency loop-out

  • InterfaceUSB 3.0
  • Resolution Support4K
  • Camera ResolutionUp to 4K Video
  • ColorBlack
  • HDMI1 Input/1 Output
  • USB Port1
  • Capture 4K@60 Hz pass-through and record at 4K@30 fps or 1080p@60 fps
  • Zero-latency HDMI loop-out keeps gameplay and recording perfectly in sync
  • USB 3.0 high-speed link streams smoothly to Twitch, YouTube, OBS, PotPlayer, VLC
  • Driver-free plug-and-play on Linux, macOS, Windows 7/8/8.1/10
  • Compact 5.67 × 5.04 × 1.34 in design draws power from USB, no adapter needed

Capture Card for Streaming and Recording

The ESTONE OZC5 captures HDMI video at up to 3840*2160@60Hz and records at 4K@30fps or 1080p@60fps over USB 3.0. It supports HDR, EDID and HDCP 2.2 passthrough. A built-in HDMI loop-out delivers zero-latency pass-through to a display. No external power is required.

Upgrade from Basic USB 2.0 or Software Capture

The USB 3.0 interface provides the bandwidth needed for 1080p 60FPS recording without the compression artefacts or CPU load of software encoding. The jump is worth it when you need reliable high-frame-rate capture for live streaming to Twitch, YouTube, OBS, Potplayer or VLC. It replaces internal cards that need a free PCIe slot and case access.

Plug-and-Play Dongle for Windows, Mac and Linux

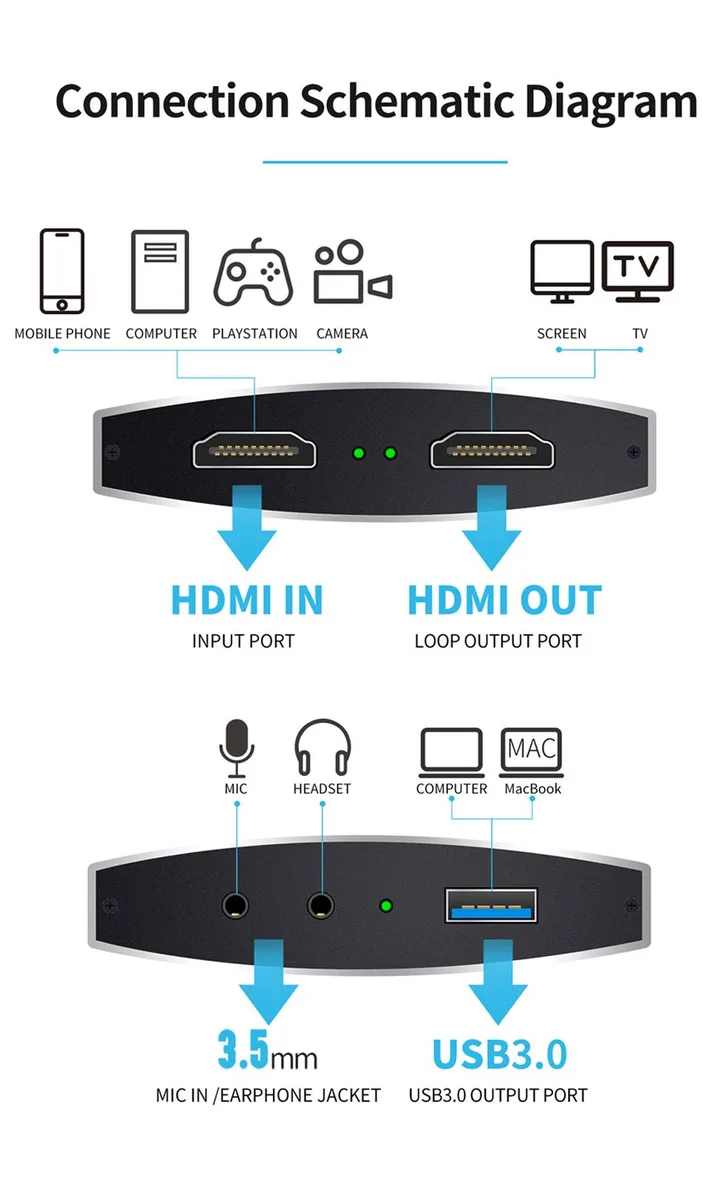

The device works driver-free on Windows 7/8/8.1/10, macOS and Linux. A single USB 3.0 cable handles both power and data. The HDMI input accepts signals from cameras, consoles or PCs, while the loop-out keeps a local monitor in sync. Its compact 5.67 x 5.04 x 1.34 inch form factor suits portable setups.

Highlights

  • Capture 4K@60 Hz pass-through and record at 4K@30 fps or 1080p@60 fps
  • Zero-latency HDMI loop-out keeps gameplay and recording perfectly in sync
  • USB 3.0 high-speed link streams smoothly to Twitch, YouTube, OBS, PotPlayer, VLC
  • Driver-free plug-and-play on Linux, macOS, Windows 7/8/8.1/10
  • Compact 5.67 × 5.04 × 1.34 in design draws power from USB, no adapter needed

Specifications

BrandESTONE
SeriesOZC5
ModelOZC5
InterfaceUSB 3.0
Resolution Support4K
Camera ResolutionUp to 4K Video
ColorBlack
HDMI1 Input/1 Output
USB Port1
LED IndicatorYes
CompatibilityThe Video Caputure Card supports max. Input and output resolution of 3840*2160@60Hz, with USB 3.0 records in 1080p 60FPS, suitable for Windows and Mac OS, widely compatible with HDMI-port devices, for example, Game console, DVD, TV, set-top box, DV, camcorder, PS4, PS3, Xbox One.
System RequirementsPlug and Play,No Need to Install Driver: It is compatible with Linux, Mac OS, windows 7/8/8.1/10, very easy to setup, there is no need to install driver.
Power SupplyNo need Power Supply
FeatureEasy to carry and good compatibility: 4K@60Hz HDMI to USB3.0 video capture card, easy to carry, superior performance, good compatibility, simple installation, powerful features, etc., can collect 1 HDMI input signal
4Kx2K With 30FPS,Support HDCP: The HD video capture card can support HDCP 4Kx2K with 30FPS and 1080P with 60FPS, it is very suitable to use it for game live streaming.
Faster Data Transmition: USB3.0 high speed transmission port,let your live streaming to Twitch, Youtube, OBS, Potplayer and VLC more easily.
ZERO Latency HDMI Loopout: There is no latency when you use the h
Dimensions5.67 x 5.04 x 1.34 inches
Weight5 ounces
Package Content1 x 4k@60Hz HDMI to USB3.0 Video Capture Card
1 x USB3.0 High Speed usb3.0 date cable
1 x Product Manual
Option4K

Questions about this item

What HDMI version does the loop-out port support for 4K@60Hz passthrough?

The HDMI loop-out supports HDMI 2.0 for 4K@60Hz RGB 8:8:8 passthrough, matching the input specification.

Which step do users often miss when connecting the capture card to a PC?

Users often forget to connect the included USB 3.0 cable to a USB 3.0 port; a USB 2.0 port will not provide enough bandwidth for 1080p60 capture.

Does the capture card require any firmware updates or driver maintenance over time?

No driver installation is required and the device is plug-and-play across Windows, Mac OS and Linux, so no firmware or driver maintenance is needed.
