ESTONE

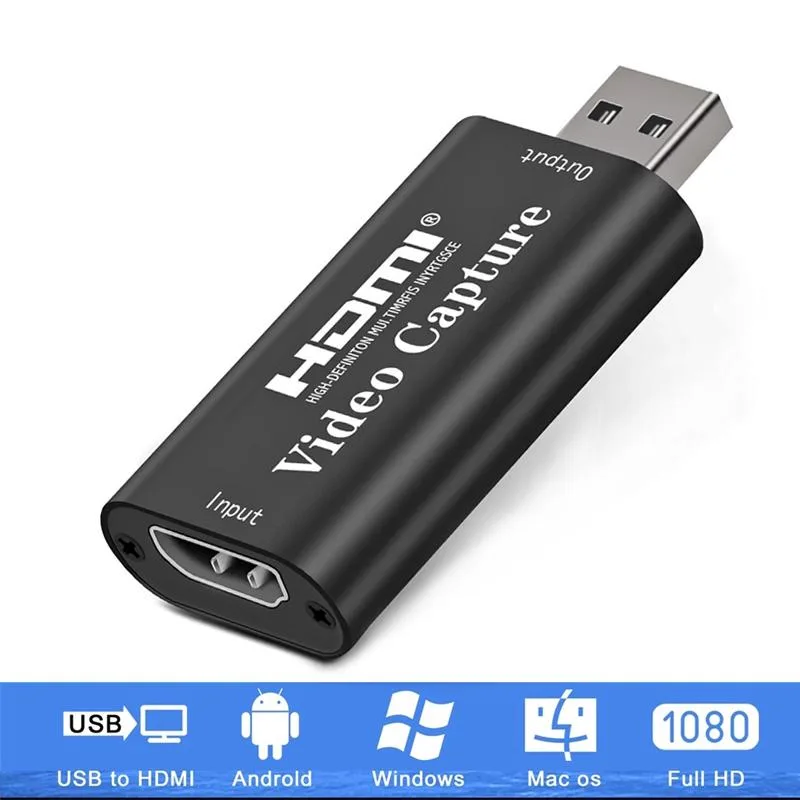

ESTONE OZC1 video capturing device HDMI 4K input 1080p USB 2.0
Captures 4K HDMI input and delivers 1080p 60 fps video over USB 2.0 for streaming, recording or conferencing on Windows, Mac or Linux
- InterfaceUSB 2.0
- FormatYUV / JPEG; Support audio format: L-PCM
- Resolution Support1080P
- Camera ResolutionUp to 1080p Video
- ColorBlack
- HDMI1 In
- Capture 4K 60 Hz input for high-detail sources
- Output 1080p 60 Hz for smooth streams and recordings
- Works with Windows, Mac and Linux without extra drivers
- Compatible with OBS, VLC and other popular capture software
- Compact 64 × 28 × 13 mm design fits any setup
Capture basics
The ESTONE OZC1 is a compact video capturing device that accepts an HDMI signal up to 3840x2160 at 60 Hz and delivers a USB 2.0 output capped at 1920x1080 at 60 Hz. It draws up to 0.4 A at 5 V and supports 8, 10 or 12 bit deep colour with L-PCM audio over YUV or JPEG formats.
Who it fits
Streamers and educators who need a simple, driver-free link from a DSLR, camcorder or action camera to Windows, Mac or Linux will find it works with OBS, VLC, Amcap and similar software. Buyers who require 4K capture, higher frame rates at 1080p or a USB 3.x connection for lower latency should look elsewhere.
Capacity and headroom
The device handles 1080p60 recording and streaming comfortably and can pass a 4K60 source down to 1080p without extra scaling hardware. It runs out of headroom when the workflow demands full 4K recording, high-bitrate 1080p beyond USB 2.0 bandwidth or cables longer than 15 metres at 1080p and below.
Highlights
- Capture 4K 60 Hz input for high-detail sources
- Output 1080p 60 Hz for smooth streams and recordings
- Works with Windows, Mac and Linux without extra drivers
- Compatible with OBS, VLC and other popular capture software
- Compact 64 × 28 × 13 mm design fits any setup
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZC1 |
| Model | OZC1 |
| Interface | USB 2.0 |
| Format | YUV / JPEG; Support audio format: L-PCM |
| Resolution Support | 1080P |
| Camera Resolution | Up to 1080p Video |
| Color | Black |
| HDMI | 1 In |
| USB Port | 1 |
| Software | Support most acquisition software, such as VLC / OBS / Amcap, etc |
| Compatibility | Compatible with Windows, Mac, and Linux. Easily connect your DSLR, camcorder, or action camera to your PC or Mac. Makes it easier for you to have real-time streaming for Twitch, Youtube, OBS, Potplayer and VLC |
| System Requirements | Connect your DSLR, camcorder or action camera to your Windows, MacOS and Linux. |
| Specification | Support Output Resolution: 1080P@60Hz Max Support Input Resolution: 4K @60Hz Max Support Color: 8/10/12bit deep color Support Cable: AWG26 HDMI standard cable, input up to 15 meters (1080P and below resolution); Video Output Format: YUV / JPEG; Support audio format: L-PCM Max Working Current: 0.4A/5V DC Operating Temperature Range: -10 to +55? Dimension: 64x28x13 (mm); Weight: 21.4g |
| Feature | HDMI audio and video signals can be transmitted to the computer and smartphone for preview and storage, now you can enjoy stunning real-time video streaming. It support HDMI input 3840x2160P and USB output (capture) 1920x1080P video and stereo sound. Connect (SLR camera, camcorder or motion camera) to (Windows, MacOS, Android or Linux) to easily get real-time streaming media from software such as OBS Studio, Zoom, Potplayer, Twitch, Youtube, and VLC. No driver or external power supply, suitable for high-definition acquisition, teaching recoding, Gaming, medical imaging, live streamin |
| Dimensions | 5.71 x 4.57 x 0.59 inches |
| Weight | 1.76 ounces |
| Package Content | Audio Video Capture Cards 1PCSUser Manual 1PCS |
| Option | HDMI and USB - 1080p |
Questions about this item
What type of HDMI cable and maximum length does the ESTONE OZC1 require for a reliable 1080p signal?
Use an AWG26 standard HDMI cable up to 15 metres for 1080p and lower resolutions; 4K signals need a certified 4K HDMI cable.
Will the capture card downscale a 4K 60 Hz source from my camera to 1080p 60 Hz for my older streaming PC?
Yes, it accepts 3840×2160 at 60 Hz input and outputs a maximum of 1920×1080 at 60 Hz over USB 2.0.
How can I confirm the OZC1 is capturing video correctly once plugged in?
Open OBS, VLC or Amcap; the device should appear as a video source showing 1080p preview with L-PCM audio and no dropped frames.
