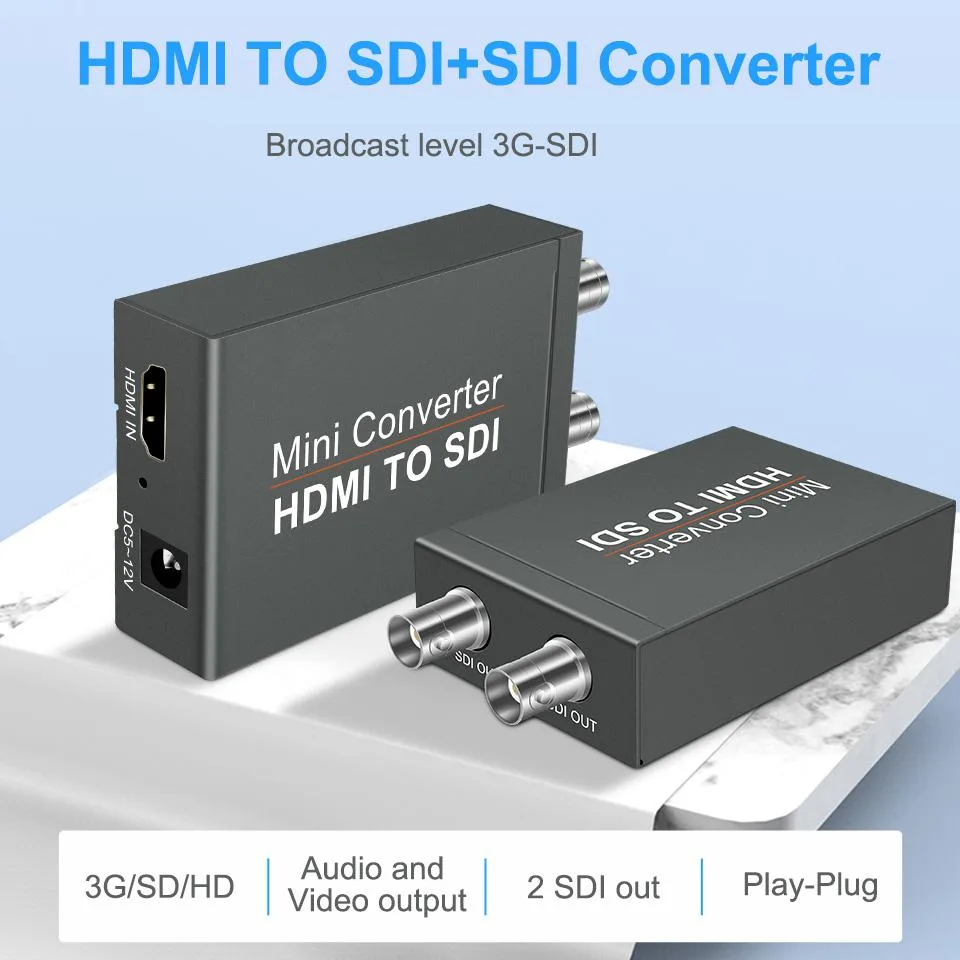

Small black rectangular converter with HDMI input and two BNC SDI outputs

ESTONE

ESTONE HDMI2SDI HDMI to SDI Converter 1080P 2 Output Black

SKU CH-804M-QFYGX

Converts one HDMI source to two SDI outputs at up to 1080p with embedded audio and automatic format detection

  • InterfaceHDMI to SDI
  • FormatInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • VideoInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50
  • Converts HDMI to dual SDI outputs for professional broadcasting
  • Supports 1080p 60 Hz input with embedded 8-channel audio
  • Auto-detects HD-SDI or 3G-SDI for each BNC port
  • Transmits 3G-SDI up to 100 m and HD-SDI up to 200 m
  • Draws power from the HDMI source — no external adapter required

HDMI to Dual 3G-SDI Converter

The ESTONE HDMI2SDI converts a single HDMI 1.3a source into two simultaneous SDI outputs, supporting SMPTE 259, 274, 292, 296, 372, 424 and 425 standards. It handles input resolutions from 480i up to 1080p at 60 Hz with embedded 8-channel audio. The unit requires no external power supply and includes built-in ESD protection for reliable operation in professional video workflows.

Integration Into a Broadcast Chain

Connect cameras, switchers or playback devices via the HDMI Type A input and feed two SDI monitors, recorders or transmission links from the dual BNC outputs. Automatic detection selects between SD-SDI, HD-SDI and 3G-SDI to match the incoming signal, while the 2.97 Gbit/s bit rate preserves full 10-bit colour depth. The compact 5.83 x 4.49 x 2.44 inch enclosure fits easily into rack drawers or portable kits.

Upgrade From Single-Output Adapters

This converter replaces basic HDMI-to-SDI dongles that offer only one BNC port, eliminating the need for a separate distribution amplifier when feeding two destinations. The jump is worth it for crews who regularly split a camera feed to a recorder and a director’s monitor, or for fixed installs driving a local display and a long-haul fibre link up to 100 metres at 3G-SDI or 200 metres at HD-SDI.

Highlights

  • Converts HDMI to dual SDI outputs for professional broadcasting
  • Supports 1080p 60 Hz input with embedded 8-channel audio
  • Auto-detects HD-SDI or 3G-SDI for each BNC port
  • Transmits 3G-SDI up to 100 m and HD-SDI up to 200 m
  • Draws power from the HDMI source — no external adapter required

Specifications

BrandESTONE
SeriesHDMI2SDI
ModelHDMI2SDI
InterfaceHDMI to SDI
FormatInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50/60Hz 800x600P@60Hz,1024x768P@60Hz 1280x800P@60Hz,1280x960P@60Hz,1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60Hz,1680x1050P@60Hz
Output SDI Format:720P@50/60Hz, 1080P@24/25/30/50/60Hz
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
VideoInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50/60Hz 800x600P@60Hz,1024x768P@60Hz 1280x800P@60Hz,1280x960P@60Hz,1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60Hz,1680x1050P@60Hz
Output SDI Format:720P@50/60Hz, 1080P@24/25/30/50/60Hz
HDMI1 In
SDI2 Out
LED IndicatorYes
DisplayThis HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.97 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display
Power SupplyNO need external power supply
Feature1.Supports 1ch HDMI input, 2ch SDI output
2.Embedded audio and image synchronization output
3.Support HDMI 1.3, HDCP1.3
4.Built-in ESD protection circuitry can effectively prevent electrostatic damage
Dimensions5.83 x 4.49 x 2.44 inches
Weight7.8 ounces
Package Content1 x HDMI to SDI Converter
1 x Power Adapter
1 x Uuse Manual
OptionHDMI - 1080p

Questions about this item

Does the HDMI2SDI converter need an external power supply to run continuously?

No, the unit draws power from the HDMI source so no external adapter is required for all‑day operation.

How much heat or fan noise does the HDMI2SDI produce during extended use?

The converter has no fan and runs cool because it is powered directly from the HDMI input, so it adds no audible noise or noticeable heat.

What cables and displays must I already own to use the HDMI2SDI?

You need one HDMI Type‑A source cable and up to two BNC‑terminated SDI cables connected to SD‑SDI, HD‑SDI or 3G‑SDI monitors.
