Compact black HDMI to SDI converter box with one HDMI port and two BNC outputs

ESTONE

ESTONE HDMI2SDI HDMI to SDI 1080P 3G HD SD-SDI Video Capturing Device

SKU CH-CE23-N4NNA

Converts HDMI to dual SDI outputs at 1080p with embedded audio, no external power required, and supports long-distance transmission up to 100 metres

  • InterfaceHDMI to SDI
  • FormatInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • VideoInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50
  • Converts HDMI to dual SDI for professional broadcast workflows
  • Embeds up to 8 audio channels with synchronised video output
  • Supports 1080p at 60 Hz and 720p at 50/60 Hz on both SDI ports
  • Transmits 3G-SDI up to 100 m and HD-SDI up to 200 m without external power
  • Auto-detects HD-SDI or 3G-SDI to match the incoming HDMI signal

HDMI to Dual SDI Converter

This ESTONE HDMI2SDI unit converts a single HDMI 1.3a source into two simultaneous SDI outputs. It accepts resolutions from 480i up to 1080p at 60 Hz with embedded audio. The converter targets broadcast engineers, AV installers and security integrators who need to feed professional SDI monitors or recorders from an HDMI camera or playback device.

3G-SDI Distance and Format Limits

The adapter auto-detects the input and outputs matching HD-SDI at 720p or 3G-SDI at 1080p. Maximum cable reach is 100 metres for 3G-SDI and 200 metres for HD-SDI. It does not support 4K, HDR or 12G-SDI workflows, and it cannot reverse the signal path from SDI back to HDMI. Audio is limited to 8-channel embedded streams at 24-bit 48 kHz.

Compact Plug-and-Play Installation

No external power supply is required; the unit draws power over the HDMI connection. Simply connect the HDMI source and two BNC cables to the SDI outputs. The only common issue is feeding an unsupported HDMI resolution or refresh rate, which results in no picture. Verify the source matches the listed input formats before deployment.

Highlights

  • Converts HDMI to dual SDI for professional broadcast workflows
  • Embeds up to 8 audio channels with synchronised video output
  • Supports 1080p at 60 Hz and 720p at 50/60 Hz on both SDI ports
  • Transmits 3G-SDI up to 100 m and HD-SDI up to 200 m without external power
  • Auto-detects HD-SDI or 3G-SDI to match the incoming HDMI signal

Specifications

BrandESTONE
SeriesHDMI2SDI
ModelHDMI2SDI
InterfaceHDMI to SDI
FormatInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50/60Hz 800x600P@60Hz,1024x768P@60Hz 1280x800P@60Hz,1280x960P@60Hz,1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60Hz,1680x1050P@60Hz
Output SDI Format:720P@50/60Hz, 1080P@24/25/30/50/60Hz
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
VideoInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50/60Hz 800x600P@60Hz,1024x768P@60Hz 1280x800P@60Hz,1280x960P@60Hz,1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60Hz,1680x1050P@60Hz
Output SDI Format:720P@50/60Hz, 1080P@24/25/30/50/60Hz

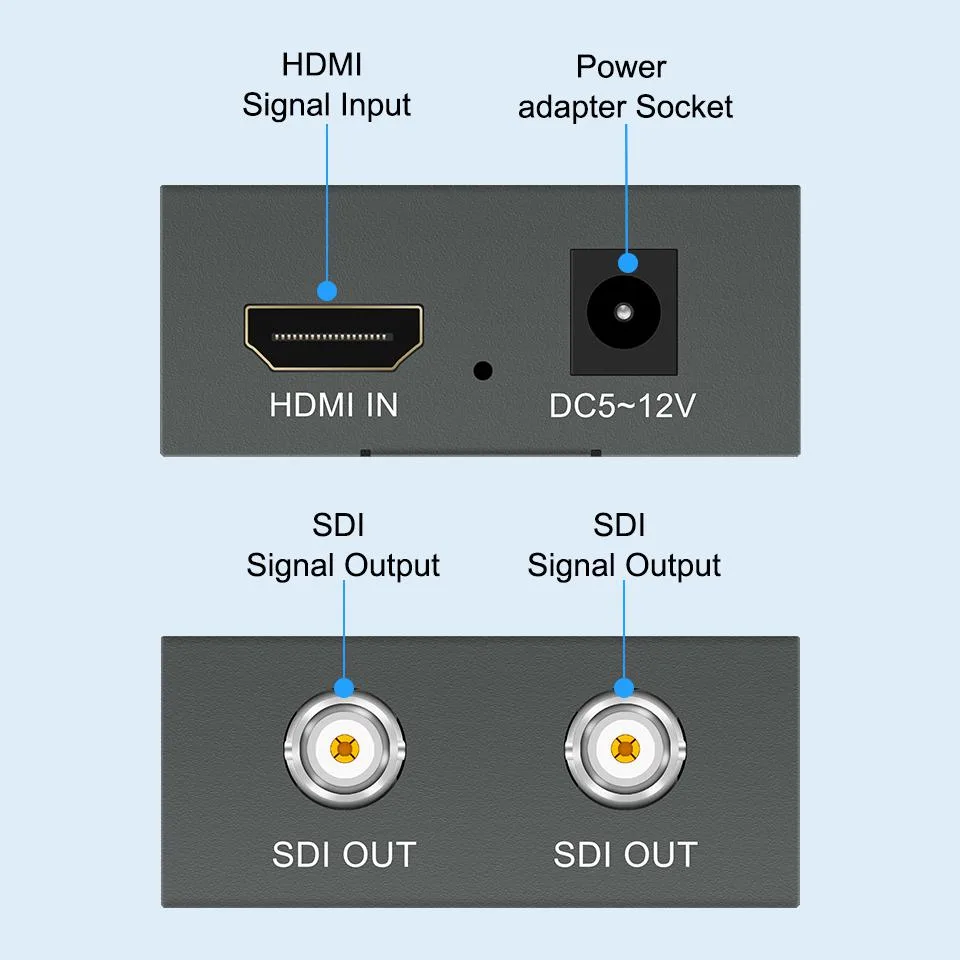

HDMI1 In
SDI2 Out
LED IndicatorYes
DisplayThis HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.97 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display
Power SupplyNO need external power supply
Feature1.Supports 1ch HDMI input, 2ch SDI output
2.Embedded audio and image synchronization output
3.Support HDMI 1.3, HDCP1.3
4.Built-in ESD protection circuitry can effectively prevent electrostatic damage
Dimensions5.83 x 4.49 x 2.44 inches
Weight7.8 ounces
Package Content1 x HDMI to SDI Converter
1 x Power Adapter
1 x Uuse Manual
OptionHDMI - 1080p

Questions about this item

Which option should I choose if I only need 1080p output?

The single option listed is HDMI - 1080p, which converts HDMI input up to 1080p60 to dual 3G-SDI or HD-SDI outputs with embedded audio.

What does the 2.97 Gbit/s rate mean for my SDI monitors?

It is the 3G-SDI bit rate, allowing 1080p50/60 signals to travel up to 100 metres on each BNC output without signal loss.

How does the HDMI 1.3a interface limit what I can send?

HDMI 1.3a caps input at 1080p60 8-bit or 10-bit with 8-channel 24-bit/48 kHz audio; higher resolutions or refresh rates are not supported.
