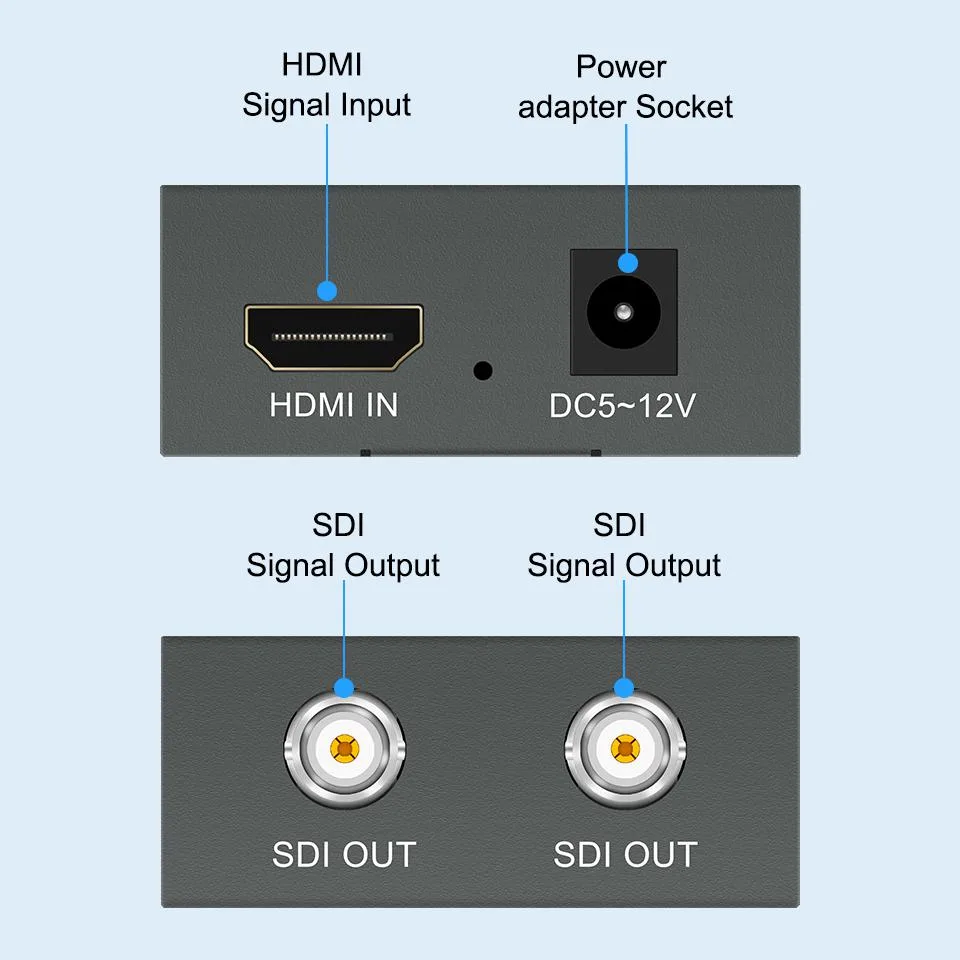

Black rectangular converter with HDMI input and dual SDI BNC outputs

ESTONE

ESTONE HDMI2SDI HDMI to Dual SDI Video Capturing Device 1080P

SKU CH-0Q6D-7G9YP

Converts HDMI to dual SDI outputs at up to 1080p with embedded audio, long-distance transmission and no external power required

  • InterfaceHDMI to SDI
  • FormatInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • VideoInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50
  • Converts HDMI to dual SDI outputs for simultaneous display
  • Supports 1080p at 60Hz with embedded audio synchronisation
  • Auto-detects SD-SDI, HD-SDI and 3G-SDI signal standards
  • Transmits 3G-SDI up to 100 metres and HD-SDI up to 200 metres
  • Operates without external power supply for portable use

HDMI to Dual SDI Converter for Broadcast

The ESTONE HDMI2SDI converts a single HDMI source into two simultaneous SDI outputs for professional cameras, monitors and long-distance video distribution. It accepts HDMI 1.3a input with embedded audio up to 1080p 60 Hz and auto-detects SD-SDI, HD-SDI or 3G-SDI formats on each BNC port. The compact unit requires no external power supply and includes built-in ESD protection for reliable operation in studio or field environments.

Passive Cooling and Low Power Operation

The converter runs without a fan or external adapter, drawing power directly from the HDMI source for silent operation in noise-sensitive settings such as recording rooms or conference suites. Its circuitry maintains a 2.97 Gbit/s bit rate across both outputs, delivering full 10-bit conversion and synchronised 8-channel audio without added latency or heat buildup during continuous use.

Replaces Separate Distribution Amplifiers and Cables

This single box replaces a distribution amplifier plus multiple cable runs when feeding two SDI displays or recorders from one HDMI camera or switcher. The jump is worth it for crews needing 100 m 3G-SDI or 200 m HD-SDI reach without signal degradation, but it does not serve workflows requiring SDI-to-HDMI conversion or resolutions beyond 1080p.

Highlights

  • Converts HDMI to dual SDI outputs for simultaneous display
  • Supports 1080p at 60Hz with embedded audio synchronisation
  • Auto-detects SD-SDI, HD-SDI and 3G-SDI signal standards
  • Transmits 3G-SDI up to 100 metres and HD-SDI up to 200 metres
  • Operates without external power supply for portable use

Specifications

BrandESTONE
SeriesHDMI2SDI
ModelHDMI2SDI
InterfaceHDMI to SDI
FormatInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50/60Hz 800x600P@60Hz,1024x768P@60Hz 1280x800P@60Hz,1280x960P@60Hz,1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60Hz,1680x1050P@60Hz
Output SDI Format:720P@50/60Hz, 1080P@24/25/30/50/60Hz
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
VideoInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50/60Hz 800x600P@60Hz,1024x768P@60Hz 1280x800P@60Hz,1280x960P@60Hz,1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60Hz,1680x1050P@60Hz
Output SDI Format:720P@50/60Hz, 1080P@24/25/30/50/60Hz
HDMI1 In
SDI2 Out
LED IndicatorYes
DisplayThis HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.97 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display
Power SupplyNO need external power supply
Feature1.Supports 1ch HDMI input, 2ch SDI output
2.Embedded audio and image synchronization output
3.Support HDMI 1.3, HDCP1.3
4.Built-in ESD protection circuitry can effectively prevent electrostatic damage
Dimensions5.83 x 4.49 x 2.44 inches
Weight7.8 ounces
Package Content1 x HDMI to SDI Converter
1 x Power Adapter
1 x Uuse Manual
OptionHDMI - 1080p

Questions about this item

How do I connect the ESTONE HDMI2SDI converter to my camera and two SDI monitors, and what step do users often miss?

Connect the camera HDMI output to the Type A input using a standard HDMI cable, then run BNC cables from the two SDI outputs to each monitor; the step often missed is confirming the camera outputs one of the listed HDMI formats such as 1080P@50/60Hz so the converter can auto-detect and match the SDI signal.

What maintenance or replacement will the ESTONE HDMI2SDI need during long-term use?

The unit has no fan or moving parts and draws power from the included adapter, so routine maintenance is limited to checking the BNC connectors for corrosion and replacing the external power adapter if it fails; the built-in ESD protection helps prevent electrostatic damage to the internal circuitry.

What is the first limit I will hit when running the ESTONE HDMI2SDI continuously at 1080P 60Hz?

The converter supports a maximum SDI cable run of 100 meters at 3G-SDI (1080P@50/60Hz) before signal degradation becomes the limiting factor; the 2.97 Gbit/s bit-rate and automatic format detection remain stable as long as the cable length stays within that distance.
