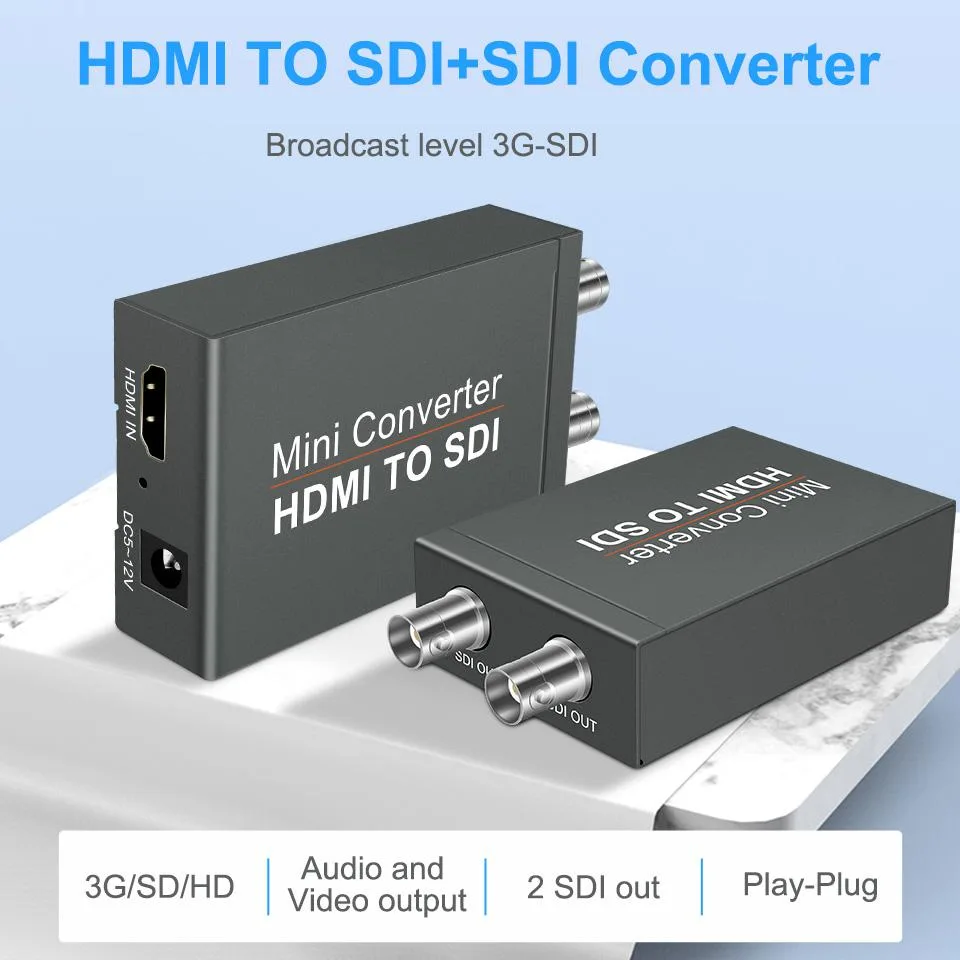

Small black box with HDMI input and two BNC SDI outputs

ESTONE

ESTONE HDMI2SDI 1080p HDMI to Dual SDI Video Capturing Device

SKU CH-WSJX-GAV52

Converts an HDMI source to dual SDI outputs at up to 1080p resolution with embedded audio and automatic signal detection

  • InterfaceHDMI to SDI
  • FormatInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • VideoInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50
  • Converts HDMI to dual SDI outputs for professional workflows
  • Supports 1080p 60 Hz input with embedded 8‑channel audio
  • Auto‑detects SD‑SDI, HD‑SDI and 3G‑SDI signal standards
  • Transmits 3G‑SDI up to 100 m and HD‑SDI up to 200 m
  • Operates without external power supply for portable use

HDMI-to-dual-SDI converter for broadcast workflows

This ESTONE HDMI2SDI unit accepts a single HDMI 1.3a source and produces two simultaneous SDI outputs. It handles 480i through 1080p60 input formats and auto-detects whether each SDI port should carry SD-SDI, HD-SDI or 3G-SDI. The converter is aimed at engineers who need to feed professional SDI monitors or recorders from an HDMI camera or switcher.

Power adapter and manual simplify first use

A 5 V external power supply is included so the device runs without drawing current from the HDMI source. The quick-start manual walks through the automatic format detection, eliminating the need for DIP-switch configuration. Embedded audio up to eight channels at 24-bit/48 kHz passes through both SDI streams in sync with video.

Compact metal enclosure installs in minutes

The 5.83 by 4.49 by 2.44 inch chassis weighs 7.8 ounces and fits on a desktop or in a rack shelf without brackets. BNC connectors lock securely, preventing accidental disconnects during long cable runs. The only common issue is forgetting that the converter is one-way; it cannot accept an SDI signal and output HDMI.

Highlights

  • Converts HDMI to dual SDI outputs for professional workflows
  • Supports 1080p 60 Hz input with embedded 8‑channel audio
  • Auto‑detects SD‑SDI, HD‑SDI and 3G‑SDI signal standards
  • Transmits 3G‑SDI up to 100 m and HD‑SDI up to 200 m
  • Operates without external power supply for portable use

Specifications

BrandESTONE
SeriesHDMI2SDI
ModelHDMI2SDI
InterfaceHDMI to SDI
FormatInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50/60Hz 800x600P@60Hz,1024x768P@60Hz 1280x800P@60Hz,1280x960P@60Hz,1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60Hz,1680x1050P@60Hz
Output SDI Format:720P@50/60Hz, 1080P@24/25/30/50/60Hz
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
VideoInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50/60Hz 800x600P@60Hz,1024x768P@60Hz 1280x800P@60Hz,1280x960P@60Hz,1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60Hz,1680x1050P@60Hz
Output SDI Format:720P@50/60Hz, 1080P@24/25/30/50/60Hz

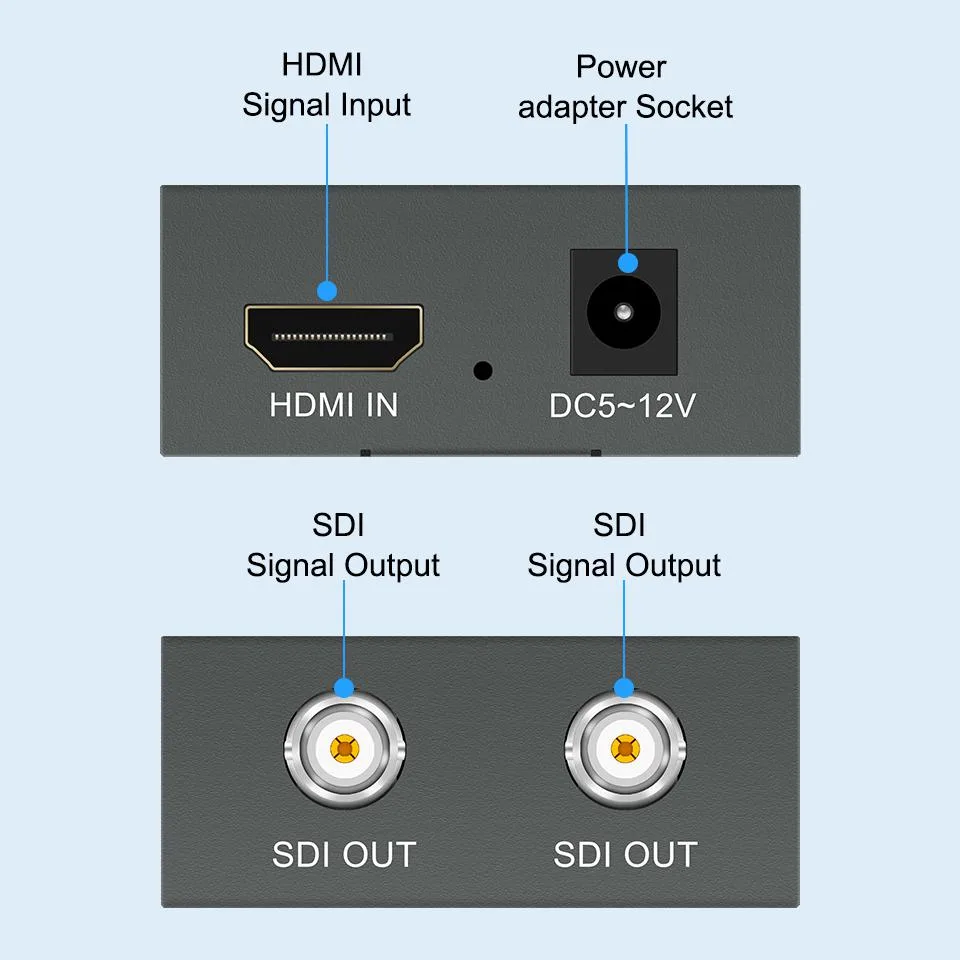

HDMI1 In
SDI2 Out
LED IndicatorYes
DisplayThis HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.97 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display
Power SupplyNO need external power supply
Feature1.Supports 1ch HDMI input, 2ch SDI output
2.Embedded audio and image synchronization output
3.Support HDMI 1.3, HDCP1.3
4.Built-in ESD protection circuitry can effectively prevent electrostatic damage
Dimensions5.83 x 4.49 x 2.44 inches
Weight7.8 ounces
Package Content1 x HDMI to SDI Converter
1 x Power Adapter
1 x Uuse Manual
OptionHDMI - 1080p

Questions about this item

Will the built-in ESD protection circuitry need any maintenance or replacement over time?

The built-in ESD protection circuitry is designed to prevent electrostatic damage during normal operation and does not require scheduled maintenance or replacement.

What is the first limit reached when running the converter continuously at 1080p 60Hz with embedded audio?

The primary limit is the 2.97 Gbit/s bit rate ceiling of the 3G-SDI outputs, which caps resolution at 1080p 60Hz and cannot be exceeded.

How much heat or noise does the unit produce when powered all day without an external power supply?

The compact 5.83 x 4.49 x 2.44 inch enclosure runs silently with no fan; heat stays low because the device draws power directly from the HDMI source.
